JBL Control 12C/T Compact Ceiling Speaker – Black
The JBL Control 12C/T-BK is a compact full-range ceiling speaker with a 76 mm driver, 130° coverage, integrated backcan, 20 W low-impedance or 70V/100V operation, and a paintable black UL94-V0 baffle for quick installation in plenum spaces.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 646.02 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL Control 12C/T-BK 76 mm (3″) Full-Range Compact Ceiling Speaker

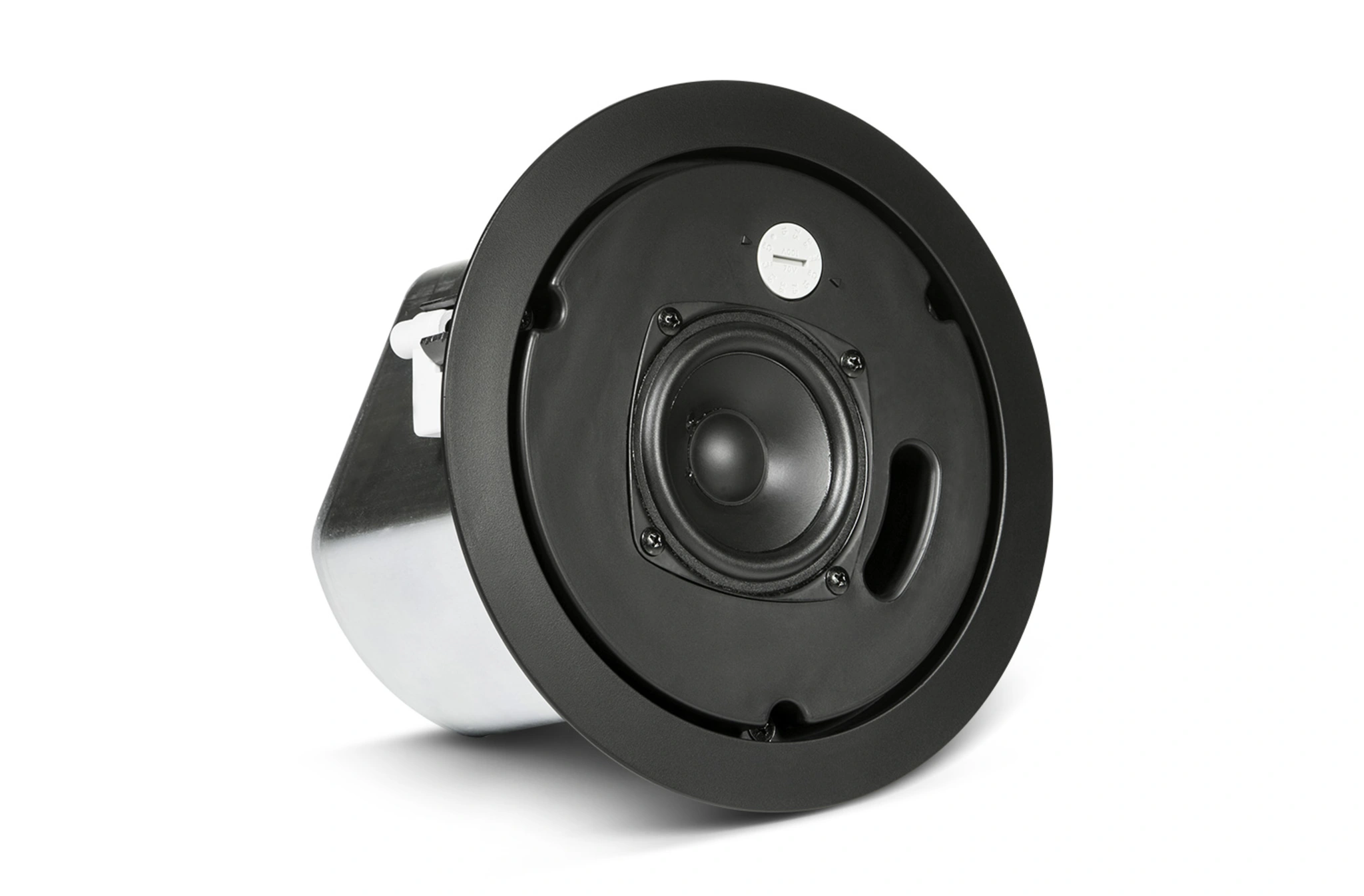

The JBL Control 12C/T-BK is a sleek black in-ceiling loudspeaker designed for high-quality background or foreground audio applications. It features a 76 mm (3 in) full-range driver with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, and high-temperature aluminum coupling ring, delivering clear, low-distortion sound across a wide 130° conical coverage. Origin of country China.
The integrated zinc-plated steel backcan and ABS baffle with UL94-V0 and UL94-5VB fire rating provide plenum safety and durability. This model supports both 70V/100V multi-tap transformer operation and 8Ω low-impedance direct input, making it flexible for a variety of installation scenarios. Its shallow profile allows for quick mounting in ceilings up to 35 mm (1.4 in) thick using included dog-ears, with optional accessories extending fit for ceilings up to 55 mm (2.2 in).

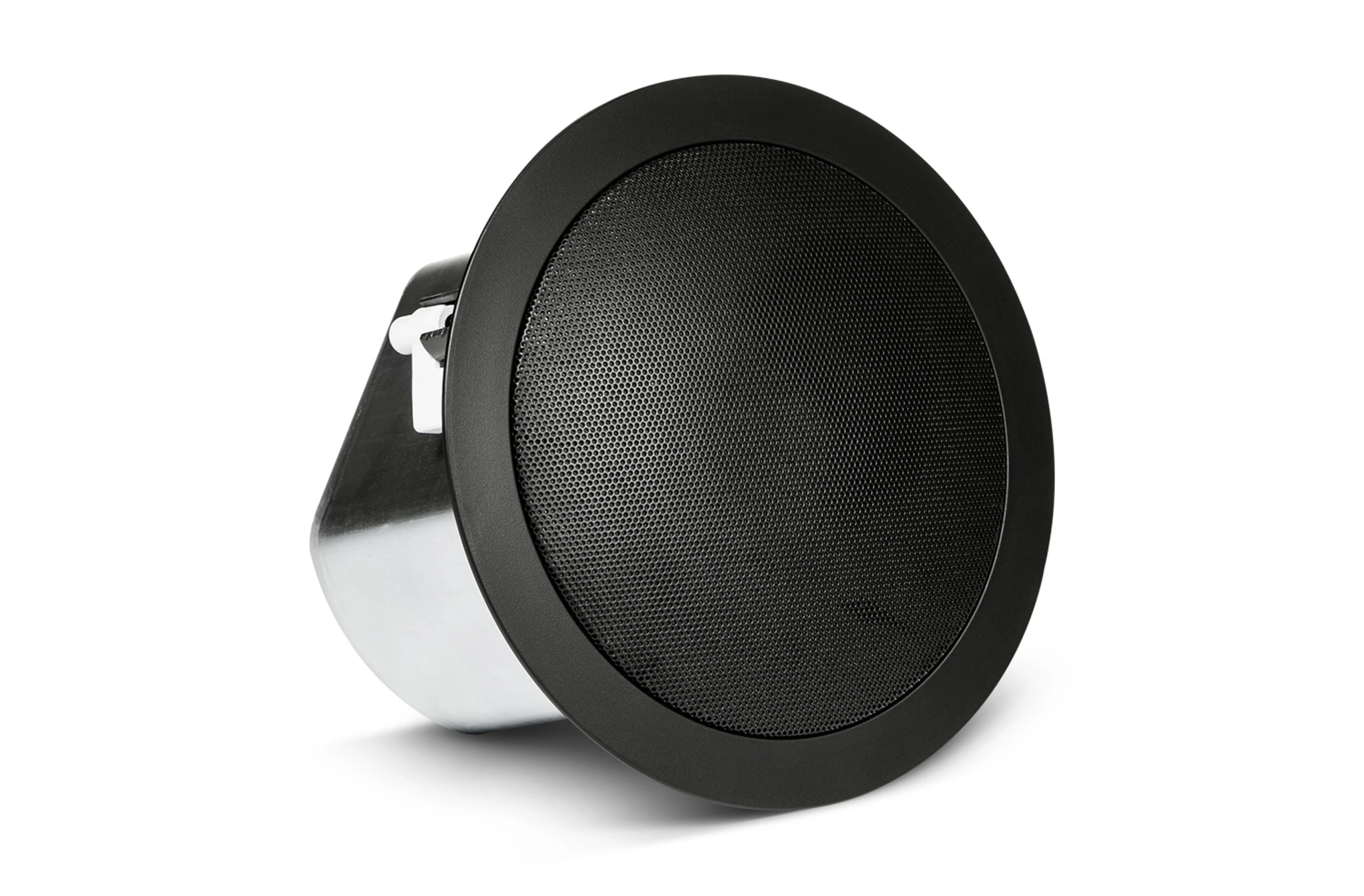

The Control 12C/T-BK comes with a full-face black grille, C-ring support plate, tile rails, paint shield, cutout template, and removable locking 4-pin connector for fast and secure installation. Its combination of premium components, wide frequency response, and low distortion ensures immersive, high-fidelity sound for professional offices, retail, and hospitality environments.
Features of Control 12C/T-BK
76 mm (3 in) full-range driver with polypropylene cone and butyl rubber surround
Integrated zinc-plated steel backcan for fast, secure installation
Combined 70V/100V multi-tap and 8Ω low-impedance operation
130° conical coverage for broad sound dispersion
ABS black baffle with UL94-V0 and UL94-5VB fire rating, paintable
Shallow 138 mm (5.4 in) depth for easy ceiling integration
Top surface seismic attachment point for added safety
Supplied with grille, backcan, tile rails, C-ring support, cutout template, paint shield, and multi-pin connector
Plenum rated for air-handling spaces
Specifications of Control 12C/T-BK
| Frequency Range (-10 dB) | 68 Hz – 17 kHz |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Power Rating | 40 W Continuous Program Power; 20 W Continuous Pink Noise (80 W peak), 100 hrs |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9 W; 100V: 15 W, 7.5 W, 3.8 W |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1m) | 97 dB (8Ω), 103 dB peak; 96 dB (top 70V/100V tap) |
| Impedance | 8 Ω (direct/bypass) |
| Low-Frequency Driver | 76 mm (3 in) with polypropylene cone, butyl rubber surround, high-temp Kapton voice coil, aluminum coupling ring |
| High-Frequency Driver | Integrated full-range driver |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals (max wire 12 AWG / 2.5 mm²) |
| Strain Relief | Two cables or flex conduits via clamping mechanism |
| Materials | ABS black baffle UL94-V0 & UL94-5VB, zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed; Transformer UL registered per UL1876; ROHS, CE, IEC60849/EN60849 compliant |
| Dimensions | 196 mm diameter x 138 mm depth (7.7 x 5.4 in) |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter (cardboard template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) stock dog-ears; optional thick-ceiling dog-ears up to 55 mm (2.2 in) |
| Included Accessories | C-ring support plate, 2 tile rails (2 ft / 600 mm span), paint shield, cutout template, grille, removable multi-pin connector |
| Optional Accessories | MTC-24NC new construction bracket, MTC-24MR mud-ring bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail for 1200 mm / 4 ft tiles |
| Color | Black |
| Backcan | Zinc-plated steel, integrated |
| Baffle/Rim | ABS with UL94-V0 & UL94-5VB flame rating |
| Plenum Usage | Yes, backcan included |
| Origin of Country | China |
