JBL Control 12C-VA 3″ Compact Ceiling Speaker for EN54-24 Application
The Control 12C-VA is a 3-inch compact EN54-24 certified ceiling loudspeaker with integrated backcan, 130° wide coverage, 70V/100V and 8? operation, life-safety compliance, and a durable paintable white baffle for professional public address systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 684.94 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL Control 12C-VA 76 mm (3″) EN54-24 Certified Compact Ceiling Loudspeaker
The Control 12C-VA is a professional full-range compact ceiling loudspeaker specifically engineered for life-safety and public address applications. It is built around a 76 mm (3 in) full-range driver mounted in a vented, paintable white baffle manufactured from UV-resistant UL94-V0 and UL94-5VB flammability-rated material. Origin of country China.
Designed for EN54-24 compliant installations, the Control 12C-VA provides reliable and intelligible sound reproduction for emergency and non-emergency audio systems. The integrated zinc-plated steel backcan ensures fast, secure, and safe installation while meeting stringent fire and safety regulations required for public buildings and critical infrastructure.
This model supports combined 70V/100V transformer operation and 8Ω low-impedance direct mode, offering flexible system integration for paging, evacuation, and background music systems. Its wide 130° conical coverage ensures consistent audio performance for listeners both on-axis and off-axis, making it ideal for airports, hotels, retail stores, business centers, educational institutions, convention centers, courtrooms, lounges, and public waiting areas.
With consistent frequency response, wide dispersion, certified life-safety compliance, and durable construction, the Control 12C-VA delivers dependable performance for environments where speech clarity, reliability, and safety standards are essential.
Features of Control 12C-VA

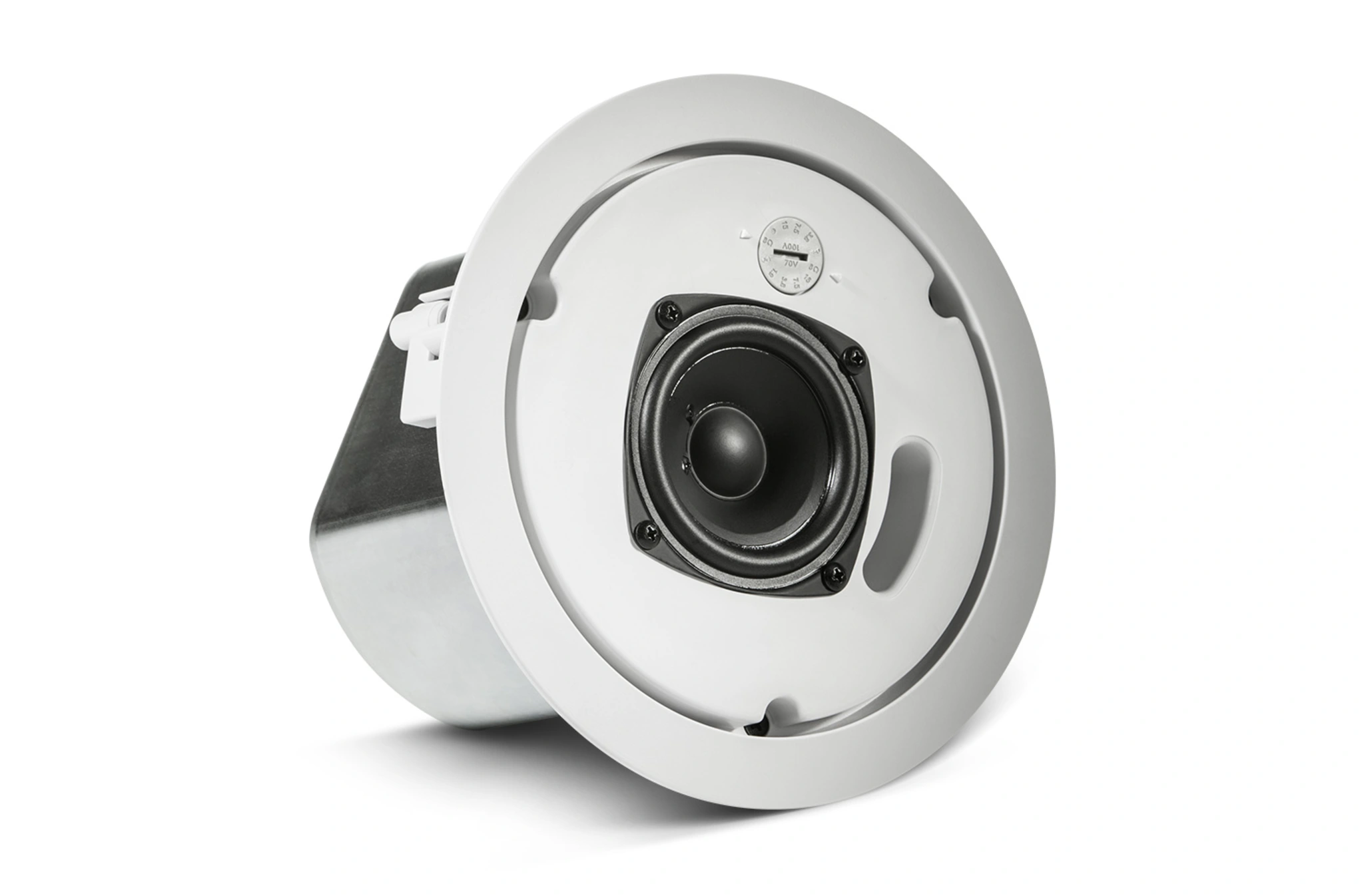

76 mm (3 in) full-range driver for clear, intelligible sound
EN54-24 compliant for certified life-safety applications

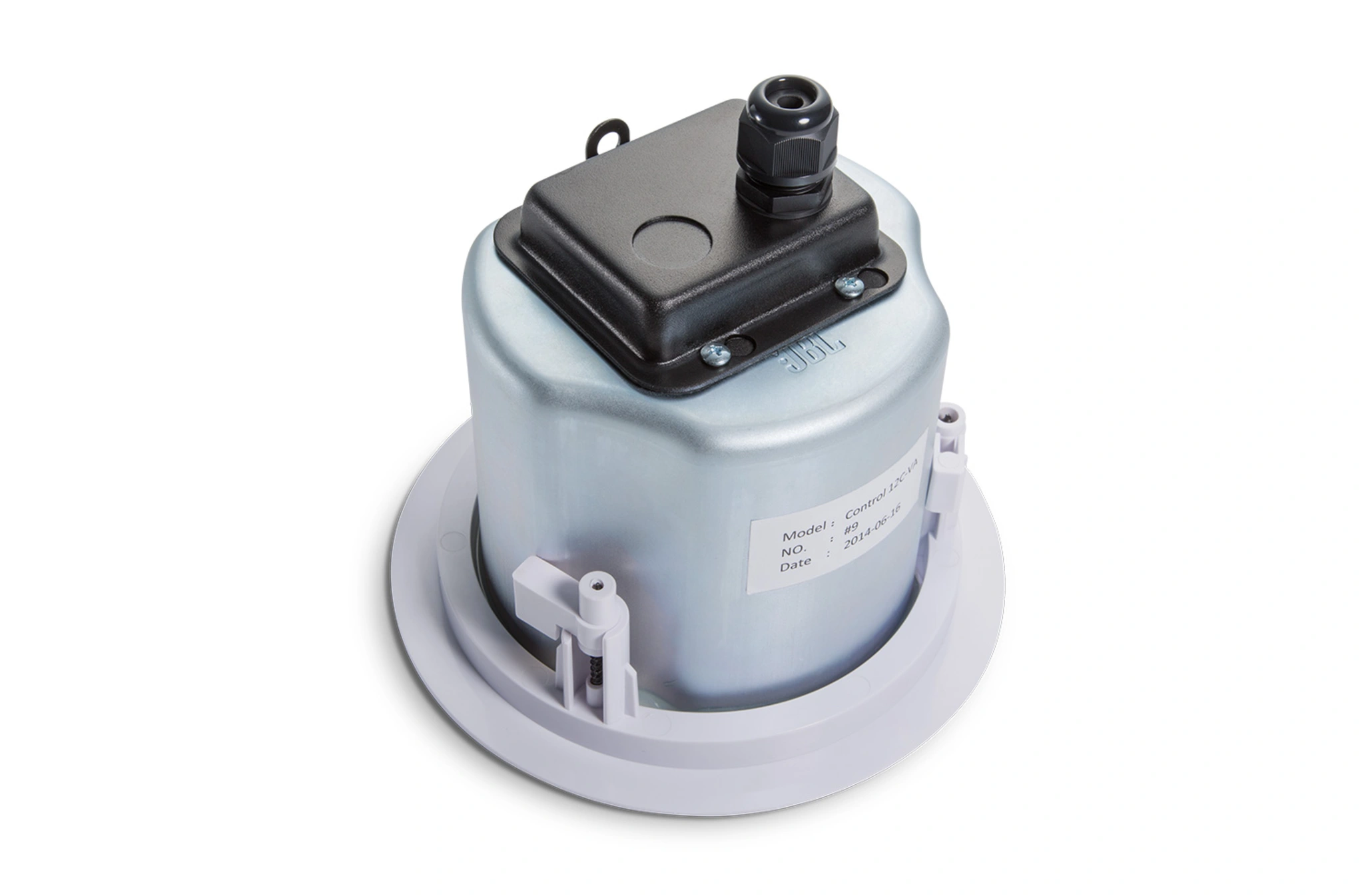

Integrated formed-steel backcan for quick and secure installation
Combined 70V/100V multi-tap transformer and 8Ω low-impedance operation
20 W at 8Ω nominal direct operation
15 W multi-tap transformer at 70V/100V
Wide 130° conical sound coverage
UV-resistant paintable ABS baffle with UL94-V0 and UL94-5VB fire rating
Consistent on-axis and off-axis sound performance
Plenum-rated design for air-handling spaces
Designed for paging, evacuation, and background music systems
Specifications of Control 12C-VA
| Frequency Range (-10 dB) | 68 Hz – 17 kHz |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Power Capacity (Low-Z) | 40 W Continuous Program Power; 20 W Continuous Pink Noise (80 W peak), 100 hr |
| Rated Noise Power | 15 W (15 W tap) |
| Rated Noise Voltage | 70V / 100V |
| Sensitivity | 84 dB (1 kHz – 16 kHz) |
| EN54 Sensitivity (@ 4 m) | 72 dB (per EN54-24 measurement conditions) |
| Coverage Angle | 130° conical |
| Coverage by Frequency | 500 Hz: 180° / 1000 Hz: 175° / 2000 Hz: 170° / 4000 Hz: 160° |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1 m) | 97 dB (low-Z, 103 dB peak); 94 dB (top 70V/100V tap); EN54: 84 dB (4 m, top tap) |
| Impedance | 8 Ω (direct/bypass mode) |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V/100V; 1.9 W @ 70V only |
| Fuse | Thermal fuse, open temp 152°C, rating ≥ 10A @ 250VAC |
| Drivers | 76 mm (3 in) full-range driver with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high-temperature voice coil |

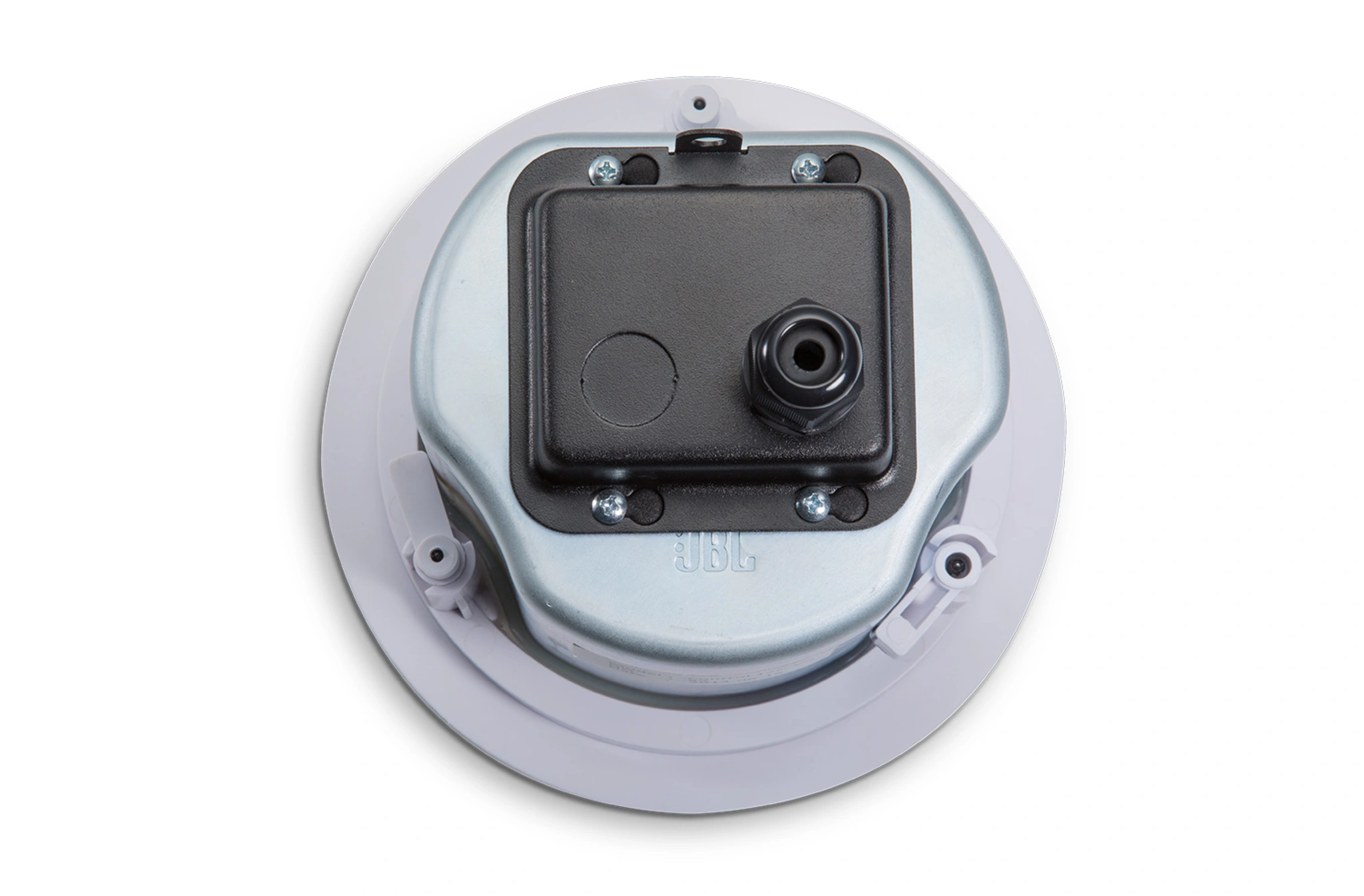

| Connections | Input +, Input -, Earth (connected to backcan); ceramic block with brass inserts |
| Cable Capacity | Accommodates 2.5 mm² / 12 AWG wire |
| Gland Nut / Strain Relief | Supports 4.0 mm – 9.0 mm round jacketed cables |
| Materials | ABS baffle UL94-V0 & UL94-5VB; zinc-plated steel backcan |
| Safety Certifications | EN54-24:2008 Type A certified; BS5839/8 compliant; UL1480, UL2043, NFPA90 & NFPA70; IEC60849/EN60849; IP-21 rated; ROHS, CE, C-tick compliant |
| Dimensions | 196 mm diameter × 174 mm depth (7.7 in × 6.9 in) |
| Ceiling Cutout Size | 170 mm (6.7 in) circular cutout |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) standard; up to 55 mm (2.2 in) with MTC-TCD dog-ears |
| Safety Seismic Attachment | Single-point top surface |
| Net Weight | 1.6 kg (3.5 lbs) |
| Shipping Weight | 6.7 kg (14.7 lbs) per master carton (pair) |
| Included Accessories | C-ring support plate, 2 tile rails, cutout template, paint shield, grille |
| Optional Accessories | MTC-12WG humidity grille, MTC-24NC new construction bracket, MTC-24MR mud-ring bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail |
| Input Connectors | Ceramic block with brass inserts |
| Color | White |
| Backcan | Formed steel, integrated |
| Baffle/Rim | ABS with UL94-V0 and UL94-5VB flame rating |
| Plenum Usage | Yes, backcan included |
| Origin of Country | China |
