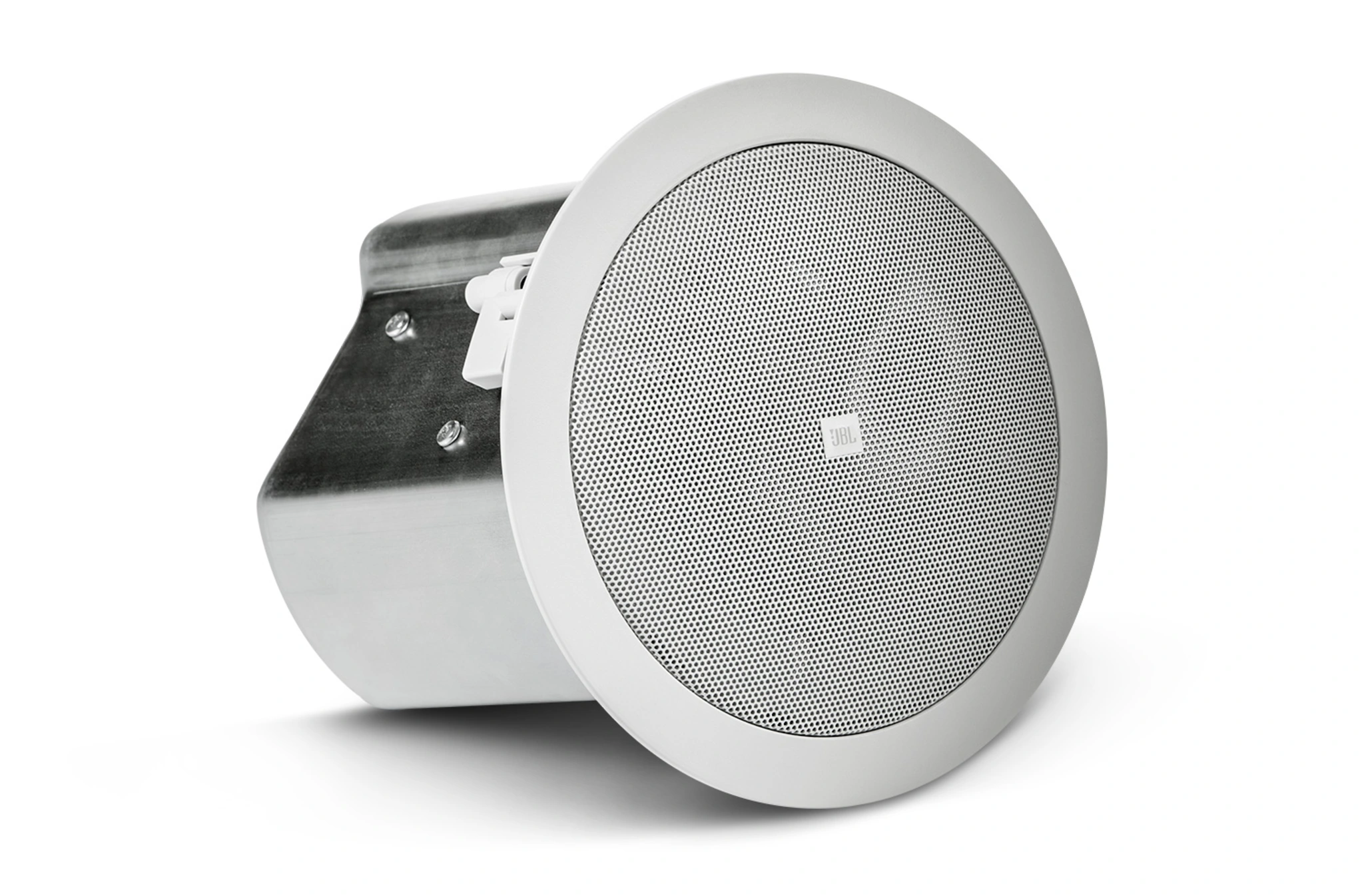

JBL Control 14C/T Two-Way 4″ Coaxial Ceiling Speaker – White
The Control 14C/T is a two-way 4-inch coaxial ceiling loudspeaker with integrated backcan, 70V/100V and 8? operation, wide 120° coverage, and high-output performance for professional commercial audio installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 906.87 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL Control 14C/T Two-Way 4″ Coaxial Ceiling Loudspeaker
The Control 14C/T is a high-performance two-way coaxial ceiling loudspeaker designed for commercial and professional audio environments requiring clarity, coverage consistency, and installation flexibility. It features a 100 mm (4 in) high-output polypropylene cone low-frequency driver with a butyl rubber surround, paired with a 19 mm (0.75 in) soft-dome liquid-cooled tweeter for smooth, extended high-frequency response. Origin of country China.
The drivers are housed in a vented, paintable black ABS baffle constructed from UV-resistant UL94-V0 and UL94-5VB flame-rated material, ensuring durability and safety compliance in commercial spaces. An integrated formed-steel backcan provides secure installation, improved acoustic control, and full plenum compatibility for air-handling environments.
The Control 14C/T supports both 8Ω low-impedance direct operation and 70V/100V distributed line systems, offering exceptional flexibility for system designers. It delivers 30 W at 8Ω nominal operation and 25 W multi-tap transformer power at 70V/100V, making it suitable for background music, paging, and full-range audio applications.
With a wide 120° conical coverage pattern, consistent dispersion, and extended 74 Hz – 20 kHz frequency bandwidth, the Control 14C/T provides uniform sound distribution for retail spaces, offices, hospitality venues, educational facilities, conference rooms, healthcare buildings, and commercial public areas where audio quality and reliability are essential.
Features of Control 14C/T
Two-way coaxial ceiling loudspeaker design

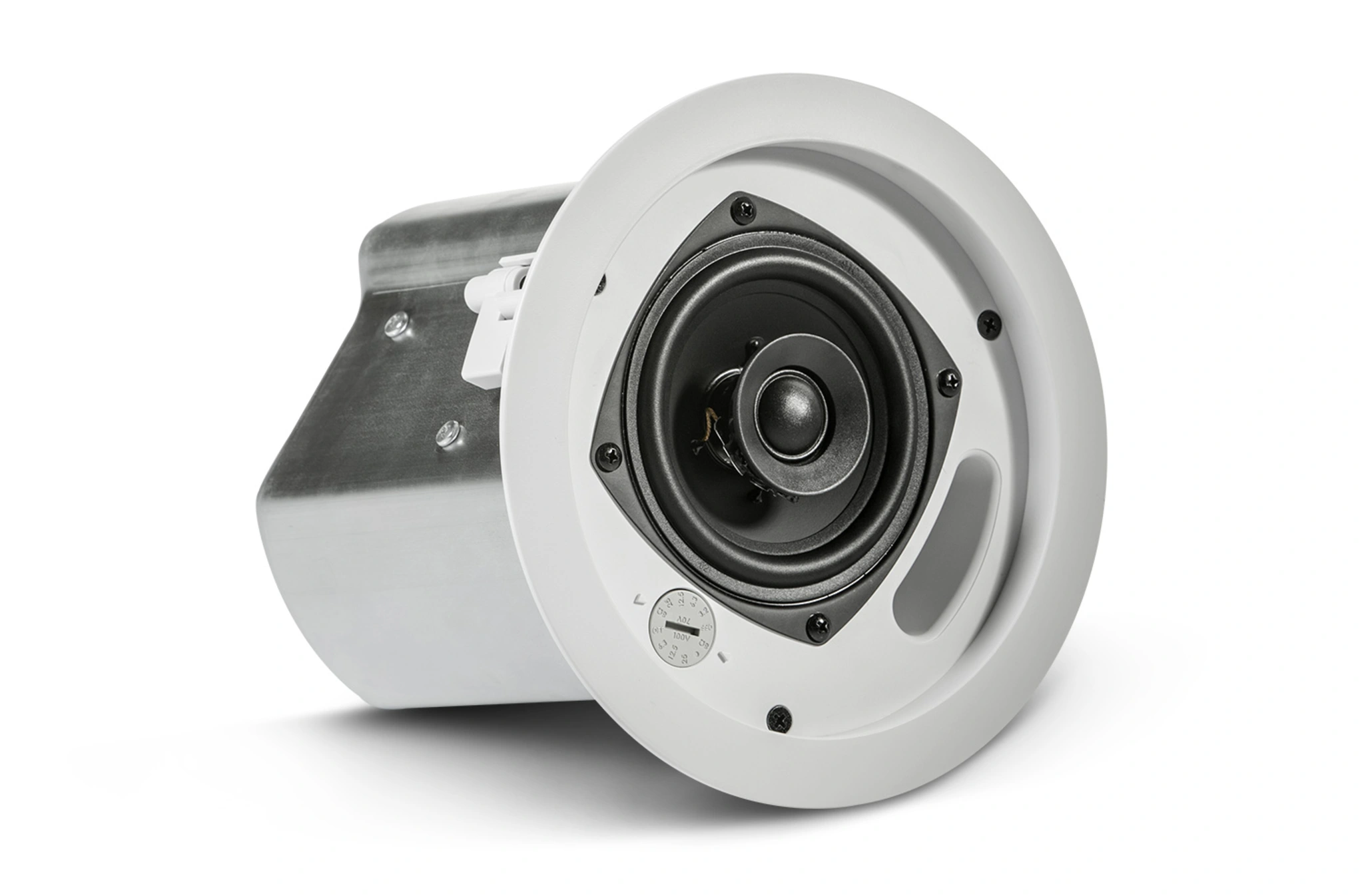

100 mm (4 in) polypropylene cone LF driver with butyl rubber surround
19 mm (0.75 in) soft-dome liquid-cooled HF tweeter
Integrated formed-steel backcan for secure and fast installation
Dual conduit and cable clamp system
Combined 70V/100V distributed line and 8Ω low-impedance operation
30 W at 8Ω nominal direct mode
25 W multi-tap transformer at 70V/100V
Wide 120° conical sound coverage
74 Hz – 20 kHz full-range frequency bandwidth
Paintable black UV-resistant ABS baffle
UL94-V0 and UL94-5VB flame-rated materials
Plenum-rated construction for air-handling spaces
Designed for commercial background music and paging systems
Specifications of Control 14C/T
| Frequency Range (-10 dB) | 74 Hz – 20 kHz |
| Frequency Response (±3 dB) | 100 Hz – 20 kHz |
| Power Rating | 60 W Continuous Program Power; 30 W Continuous Pink Noise (120 W peak), 100 hr |
| Transformer Taps | 25 W, 12.5 W, 6.3 W @ 70V/100V; 3.2 W @ 70V only |
| Sensitivity | 87 dB (1 kHz – 16 kHz) |
| Coverage Angle | 120° conical |
| Directivity Factor (Q) | 7.6 |
| Directivity Index (DI) | 8.1 dB |
| Maximum SPL (1 m) | 101 dB (low-impedance, 108 dB peak); 101 dB (top 70V/100V tap) |
| Impedance | 8 Ω (direct/bypass 8Ω setting) |
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver; 12 dB/oct (2nd order) high-pass to HF driver |
| Drivers | LF: 100 mm (4 in); HF: 19 mm (0.75 in) |

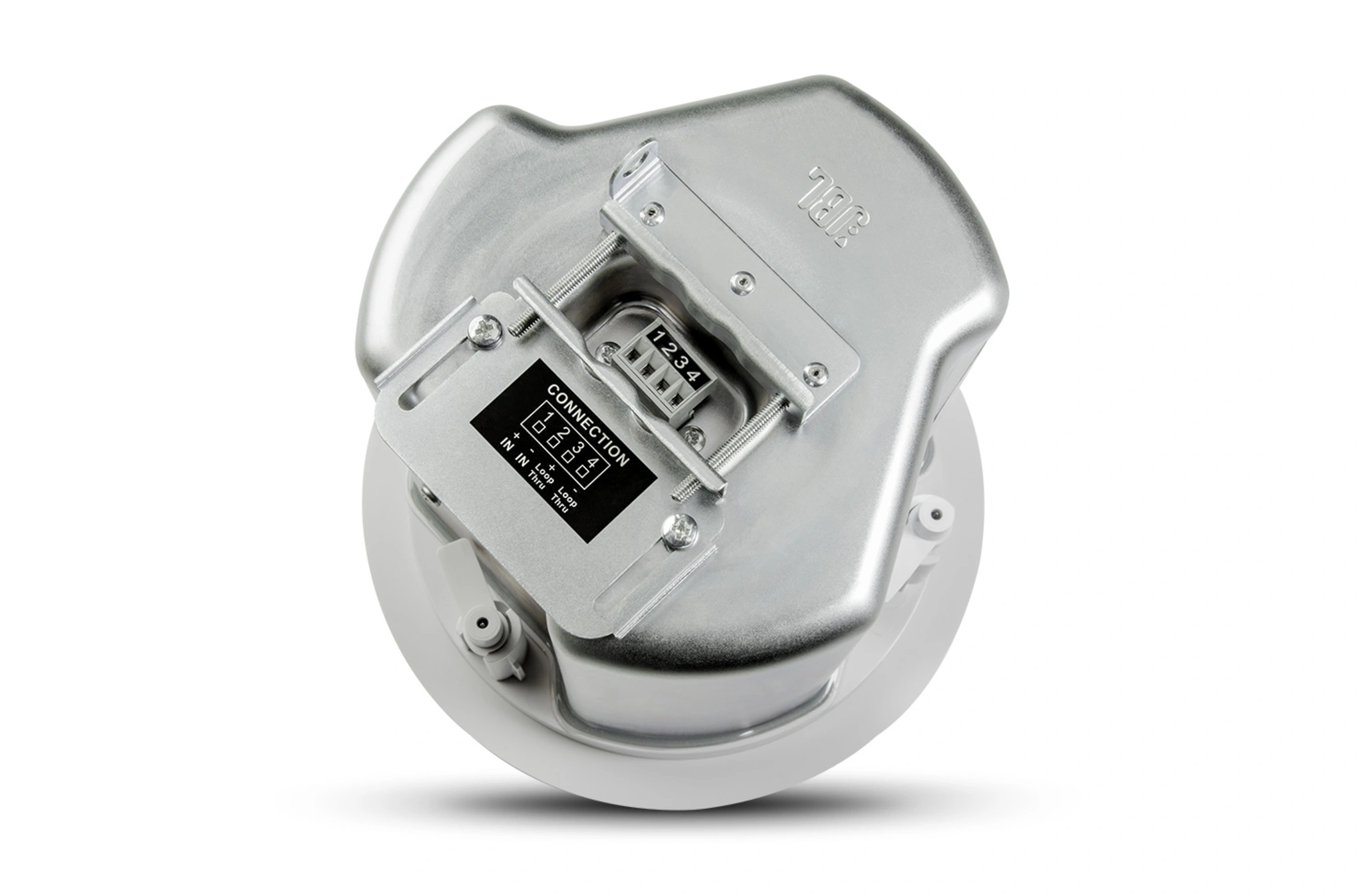

| Input Connectors | Removable locking 4-pin connector with screw-down terminals |
| Max Wire Size | 12 AWG (2.5 mm²) |
| Connector Wiring | Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru |
| Strain Reliefs | Dual-cable or dual-conduit clamping mechanism |
| Materials | ABS baffle UL94-V0 & UL94-5VB; zinc-plated steel backcan |
| Safety Certifications | UL1480, UL2043, NFPA90 & NFPA70; UL Listed signaling speaker; UL1876 transformer; IEC60849/EN60849 compliant; ROHS, CE, C-tick compliant |
| Dimensions | 196 mm diameter × 181 mm depth (7.7 in × 7.1 in) |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) standard; up to 55 mm (2.2 in) with MTC-TCD dog-ears |
| Safety Seismic Attachment | Single-point top surface |
| Net Weight | 2.2 kg (4.8 lbs) |
| Shipping Weight | 8.2 kg (17.9 lbs) per master carton (pair) |
| Included Accessories | C-ring support plate, 2 tile rails, cutout template, paint shield, removable locking multi-pin connector, grille |
| Optional Accessories | MTC-24NC bracket, MTC-24MR mud-ring, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail |
| Color | Black |
| Backcan | Formed steel, integrated |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame rating |
| Plenum Usage | Yes, backcan included |
| Origin of Country | China |
