JBL Control 16C-VA Two-Way 6.5″ Co-axial CeilingLoudspeaker for EN54-24 Applications
EN54-24 certified two-way 6.5-inch coaxial ceiling loudspeaker with integrated backcan, wide coverage, high sensitivity, and flexible 70V/100V or low-impedance operation for life-safety and background music systems in commercial public spaces.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,206.46 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

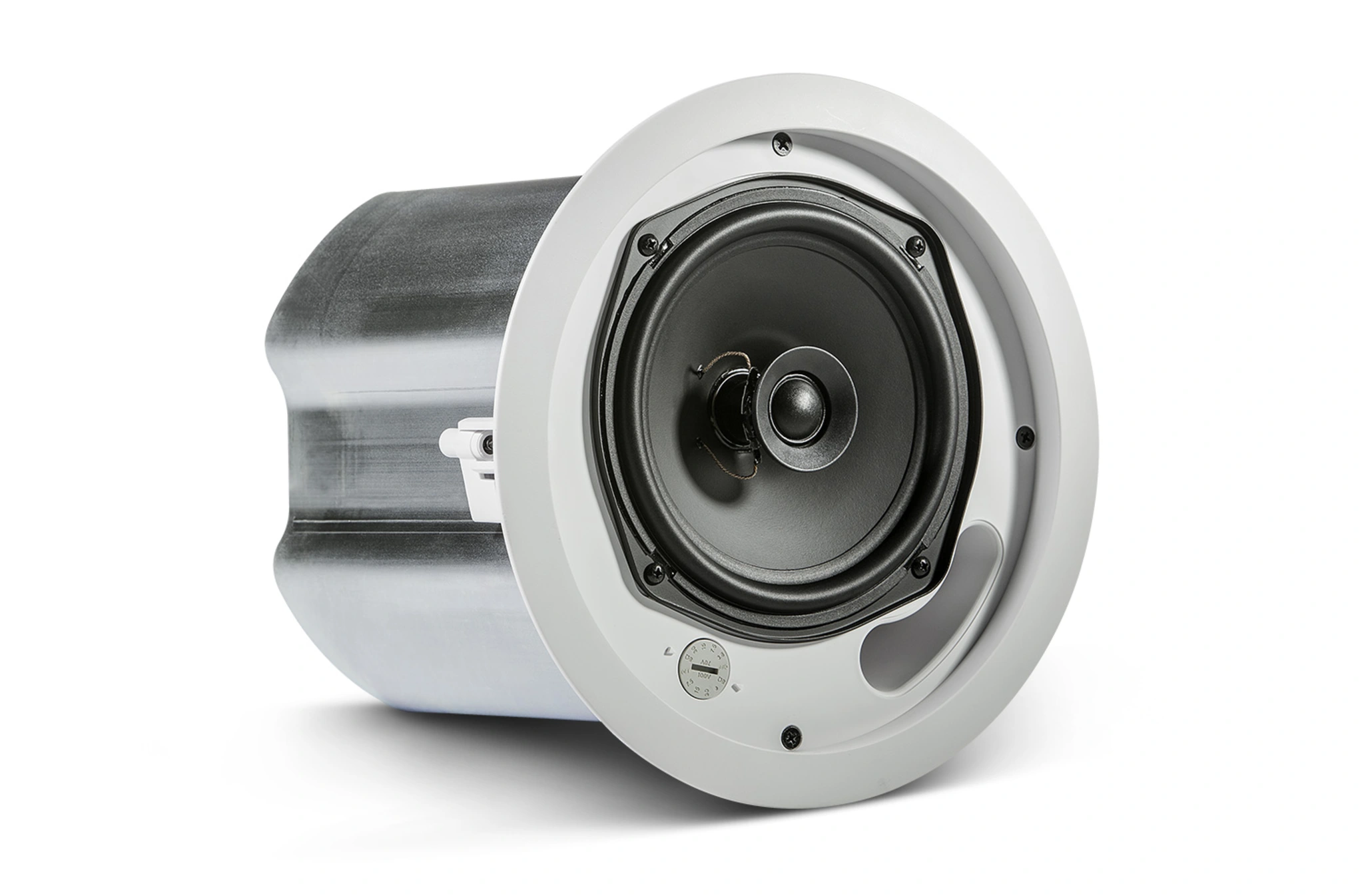

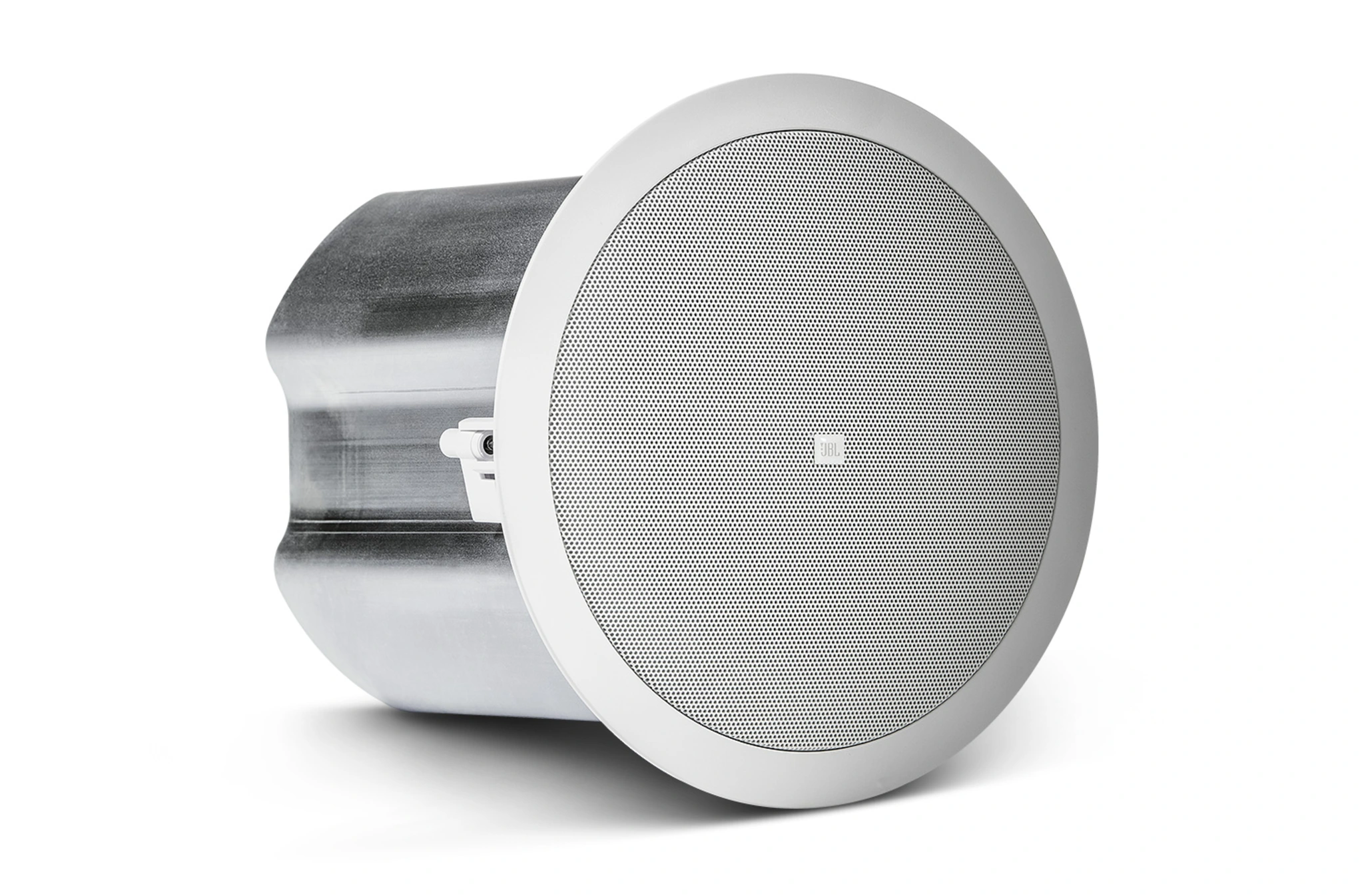

Control 16C-VA ceiling loudspeaker
Control 16C-VA is a full-range, EN54-24 compliant ceiling loudspeaker engineered for reliable life safety and background or foreground audio applications. It features a two-way coaxial design built around a 165 mm (6.5 inch) high-output cone driver and a 19 mm soft-dome liquid-cooled tweeter, ensuring clear speech intelligibility and balanced musical reproduction.

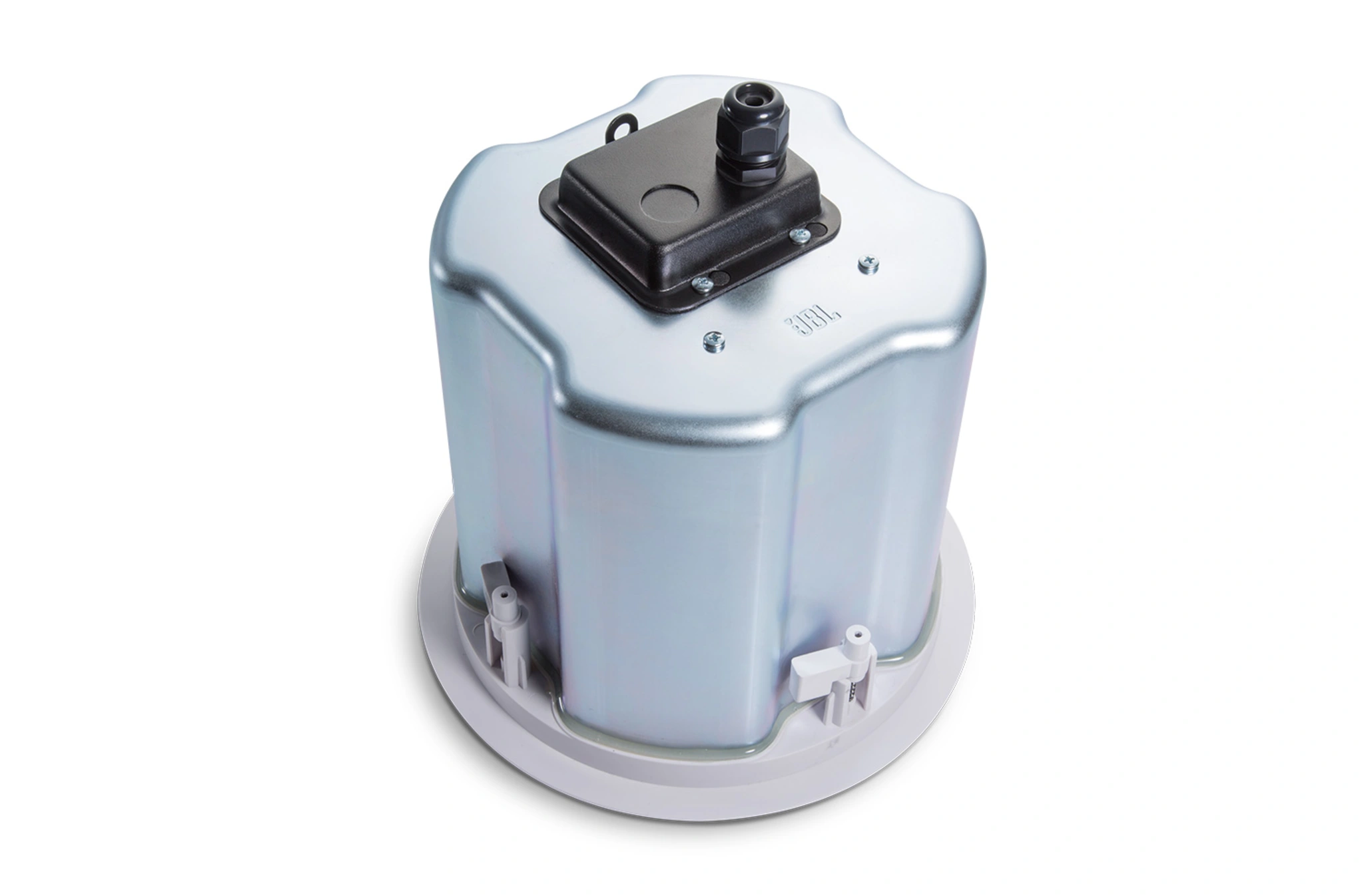

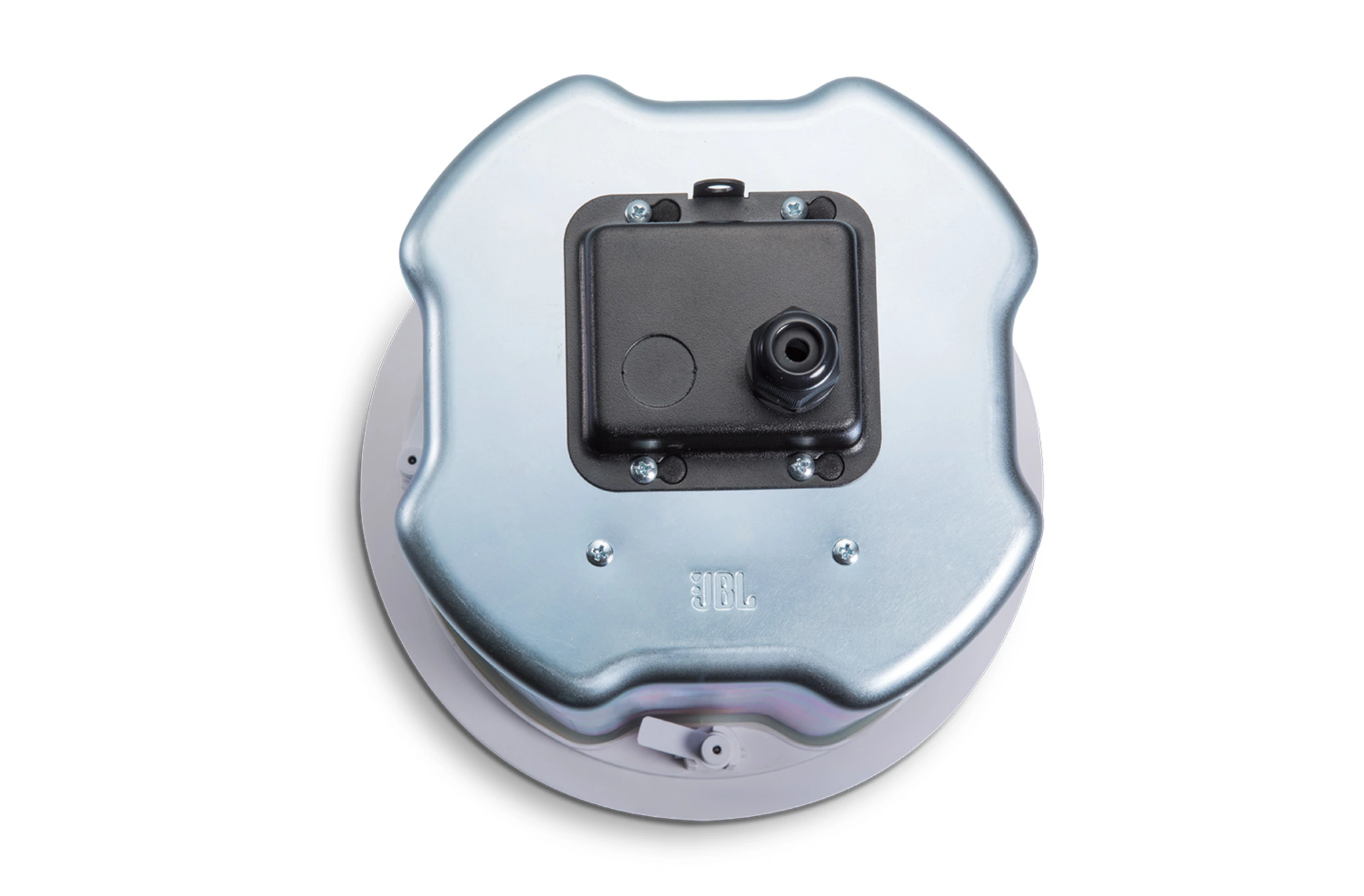

The loudspeaker is housed in a vented, paintable baffle constructed from UV-resistant materials rated UL94-V0 and UL94-5VB for fire safety. An integrated steel backcan simplifies installation while supporting plenum-rated use, making the system suitable for regulated commercial and public environments. Its coaxial configuration provides consistent tonal balance for listeners positioned both on-axis and off-axis.
Control 16C-VA supports combined low-impedance and 70V/100V distributed audio systems, offering flexibility for different system architectures. With high sensitivity and wide 110-degree coverage, the speaker delivers uniform sound levels across medium to high-volume spaces. This makes it suitable for applications such as retail stores, airports, hotels, lounges, courtrooms, convention centers, educational facilities, and paging or background music systems.
Designed specifically for life safety installations, the speaker meets EN54-24 requirements, including certified sensitivity and maximum SPL measurements at defined distances. Durable internal components, a thermal fuse, and flame-rated materials further enhance operational reliability. Manufactured in China, Control 16C-VA combines acoustic performance, regulatory compliance, and installation efficiency in a single ceiling-mounted loudspeaker solution.
Features of Control 16C-VA
Two-way coaxial ceiling loudspeaker design
165 mm high-output polypropylene cone driver
19 mm soft-dome liquid-cooled tweeter
EN54-24 compliant for life safety applications
Integrated steel backcan for fast installation
Supports 8 ohm, 70V, and 100V operation
Wide 110° coverage for uniform sound distribution
High 91 dB sensitivity for increased SPL
Flame-rated, UV-resistant paintable baffle
Specifications of Control 16C-VA
| Frequency Range (-10 dB) | 62 Hz – 20 kHz |
| Frequency Response (±3 dB) | 96 Hz – 15 kHz |
| Power Rating (Low-Z) | 50 W continuous pink noise |
| Rated Noise Power | 30 W |
| Sensitivity | 91 dB (1 kHz – 16 kHz) |
| EN54 Sensitivity | 77 dB @ 4 m |
| Coverage Pattern | Up to 175° depending on frequency |
| Maximum SPL | 108 dB (1 m, low-Z) |
| Impedance | 8 ohms nominal |
| Transformer Taps | 30 W, 15 W, 7.5 W @ 70V/100V |
| Crossover Network | 12 dB/octave, 2nd order |
| Drivers | LF: 165 mm, HF: 19 mm |
| Materials | ABS baffle, steel backcan |
| Dimensions | 253 mm diameter × 262 mm depth |
| Ceiling Cutout | 223 mm diameter |
| Net Weight | 3.4 kg |
| Color | White |
| Plenum Rated | Yes |
| Country of Origin | China |
