JBL Control 18C/T Two-Way 8-Inch Coaxial Ceiling Speaker – White
Two-way 8-inch coaxial ceiling loudspeaker with integrated backcan, wide coverage, high sensitivity, and flexible low-impedance or 70V/100V operation for medium to high volume commercial audio installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,595.62 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

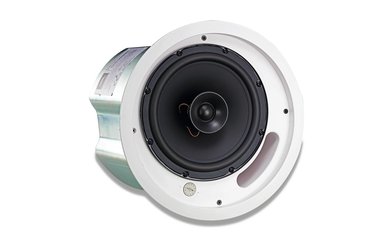

Control 18C/T ceiling loudspeaker
Control 18C/T is a full-range two-way coaxial ceiling loudspeaker designed to deliver clear, powerful sound for demanding commercial environments. It incorporates a 200 mm (8.0 inch) high-output cone driver paired with a 25 mm soft-dome liquid-cooled tweeter, providing balanced frequency response and improved speech intelligibility across a wide listening area.
The loudspeaker is mounted in a vented, paintable baffle constructed from UV-resistant materials with UL94-V0 and UL94-5HB flammability ratings, ensuring durability and compliance with safety requirements. An integrated steel backcan enables quick and efficient installation while supporting plenum-rated use, making the system suitable for regulated indoor spaces.
Control 18C/T is engineered for flexibility, supporting both low-impedance direct operation and distributed 70V/100V systems. This allows it to integrate easily into a variety of audio architectures, from standalone installations to large-scale paging and background music systems. High sensitivity and controlled 90-degree conical coverage ensure consistent sound levels and reduced acoustic spill.
The speaker is designed for medium to high volume applications including retail environments, business music systems, airports, hotels, lounges, educational facilities, convention centers, and courtrooms. Robust internal components, a well-defined crossover network, and protective design considerations support reliable long-term performance. Manufactured in China, Control 18C/T combines acoustic output, installation efficiency, and compliance-focused construction in a professional ceiling loudspeaker solution.
Features of Control 18C/T
Two-way coaxial ceiling loudspeaker design
200 mm high-output polypropylene cone driver
25 mm soft-dome liquid-cooled tweeter
Integrated steel backcan for simplified installation
Dual conduit and cable clamp support
Low-impedance and 70V/100V operation capability
Wide 90° conical coverage pattern
High 92 dB sensitivity for increased output
Flame-rated, UV-resistant paintable baffle
Specifications of Control 18C/T
| Frequency Range (-10 dB) | 58 Hz – 20 kHz |
| Frequency Response (±3 dB) | 80 Hz – 16 kHz |
| Power Rating (Low-Z) | 90 W continuous pink noise |
| Continuous Program Power | 180 W |
| Sensitivity | 92 dB (1 kHz – 16 kHz) |
| Coverage Angle | 90° conical |
| Directivity Factor (Q) | 6.0 |
| Directivity Index (DI) | 7.8 dB |
| Maximum SPL (1 m) | 112 dB (low-impedance) |
| Impedance | 8 ohms |
| Transformer Taps | 60 W, 30 W, 15 W @ 70V/100V |
| Crossover Network | 12 dB/octave, 2nd order |
| Drivers | LF: 200 mm, HF: 25 mm |
| Input Connector | Removable locking 4-pin connector |
| Materials | ABS baffle, zinc-plated steel backcan |
| Dimensions | 307 mm diameter × 274 mm depth |
| Ceiling Cutout | 282 mm diameter |
| Net Weight | 6.4 kg |
| Color | White |
| Plenum Rated | Yes |
| Country of Origin | China |
