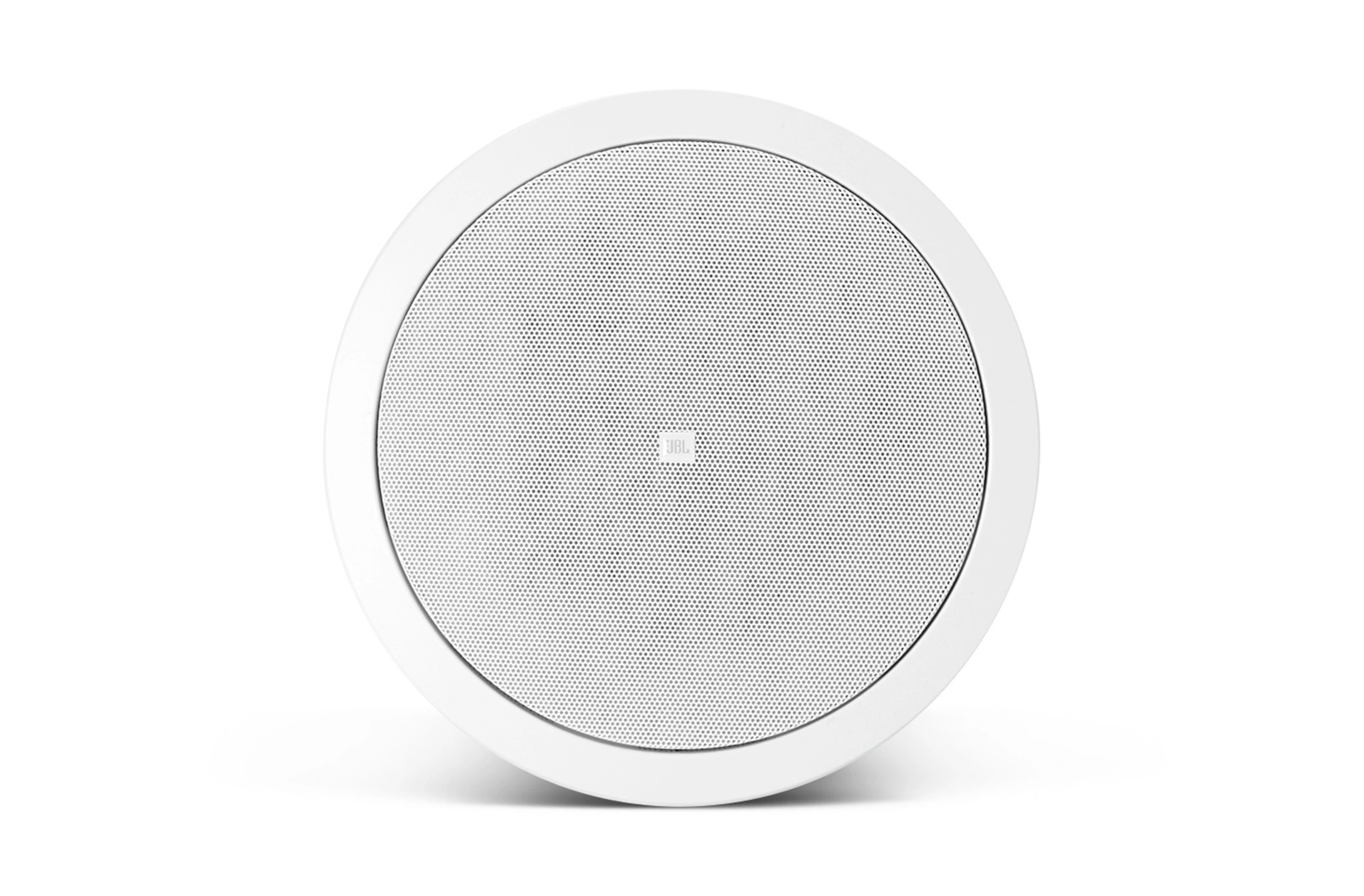

JBL Control 26CT 6.5″ Ceiling Loudspeaker Transducer Assembly

JBL Control 26CT ceiling loudspeaker transducer assembly

The Control 26CT is a high-performance in-ceiling loudspeaker designed for commercial environments that demand strong sound output, wide dispersion, and reliable long-term operation. It is engineered to deliver high sound pressure levels while maintaining clarity and balanced audio reproduction across large coverage areas.

This model features a coaxial driver configuration consisting of a 165 mm (6.5-inch) low-frequency woofer with a durable butyl rubber surround, paired with a 19 mm (¾-inch) titanium-coated high-frequency tweeter. This combination ensures smooth frequency response, low distortion, and consistent sound quality for both music and voice applications.

Unlike standard low-impedance models, the Control 26CT is equipped with a built-in multi-tap transformer, making it fully compatible with 70V and 100V distributed line audio systems. This allows flexible power selection and easy integration into large-scale commercial sound systems such as malls, airports, offices, hotels, and public buildings.

The speaker is supplied as a complete installation package including a formed steel backcan, grille, tile rails, wiring connector, paint shield, and mounting accessories. This all-in-one design ensures fast installation, clean integration, and compatibility with suspended ceiling systems, while also supporting use in air-handling (plenum) spaces.

With robust construction, fire-rated materials, and professional safety certifications, the Control 26CT is designed for reliable performance in demanding commercial environments. Manufactured in China, it delivers a balance of power, coverage, and installation efficiency for modern distributed audio systems.

Features of Control 26CT

• 6.5-inch high-output ceiling loudspeaker with transformer

• Integrated 70V / 100V multi-tap transformer

• Coaxial driver design for uniform sound dispersion

• Titanium-coated high-frequency tweeter for clarity

• Wide frequency response with low distortion

• High sound pressure level capability

• Supplied with grille, backcan, and tile rails

• Fast installation system for suspended ceilings

• Suitable for plenum (air-handling) spaces

• Designed for commercial distributed audio systems

Specifications of Control 26CT
