JBL IVX-587061/230 Intellivox Series DS280 8 x 40 Watts RMS 16 x 4″ Full Range Beam Shaping Self Powered Loudspeaker

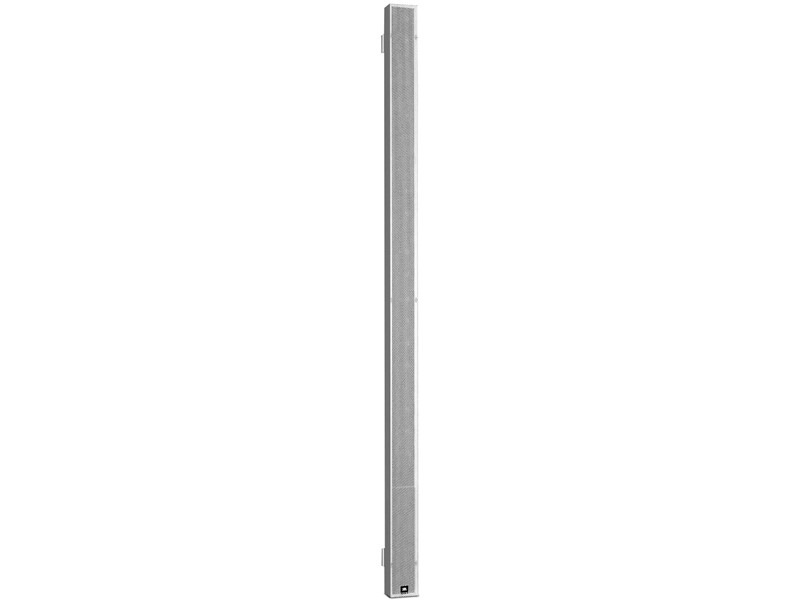

JBL Intellivox DS280 Active Column Loudspeaker

The JBL Intellivox DS280 Active Column Loudspeaker is engineered to provide excellent speech intelligibility even in challenging acoustic conditions. It can maintain a consistent sound pressure level over distances up to 35 meters, with the potential for greater reach in less demanding environments. The system comprises sixteen custom-designed 4-inch loudspeakers arranged according to JBL’s patented algorithm, driven by an eight-channel class-D amplifier with a sophisticated switched-mode power supply, ensuring reliable long-term performance.

The DS280 includes a comprehensive set of surveillance functions to meet the stringent requirements of Voice Alarm (life safety) applications. Control is provided via JBL’s proprietary WinControl software, which offers intuitive management of beam steering parameters, audio processing, presets, and surveillance features. Its compact array length allows for unobtrusive installation in architecturally sensitive spaces. The system’s low-frequency response can be extended using a JBL subwoofer for full-range applications.

Equipped with vertical beam shaping through DDS Technology, wide horizontal coverage, 32-bit floating point DSP, dual line inputs, volume control, delay, eight-band parametric EQ, and eight user-definable presets, the DS280 ensures precise and reliable sound reinforcement. Additional features include automatic volume control via a built-in ambient microphone, network readiness, upgradeable firmware, and simulation compatibility with DDA, Catt-Acoustic, Odeon, and EASE4.3 software. The DS280 is ideal for transport hubs, places of worship, lecture halls, theatres, conference facilities, atriums, museums, and other professional AV environments requiring clarity and even sound distribution.

Features of Intellivox DS280

• Superb speech intelligibility

• Slim, unobtrusive design

• Extended frequency response

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic Volume Control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox DS280
