JBL IVX-587060/230 Intellivox Series DS280 8 x 40 Watts RMS 16 x 4″ Full Range Beam Shaping Self Powered Loudspeaker

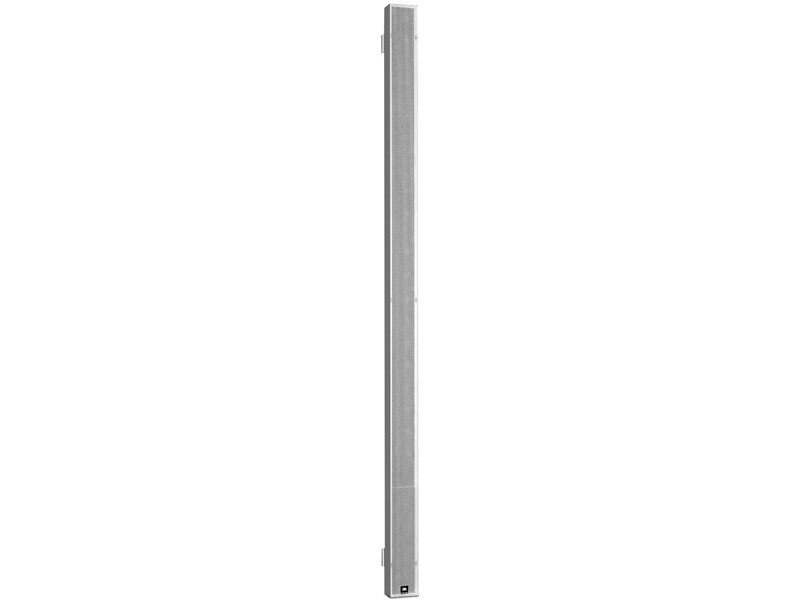

JBL Intellivox DS280 Self-Powered Loudspeaker

The JBL Intellivox DS280 Self-Powered Loudspeaker is engineered for environments requiring excellent speech intelligibility, including transport hubs, lecture halls, conference facilities, and large reverberant spaces. It provides a consistent sound pressure level over distances up to 35 meters, with the potential for even greater coverage in less demanding acoustic conditions. The system features sixteen custom 4-inch full-range loudspeakers arranged according to JBL’s patented algorithm, all powered by an eight-channel class-D amplifier with a sophisticated switched-mode power supply to ensure reliable, long-term operation.

The DS280 integrates a comprehensive set of surveillance functions to comply with stringent Voice Alarm (life safety) requirements. Control is achieved through JBL’s proprietary WinControl software, which provides user-friendly management of beam steering parameters, audio processing, presets, and surveillance functions. Its compact array length allows for unobtrusive installation in architecturally sensitive environments, while the system’s low-frequency response can be extended with a JBL subwoofer system for full-range operation.

Equipped with vertical beam shaping via DDS Technology, wide horizontal dispersion, 32-bit floating point DSP, dual line inputs, volume control, delay, eight-band parametric EQ, and eight user-definable presets, the DS280 offers precise and reliable sound reinforcement. Additional features include automatic volume control via a built-in ambient microphone, network readiness, upgradeable firmware, and simulation compatibility with DDA, Catt-Acoustic, Odeon, and EASE4.3 software. The Intellivox DS280 is ideal for professional AV applications demanding clarity, consistency, and unobtrusive installation.

Features of Intellivox DS280

• Superb speech intelligibility

• Slim, unobtrusive design

• Extended frequency response

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic Volume Control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3
