JBL NCSMA1120-U-UK Commercial Mixer/Amplifier
The JBL NCSMA1120-U-UK is a professional 4-input, 1-output mixer-amplifier delivering 120 W power, with fanless 1U design and easy operation, origin of country Malaysia.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 5,769.08 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

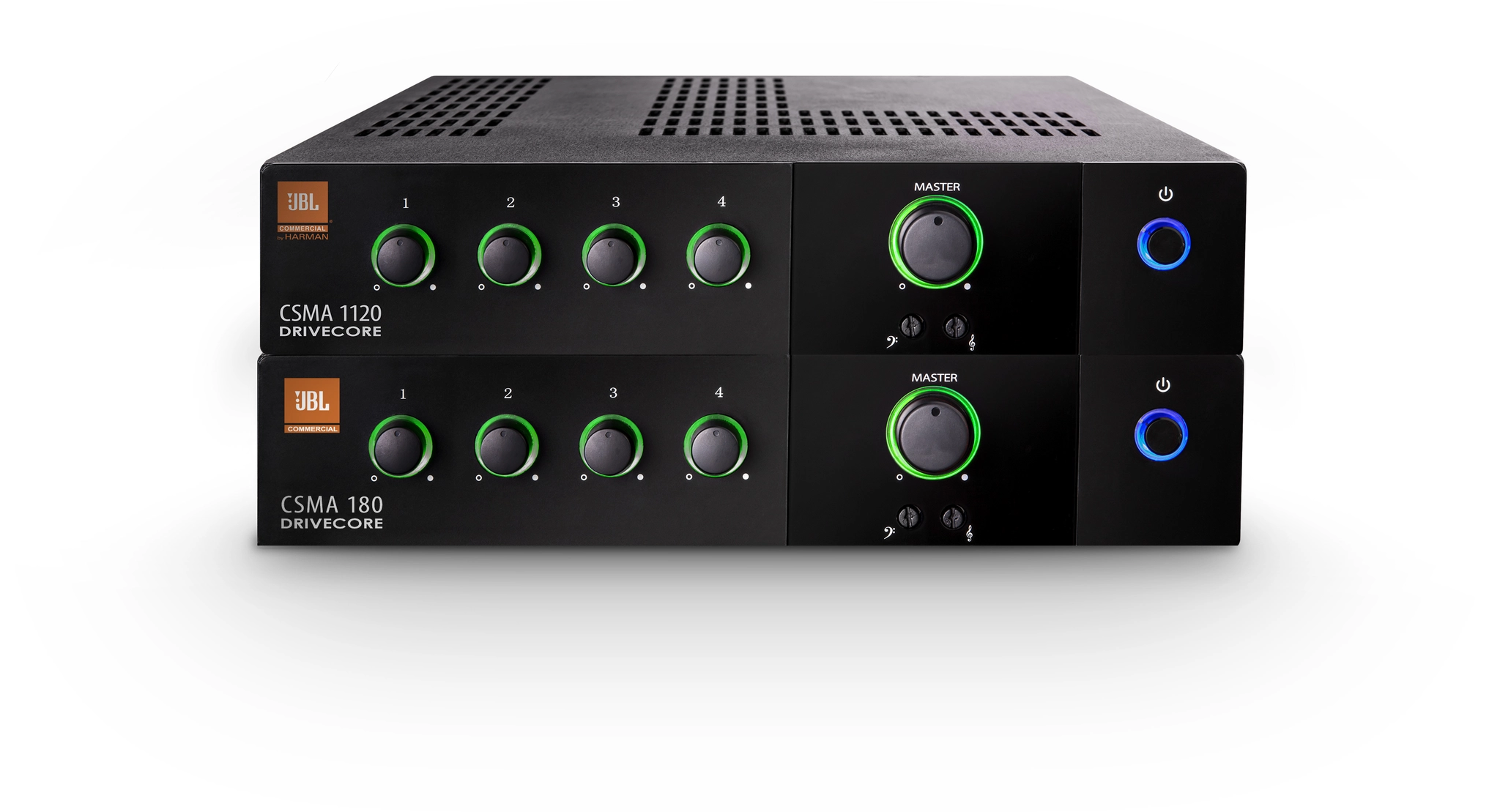

JBL NCSMA1120-U-UK
The JBL NCSMA1120-U-UK Mixer-Amplifier is a commercial-grade audio solution designed for professional environments requiring clear, reliable sound. Utilizing Crown’s DriveCore™ technology, this fanless 1U unit combines compact size, energy efficiency, and robust performance. It is ideal for offices, retail spaces, restaurants, schools, and other commercial installations.
This unit features 4 mixer channels feeding a single output, with a front panel layout offering individual channel volume, master volume, bass and treble adjustment, and illuminated rings for easy control in low-light conditions. The amplifier supports both 4-ohm and 8-ohm speaker loads, and can drive 70V or 100V distributed audio systems without an external transformer.
Connectivity includes balanced mic/line inputs, unbalanced RCA inputs, and Euro-block outputs. RJ45 connectors allow integration with JBL CSR-V in-wall volume controllers. Its universal power supply supports 100–240 VAC at 50/60 Hz. Manufactured under HARMAN’s GreenEdge™ environmental initiative, the NCSMA1120-U-UK conforms to RoHS standards and uses energy-efficient DriveCore™ design for reduced power consumption and enhanced operational efficiency. The unit comes with a 3-year no-fault, fully transferable warranty, origin of country Malaysia.
Features of JBL NCSMA1120-U-UK
4-input, 1-output mixer-amplifier with 120 W output
Fanless, compact 1U rack-mountable design
Sleek industrial appearance with illuminated control rings
Independent bass and treble controls for precise tone shaping
Euro-block type mic/line input connectors and unbalanced RCA inputs
Supports 70V and 100V distributed audio systems without separate transformers
Remote volume control via JBL CSR-V and Ethernet
Priority muting for paging and announcements
DriveCore™ technology for high-efficiency, high-quality audio
Complies with RoHS standards and GreenEdge™ environmentally-conscious design
Includes rack mounting kit
3-year no-fault, fully transferable warranty
Specifications of JBL NCSMA1120-U-UK
| Output | 120 W @ 4/8 Ohms (1 kHz, THD+N <0.5%) |
| Frequency Response | ±1 dB (@1 W into 4 or 8 Ohms) |
| Load Impedance | Stable from 2–16 Ohms |
| Sensitivity | 1.4 Vrms |
| Signal-to-Noise Ratio | >100 dB (1 kHz, A-weighted) |
| Input Impedance | Balanced 20 kΩ / Unbalanced 10 kΩ |
| Max Input | +20 dBu Typical |
| Cooling | Fanless |
| Dimensions (H x W x D) | 43.3 mm x 218.5 mm x 303.4 mm (1.7” x 8.6” x 11.9”) |
| Shipping Weight | 4.6 kg (10.1 lbs) |
| Included Accessories | Rack mounting kit |
| Color | Black |
| Origin of Country | Malaysia |
