JBL NCSMA180-U-EU Commercial Mixer/Amplifier
The JBL NCSMA180-U-EU is a professional 4-input, 1-output mixer-amplifier delivering 180 W power, with fanless 1U design and easy operation, origin of country Malaysia.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 4,312.36 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL NCSMA180-U-EU
The JBL NCSMA180-U-EU Mixer-Amplifier is a high-performance commercial audio solution built for professional installations requiring reliable and clear sound. Using Crown’s DriveCore™ technology, this compact 1U unit offers fanless operation, energy efficiency, and powerful amplification. It is perfect for restaurants, offices, schools, fitness centers, and other commercial environments.

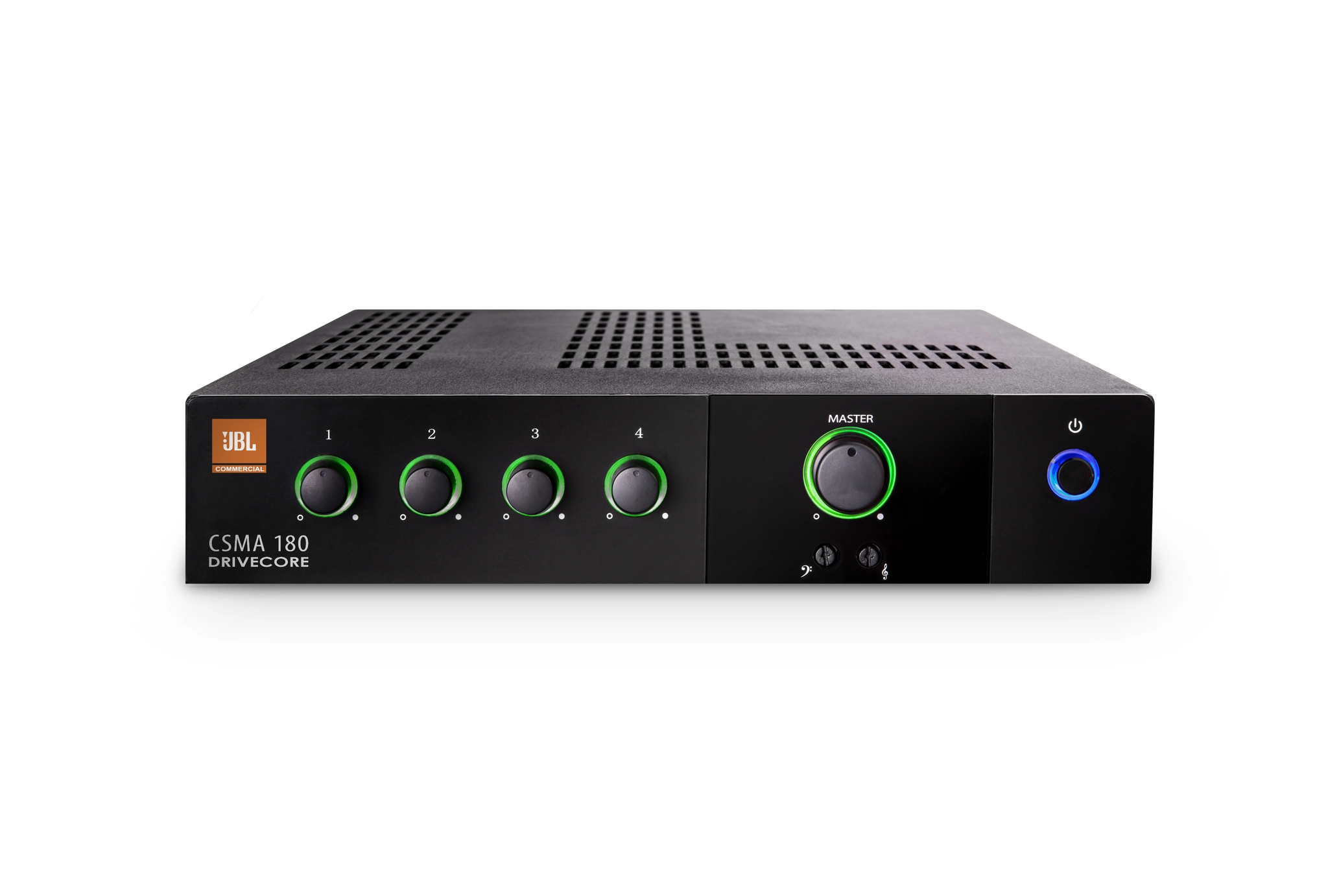

Equipped with 4 mixer channels feeding a single output, the front panel allows intuitive control of individual channel volumes, master volume, bass, and treble adjustments, all surrounded by illuminated rings for easy visibility in low-light conditions. This amplifier supports 4-ohm and 8-ohm speaker loads and can be used with 70V or 100V distributed audio systems without a separate transformer.
Connectivity options include balanced mic/line inputs, unbalanced RCA inputs, Euro-block outputs, and RJ45 ports for integration with JBL CSR-V in-wall volume controllers. Its universal power supply accommodates 100–240 VAC, 50/60 Hz. Built according to HARMAN’s GreenEdge™ initiative, the NCSMA180-U-EU meets RoHS standards, uses recycled materials, and features energy-efficient DriveCore™ technology. It also comes with a 3-year no-fault, fully transferable warranty, origin of country Malaysia.
Features of JBL NCSMA180-U-EU
4-input, 1-output mixer-amplifier with 180 W output
Fanless, compact 1U rack-mountable design
Sleek industrial appearance with illuminated control rings
Independent bass and treble controls for precise sound shaping
Euro-block type mic/line input connectors and unbalanced RCA inputs
Supports 70V and 100V distributed audio systems without separate transformers
Remote volume control via JBL CSR-V and Ethernet
Priority muting for paging and announcements
DriveCore™ technology for high-efficiency, high-quality audio
Conforms to RoHS standards and GreenEdge™ environmentally-conscious design
Includes rack mounting kit
3-year no-fault, fully transferable warranty
Specifications of JBL NCSMA180-U-EU
| Output | 180 W @ 4/8 Ohms (1 kHz, THD+N <0.5%) |
| Frequency Response | ±1 dB (@1 W into 4 or 8 Ohms) |
| Load Impedance | Stable from 2–16 Ohms |
| Sensitivity | 1.4 Vrms |
| Signal-to-Noise Ratio | >100 dB (1 kHz, A-weighted) |
| Input Impedance | Balanced 20 kΩ / Unbalanced 10 kΩ |
| Max Input | +20 dBu Typical |
| Cooling | Fanless |
| Dimensions (H x W x D) | 43.3 mm x 218.5 mm x 303.4 mm (1.7” x 8.6” x 11.9”) |
| Shipping Weight | 4.6 kg (10.1 lbs) |
| Included Accessories | Rack mounting kit |
| Color | Black |
| Origin of Country | Malaysia |
