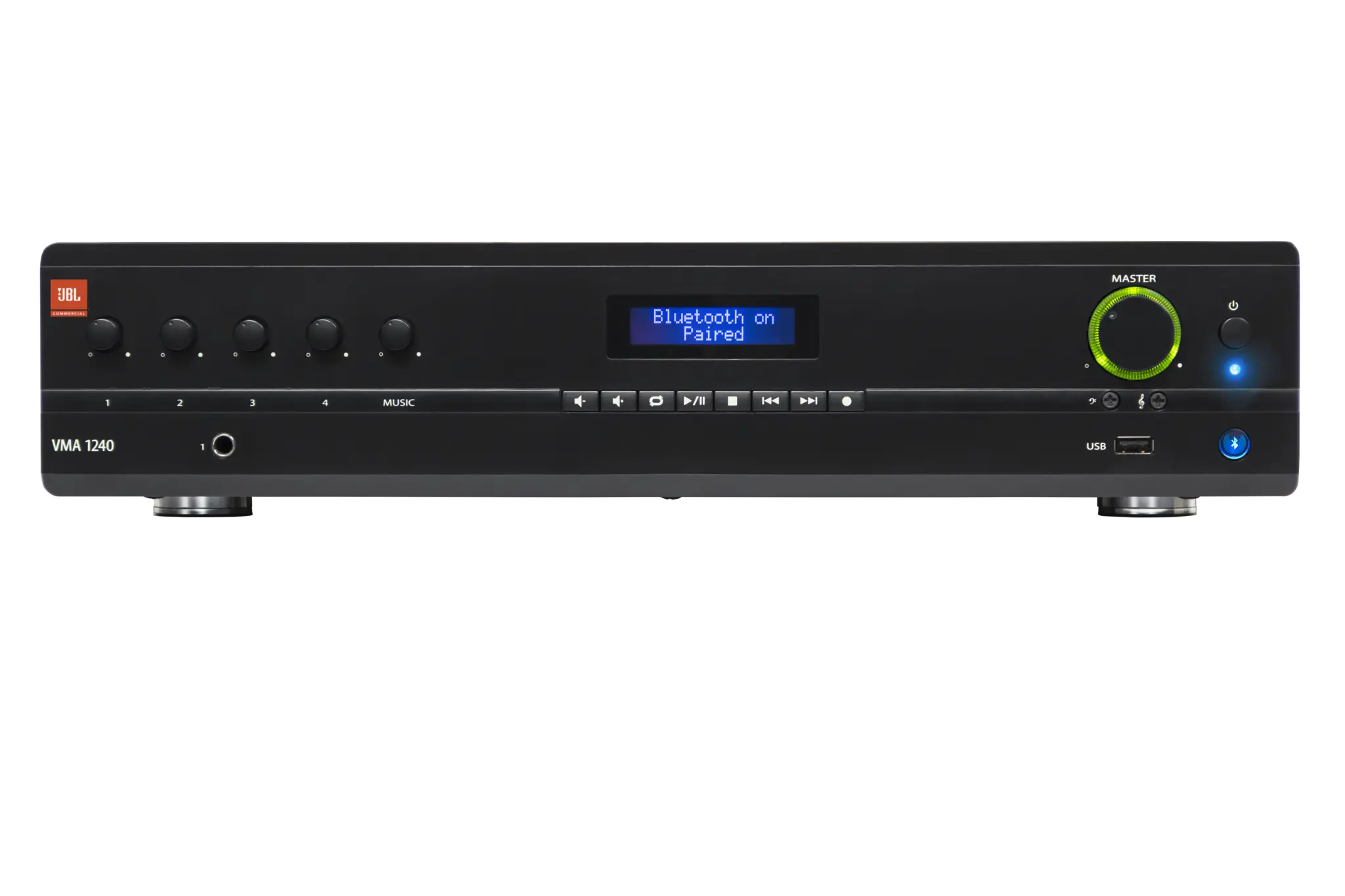

JBL NVMA1240-34-EU 5 input x 60/120/240W output Mixer/Amplifiers
The JBL NVMA1240-34-EU Mixer-Amplifier delivers high-performance commercial audio with 240W output, low and high-impedance support, independent tone controls, multiple input options, and compact 1U rack-mount design.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 4,176.33 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL VMA Series Mixer-Amplifier
The JBL VMA Series Mixer-Amplifiers are cost-effective, versatile audio solutions designed for commercial sound applications and emerging markets worldwide. These units support low-impedance speaker loads (4Ω, 8Ω) as well as high-impedance 70V and 100V distributed audio systems, offering flexible deployment options for offices, retail locations, educational facilities, and other professional spaces.
The VMA Series includes models delivering 60W, 120W, and 240W per channel, with five inputs and one output. Each channel features independent bass and treble controls, allowing precise tonal adjustment to suit different acoustic environments. The units also include paging chime functionality, priority muting, and compatibility with JBL CSR-V wall-mounted controllers for remote volume management.
Connectivity is comprehensive, including balanced mic/line inputs and unbalanced RCA inputs, making it suitable for a wide range of audio sources. The front panel controls are user-friendly, and the included rack-mount hardware allows secure installation in standard audio racks. Designed for reliable performance, the VMA Series provides low distortion (<0.5% THD), wide frequency response (20 Hz–20 kHz for low-impedance output), and high signal-to-noise ratio (>76 dB).
Built for professional commercial use, the JBL VMA Series Mixer-Amplifiers combine high-quality sound, operational flexibility, and durable construction. The units are engineered to perform efficiently in varying voltage conditions (100V–240V, 50/60 Hz) and operate safely under standard temperature and humidity ranges, making them a practical, reliable choice for commercial audio integration.
Features of VMA Series Mixer-Amplifier
5 inputs and 1 output with 60W, 120W, or 240W power
Low-impedance (4Ω/8Ω) and high-impedance (70V/100V) outputs
Independent bass and treble controls per channel
Paging chime and priority muting
Compatible with JBL CSR-V wall controllers
Balanced mic/line inputs and unbalanced RCA inputs
Rack mounting hardware included
Wide frequency response and low distortion
High signal-to-noise ratio
Flexible voltage operation (100–240V AC)
Durable commercial-grade construction
Specifications of VMA Series Mixer-Amplifier
| Max Output Power | 240 W |
| Insertion Loss (70V/100V) | 1 dB max |
| Number of Inputs | 5 |
| Number of Outputs | 1 |
| Tone Controls (Bass/Treble) | ±14 dB @50Hz / ±14 dB @10kHz |
| Input Sensitivity | Mic: 5.5 mV / Line: 1.3 V / RCA: 130 mV |
| Frequency Response | 20 Hz–20 kHz (4/8Ω); 80 Hz–15 kHz (70/100V) |
| THD | <0.5% |
| Signal-to-Noise Ratio | >76 dB |
| Input Impedance | Mic: 400 Ω / Line: 20 kΩ / RCA: 50 kΩ |
| Phantom Power | 27 VDC |
| Crosstalk | -70 dB |
| AC Line Voltage | 100–240V, 50/60 Hz |
| Minimum Load Impedance | 4Ω / 20Ω / 40Ω |
| Operating Temp/Humidity | 0–35°C @95% R.H. |
| Storage Temperature | -20–85°C |
| Dimensions (W x D x H) | 17.0 x 16.3 x 3.5 in (432 x 415 x 88 mm) |
| Net Weight | 11.6 kg |
| Shipping Weight | 14.0 kg |
| Origin of Country | China |
