JBL PD6322/43 Dual 12-inch 3-Way Horn-Loaded LoudSpeaker

PD6322 Dual 12-inch 3-Way Horn-Loaded Speaker

The PD6322 Dual 12-inch 3-Way Horn-Loaded Speaker is designed for professional applications requiring high output sensitivity with accurate pattern control. As a full-range three-way system within the Precision Directivity family, it is capable of standalone operation in demanding music or speech environments where low-frequency extension down to 41 Hz is required.

The low-frequency section incorporates two high-power 300 mm (12 in) transducers arranged in a compact slot-loaded configuration. This design enhances low-frequency performance while maintaining controlled enclosure dimensions and delivering strong output with extension to 40 Hz. The midrange section features a high-power CMCD cone midrange compression driver with an integral 200 mm Differential Drive dual voice coil structure, providing high sensitivity, reduced distortion, extended bandwidth, and improved phase coherence. High frequencies are reproduced by a large-format neodymium compression driver engineered for clear and intelligible projection.

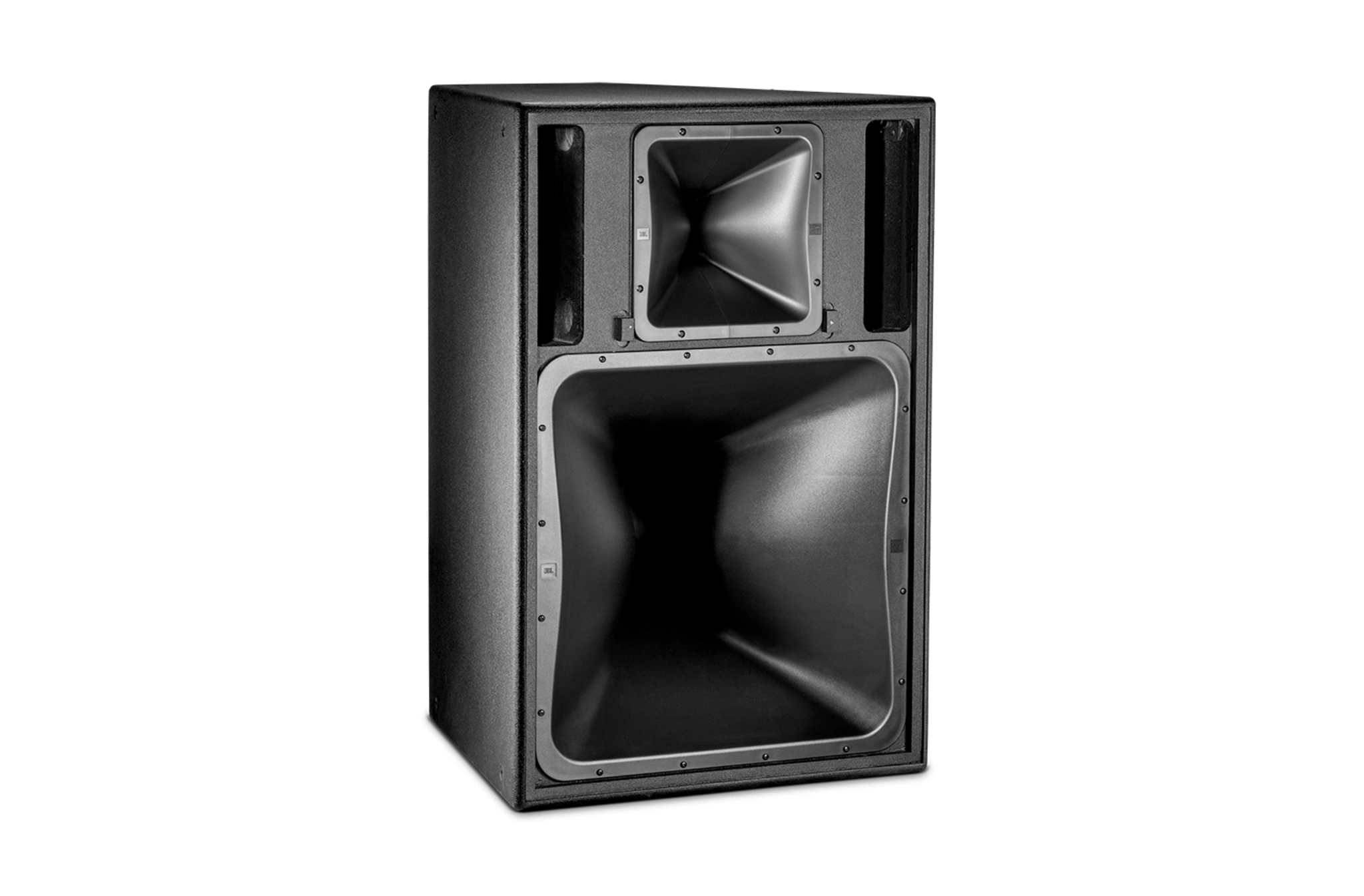

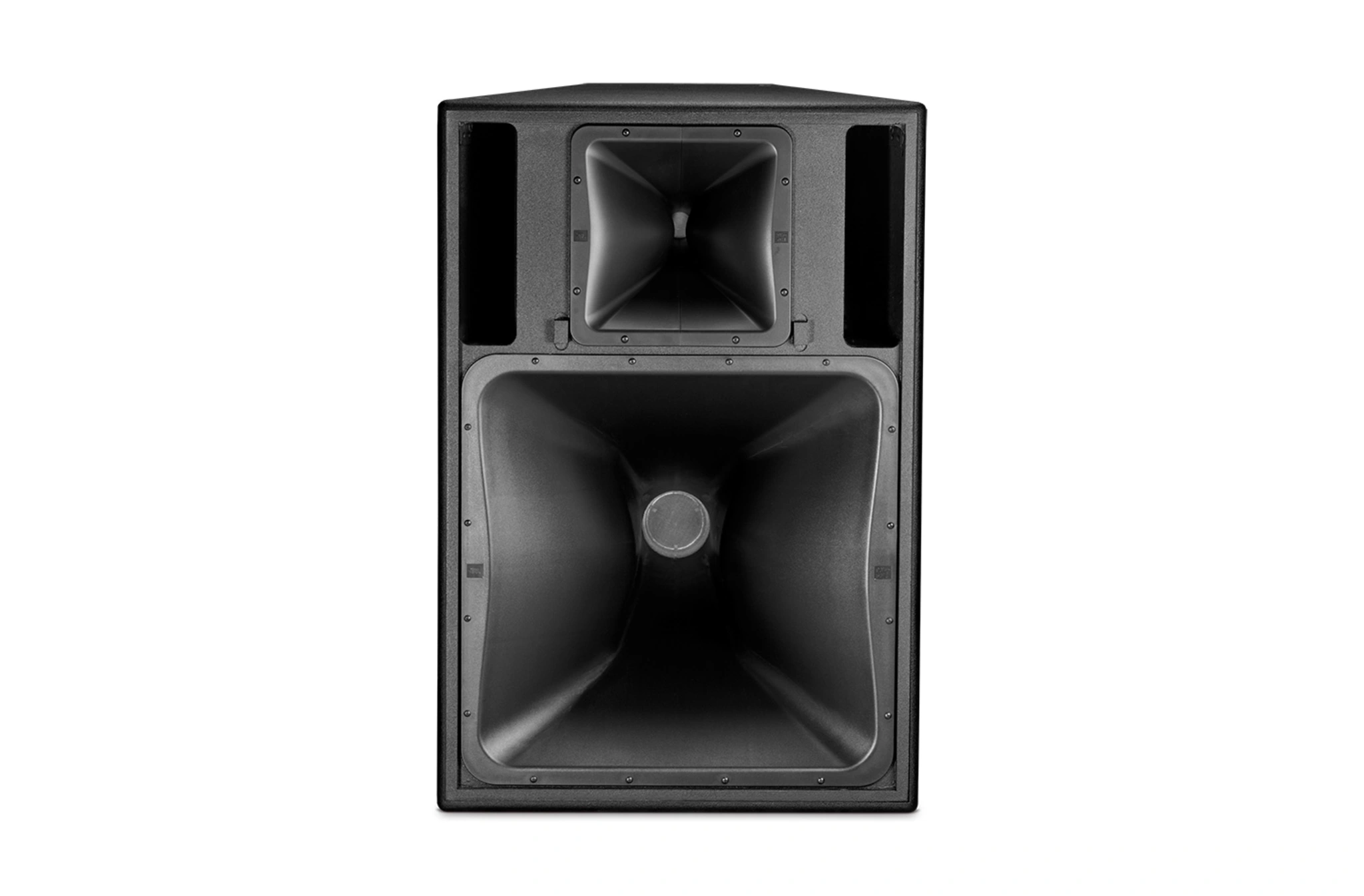

Large PT Progressive Transition waveguides ensure consistent pattern control across the frequency range, maintaining smooth response and minimizing distortion at elevated SPL levels. The 40° x 30° horn configuration provides focused coverage, while rotatable mid and high frequency waveguides allow flexible horizontal or vertical cabinet orientation.

A steep-slope 6th order Linkwitz-Riley crossover network at 1.5 kHz manages mid and high frequency transitions. The system supports switchable tri-amp or bi-amp modes with passive mid-high configuration. Constructed from 16 mm exterior-grade 11-ply Finnish birch plywood and equipped with 20 M10 suspension points, the PD6322 delivers durable, high-performance sound reinforcement with controlled directivity.

Features of PD6322

• Dual 300 mm slot-loaded low-frequency drivers

• Low-frequency extension to 41 Hz

• High-power CMCD cone midrange compression driver

• Large-format neodymium HF compression driver

• 40° x 30° controlled coverage pattern

• PT Progressive Transition waveguide design

• High sensitivity with high continuous SPL capability

• Reduced distortion and improved phase coherence

• Rotatable mid and high frequency waveguides

• Switchable tri-amp and bi-amp modes

• 6th order Linkwitz-Riley crossover at 1.5 kHz

• 4-ohm nominal system impedance

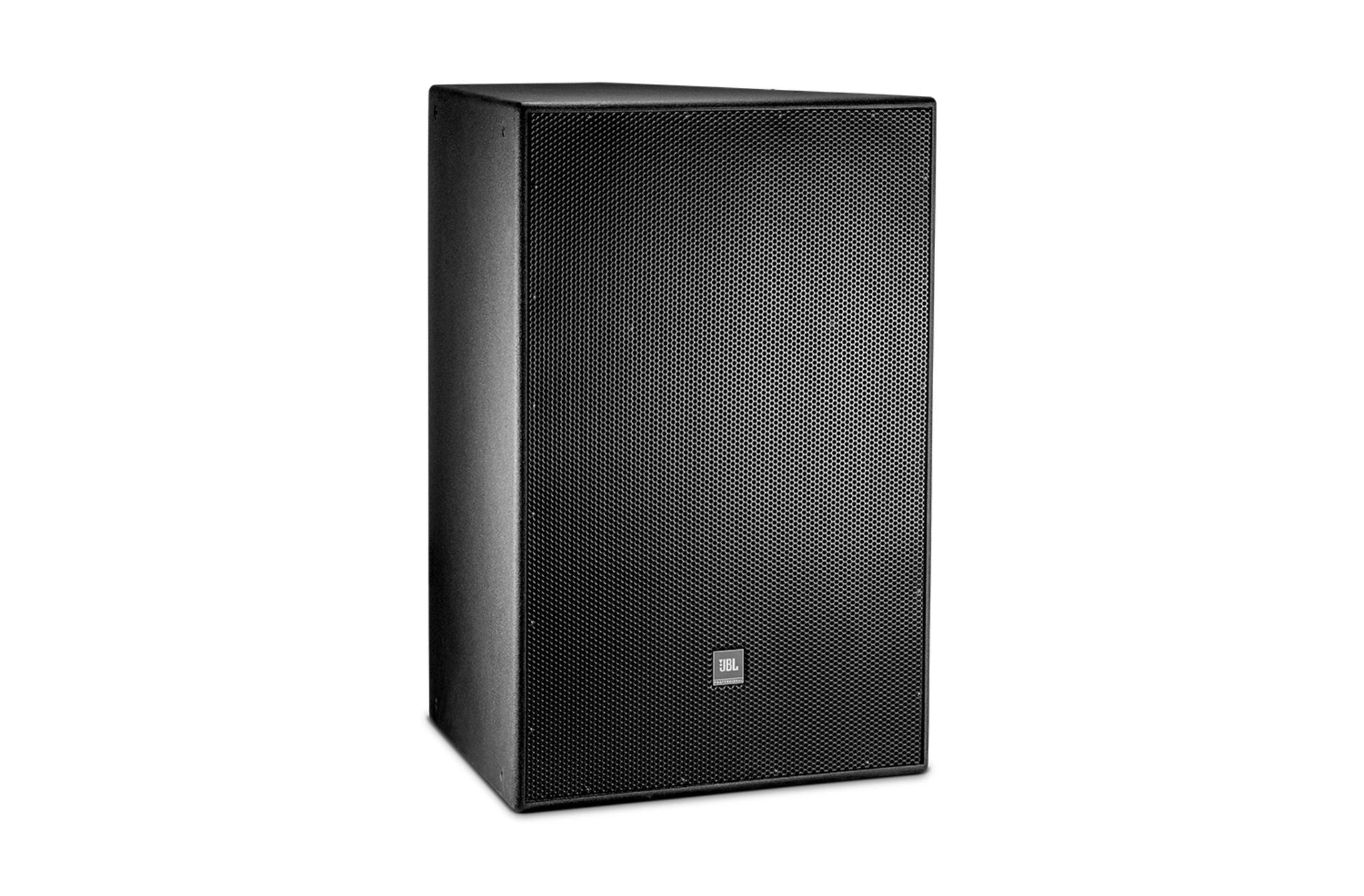

• Trapezoidal Finnish birch plywood enclosure

• 20-point M10 suspension system

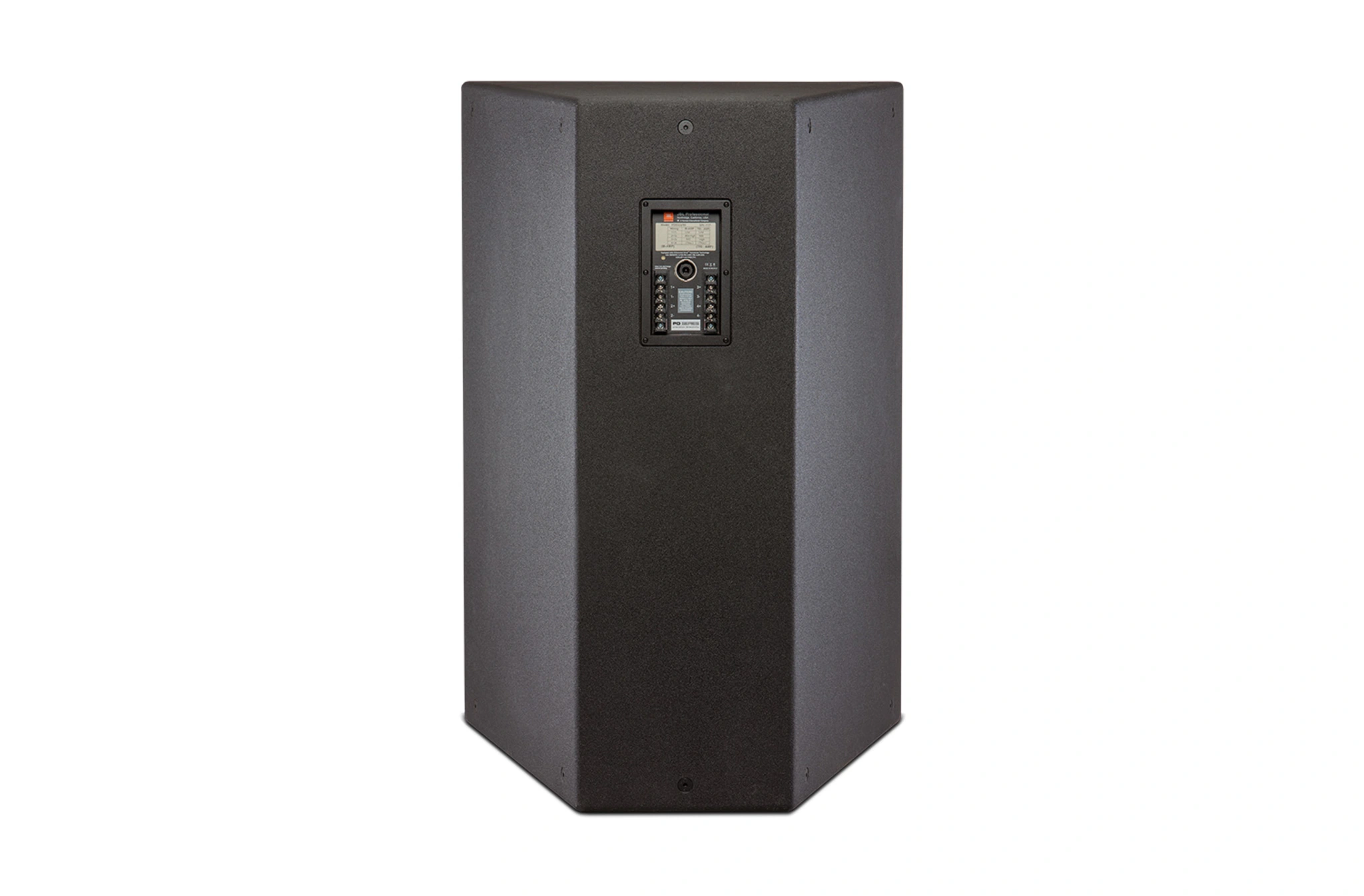

• Neutrik Speakon NL8 input connectors

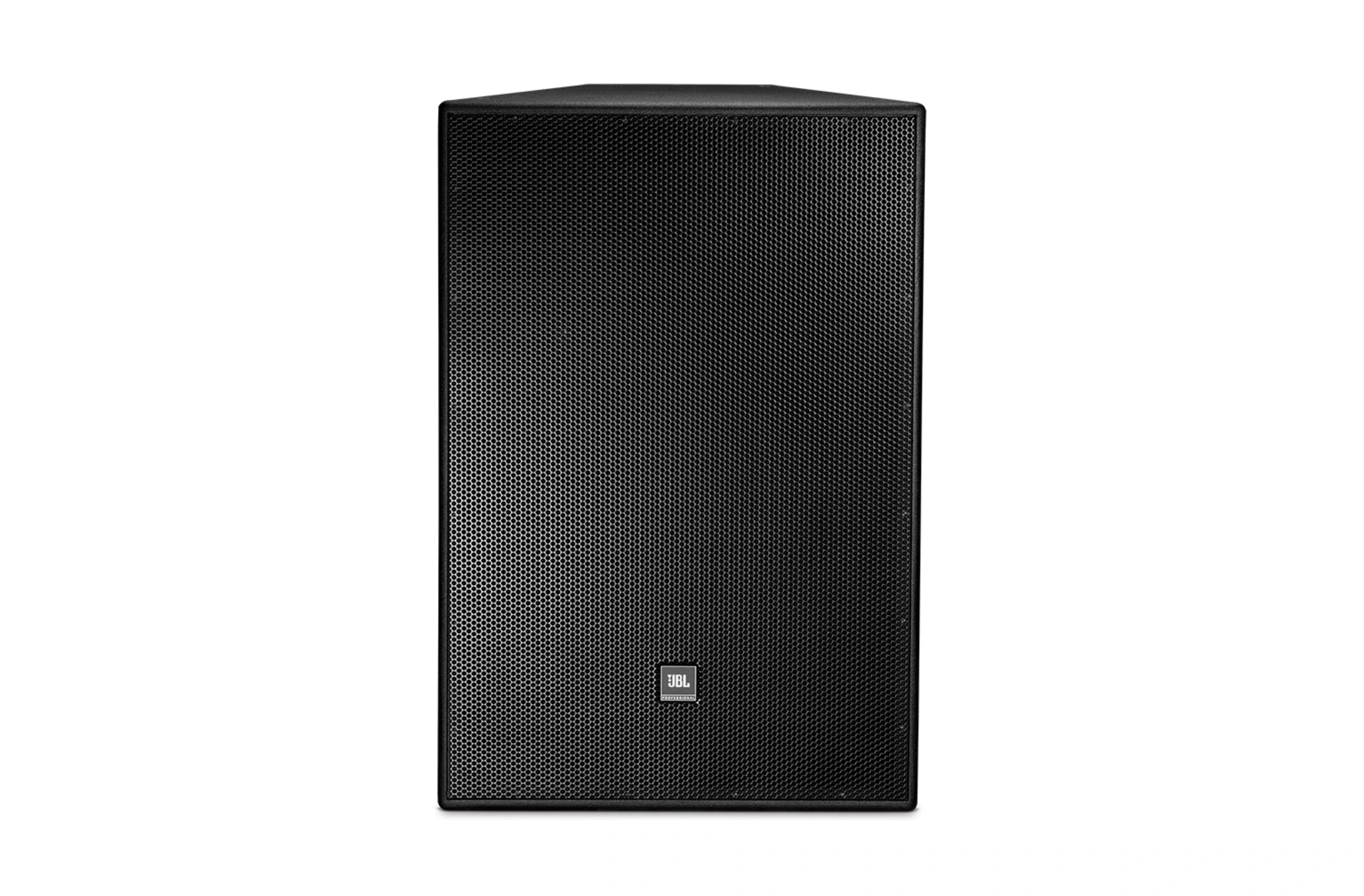

• Powder-coated perforated steel grille

Specifications of PD6322
