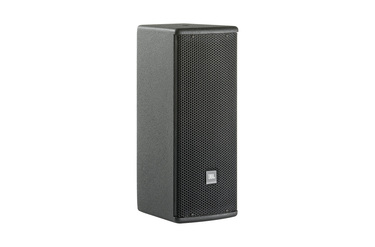

JBL AC25 Ultra Compact Dual 5-inch 2-way Loudspeaker – Black

JBL AC25 dual 5-inch 2-way loudspeaker

The JBL AC25 is an ultra-compact, high-output 2-way loudspeaker designed for professional fixed-installation applications. Manufactured in Mexico, it is part of JBL’s AE Compact family within the AE Series, combining precise audio performance with flexible installation in a space-efficient enclosure. The AC25 is engineered to meet the requirements of system designers and performers needing clear, reliable sound in small to medium-sized venues.

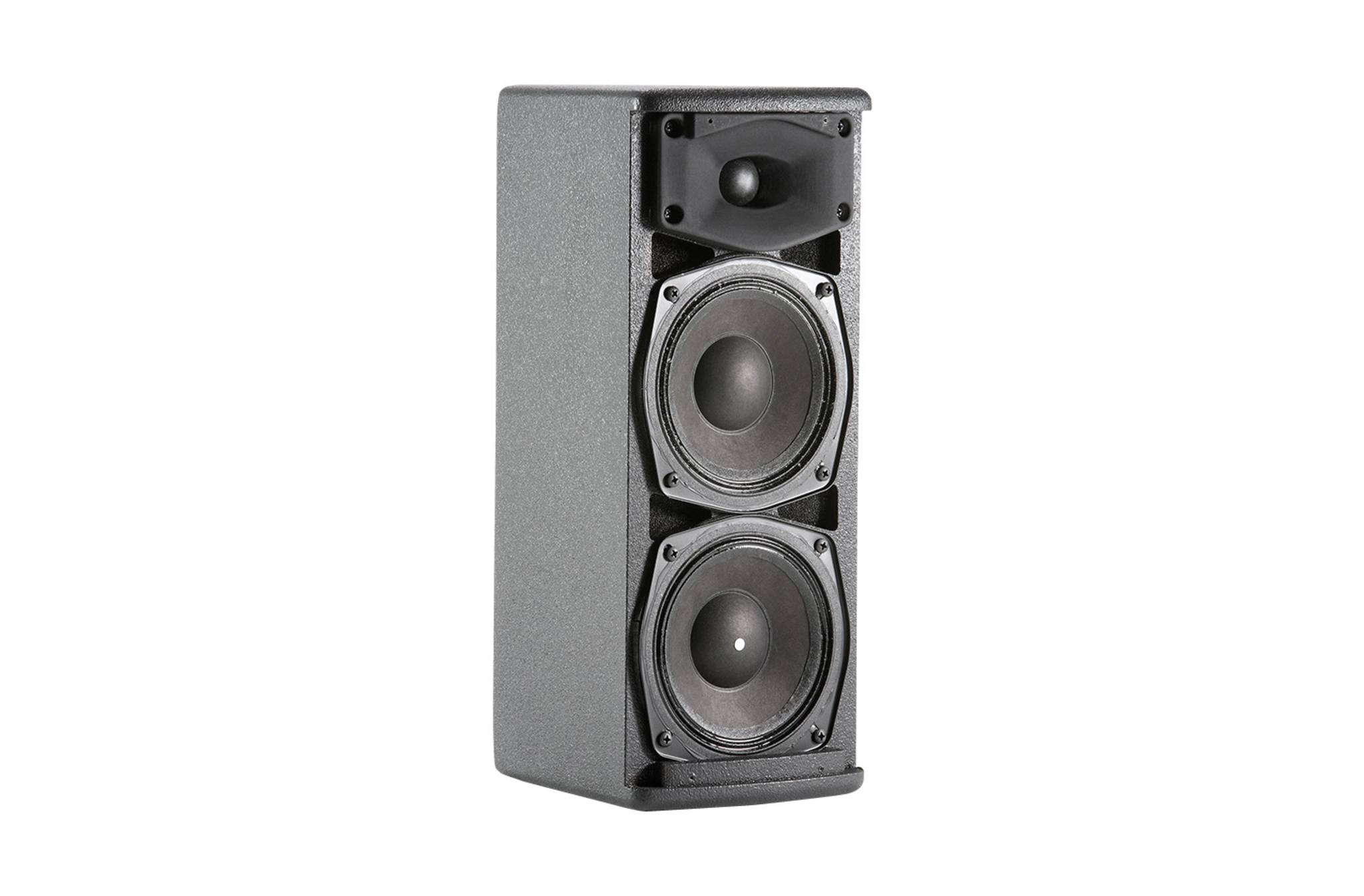

This loudspeaker features two 135 mm (5.25-inch) low-frequency transducers paired with a 25 mm (1-inch) dome tweeter, providing balanced midrange and detailed high-frequency output. The rotatable PT™ Progressive Transition waveguide delivers 90° x 90° coverage, ensuring even sound distribution and consistent off-axis performance. FIR tuning enhances frequency and phase response, optimizing coverage consistency and sound quality across the listening area. A passive crossover simplifies integration into professional audio systems.

The enclosure is constructed from 12 mm exterior-grade multi-ply hardwood plywood with a black textured finish, ensuring durability and a professional appearance. Dual Neutrik NL4 connectors and screw terminals provide secure and flexible connections. Multiple M8 and M6 suspension points allow installation using optional U-brackets or MultiMount® accessories for wall, ceiling, or floor mounting.

The AC25 is ideal for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live and dance clubs, sports facilities, and themed entertainment venues requiring compact, high-quality, and consistent sound reinforcement.

Features of AC25

• Dual 5.25-inch low-frequency drivers for balanced midrange and bass

• 25 mm dome tweeter for clear high-frequency reproduction

• 90° x 90° rotatable PT™ waveguide for consistent coverage

• Ultra-compact 2-way design for space-efficient installation

• 450 W program power handling for reliable output

• FIR tuning for optimized frequency, phase response, and coverage consistency

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple suspension points for flexible mounting

• Black finish for professional visual integration

Specifications of AC25
