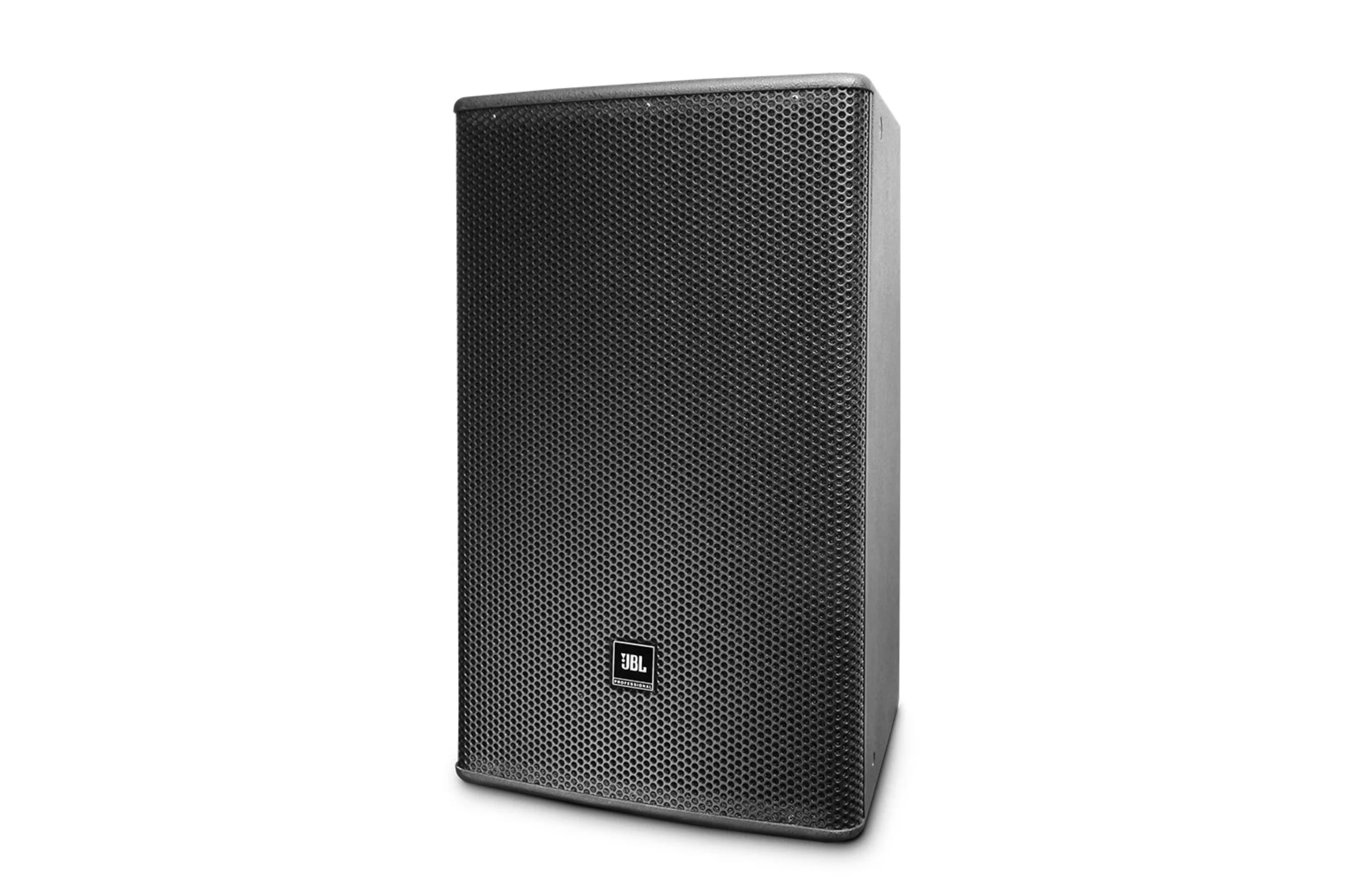

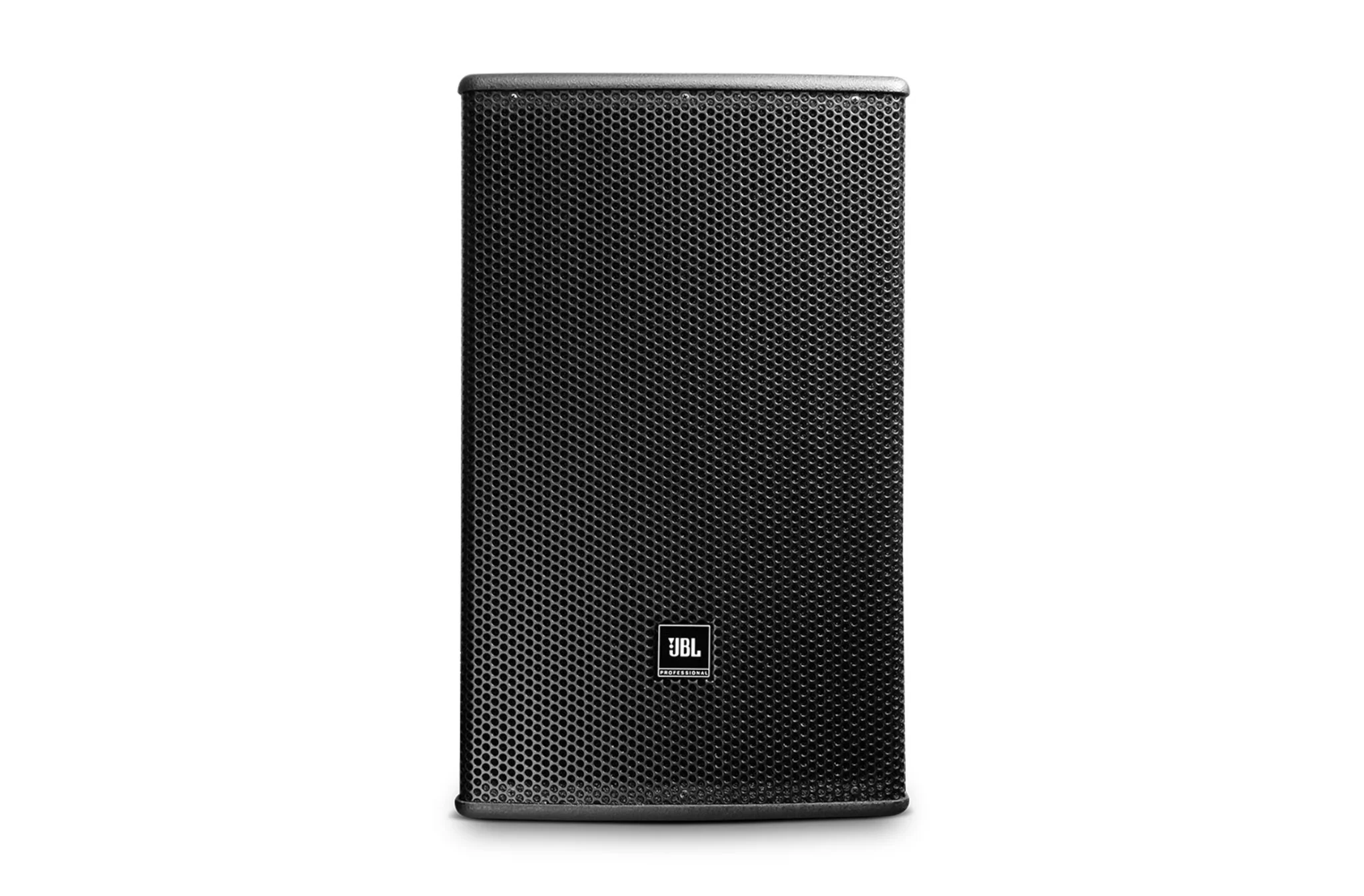

JBL AC566 15″ 2-Way Full-Range Passive Loudspeaker System – Black

JBL AC566 15-inch 2-way loudspeaker

The JBL AC566 is a compact, professional 2-way full-range loudspeaker engineered for fixed-installation applications. Made in China, it is part of JBL’s AE Application Engineered Series, designed to provide high-quality sound and flexible installation for a wide variety of spaces. This loudspeaker is suitable for performing spaces, clubs, houses of worship, multimedia areas, retail and hospitality environments, presentation suites, and educational facilities.

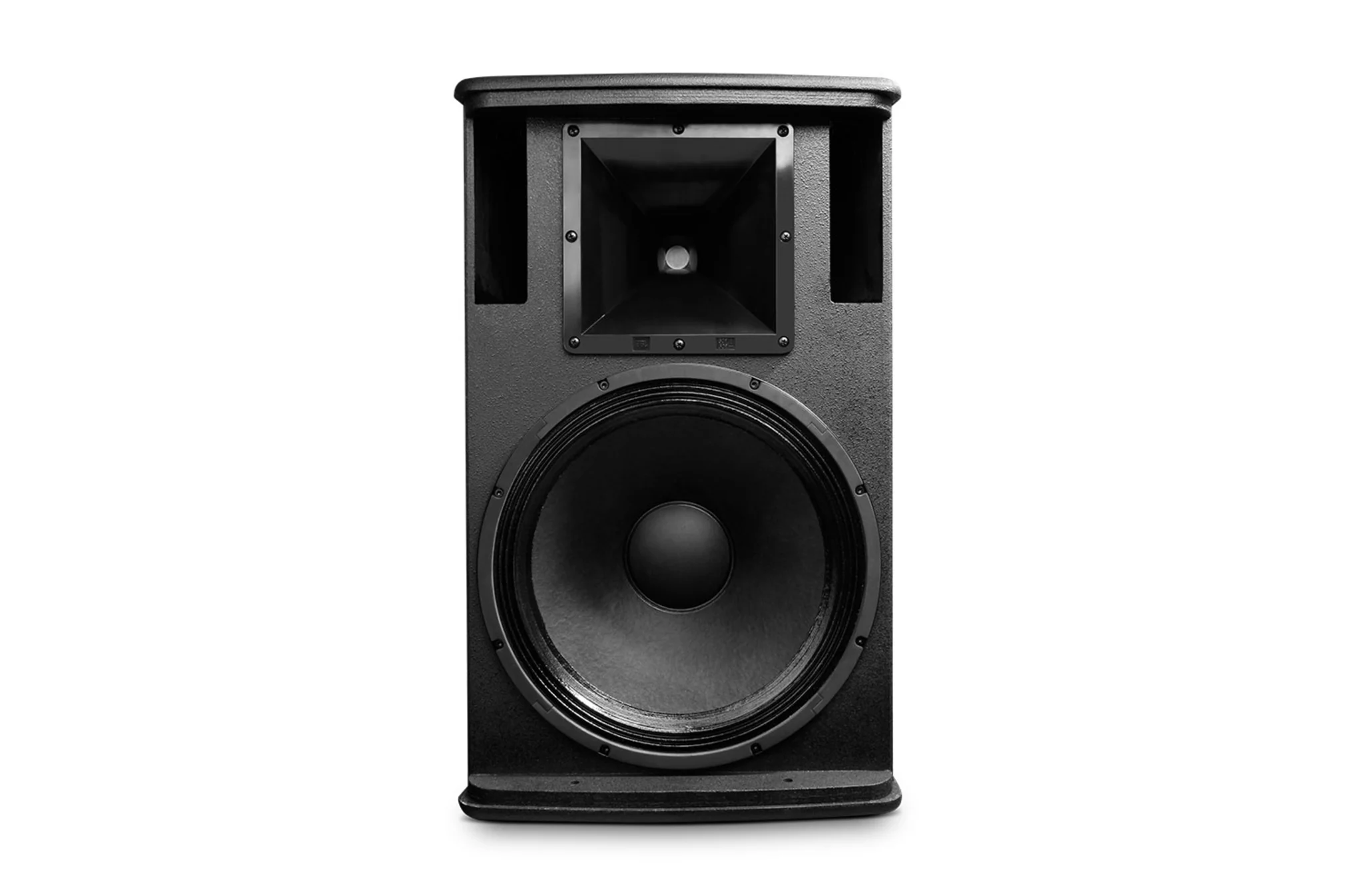

This model incorporates a 384 mm (15-inch) low-frequency driver alongside a 25 mm (1-inch) exit compression driver with a 35 mm (1.5-inch) diaphragm, delivering strong bass, clear mids, and crisp highs. The 60° x 60° waveguide ensures consistent horizontal and vertical sound coverage, while high-slope passive crossovers reduce band overlap and maintain accurate off-axis response.

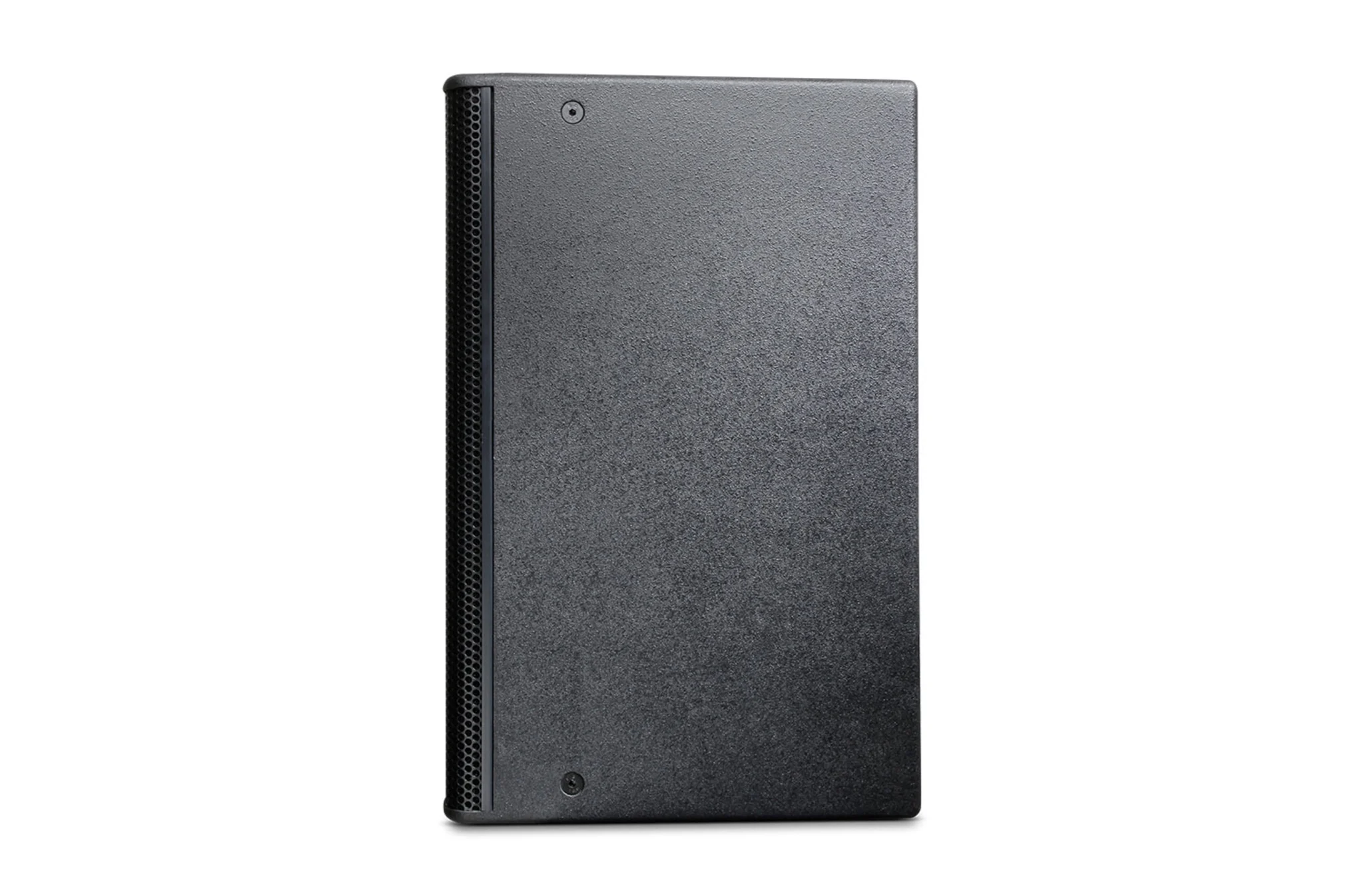

The cabinet is constructed from 15 mm multi-ply hardwood plywood and finished in durable black textured paint. Dual Neutrik NL4 connectors with screw terminals provide reliable signal connections. Multiple M10 suspension points and rear-threaded inserts allow versatile mounting using optional U-brackets, L-brackets, or wall-mount systems.

Features of AC566

• 384 mm (15 in) low-frequency driver for deep bass and clear mids

• 25 mm exit compression driver with 35 mm diaphragm for crisp highs

• 60° x 60° waveguide for uniform horizontal and vertical coverage

• Compact 2-way design suitable for flexible installation

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple suspension points for versatile mounting options

• Robust 15 mm multi-ply hardwood plywood enclosure with black textured finish

Specifications of AC566
