JBL VTX A12 Next Generation Dual 12 in. Line Array Loudspeaker

The JBL VTX A12 Next Generation Dual 12 in. Line Array Loudspeaker is a complete, high-performance tour sound solution designed for mid- to large-size touring setups and premium fixed installations. Engineered from the ground up, the VTX A12 addresses the needs of FOH engineers, production crews, and rental companies by combining cutting-edge transducer technology, optimized waveguides, and a fully refined rigging system for fast, reliable deployment.

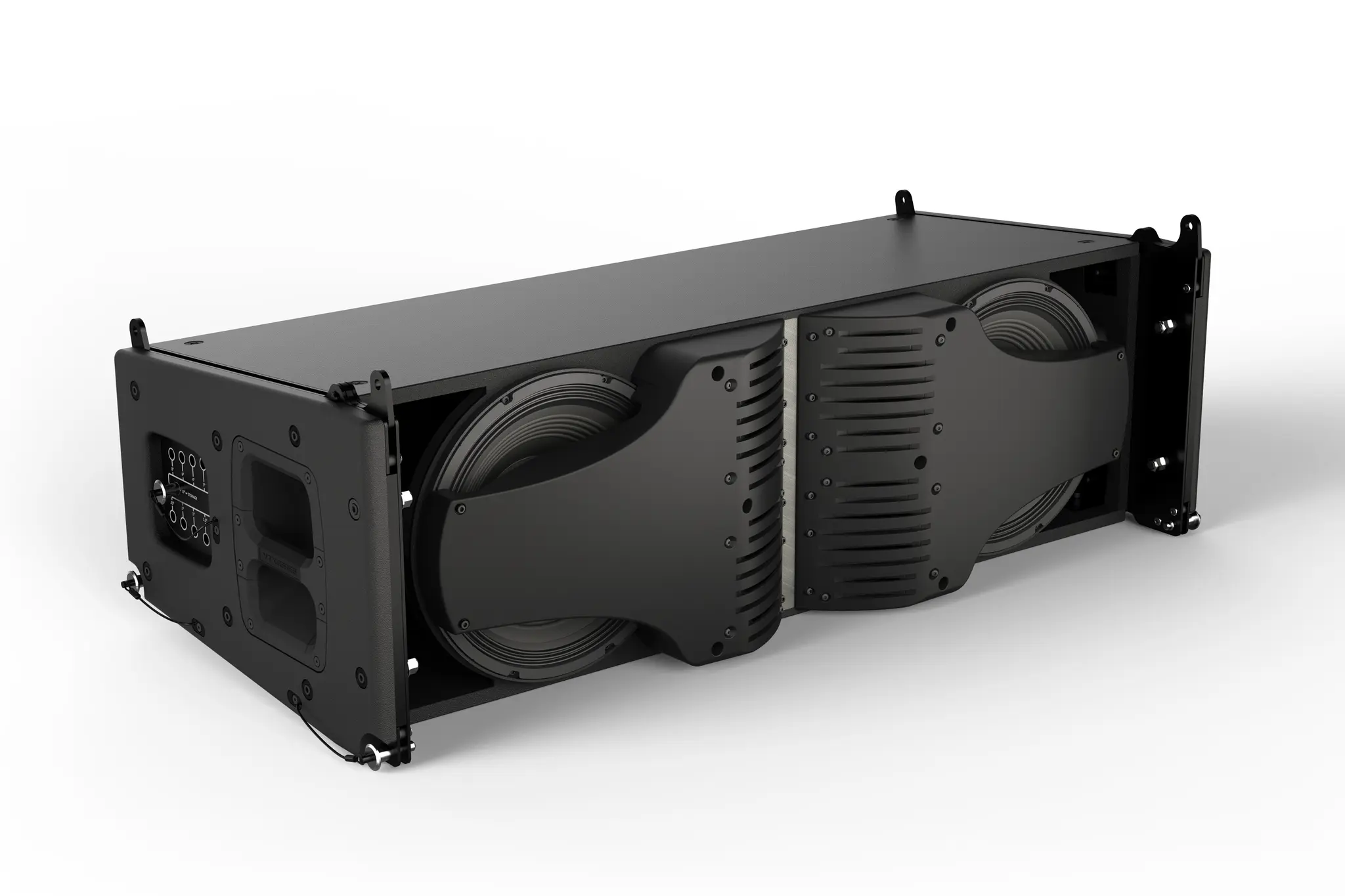

This system features dual 12-inch JBL 2264H Neodymium Differential Drive® woofers for extended low-frequency output and four 5.5-inch JBL 2165H Differential Drive® mid-frequency drivers, delivering exceptional linearity and high SPL across the audio spectrum. The high-frequency section employs three 2-inch JBL 2423K annular diaphragm compression drivers mounted on a precision waveguide to ensure consistent coverage and clarity, even at extreme output levels. A redesigned Radiation Boundary Integrator® (RBI) minimizes horn edge diffraction, reduces distortion, and extends low-frequency coverage down to 250 Hz, achieving superior LF and HF coherence.

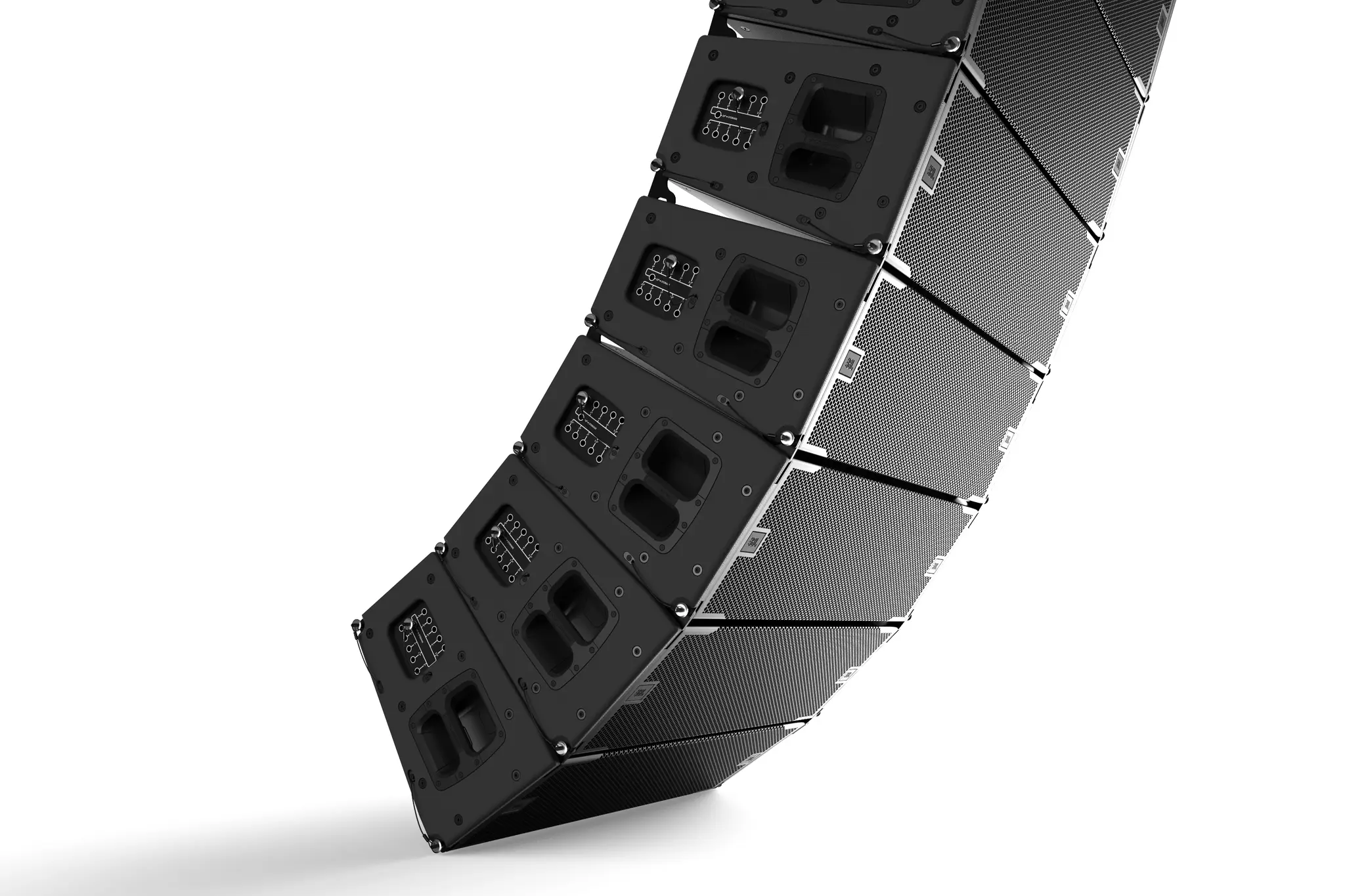

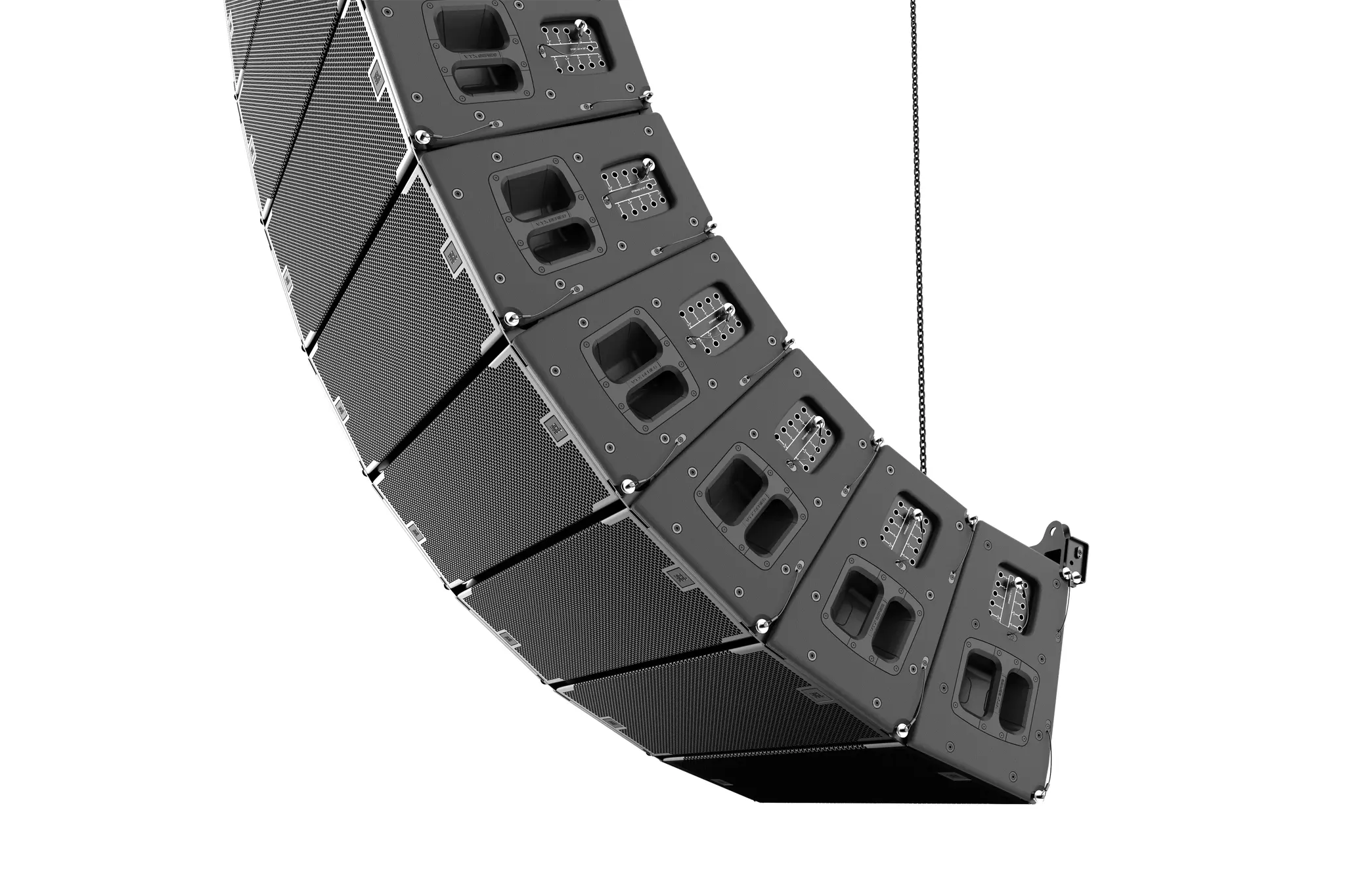

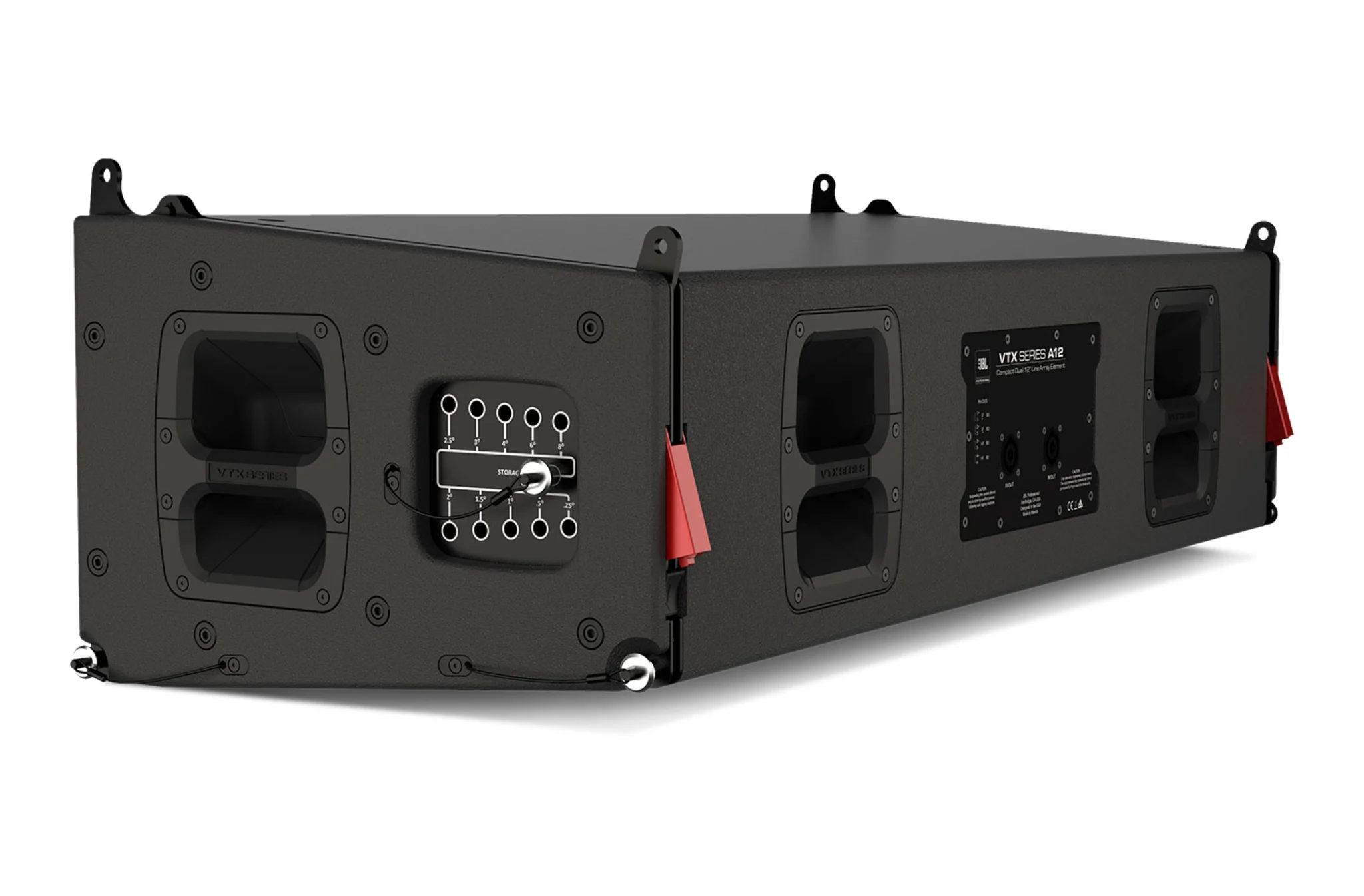

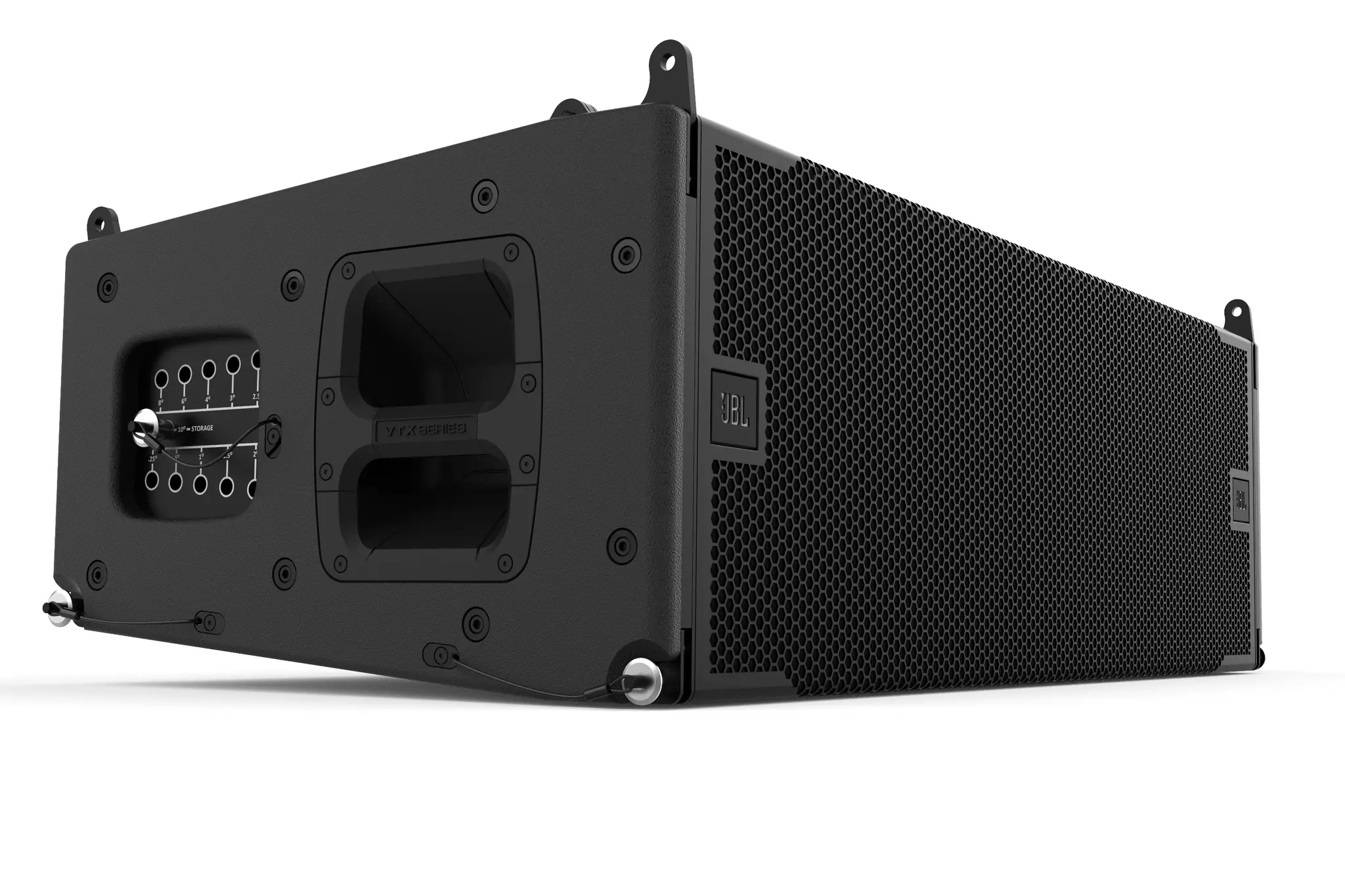

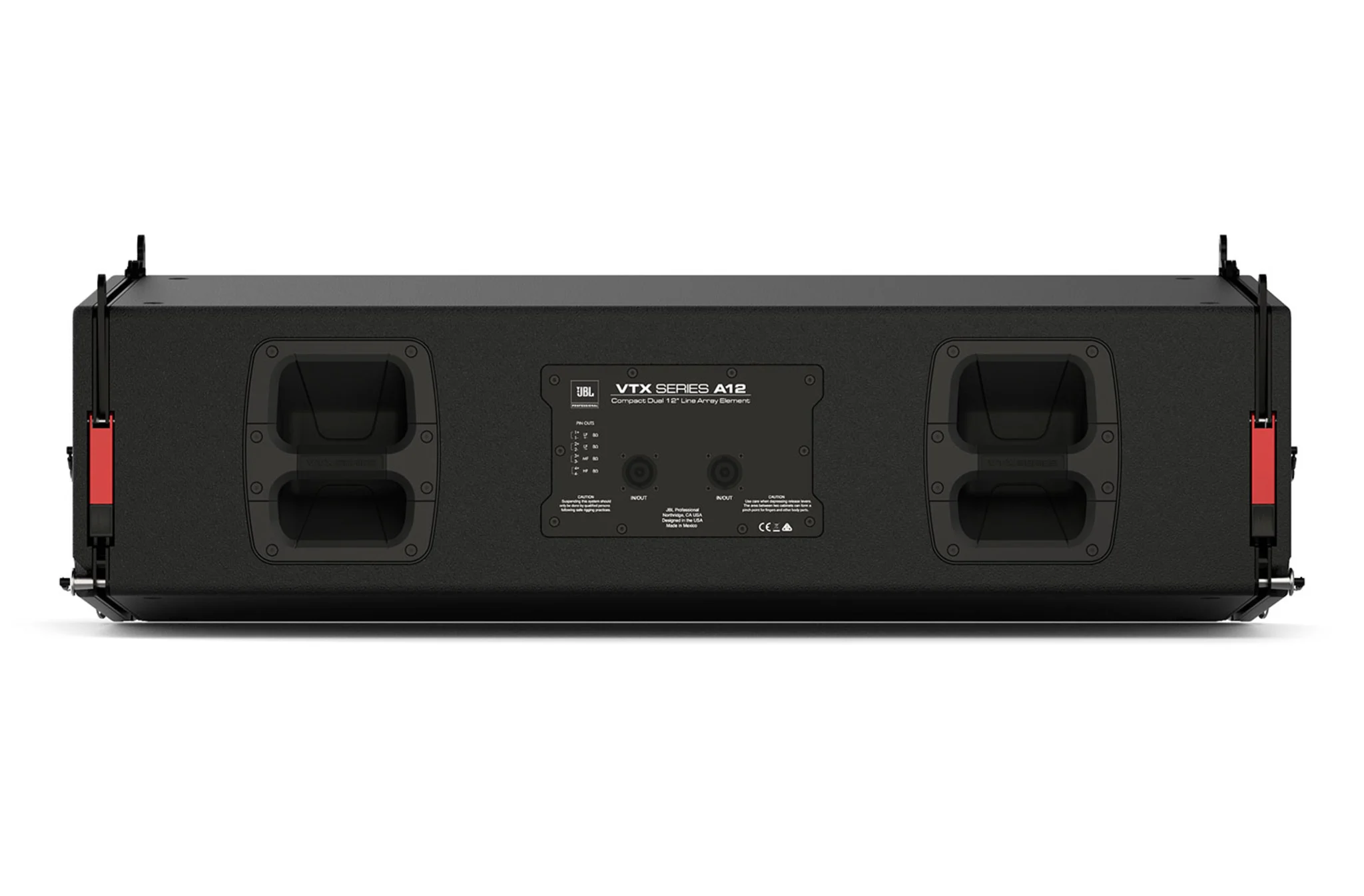

The enclosure, crafted from Finnish birch plywood and finished in black DuraFlex™, incorporates recessed handles for easy handling and rugged durability. High-grade steel suspension plates with anti-corrosion coating, captive pins, and an auto-locking mechanism provide rapid, secure inter-enclosure angle adjustments ranging from 0.25° to 10°. Full integration with JBL system control and prediction software allows precise configuration and performance optimization. Compact, lightweight, and optimized for tour and installation use, the JBL VTX A12 combines portability, versatility, and unmatched professional audio quality in a single, high-end line array package.

Features of VTX A12

• Dual 12-inch JBL 2264H Differential Drive® woofers

• Four 5.5-inch JBL 2165H Differential Drive® mid-frequency drivers

• Three 2-inch JBL 2423K HF annular diaphragm compression drivers

• Patented Radiation Boundary Integrator® for reduced horn diffraction and improved LF response

• High-sensitivity HF waveguide with integrated phasing plug

• Lightweight, compact, and tour-ready design

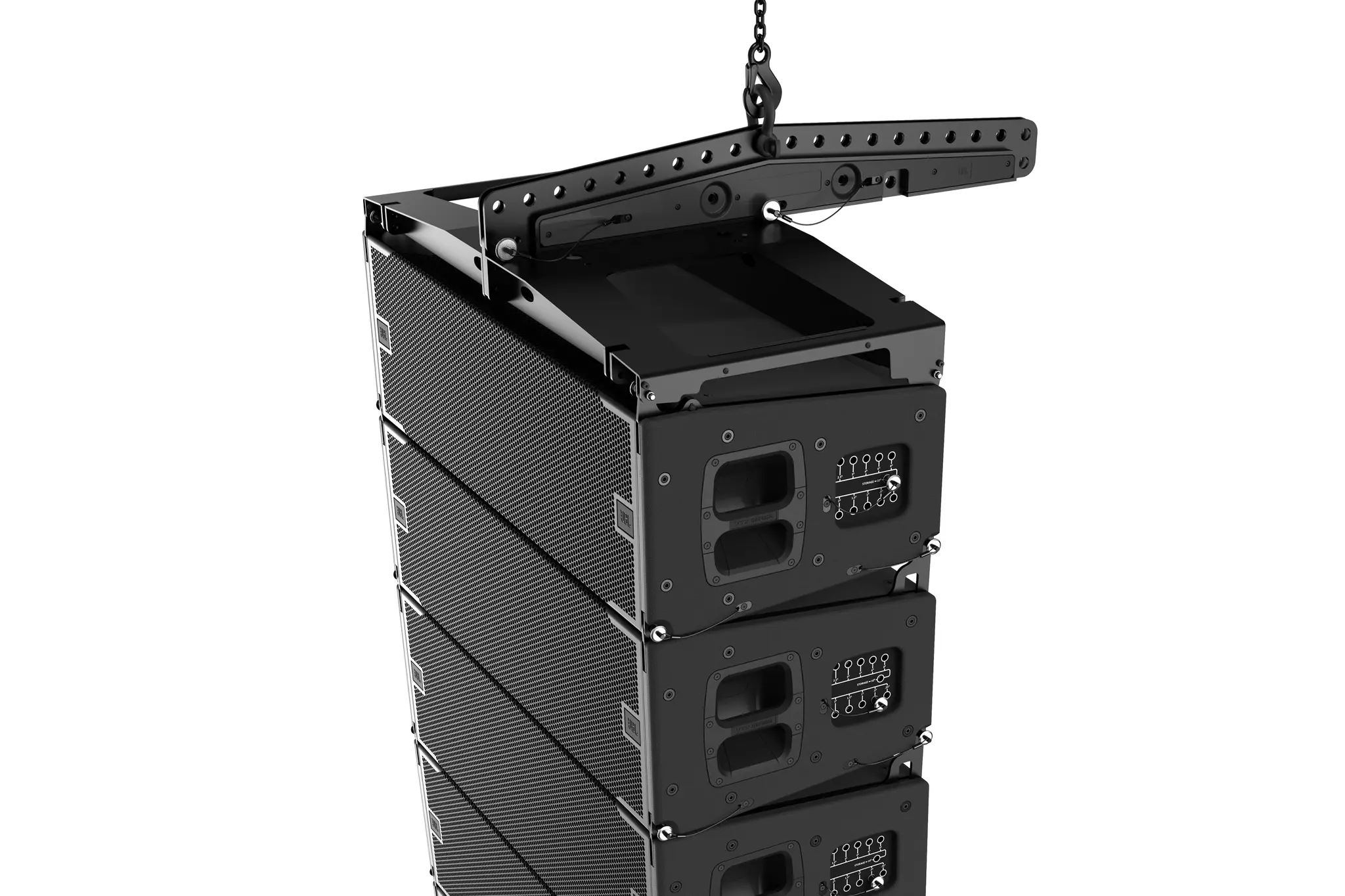

• Streamlined rigging with captive pins, auto-locking mechanism, and high-grade steel plates

• Full integration with JBL system control and prediction software

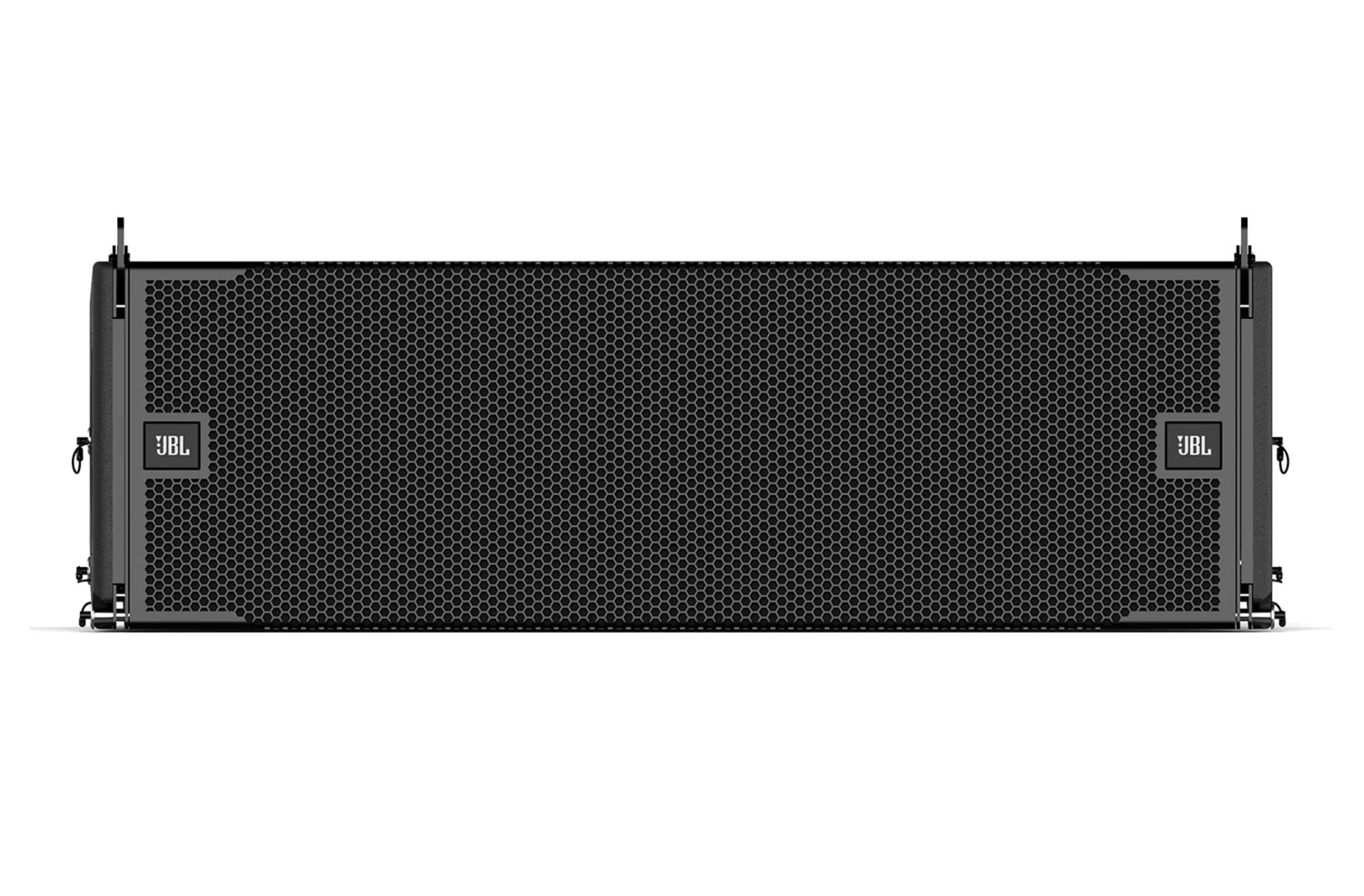

• Full-face grill for weather resistance and refined aesthetics

• Transport cart and frame for simplified setup and deployment

• Optimized enclosure design for reduced weight and maximum performance
