RCF BD 5EN Weatherproof Bidirectional Sound Projector

RCF BD 5EN Weatherproof Bidirectional Sound Projector

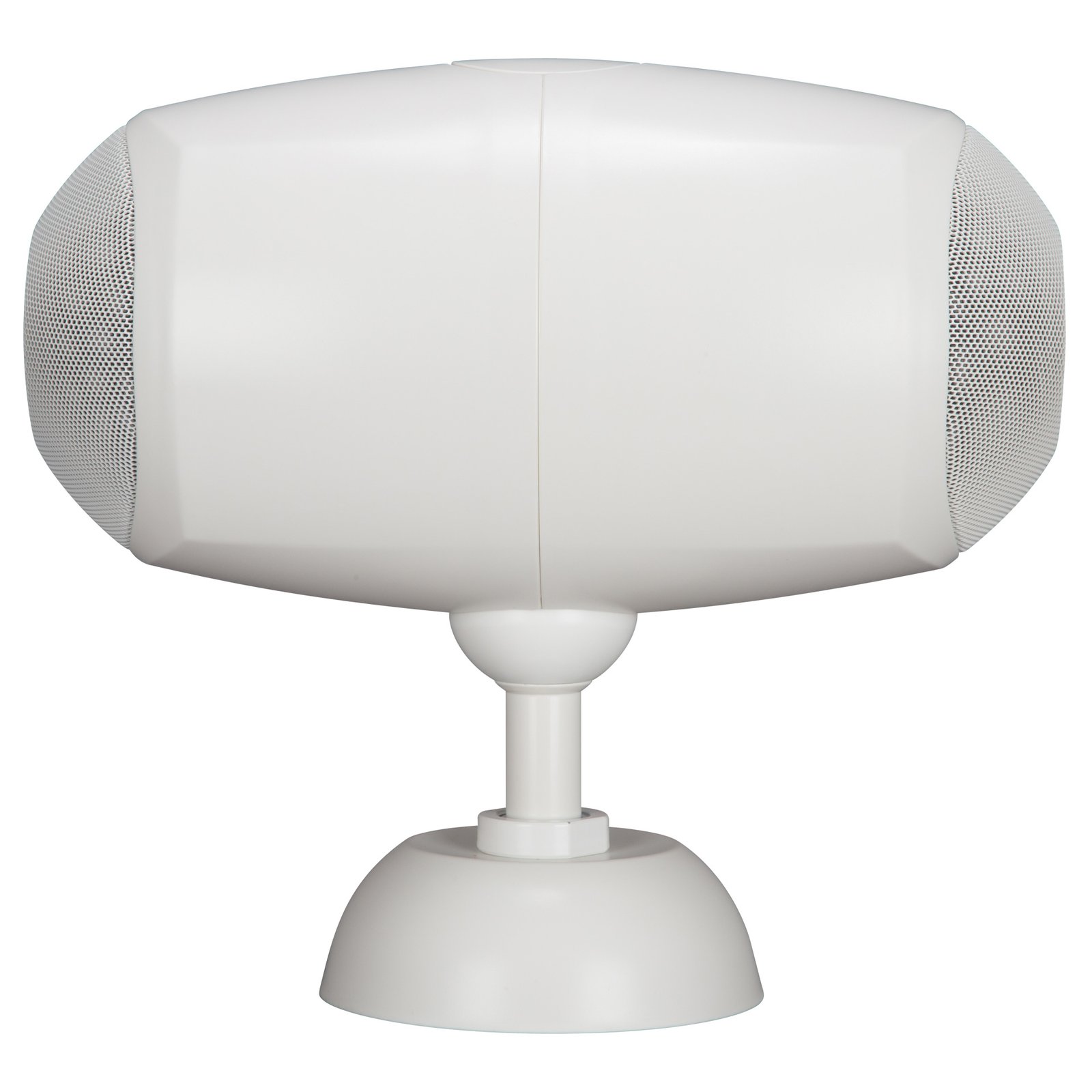

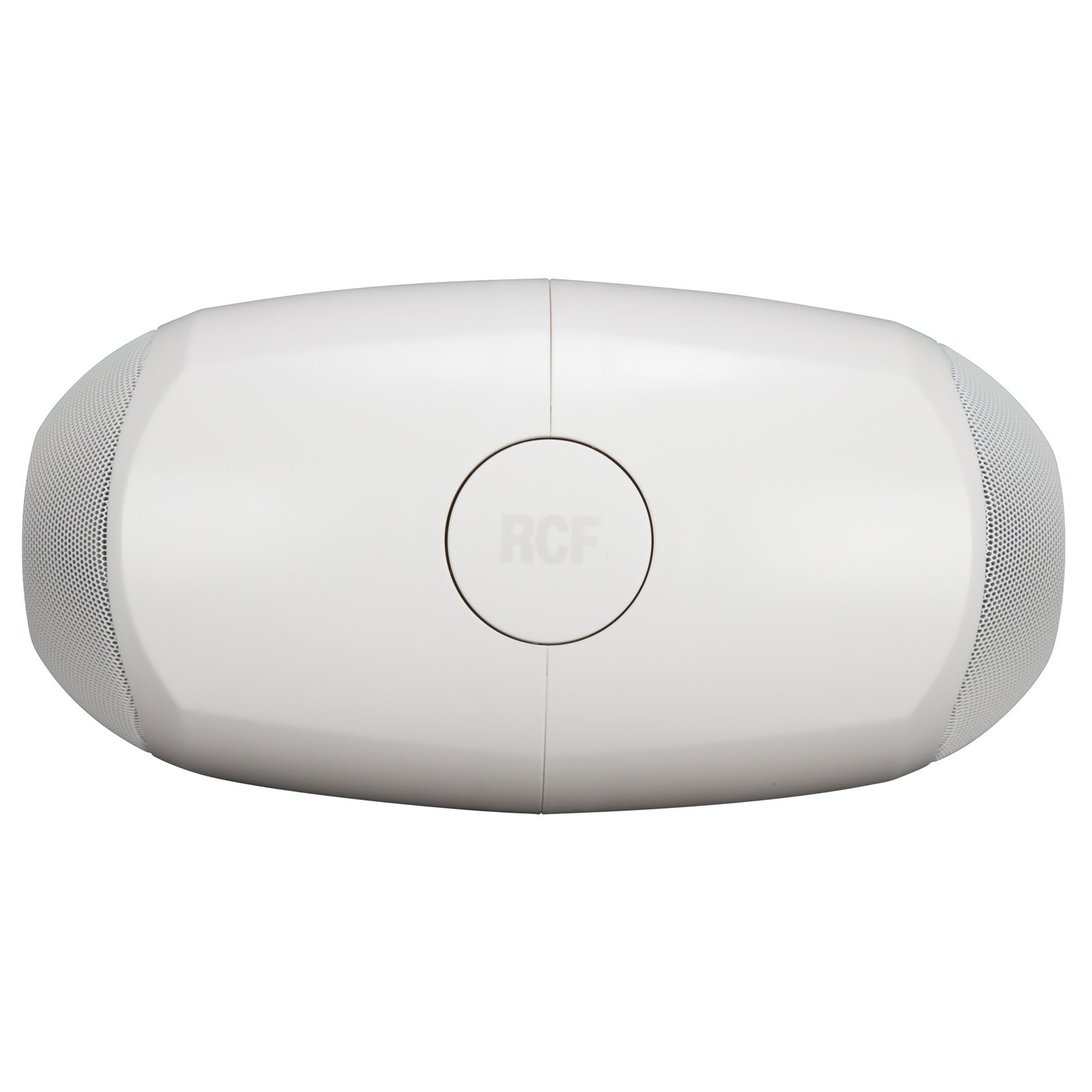

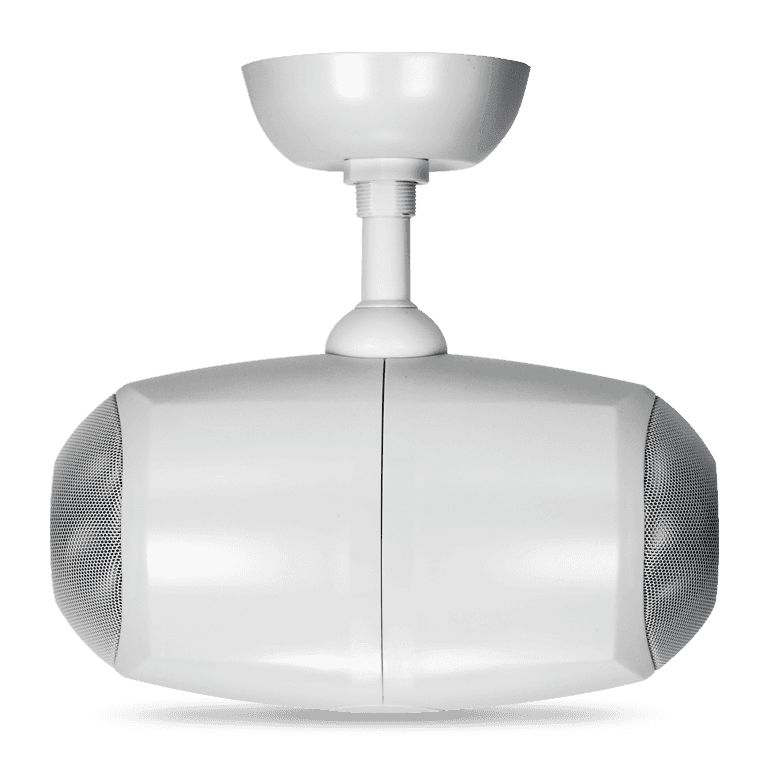

The RCF BD 5EN is a weatherproof bidirectional sound projector with two five-inch drivers. Its protected enclosure is intended for voice alarm coverage and background music, while transformer selection allows the speaker load to be matched to the installation.

The specified frequency response is 150 Hz – 18000 Hz. Rated power handling is 20 W. Maximum sound pressure level at one metre is 99 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 183 mm, width 332 mm, depth 176 mm, weight 3.59 kg. The enclosure material is ABS. The specified finish is White – RAL 9016. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of BD 5EN

• 2 x 5″ fullrange transducers.
• Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
• 86 dB sensitivity.
• Colour White – RAL 9016

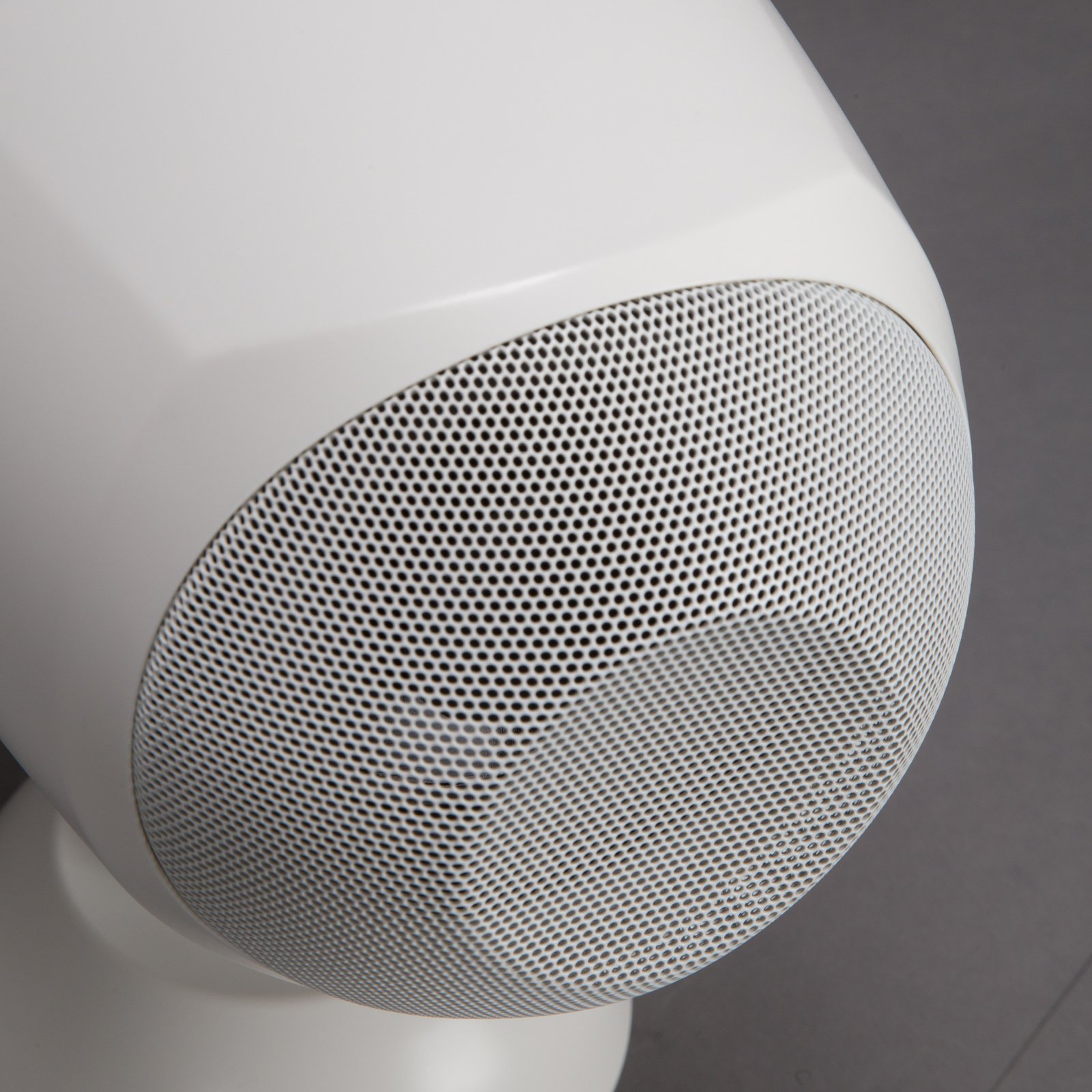

• Flameproof ABS body, steel grille.

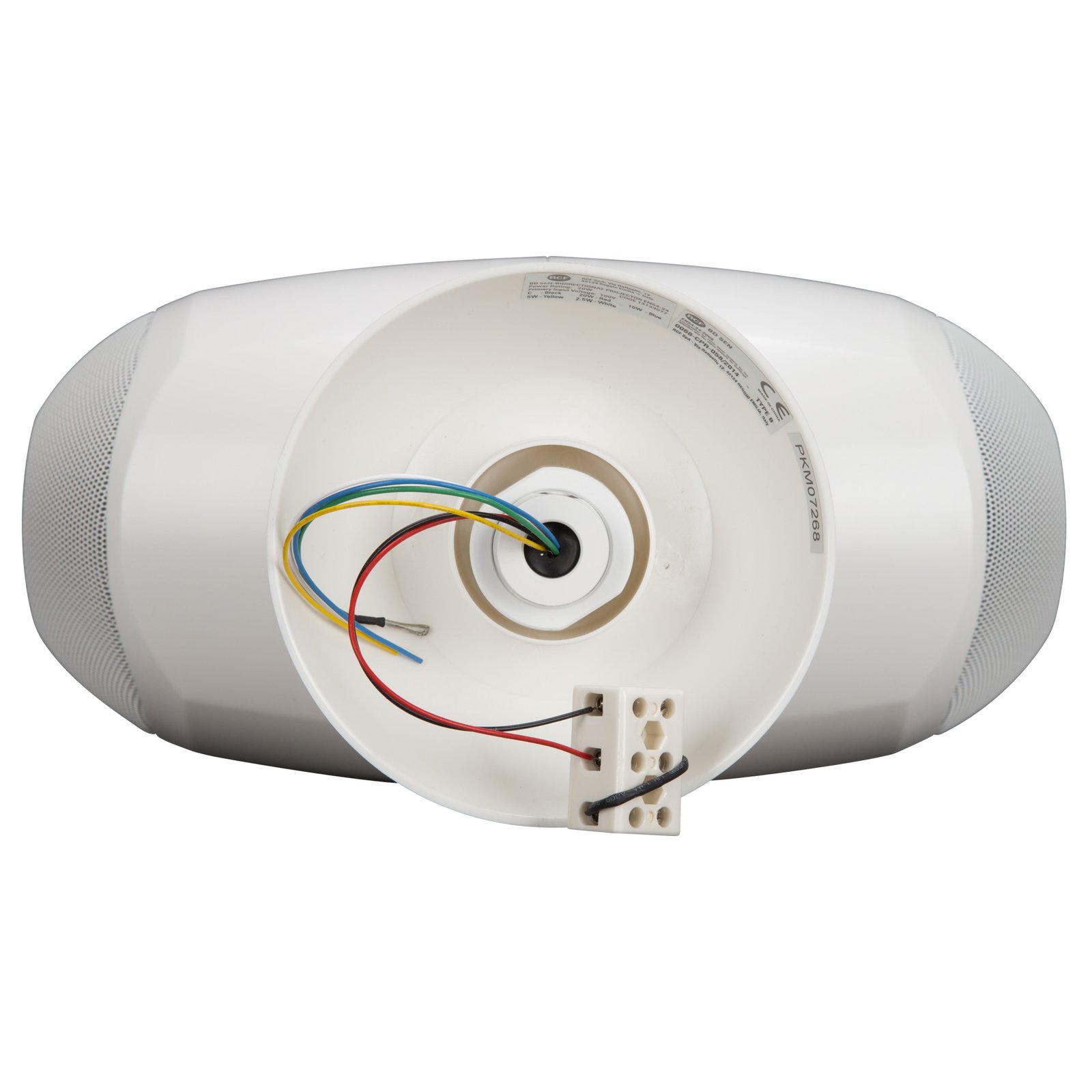

• In/out ceramic terminal block.
• Thermal fuse protection.
• Protection grade IP65.

Specifications of BD 5EN
