RCF BH 1042 Rack Battery Support Panel

RCF BH 1042 Rack Battery Support Panel

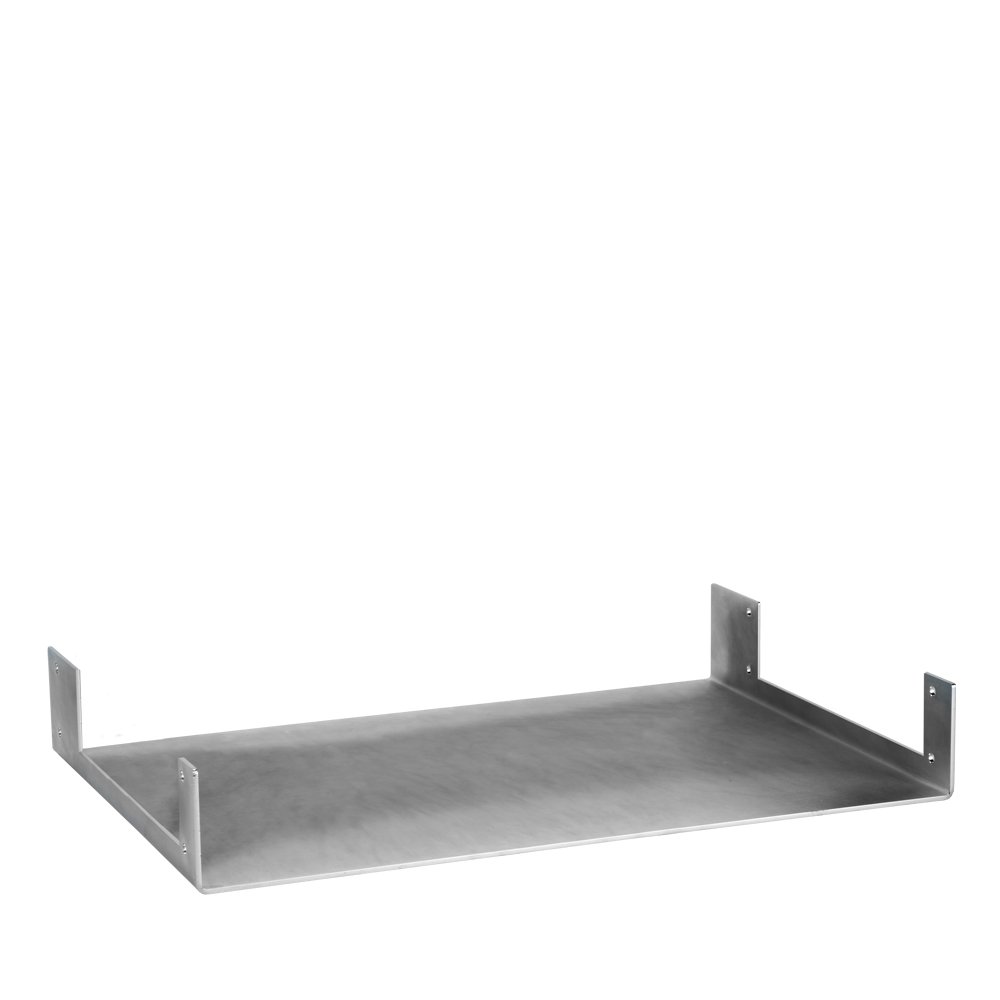

The RCF BH 1042 is a dedicated Rack battery support panel for compatible installed audio equipment. This metal support panel installs inside compatible nineteen-inch RCF rack cabinets. It provides a robust support arrangement for heavy components, including batteries used in voice alarm systems, allowing the rack layout to include a dedicated battery-support component.

The panel uses three-millimetre galvanized sheet construction. Installation plates, screws and nuts are included, giving the installer the specified hardware for the supported rack arrangement. The rack dimensions, battery placement and panel fixing positions should be considered together when planning the complete equipment layout.

The height is 75 mm. The width is 498 mm. The depth is 395 mm. The specified weight is 6 kg. These physical characteristics establish the component’s format within the installation and help determine its position relative to the other system equipment and cable paths.

The component has a defined function within the supported audio system, with its operating role determined by the compatible master unit, console or rack arrangement. Planning the connections and physical placement together helps maintain the relationship between the local device and the rest of the installation throughout configuration and operation.

Use the installation instructions for the exact component and the equipment with which it is connected. The available space, connection routes and access to the relevant controls or mounting points should be considered as one arrangement. This keeps the system layout consistent with the specified application and supports a clear, organized installation. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.

Features of BH 1042

• Galvanized sheet thickness 3mm
• Installation plates, screws and nuts included

Specifications of BH 1042
