RCF DU 50EN Steel Wall and Ceiling Speaker
RCF DU 50EN is a universal steel loudspeaker for wall and ceiling installation. It provides the specified format for a carefully planned professional audio installation and the associated system connection arrangement.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 517.65 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
RCF DU 50EN Steel Wall and Ceiling Speaker
The RCF DU 50EN is a universal steel loudspeaker for wall and ceiling installation. Its fullrange driver and selectable transformer taps provide a defined solution for distributing announcements and alarm messages through compatible constant-voltage systems.
The specified frequency response is 190 Hz – 18000 Hz. Rated power handling is 6 W. Maximum sound pressure level at one metre is 100 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.
The physical specification lists height 164 mm, width 164 mm, depth 60 mm, weight 1.9 kg. The enclosure material is Metal. The specified finish is White – RAL 9010. The productÂ’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.
Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeakerÂ’s specified connection method and load should be matched to the selected amplification system before the final layout is established.
For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.
Features of DU 50EN
- 5″ fullrange transducer.
- Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
- 91 dB sensitivity.
- Colour White – RAL 9010
- Steel body and grille.

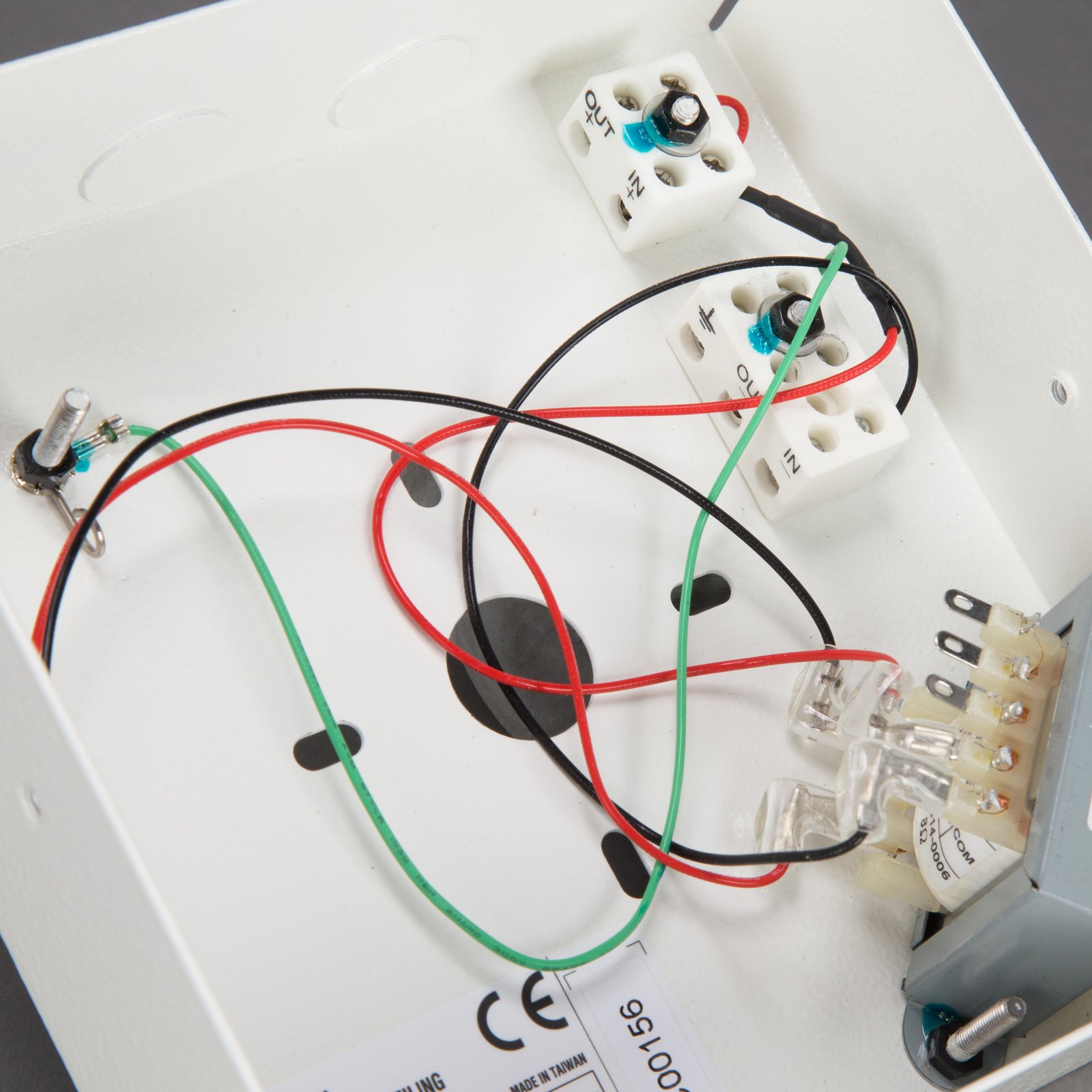

- In/out ceramic terminal block.
- Thermal fuse protection.
Specifications of DU 50EN
| Product Type | Steel Wall and Ceiling Speaker |
| Brand | RCF |
| Model | DU 50EN |
| Manufacturer Part Number | 13133064 |
| Frequency Response (-10dB) | 190 Hz – 18000 Hz |
| Max SPL @ 1m | 100 dB |
| Max SPL @ 4m | 88 dB |
| Coverage angle | 175° |
| System Sensitivity | 91 dB |
| System Sensitivity 1W @ 4m | 79 dB |
| Power Handling | 6 W |
| Peak Power Handling | 24 W PEAK |
| Protections | Thermal fuse |
| Fullrange | 1 x 5.0” |
| Input connectors | Ceramic screw terminals |
| Output connectors | Ceramic screw terminals |
| Constant Voltage Transformer | 100 V |
| Power selection 1 | 6 W – 1667 ohm |
| Power selection 2 | 3 W – 3333 ohm |
| Power selection 3 | 1.5 W – 6667 ohm |
| Power selection 4 | 0.75 W – 13333 ohm |
| EN54-24 certified | Yes |
| Cabinet/Case Material | Metal |
| Grille | Steel |
| Color | White – RAL 9010 |
| Height | 164 mm / 6.46 inches |
| Width | 164 mm / 6.46 inches |
| Depth | 60 mm / 2.36 inches |
| Weight | 1.9 kg / 4.19 lbs |
