RCF DUP 5EN Wall-Mount Voice Alarm Speaker

RCF DUP 5EN Wall-Mount Voice Alarm Speaker

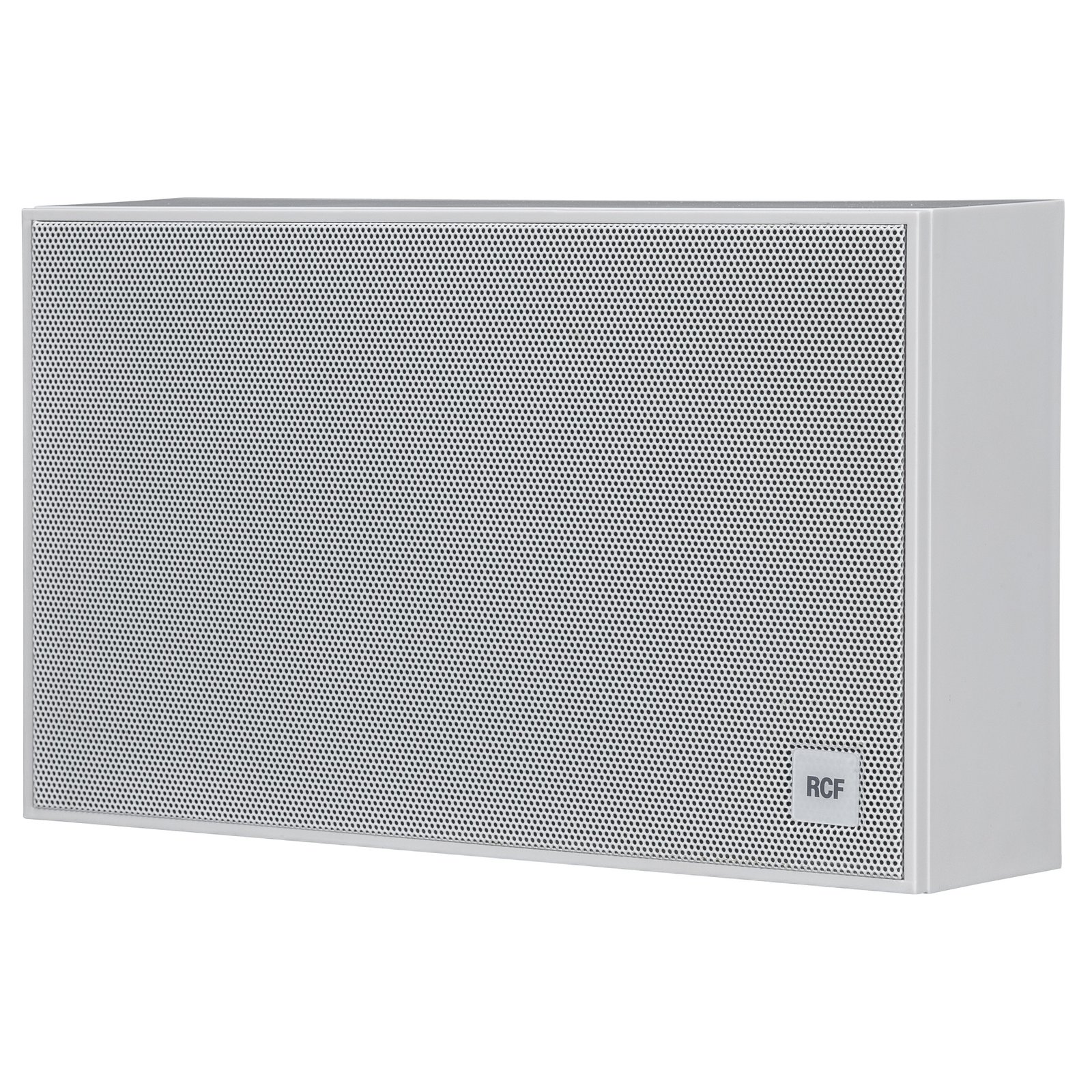

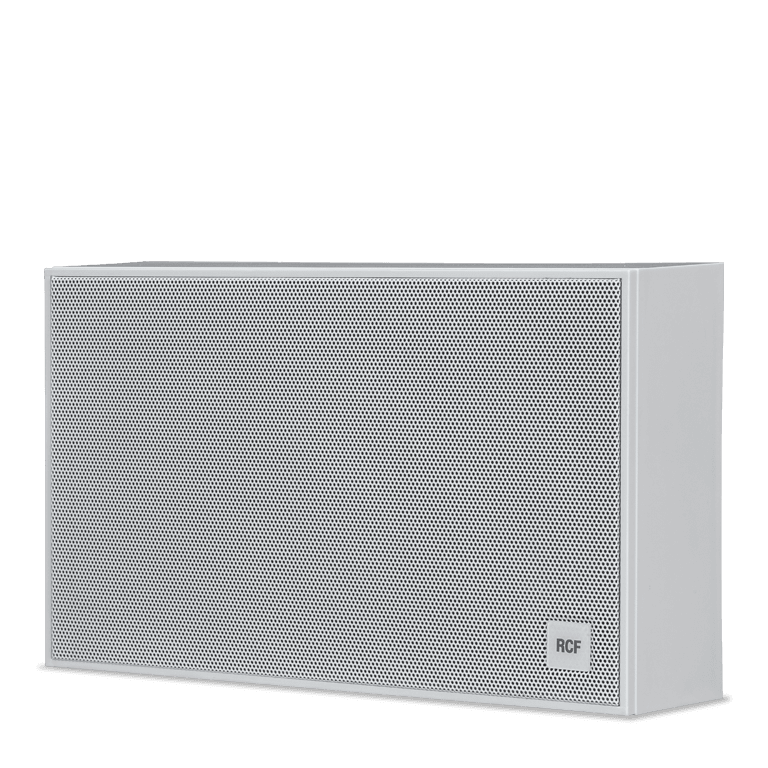

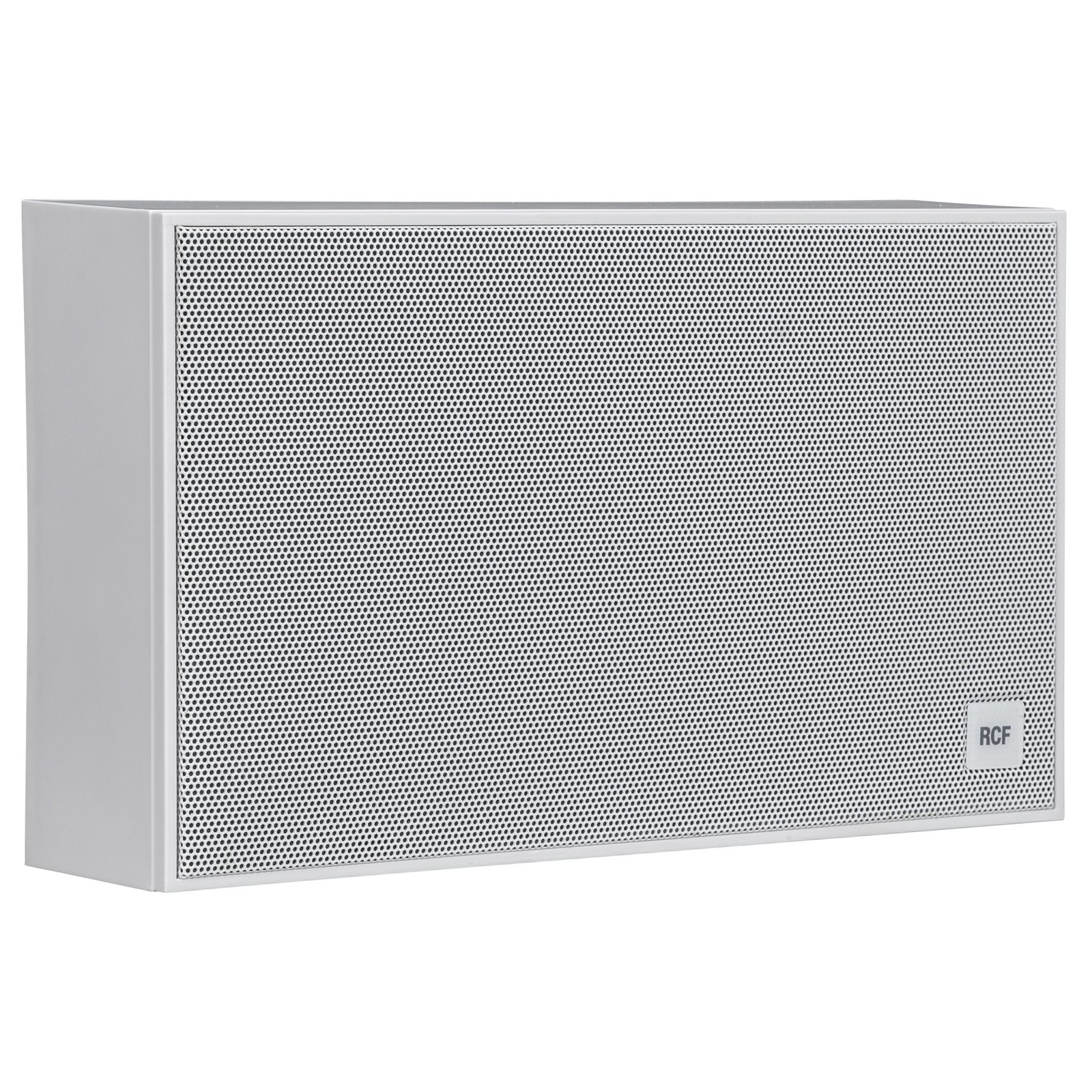

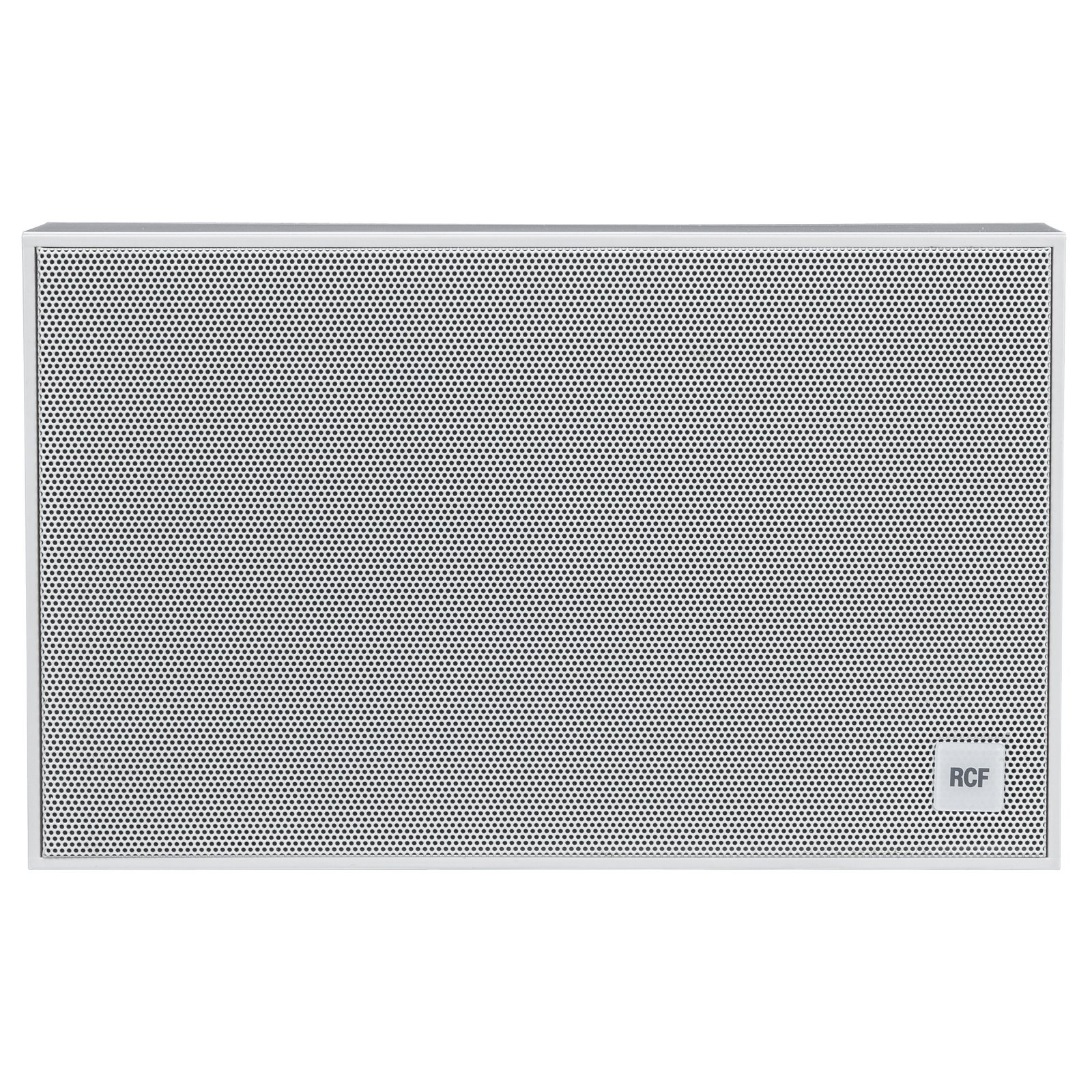

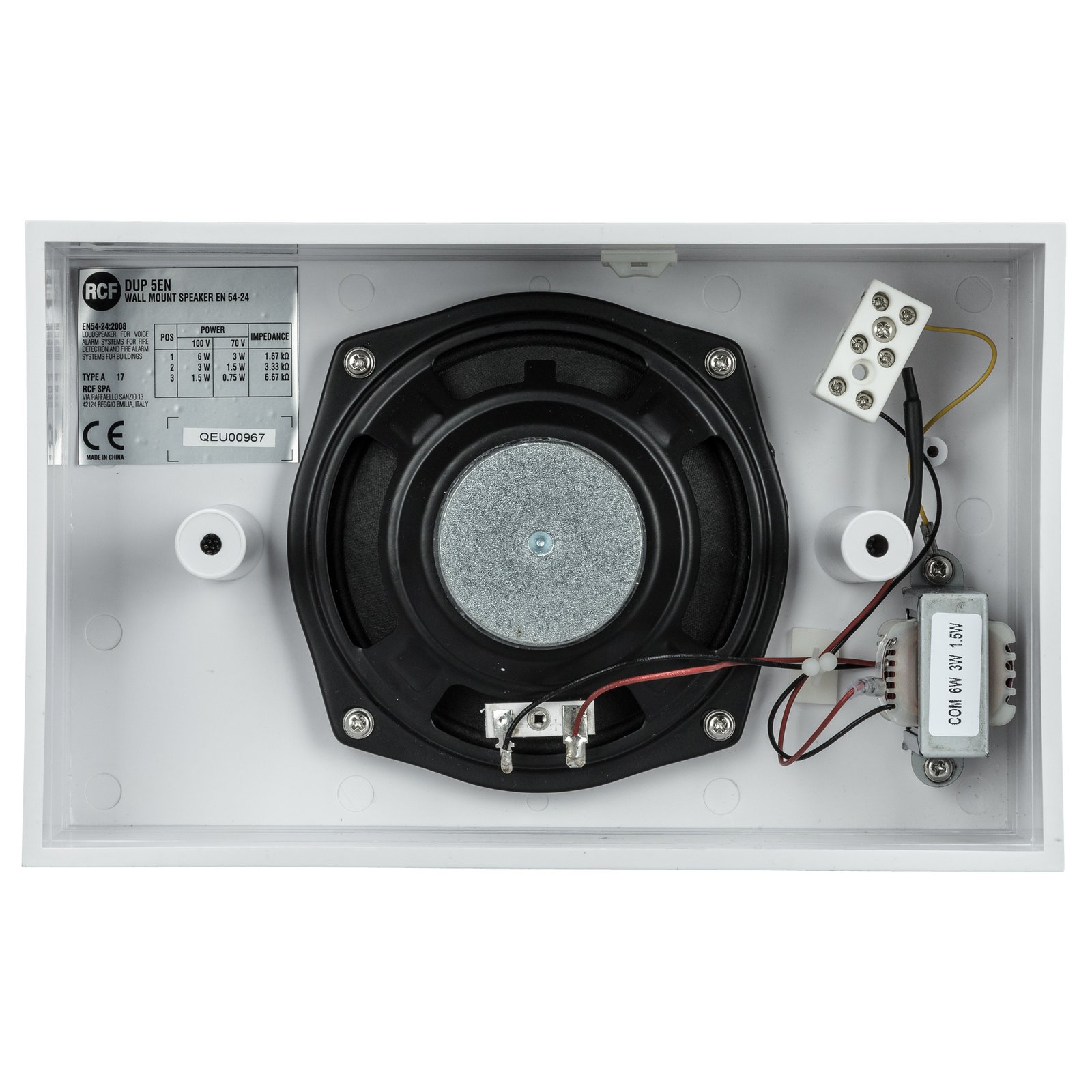

The RCF DUP 5EN is a universal wall-mounted loudspeaker for voice announcements and alarm messages. The plastic enclosure and steel grille house a fullrange driver, with a ceramic terminal block and thermal fuse protecting the line connection.

The specified frequency response is 130 Hz – 17000 Hz. Rated power handling is 6 W. Maximum sound pressure level at one metre is 100 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 166 mm, width 267 mm, depth 80 mm, weight 1.15 kg. The enclosure material is ABS. The specified finish is White – RAL 9016. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of DUP 5EN

• 5.5″ fullrange transducer.
• Power selectable (100 V): 6 W – 3 W – 1.5 W.
• 92 dB sensitivity.
• Colour White – RAL 9016
• Plastic body and steel grille.

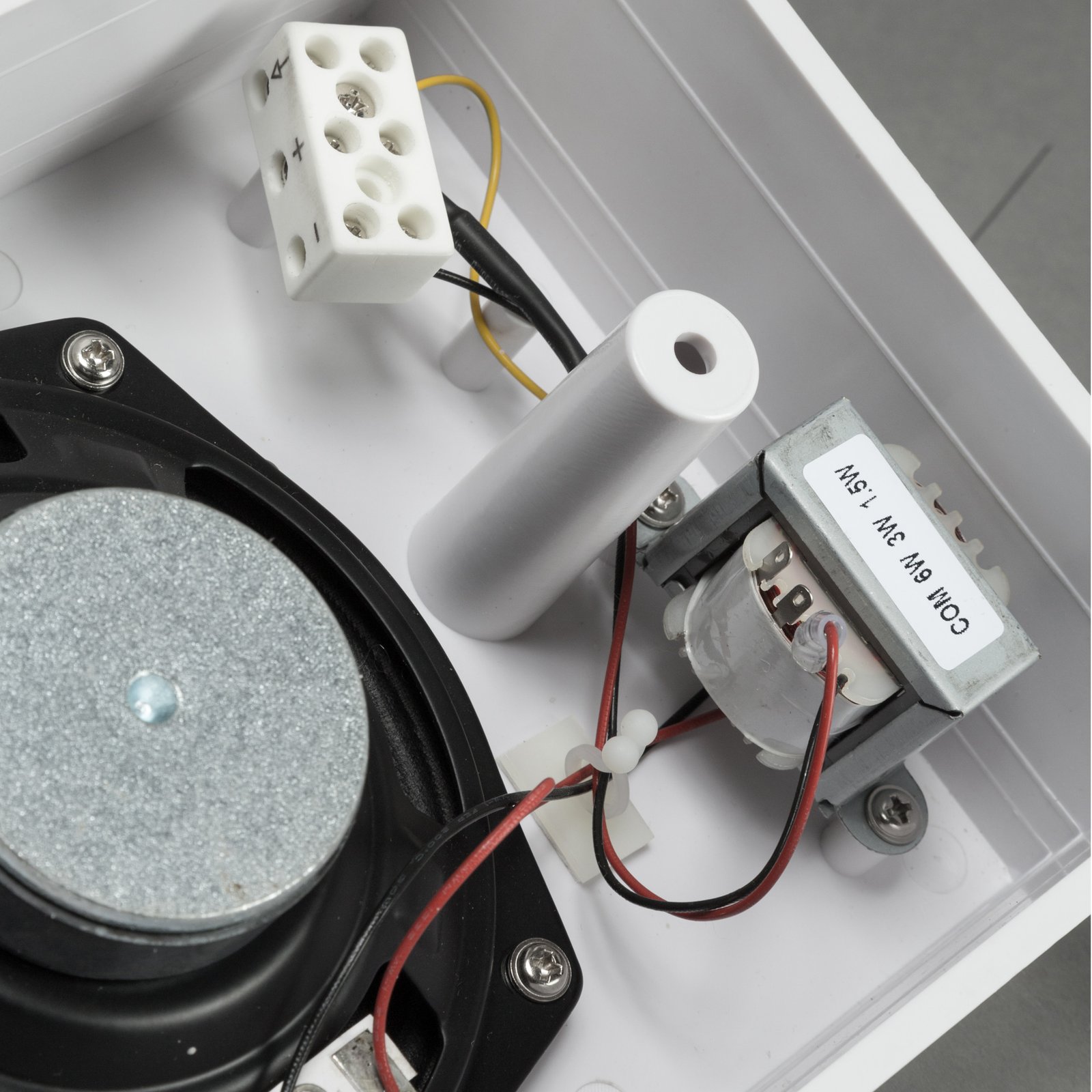

• In/out ceramic terminal block.
• Thermal fuse protection.
