RCF BM 2006 Six-Zone Paging Microphone
RCF BM 2006 is a six-zone paging microphone for the ZM 2000 system. It provides the specified format for a carefully planned professional audio installation and the associated system connection arrangement.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,777.65 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
RCF BM 2006 Six-Zone Paging Microphone
The RCF BM 2006 is a six-zone paging microphone for the ZM 2000 system. Selective and general-call controls work with a flexible electret gooseneck microphone, while CAT5 connections support linking compatible consoles to the master unit.
The specified frequency response is 100 Hz – 15 kHz. The specified connector type is RJ45. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.
The physical specification lists height 55 mm, width 108 mm, depth 240 mm, weight 0.65 kg. The enclosure material is Plastic. The productÂ’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.
The microphone position forms part of the complete sound system arrangement. Place the speaking position and associated audio equipment so that the intended source is picked up clearly. The specified connection, input compatibility and local controls should be considered together when planning how the microphone will be used within the installation.
Match the microphone to the input and power arrangement described for the exact model. Cable routing, physical placement and access to operating controls all contribute to a practical working position. Set the associated system levels around the intended speaking arrangement, and follow the product instructions when connecting or configuring the complete audio path. The final arrangement should follow the documented product configuration and remain matched to the intended system components. Consider the complete signal path when planning the position and connection of each component within the installation.
Features of BM 2006

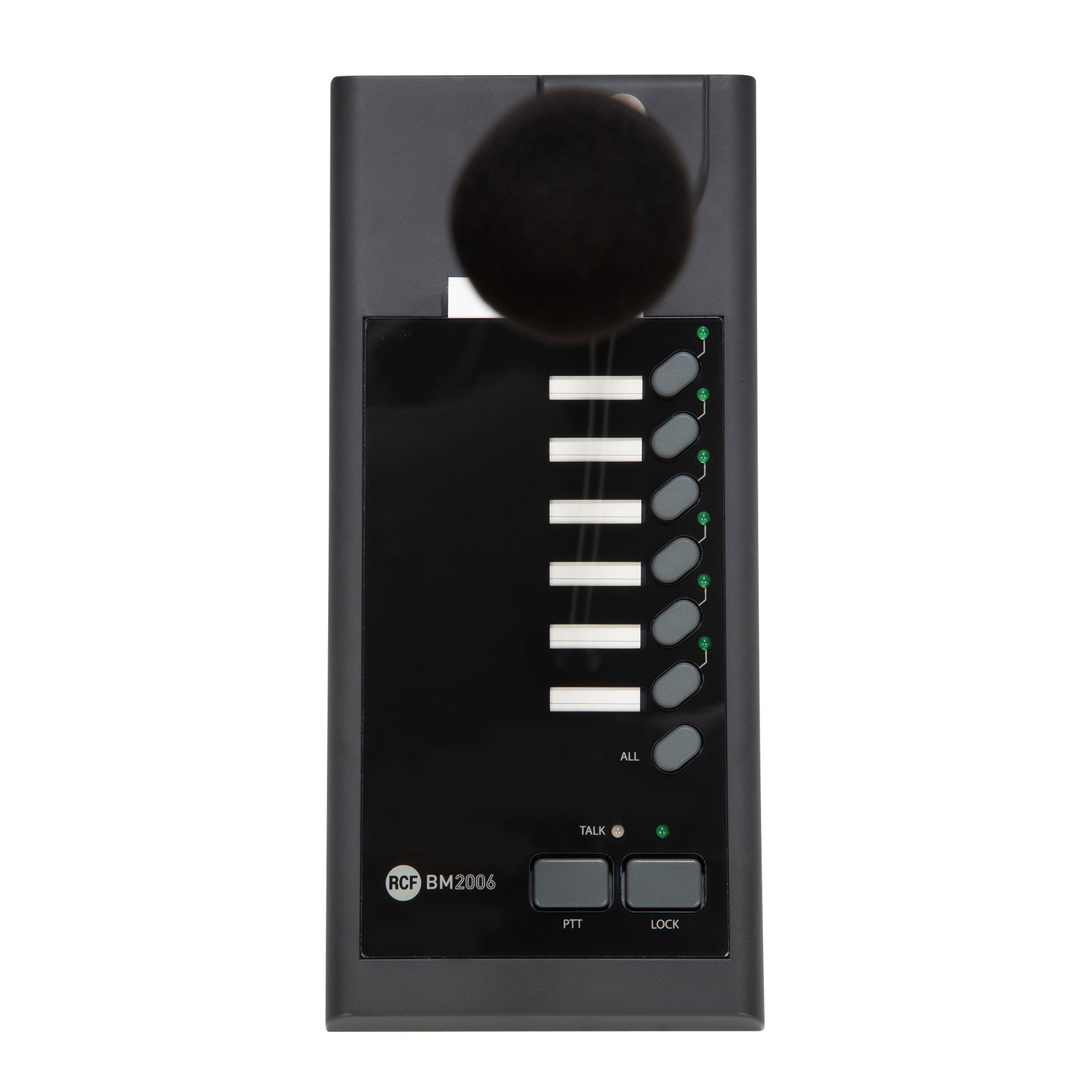

- Selective and general call buttons
- PTT and Lock buttons
- Electret microphone on flexible gooseneck

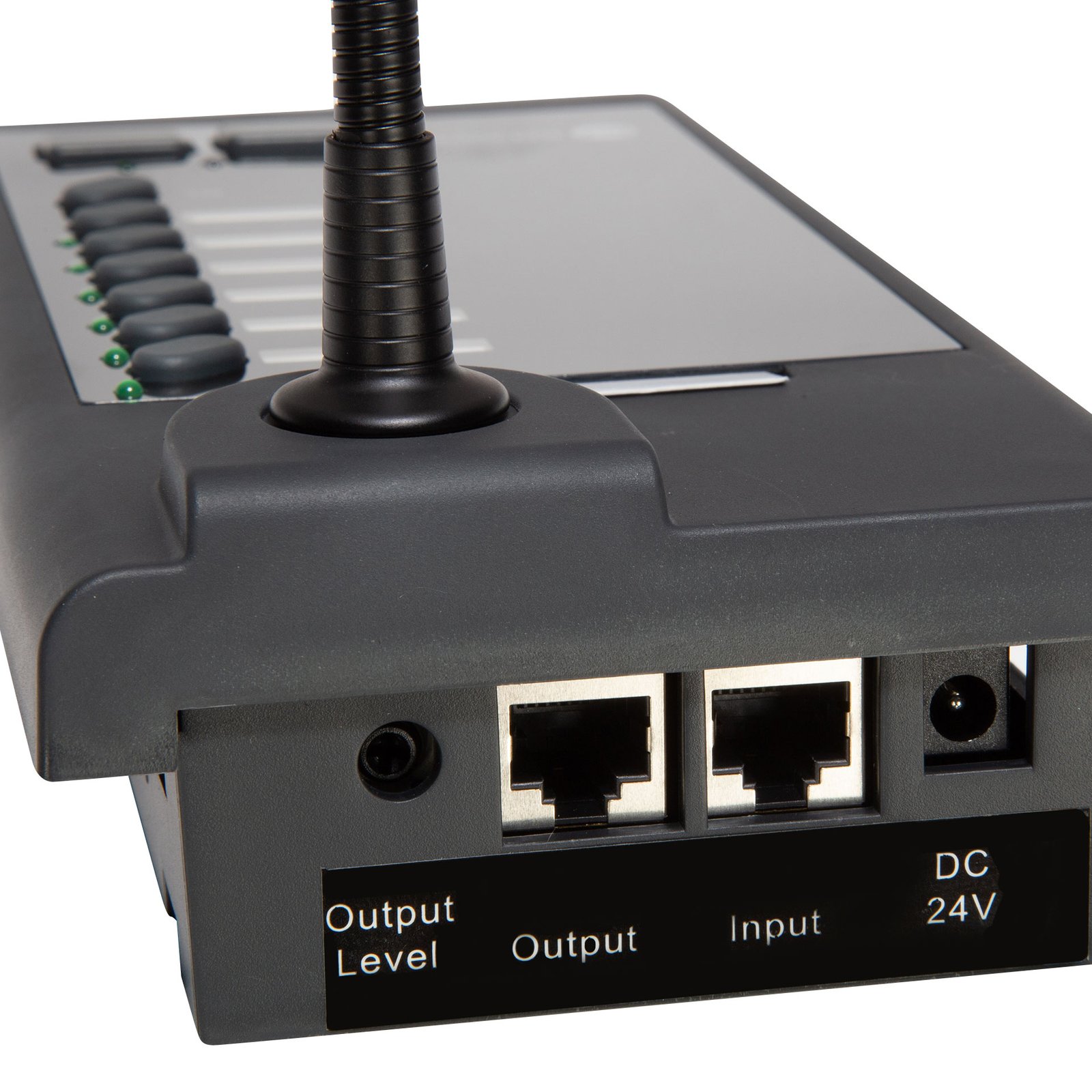

- RJ 45 ports input/output (CAT 5 cable)
- Priority mode setting
Specifications of BM 2006
| Product Type | Six-Zone Paging Microphone |
| Brand | RCF |
| Model | BM 2006 |
| Manufacturer Part Number | 14322021 |
| Type | Electret |
| Frequency Response (-3dB) | 100 Hz – 15 kHz |
| Nominal output voltage @3.3 kohm (mV RMS) | 1.00 mV RMS |
| Console Type | Paging |
| Working with | ZM 2000 |
| General call | Yes |
| Selective call | Yes |
| Number of zones | 6 |
| LED indicators | Yes |
| Connectors | RJ45 |
| Cable | FTP CAT 5 |
| Max number in daisy-chain | 6 |
| Interlock | Yes |
| Priority | Yes |
| Chime tone generator | Yes |
| Cable included | Yes |
| Cable length (m) | 1 |
| Cabinet/Case Material | Plastic |
| Height | 55 mm / 2.17 inches |
| Width | 108 mm / 4.25 inches |
| Depth | 240 mm / 9.45 inches |
| Weight | 0.65 kg / 1.43 lbs |
