RCF COMPACT C 45 15″ Passive Two-Way 700W Professional Loudspeaker

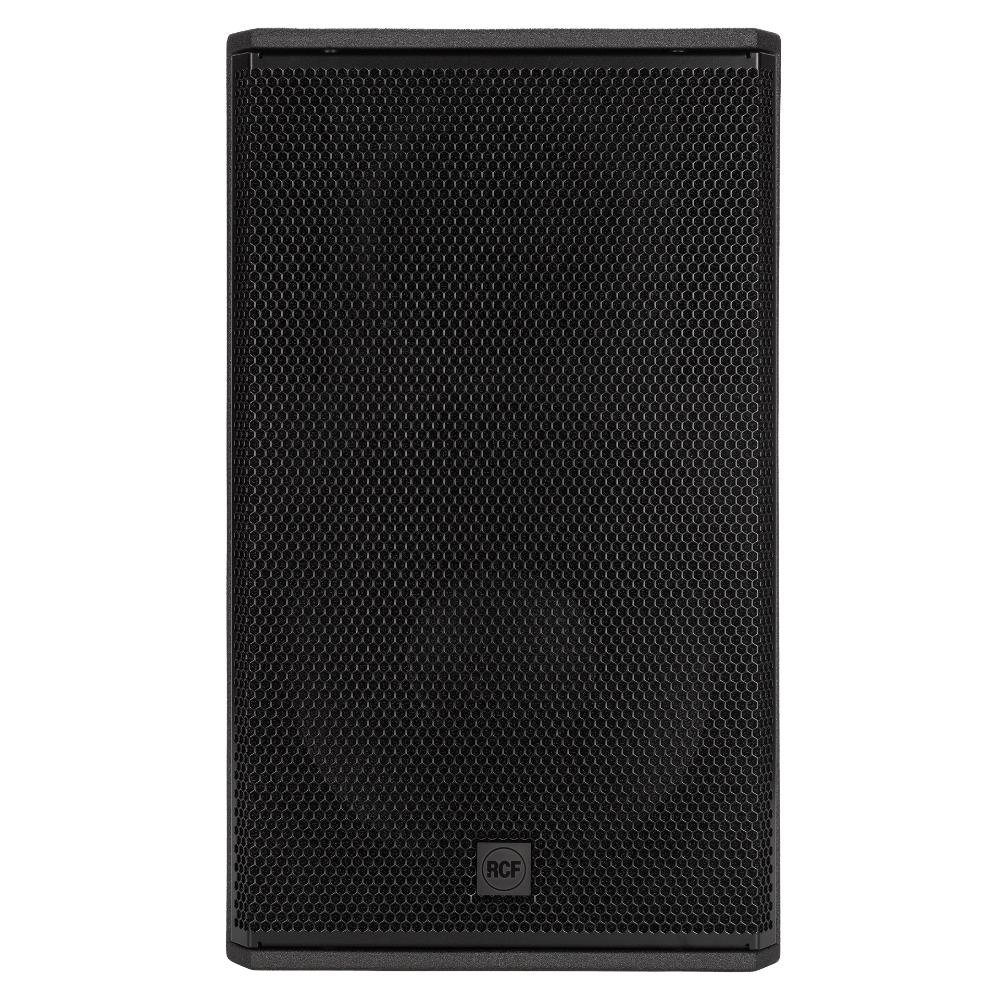

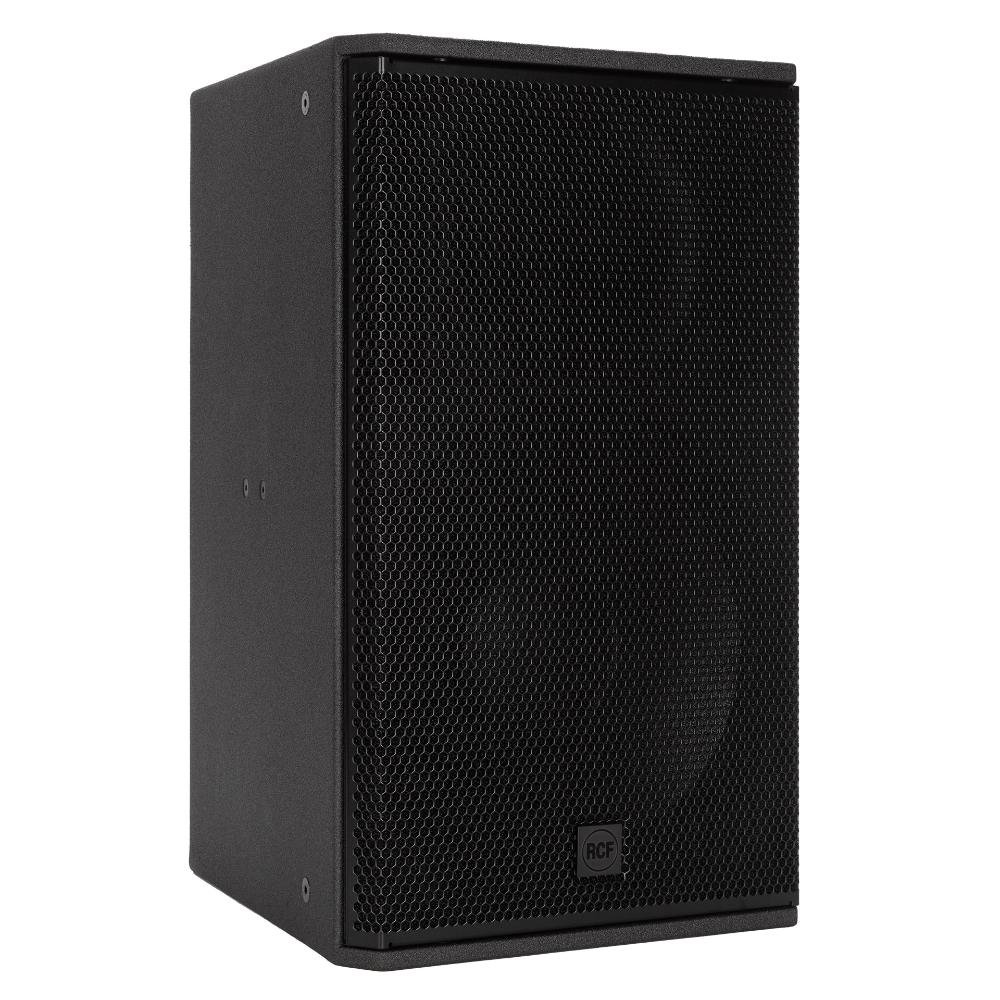

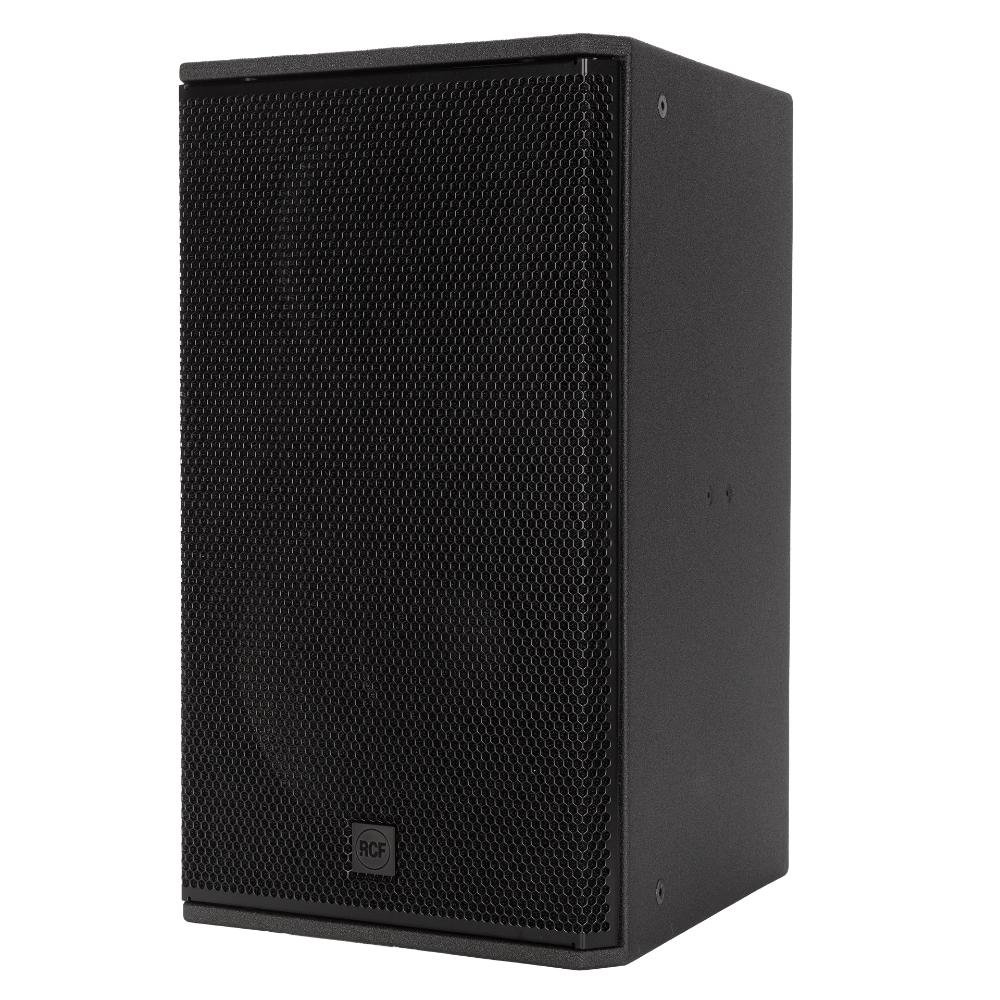

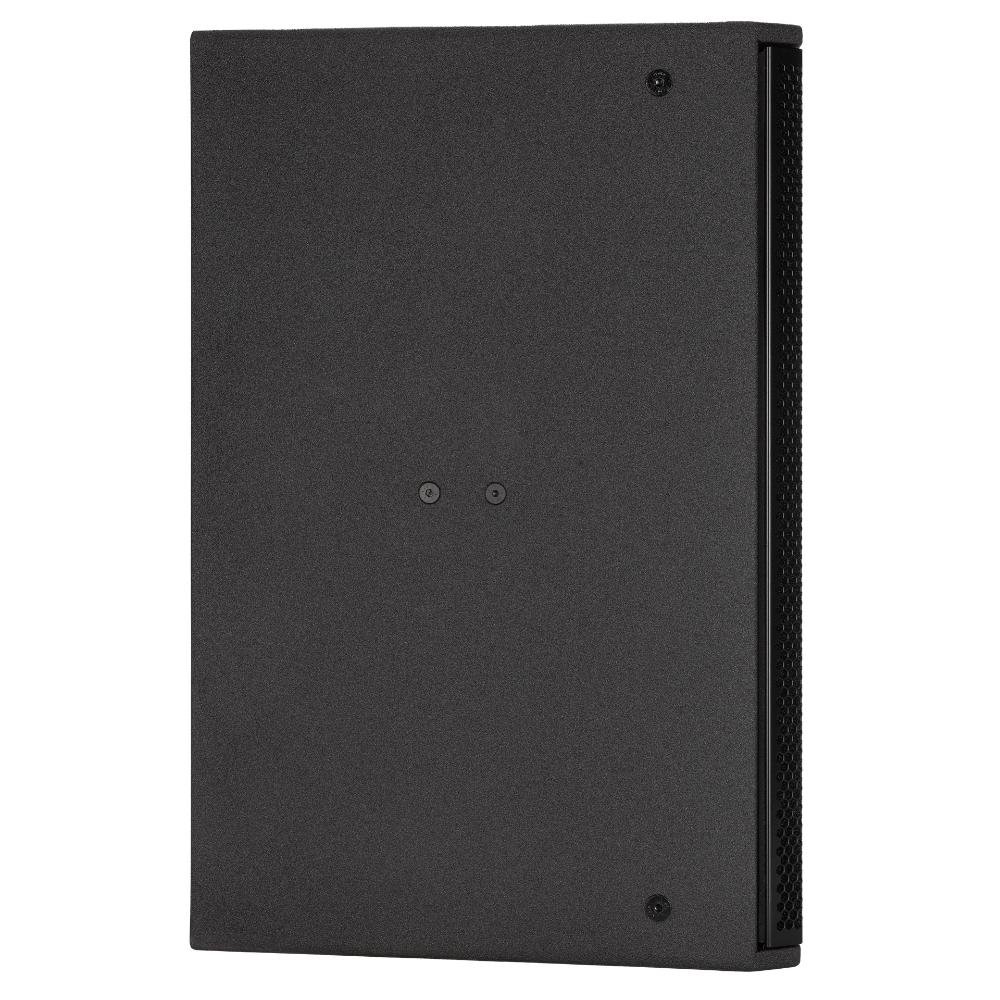

RCF COMPACT C 45 two-way point source loudspeaker

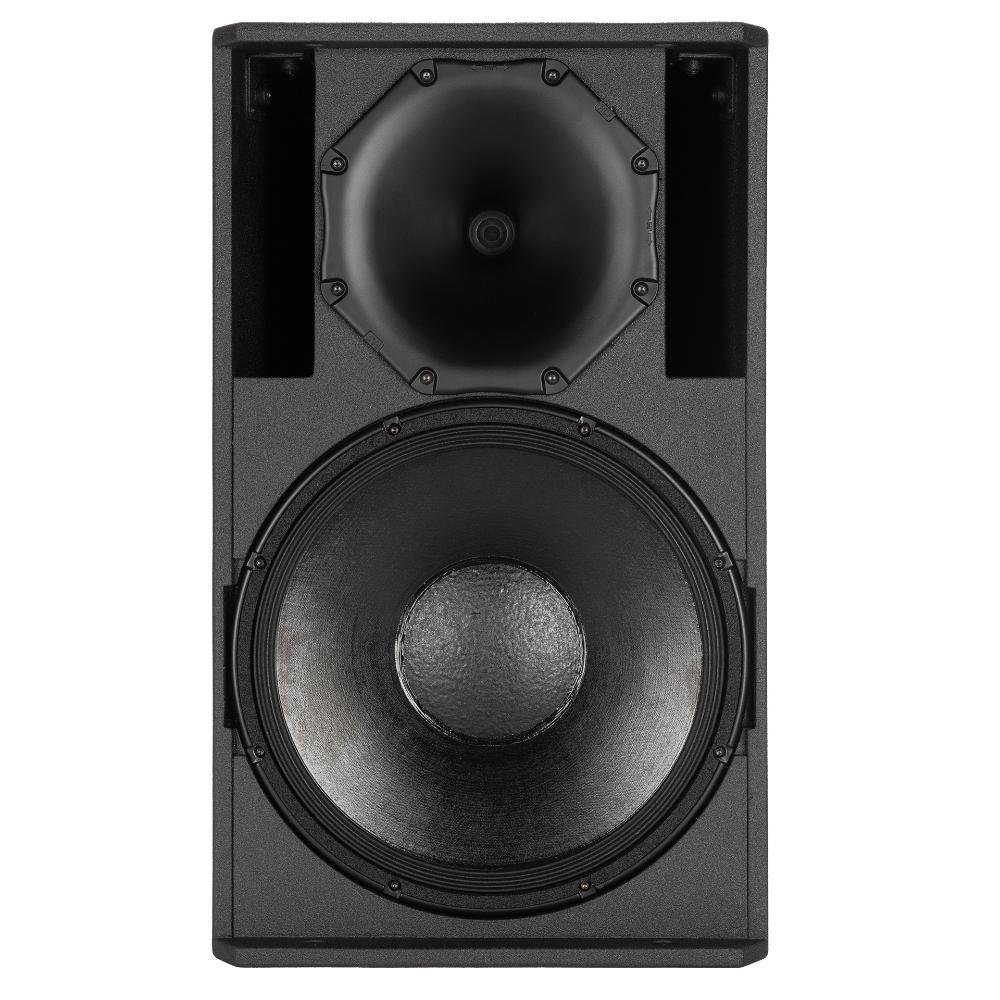

The RCF COMPACT C 45 two-way point source loudspeaker is engineered for high-output sound reinforcement in near and mid-distance applications. It features a powerful 15-inch neodymium woofer paired with a 4.0-inch neodymium compression driver, delivering strong low-frequency performance and detailed high-frequency clarity. This combination ensures accurate and balanced sound reproduction for both speech and music in demanding environments.

With a continuous power handling of 700 W RMS and a peak capacity of 2800 W, the system achieves an impressive maximum sound pressure level of 138 dB. Its wide frequency response from 48 Hz to 20 kHz provides deep bass extension and crisp high-frequency detail. The rotatable constant directivity waveguide offers a controlled 100° x 50° coverage pattern, allowing flexible installation in horizontal or vertical orientations while maintaining consistent sound distribution.

The cabinet is constructed from high-quality birch plywood and finished with a durable polyurea coating for enhanced strength and long-term reliability. A steel front grille with protective acoustic cloth safeguards the internal components. Multiple rigging points allow versatile mounting options including wall, ceiling, or truss installations. The RCF COMPACT C 45 is also suitable for safety-critical applications, meeting EN 54-24 certification standards for voice alarm systems.

Features of COMPACT C 45

• 700 W RMS continuous power handling
• 138 dB maximum SPL output
• 48 Hz to 20000 Hz wide frequency response
• 15-inch high-power neodymium woofer
• 4.0-inch neodymium compression driver
• 100° x 50° constant directivity coverage
• Rotatable waveguide for flexible installation
• High-output point source design
• Birch plywood cabinet construction
• Durable polyurea protective coating
• Steel grille with acoustic cloth protection

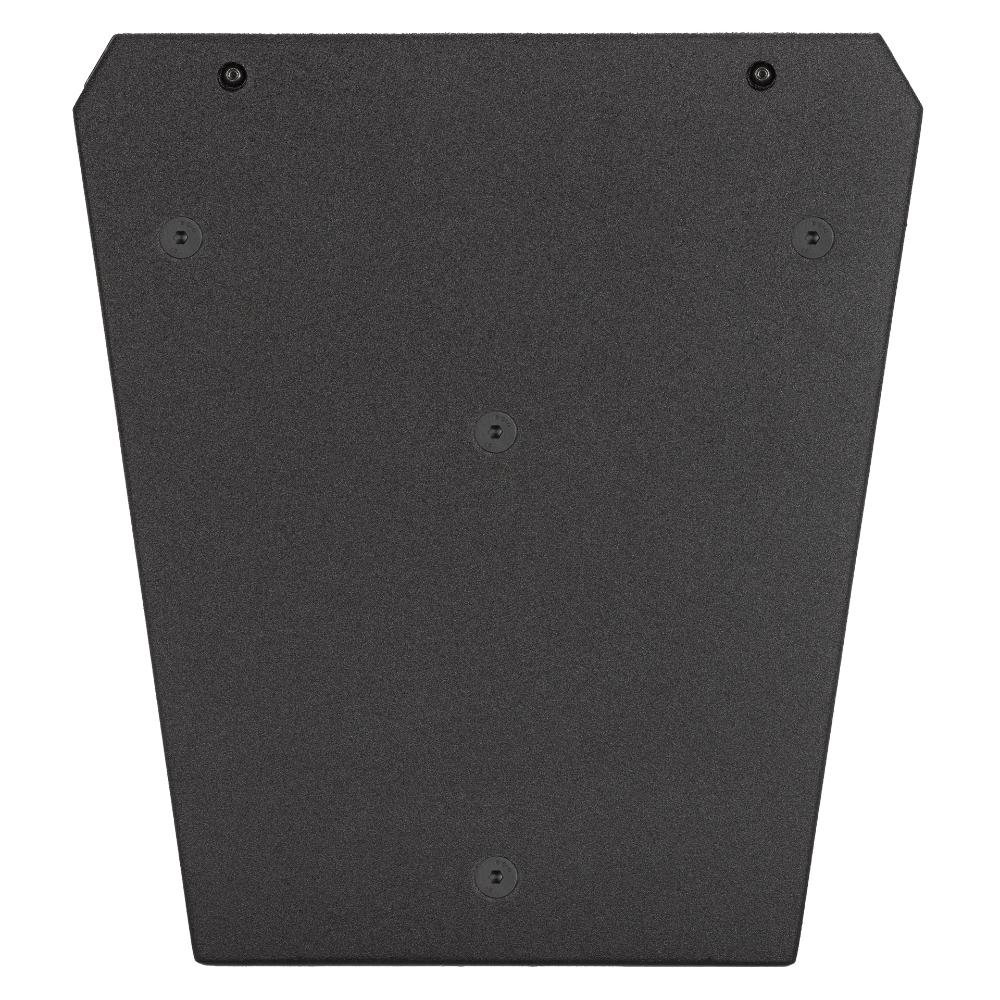

• Multiple M8 and M10 rigging points

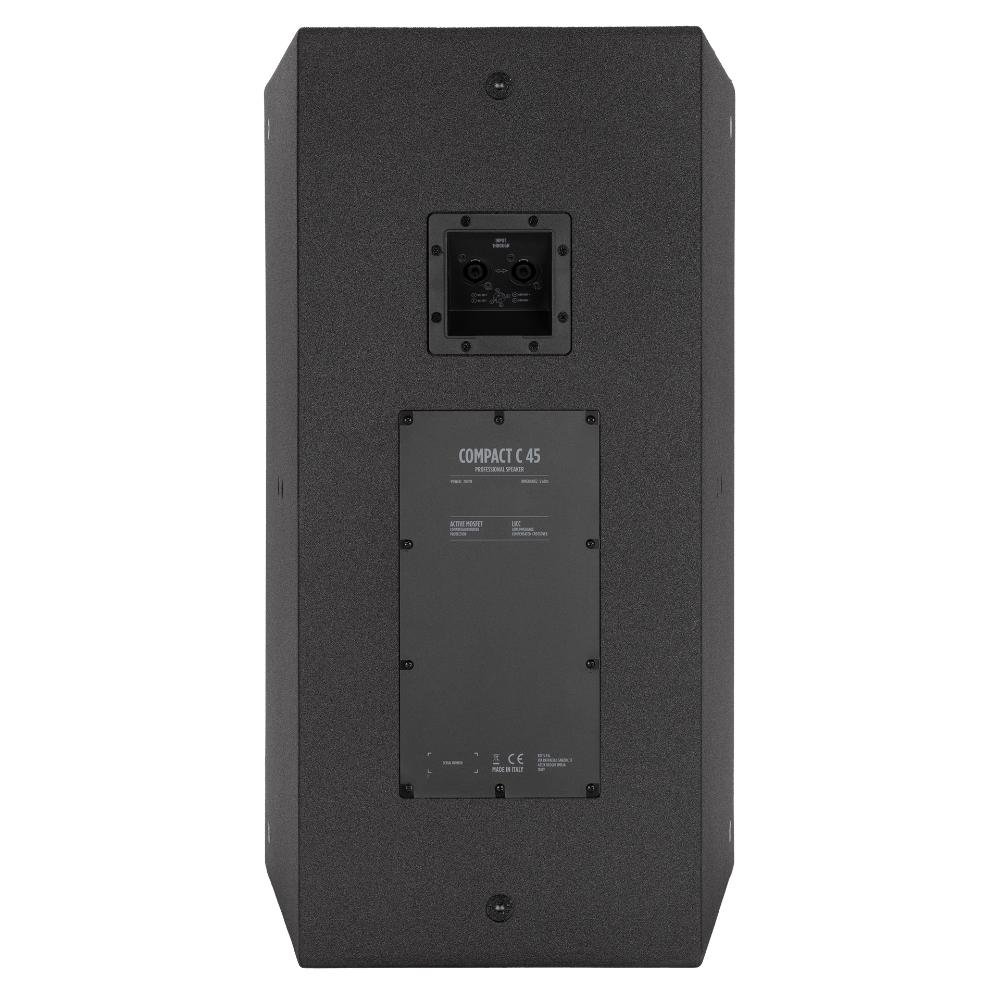

• Speakon input and output connectors
• Suitable for speech and music applications
• EN 54-24 certified system compatibility

Specifications of COMPACT C 45
