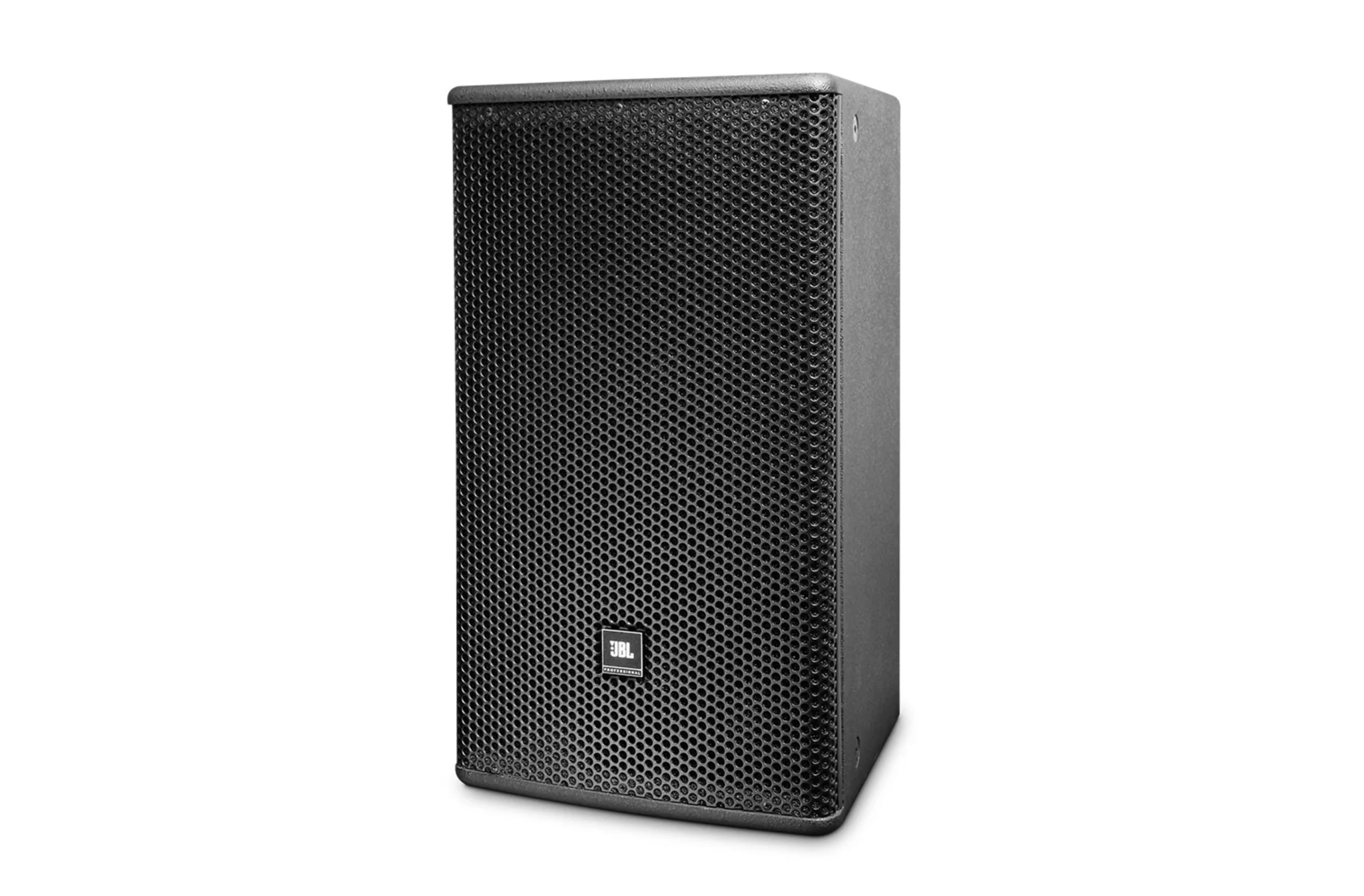

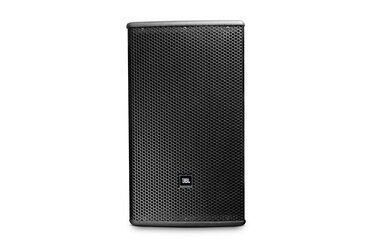

JBL AC195 10-inch 2-Way Speaker with 90° x 50° Horn – Black

JBL AC195 10-inch 2-way loudspeaker

The JBL AC195 is a compact, high-performance 2-way full-range loudspeaker engineered for professional fixed-installation applications. Manufactured in Mexico, it is part of JBL’s AE Application Engineered (AE) Series, offering precise audio reproduction, versatile coverage, and flexible installation for a wide range of venues. Its compact design balances high output with space efficiency, making it ideal for both performance-focused and visually sensitive installations.

The AC195 features a 258 mm (10-inch) low-frequency driver paired with a 25 mm (1-inch) exit compression driver with a 35 mm (1.5-inch) voice coil, delivering detailed high-frequency response and accurate midrange tones. The rotatable PT™ Progressive Transition waveguide provides a 90° x 50° coverage pattern in vertical orientation, ensuring even sound distribution with controlled off-axis response. High-slope passive crossovers minimize band overlap, maintaining clarity and definition throughout the listening area.

The enclosure is constructed from 15 mm multi-ply hardwood plywood with a textured black finish, offering durability and a professional, unobtrusive appearance. Dual Neutrik NL4 connectors and screw terminals provide secure and flexible connection options. Multiple M10 threaded suspension points and rear inserts allow installation with optional U-brackets, L-brackets, or MultiMount® accessories, supporting wall, ceiling, or floor mounting.

The AC195 is ideal for performing spaces, clubs and bars, houses of worship, multimedia spaces, retail and hospitality environments, presentation suites, and educational facilities, delivering compact, reliable, and high-quality sound reinforcement.

Features of AC195

• 10-inch low-frequency driver for accurate midrange and bass

• 25 mm exit compression driver with 35 mm voice coil for clear highs

• Rotatable 90° x 50° PT™ waveguide for precise coverage

• Compact enclosure for space-efficient installation

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple suspension points for flexible mounting options

• High-fidelity full-range performance

• Black finish for professional aesthetic integration

Specifications of AC195
