RCF CP 52 100V Programme Line Selector

RCF CP 52 100V Programme Line Selector

The RCF CP 52 is a programme selector for choosing one of up to five available 100 V audio lines. The connected output load must not exceed 120 W, and a 24 V DC relay provides a defined emergency override path.

A specified feature is: 5 Line selector for 100V system, load max 120W. A specified feature is: Bypass relay for emergency calls on line 1. A specified feature is: Installable on whichever supporting frame for home. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 50 mm, width 43 mm, depth 68 mm, weight 0.04 kg. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The control component has a defined role within the compatible audio system. Its connection method, supported equipment and local operating interface should be considered together when planning the installation. This establishes how the control position relates to the rest of the system and keeps the intended signal or command path clear.

Match the component to the system arrangement described for the exact model. Plan the physical position and connection routes so that the relevant terminals and controls remain accessible. Use the documented configuration and wiring sequence when assembling the installation, keeping the local interface consistent with the equipment it is intended to control. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

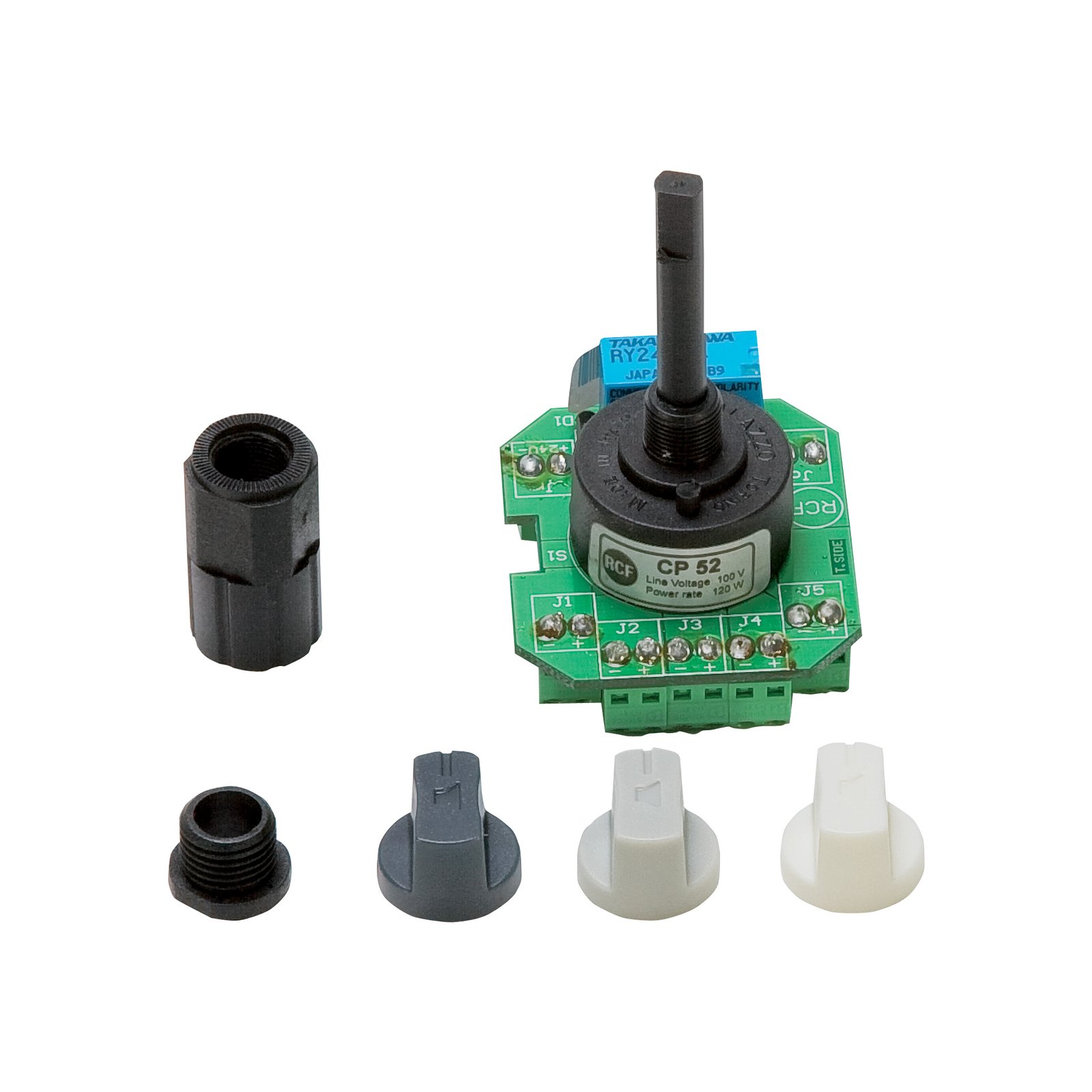

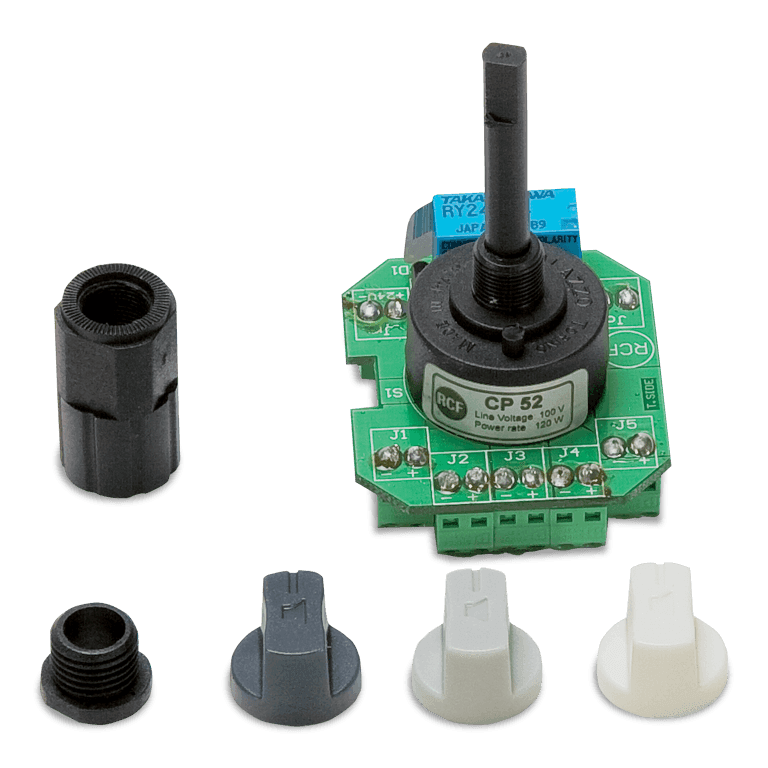

Features of CP 52

• 5 Line selector for 100V system, load max 120W
• Bypass relay for emergency calls on line 1
• Installable on whichever supporting frame for home
• 3 knobs included: white, silver, anthracite

Specifications of CP 52
