RCF FL-B PK HDL 20-18 Flybar Pickup Accessory

RCF FL-B PK HDL 20-18 Flybar Pickup Accessory

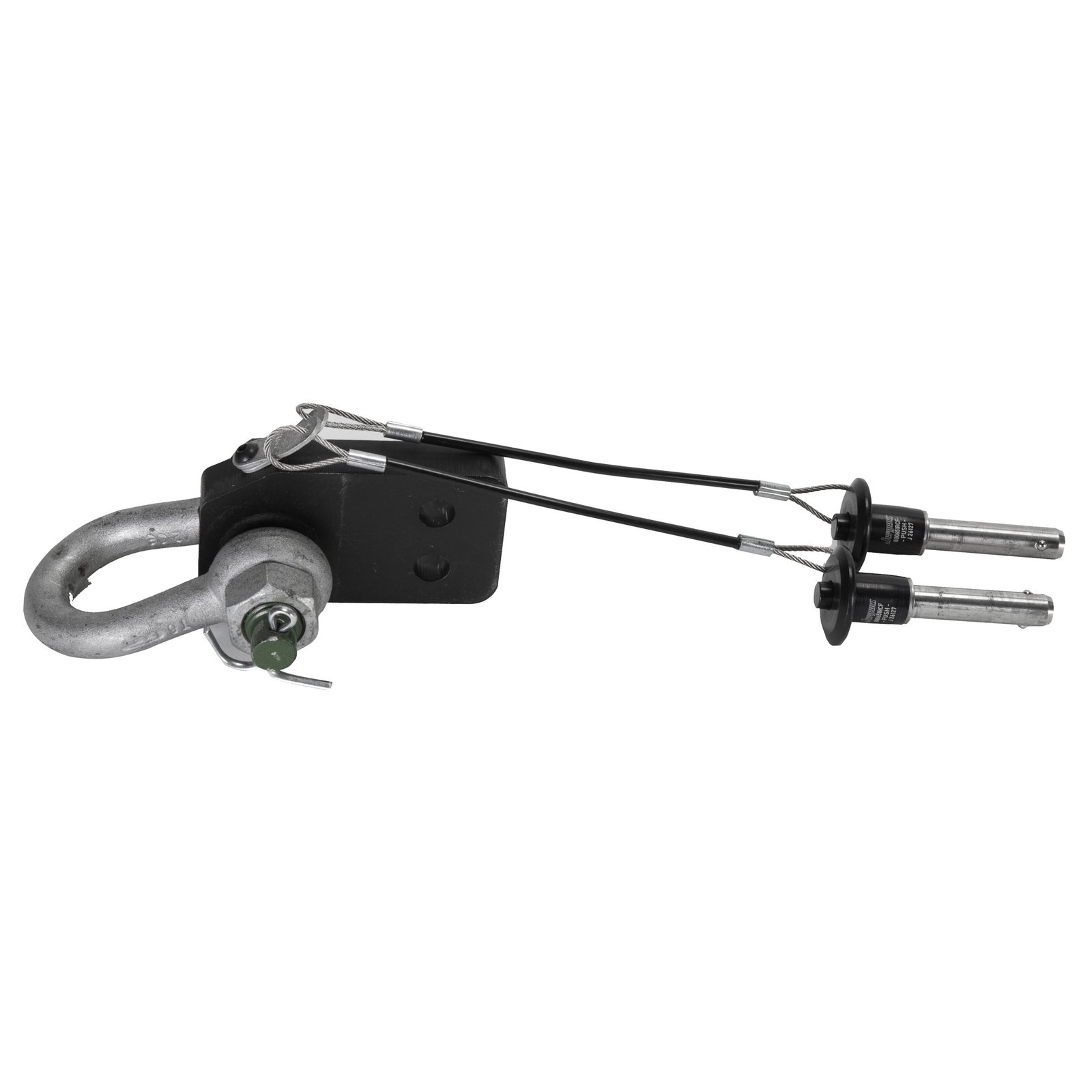

The RCF FL-B PK HDL 20-18 is a pickup tab and shackle accessory for HDL 20-A and HDL 18-AS systems. It adds the connection required when a compatible flybar is lifted using two motors. Steel construction and a black finish suit the associated rigging assembly.

Two included pins support the specified connection, and the accessory weighs 0.95 kg. The accessory material is steel. The specified finish is black. Its stated accessory weight is 0.95 kg. The packaged dimensions are 90 mm, 170 mm, 170 mm for height, width and depth respectively. The packaged weight is 1.05 kg.

A two-motor array arrangement needs pickup hardware that corresponds to its flybar and loudspeaker system. The additional pickup connection forms part of the mechanical suspension assembly, so the tab, shackle and pins should be selected together with the relevant flybar.

Identifying these parts by their exact models helps keep rigging sets organized between events and prevents confusion when several array families share the same equipment inventory. Before assembly, establish which flybar is being used and which connection position is required. Keep the associated hardware together during preparation, and follow the system documentation for the complete suspension arrangement.

The accessory serves the lifting interface rather than the audio signal path. Its value is in providing the specified connection for the intended system configuration. When preparing equipment for reuse, check that the correct pins and compatible components remain with the assembly. A consistent rigging set makes it easier to organize the hardware needed for each deployment.

Features of FL-B PK HDL 20-18

• To be added to the fly bar accessory in case the pick up is made with 2 motors
• Strong steel construction

Specifications of FL-B PK HDL 20-18
