RCF HDL 20-A 1400W Dual 10″ 2-Way Line Array Speaker – Black

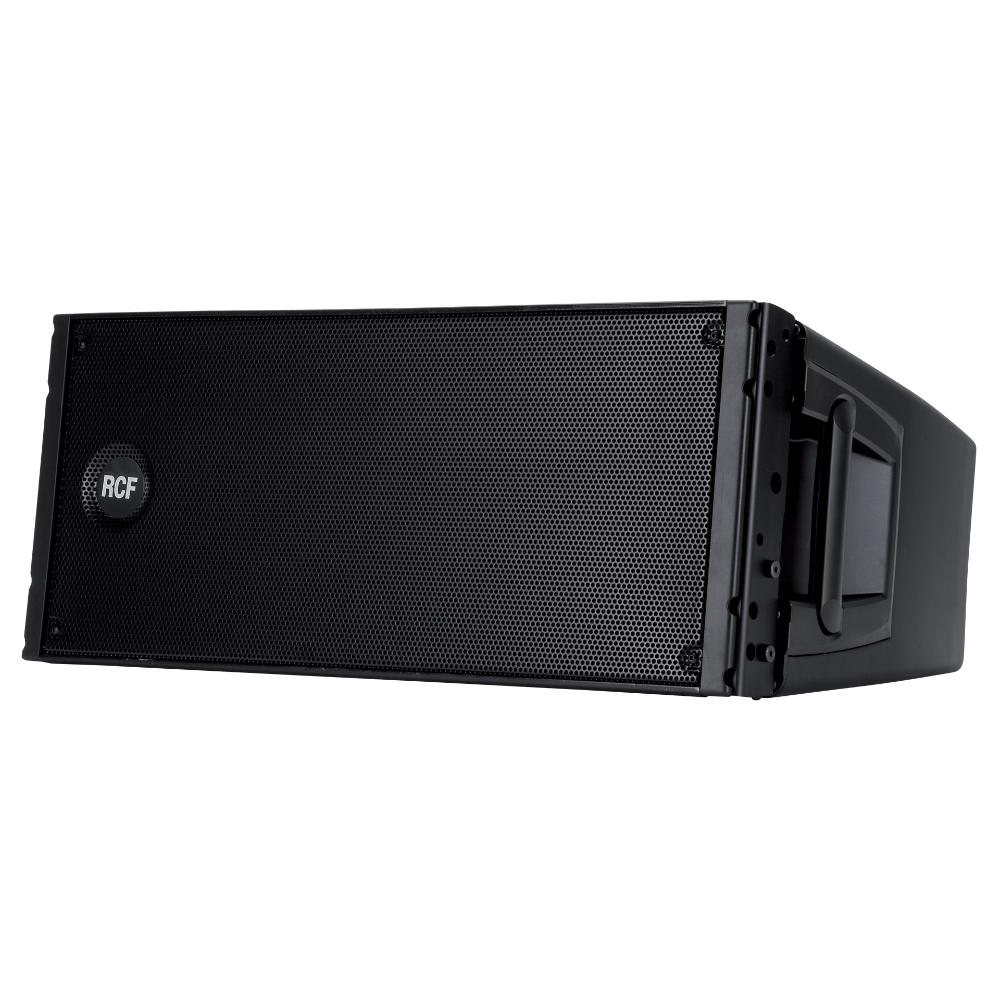

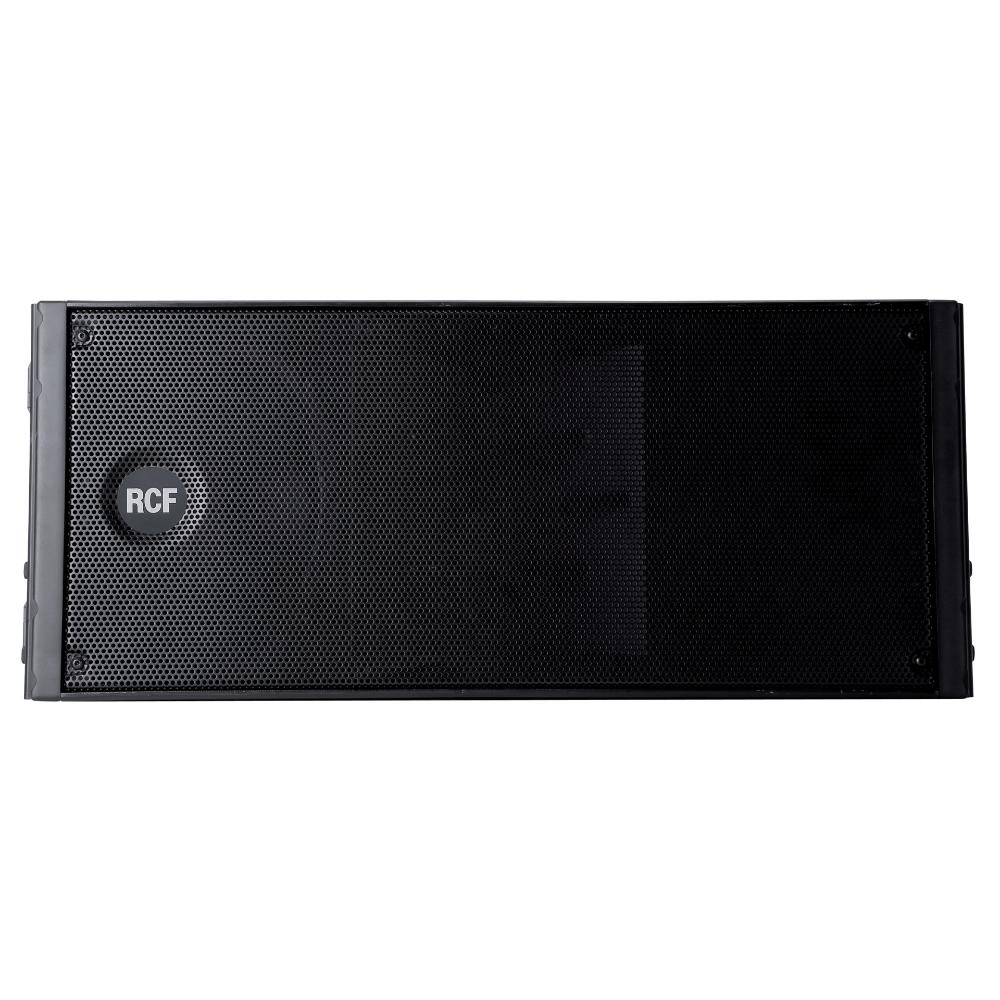

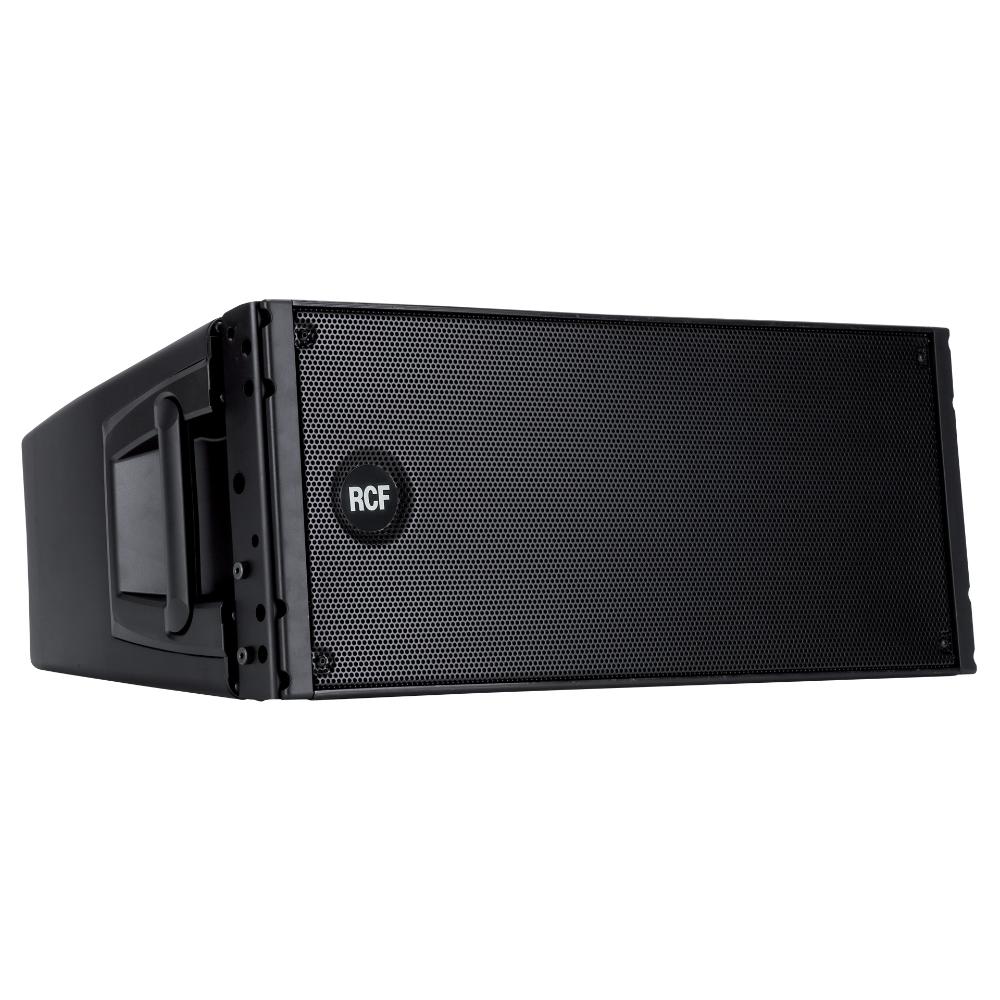

RCF HDL 20-A active two-way line array module

The RCF HDL 20-A active two-way line array module is a compact yet powerful professional sound reinforcement system designed for touring and fixed installation applications. It combines high output capability with efficient design, making it suitable for situations where fast deployment and reliable performance are essential. The system is powered by a 1400W peak Class-D amplifier with integrated DSP processing, delivering consistent sound quality with optimized control over frequency response and system behavior.

It features two 10-inch high-efficiency woofers for solid low-frequency reproduction and a 3-inch large-format compression driver for clear and detailed high-frequency output. With a frequency response of 55 Hz to 20 kHz and a maximum SPL of 135 dB, the system ensures balanced coverage, strong vocal clarity, and dynamic performance across a wide range of applications. The 800 Hz crossover point allows smooth transition between drivers, improving intelligibility and dispersion control.

The composite PP enclosure reinforced with internal structural support ensures durability while maintaining a lightweight profile for easy handling. Integrated DSP provides selectable presets including cluster, indoor, and high-curving modes, along with protection and optimization features. Designed for flexibility, efficiency, and professional-grade output, the HDL 20-A is a reliable solution for modern line array sound systems.

Features of HDL 20-A

• 1400W peak Class-D amplifier system
• 135 dB maximum SPL output
• 55 Hz to 20 kHz full-range response
• Dual 10-inch high-efficiency woofers
• 3-inch compression driver for HF clarity
• DSP-controlled processing system
• Selectable acoustic presets
• 800 Hz crossover frequency design
• 100° horizontal dispersion
• 15° vertical coverage angle
• High-efficiency low-frequency performance
• Tour-grade rigging and mechanics
• Lightweight composite PP enclosure
• Wood-reinforced cabinet structure
• Integrated protection and limiter system
• Fast setup and deployment design

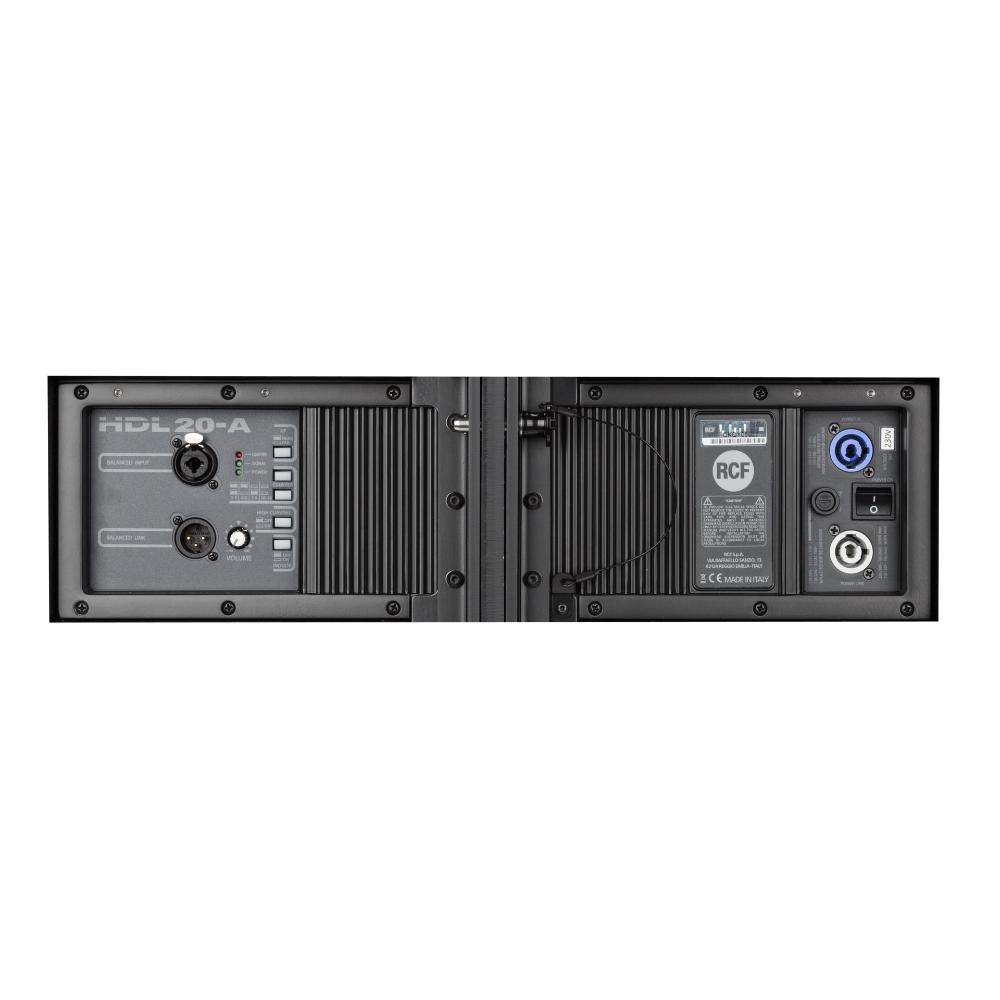

• XLR input/output connectivity
• PowerCON power connection system
• Steel grille protection

Specifications of HDL 20-A
