RCF HDL 26-A 2,000W 2-Way Line Array Speaker – Black

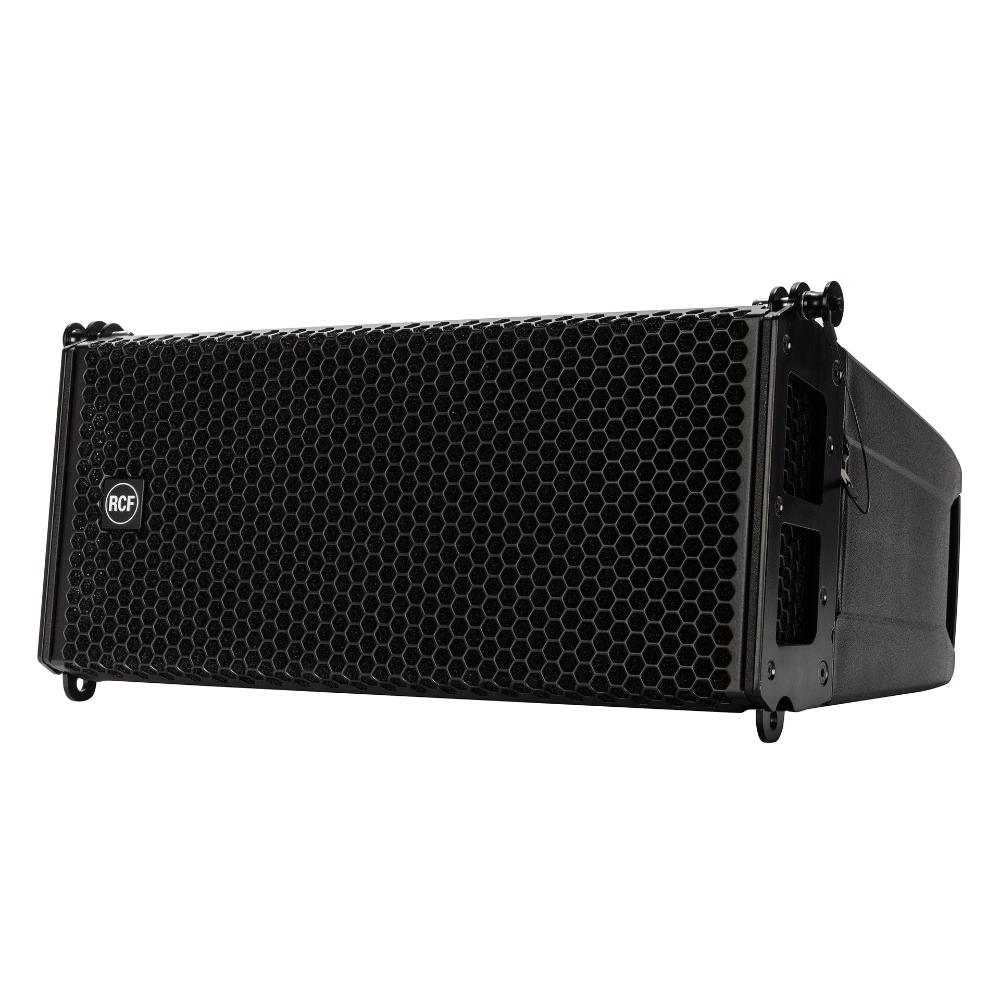

RCF HDL 26-A active two-way line array module

The RCF HDL 26-A active two-way line array module is an ultra-compact and high-performance touring solution designed for small to medium-sized events, both indoors and outdoors. Engineered with precision, it features two 6-inch high-powered neodymium woofers and a 3-inch titanium compression driver, delivering excellent vocal clarity and balanced sound reproduction. With a maximum sound pressure level of 133 dB, the system is powered by a 2000W peak Class-D amplifier, ensuring efficient performance with low distortion and extended low-frequency response.

The system incorporates a custom 4PATH waveguide that provides consistent 100° x 10° coverage, maintaining uniform sound dispersion and precise high-frequency response. Operating at a crossover point of 750 Hz, the HDL 26-A ensures seamless integration between low and high frequencies, enhancing vocal intelligibility and overall system clarity. The integrated DSP processing optimizes system performance with advanced filtering, protection, and tuning, while FiRPHASE technology ensures coherent sound distribution, accurate imaging, and minimal latency.

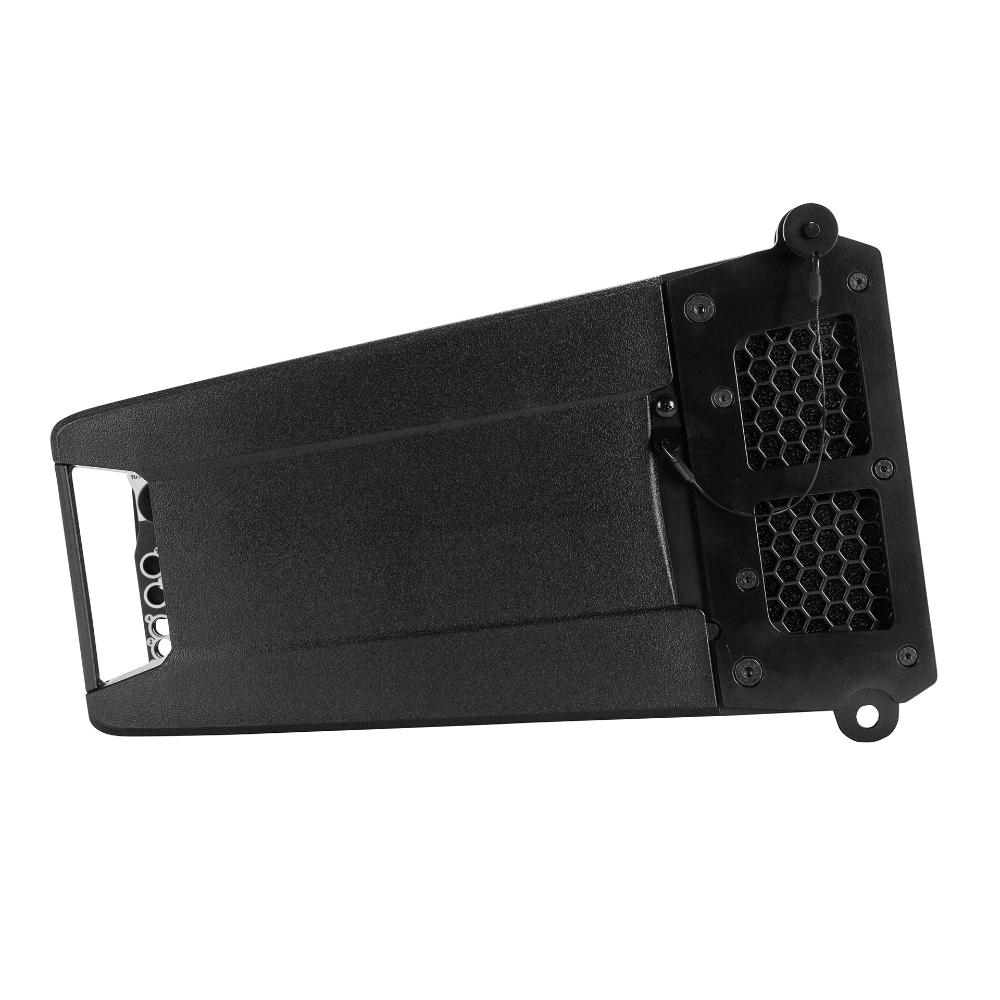

Designed with a lightweight composite cabinet, the HDL 26-A offers durability and ease of handling, making it suitable for touring and installation applications. The advanced rigging system supports flexible array configurations with precise angle adjustments. RDNet networked control enables real-time monitoring and system optimization, allowing engineers to efficiently manage multiple modules. The HDL 26-A combines compact design, intelligent control, and professional-grade audio performance.

Features of HDL 26-A

• 2000W peak Class-D amplification
• Bi-amped two-way system design
• 133 dB maximum sound pressure level
• 48 kHz, 32-bit DSP processing
• RDNet network control and monitoring
• FiRPHASE digital filtering technology
• 3-inch titanium compression driver
• Dual 6-inch neodymium woofers
• 750 Hz optimized crossover point
• 4PATH waveguide dispersion design
• 100° x 10° coverage pattern
• Hybrid bandpass low-frequency design
• Lightweight composite cabinet construction
• Flexible rigging system for array setup
• High-efficiency low-distortion amplifier
• Thermal and RMS protection systems
• XLR and Ethercon connectivity
• Compact and portable design

Specifications of HDL 26-A
