RCF MC 4064 Cardioid Gooseneck Microphone

RCF MC 4064 Cardioid Gooseneck Microphone

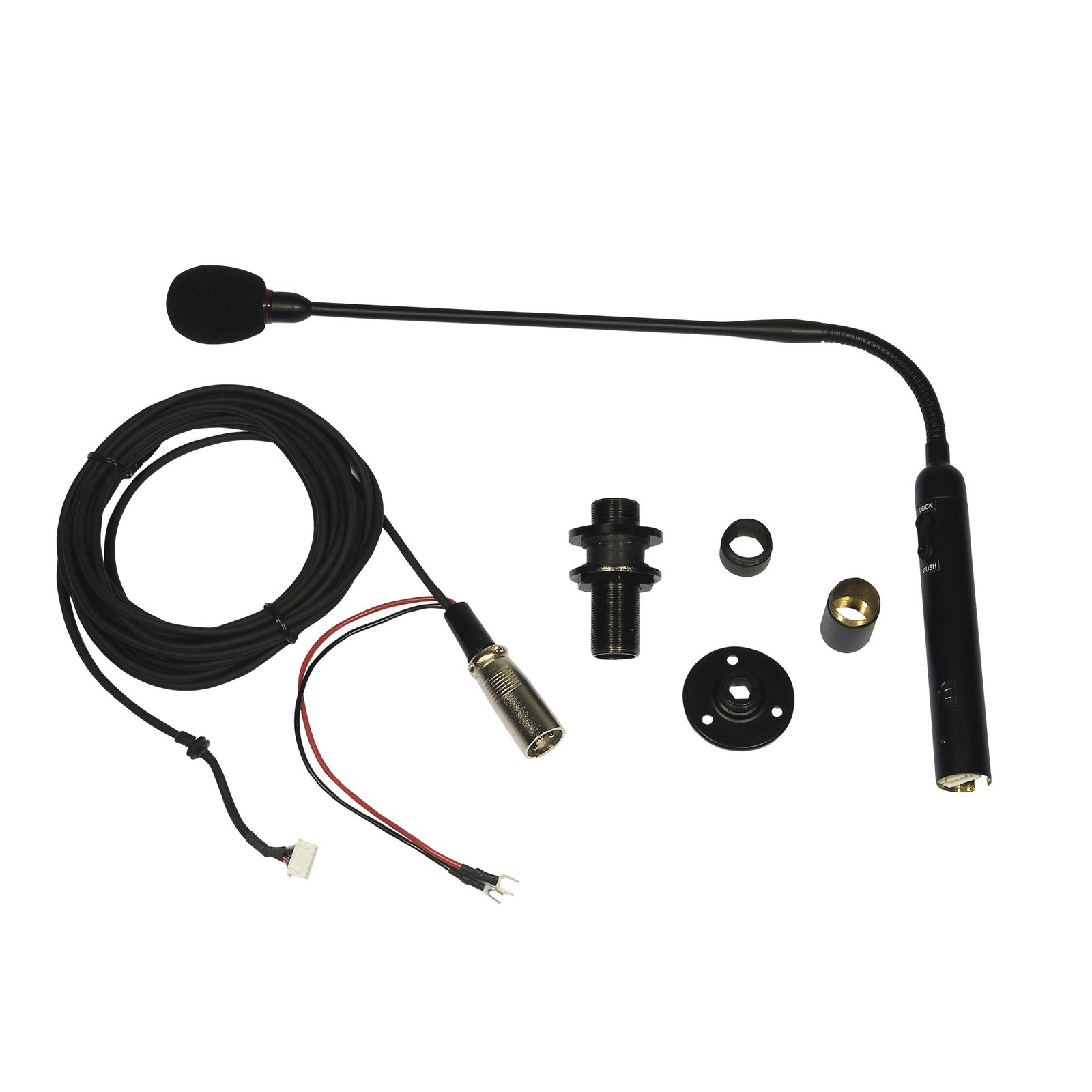

The RCF MC 4064 is a slim cardioid electret microphone mounted on a double-jointed gooseneck. It is intended for desks, lecterns and microphone stands, with activation controls and an illuminated ring indicating when the microphone is operating.

The specified frequency response is 100 Hz – 12 kHz. The specified connector type is XLR. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 662 mm, diameter 21 mm. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The microphone position forms part of the complete sound system arrangement. Place the speaking position and associated audio equipment so that the intended source is picked up clearly. The specified connection, input compatibility and local controls should be considered together when planning how the microphone will be used within the installation.

Match the microphone to the input and power arrangement described for the exact model. Cable routing, physical placement and access to operating controls all contribute to a practical working position. Set the associated system levels around the intended speaking arrangement, and follow the product instructions when connecting or configuring the complete audio path. The final arrangement should follow the documented product configuration and remain matched to the intended system components. Consider the complete signal path when planning the position and connection of each component within the installation.

Features of MC 4064

• Double joint gooseneck, 670 mm long
• Installation on desks (with or without hole), lecterns, mic. floor stands
• Buttons for stable and unstable microphone activation.
• Red ring for active microphone indication.
• High-pass filter with a switch to cut frequencies below 100 Hz.
• Phantom power supply (12 ÷ 52 V)
• 3m shielded and balanced cable with XLR connectors and 2 additional wires for command
• Polyurethane foam windscreen

Specifications of MC 4064
