RCF PL 60 6-Inch Ceiling Speaker

RCF PL 60 6-Inch Ceiling Speaker

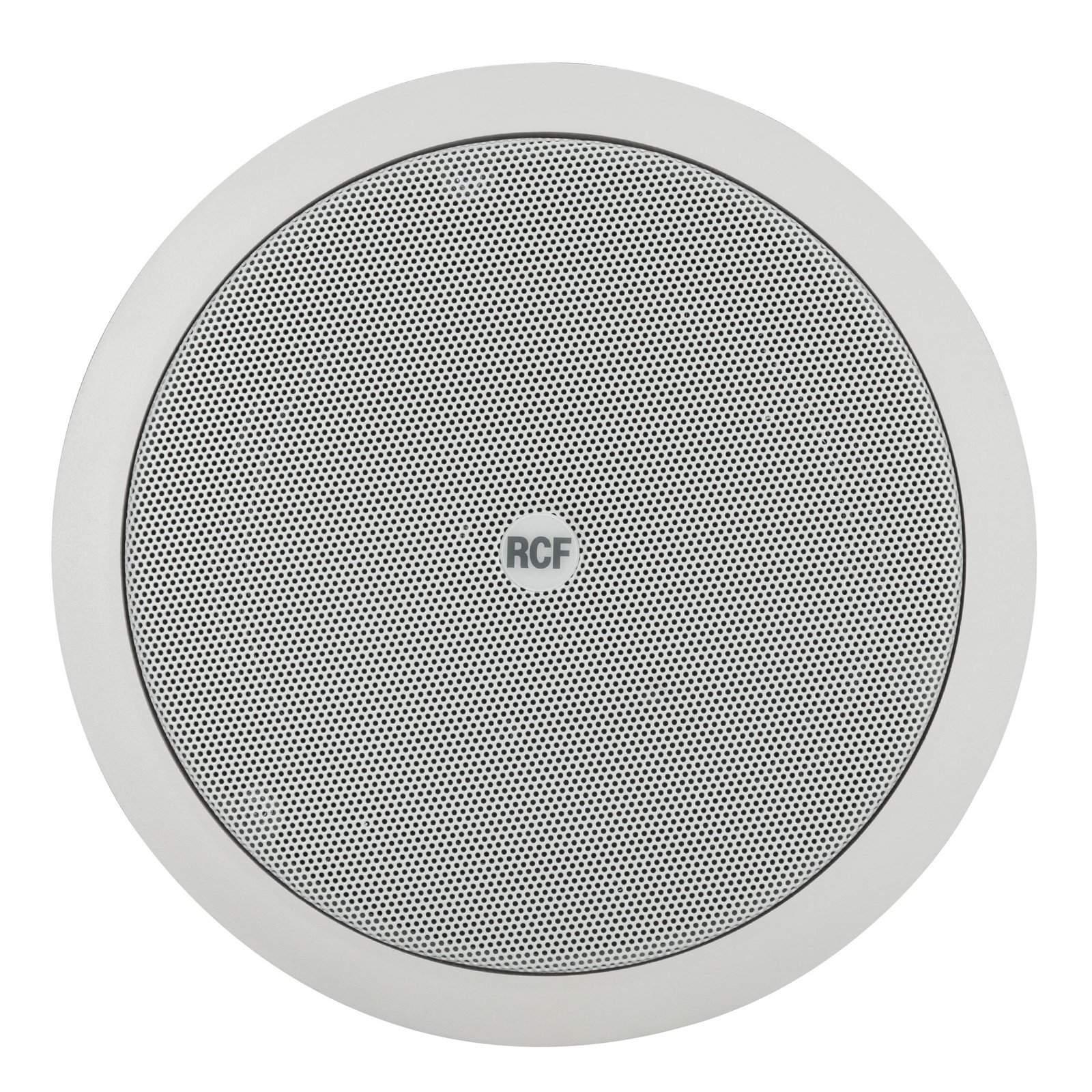

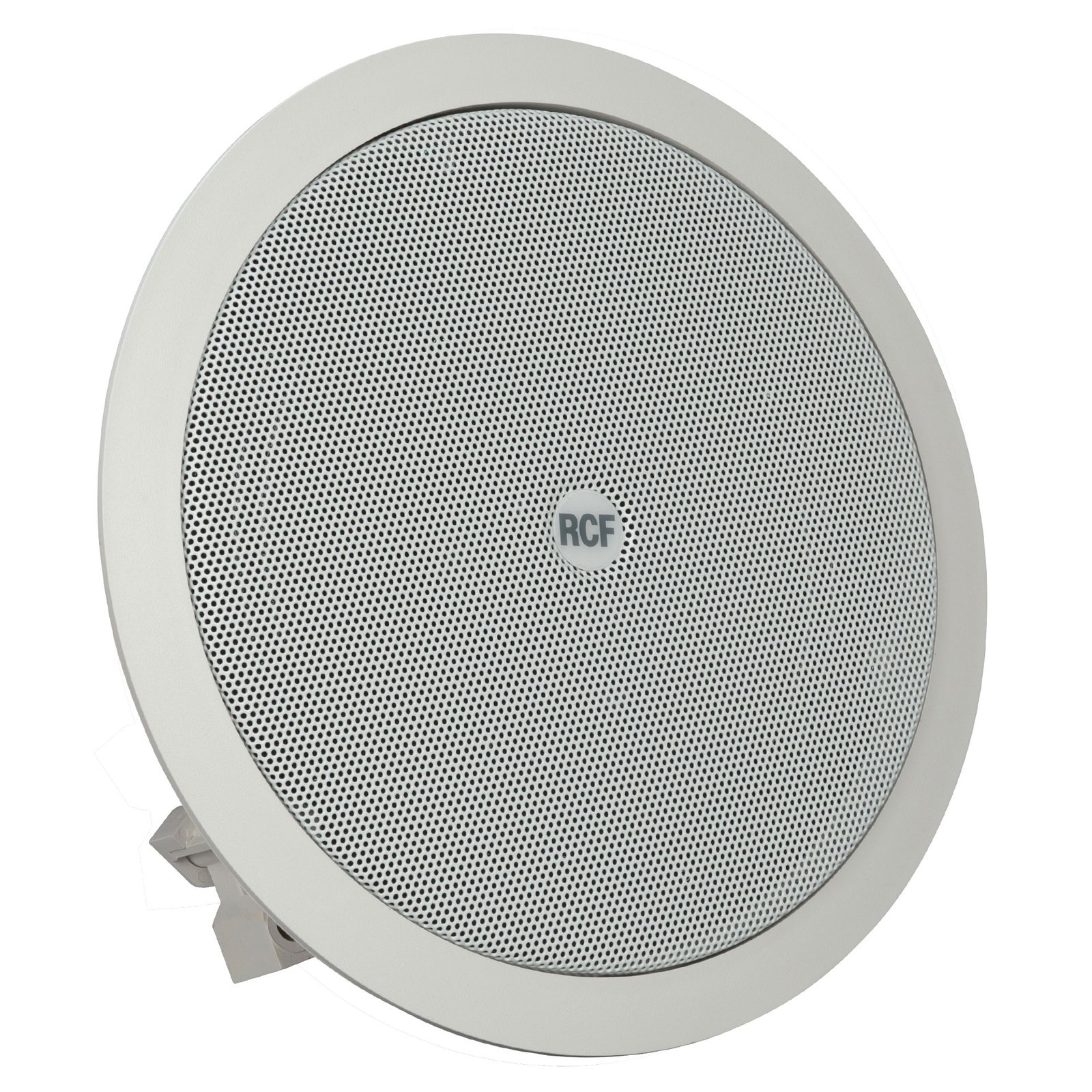

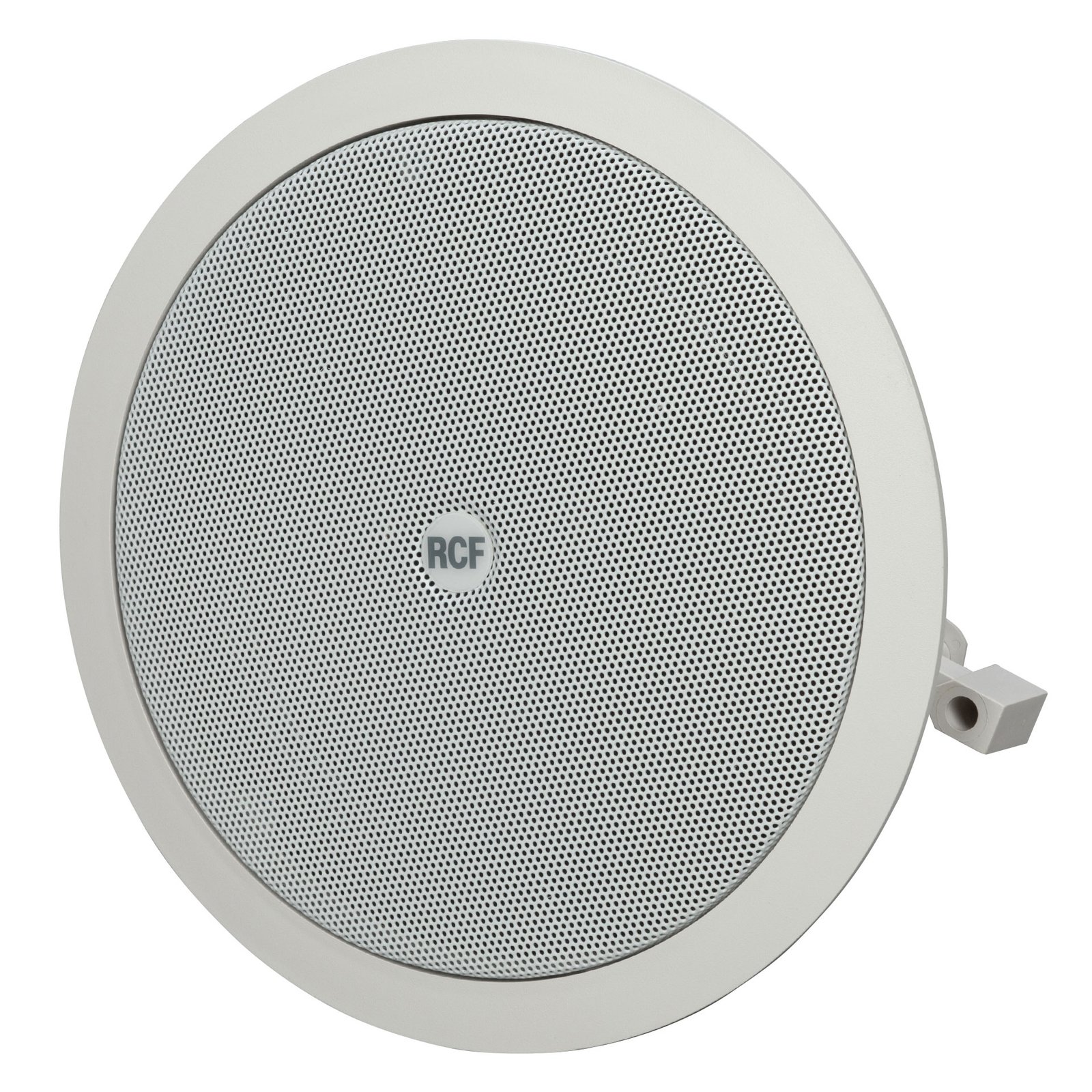

The RCF PL 60 is a recessed six-inch fullrange ceiling speaker with a plastic frame and steel grille. Transformer selection allows its connected load to be set for the required announcement or background music layout.

The specified frequency response is 90 Hz – 20000 Hz. Rated power handling is 6 W. The nominal impedance is 8 ohm. Maximum sound pressure level at one metre is 107 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists depth 75 mm, diameter 204 mm, weight 0.34 kg. The enclosure material is Plastic. The specified finish is White – RAL 9003. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of PL 60

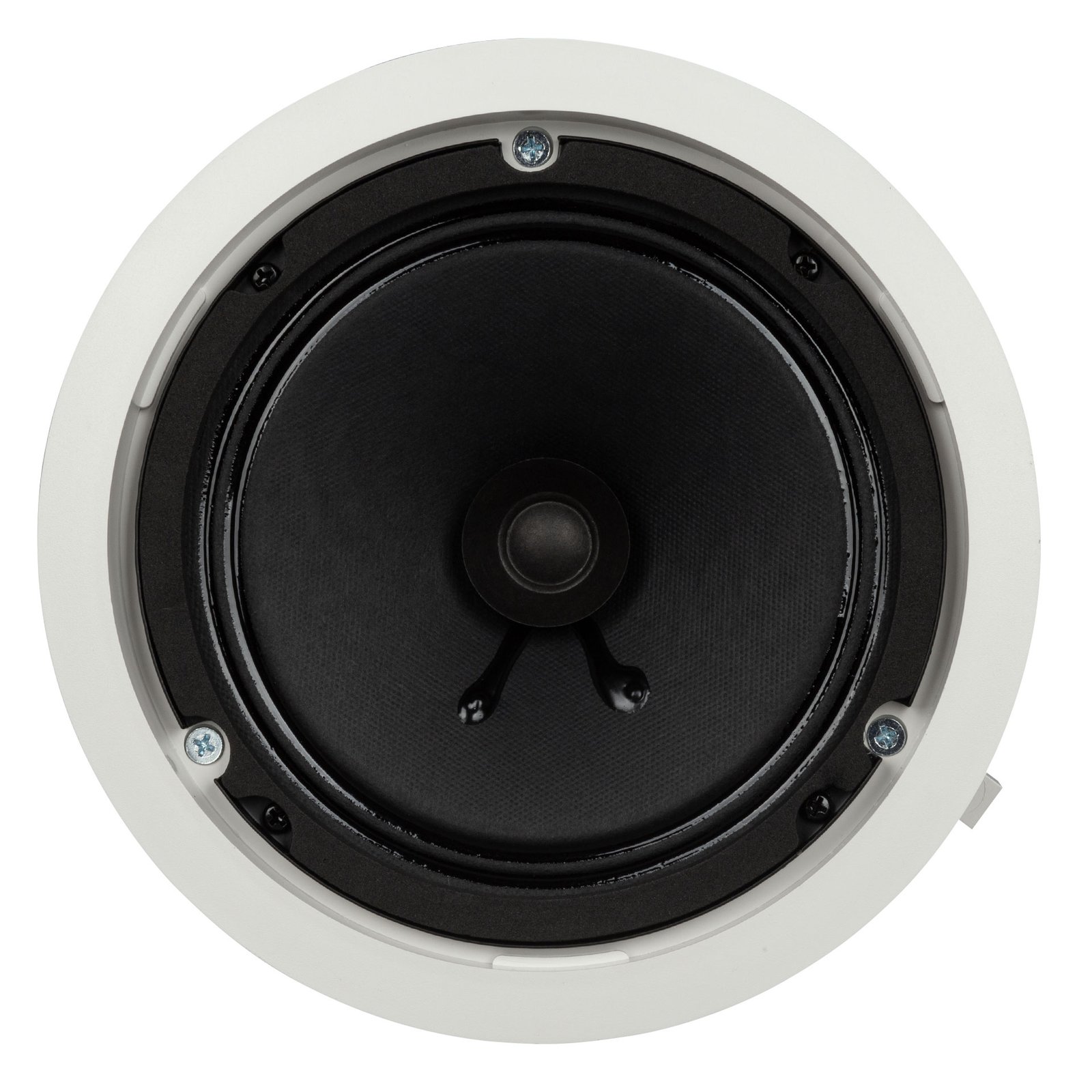

• 6″ fullrange transducer

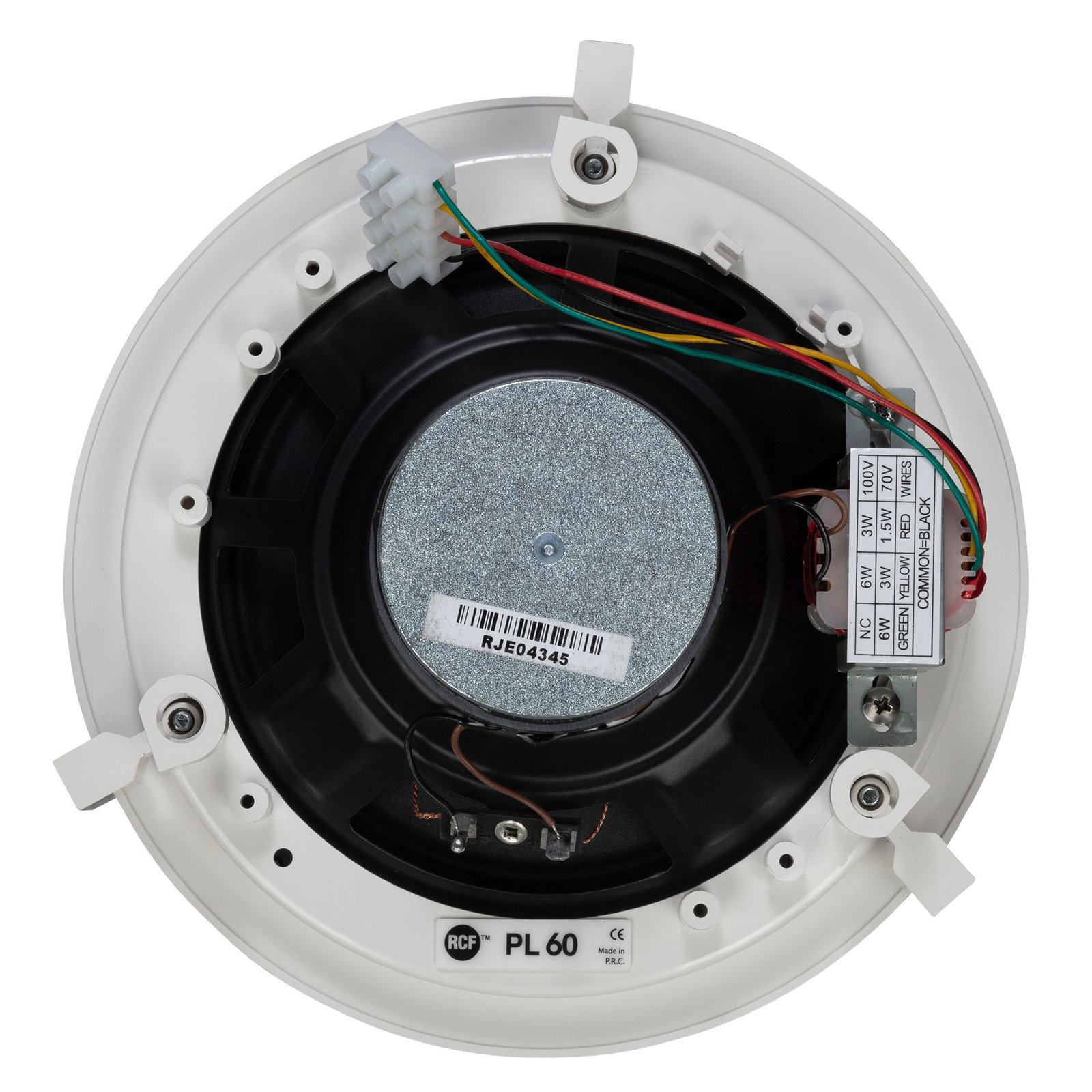

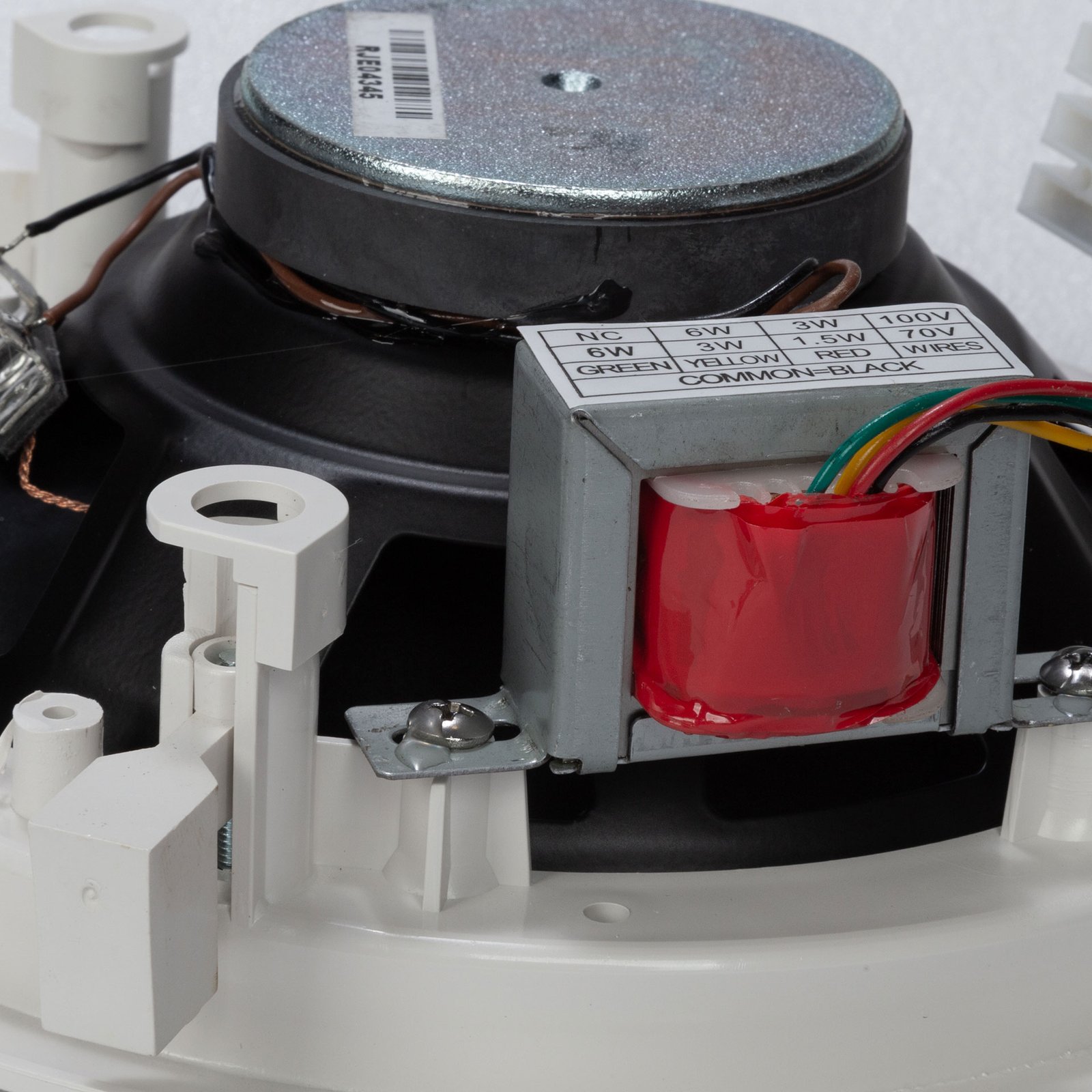

• Power selectable (70 V / 100 V): 6 W – 3 W – 1.5 W
• 91 dB sensitivity
• Colour White – RAL 9003
• Plastic frame, steel grille

Specifications of PL 60
