RCF PL 6X B 6-Inch Coaxial Ceiling Speaker – Black

RCF PL 6X B 6-Inch Coaxial Ceiling Speaker – Black

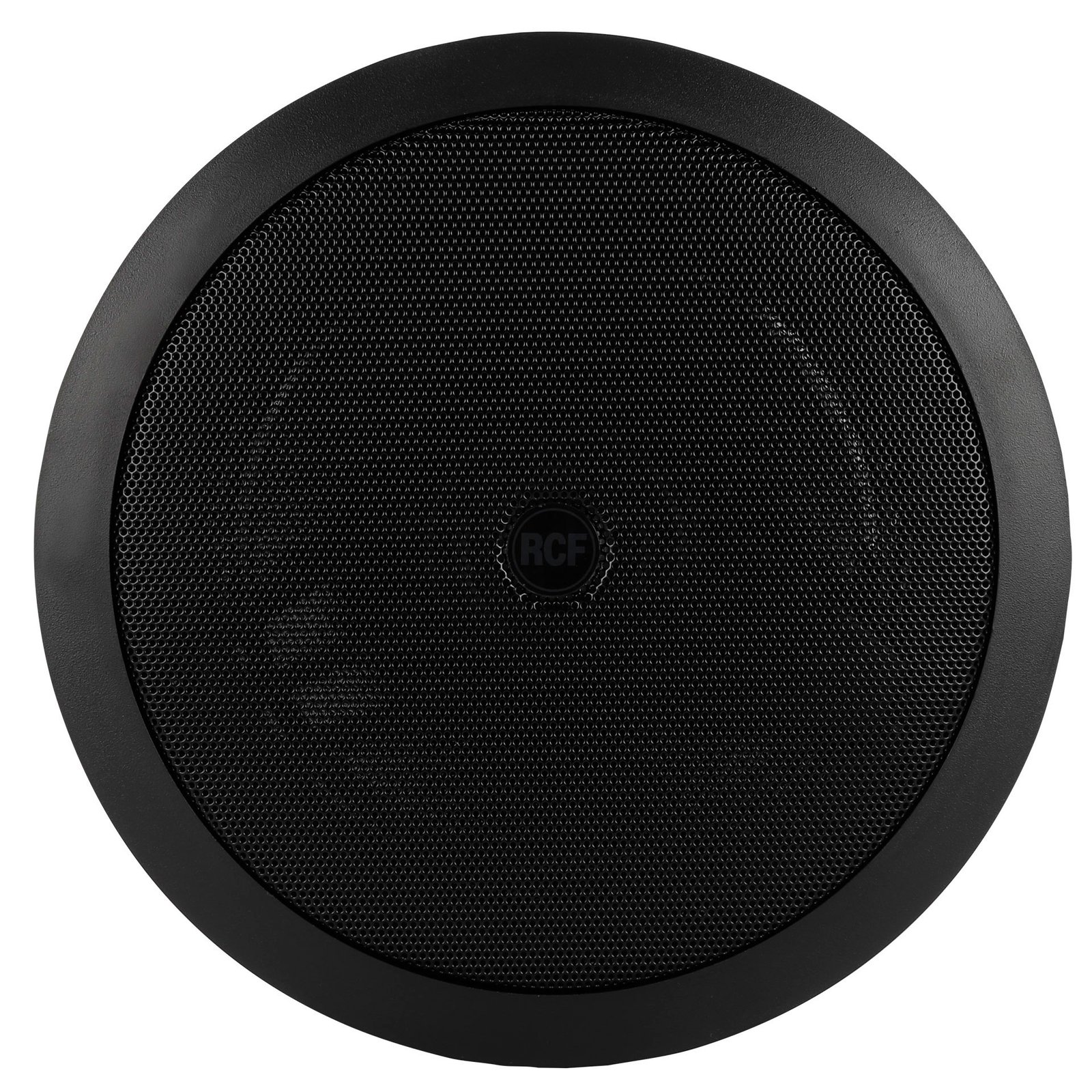

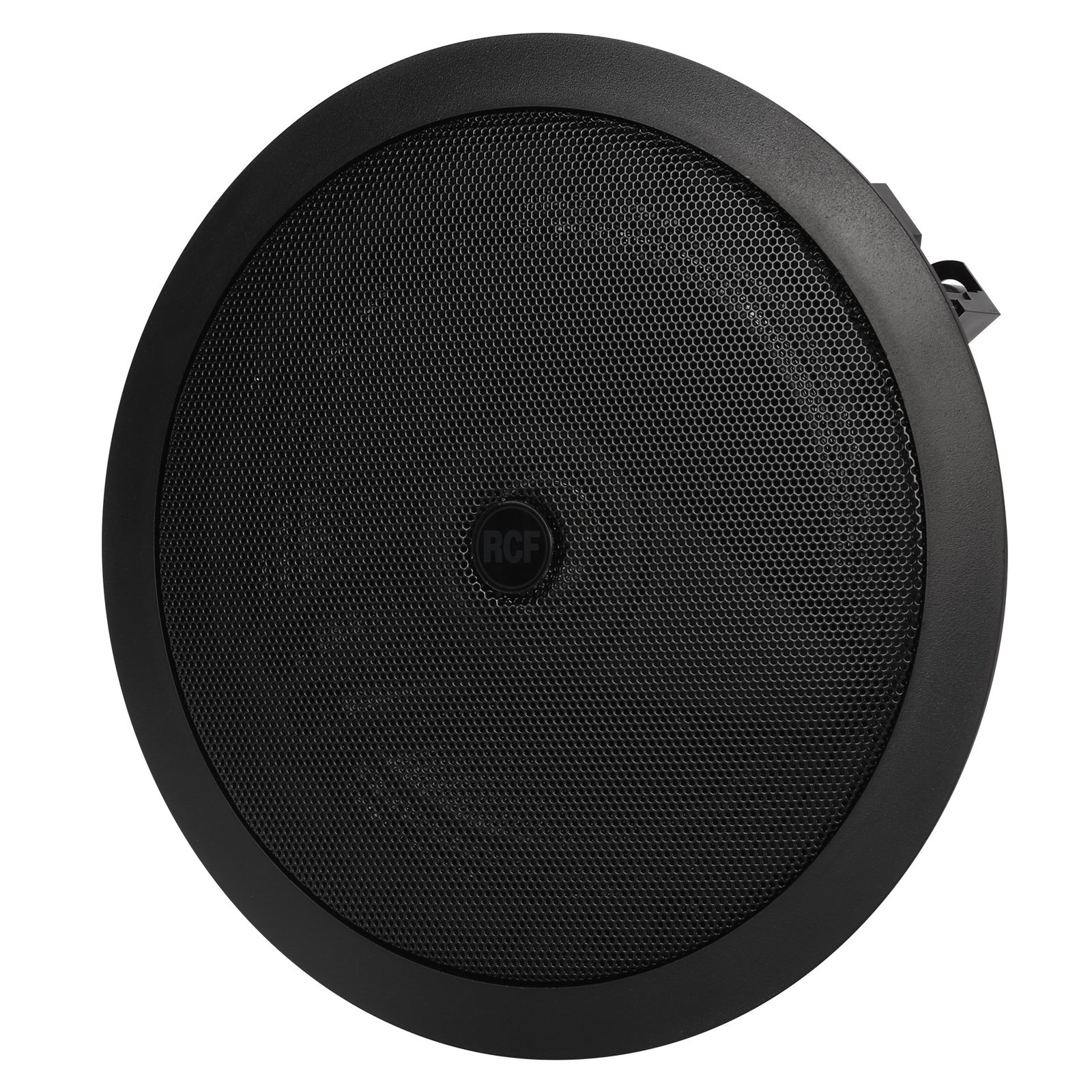

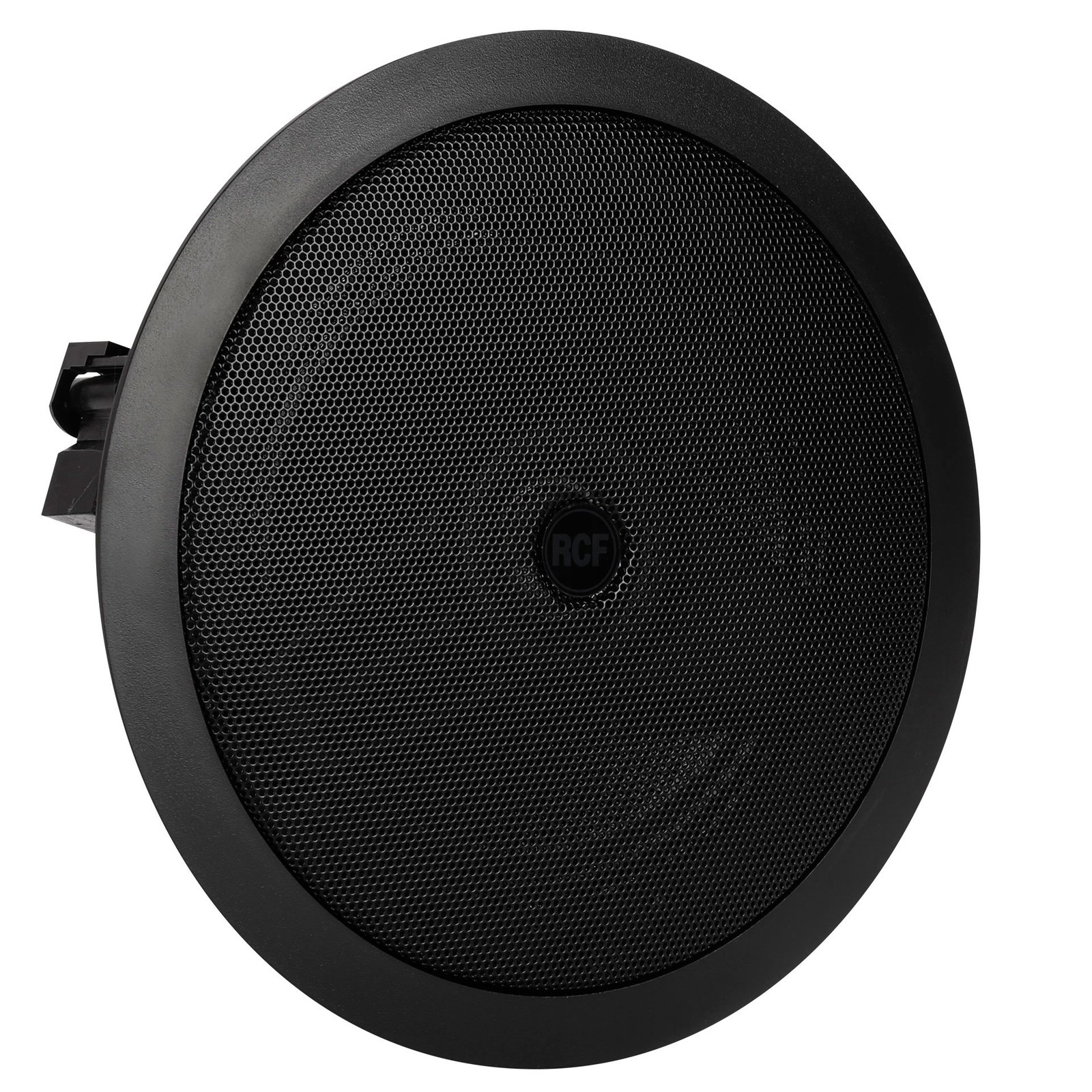

The RCF PL 6X B is the black version of the PL 6X coaxial ceiling loudspeaker, with a six-inch woofer and dome tweeter. Selectable transformer settings provide a defined interface to compatible distributed announcement and background music systems.

The specified frequency response is 70 Hz – 20000 Hz. Rated power handling is 12 W RMS. Maximum sound pressure level at one metre is 106 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists depth 73 mm, diameter 204 mm, weight 0.78 kg. The enclosure material is Plastic. The specified finish is Black – RAL 9005. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of PL 6X B

• 6″ woofer with 1″ dome tweeter
• Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
• 92 dB sensitivity
• Colour Black – RAL 9005
• Plastic frame UL 94 V0, aluminium grille

Specifications of PL 6X B
