RCF PX 4116 UHF Diversity Lavalier Wireless System

RCF PX 4116 UHF Diversity Lavalier Wireless System

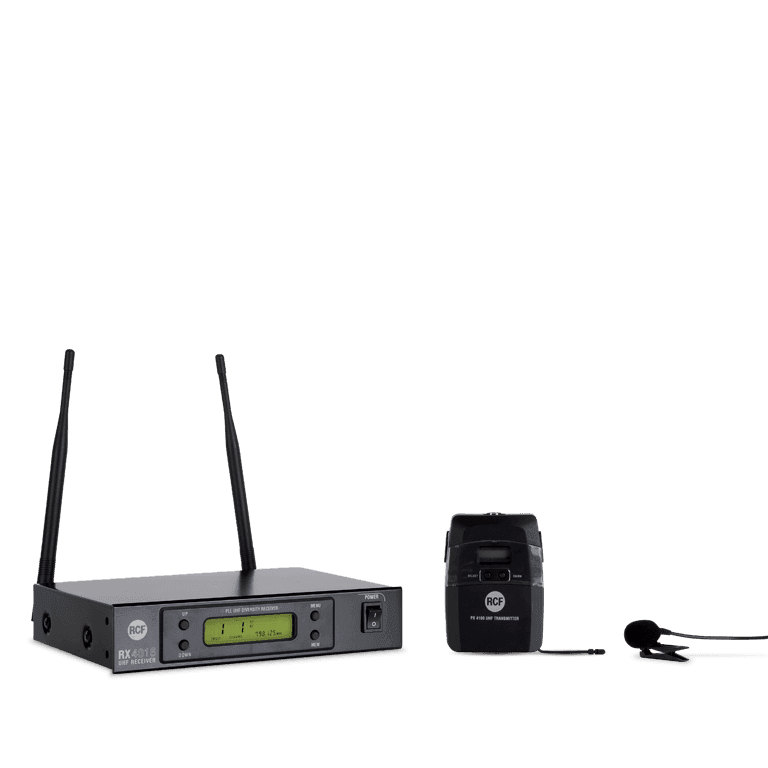

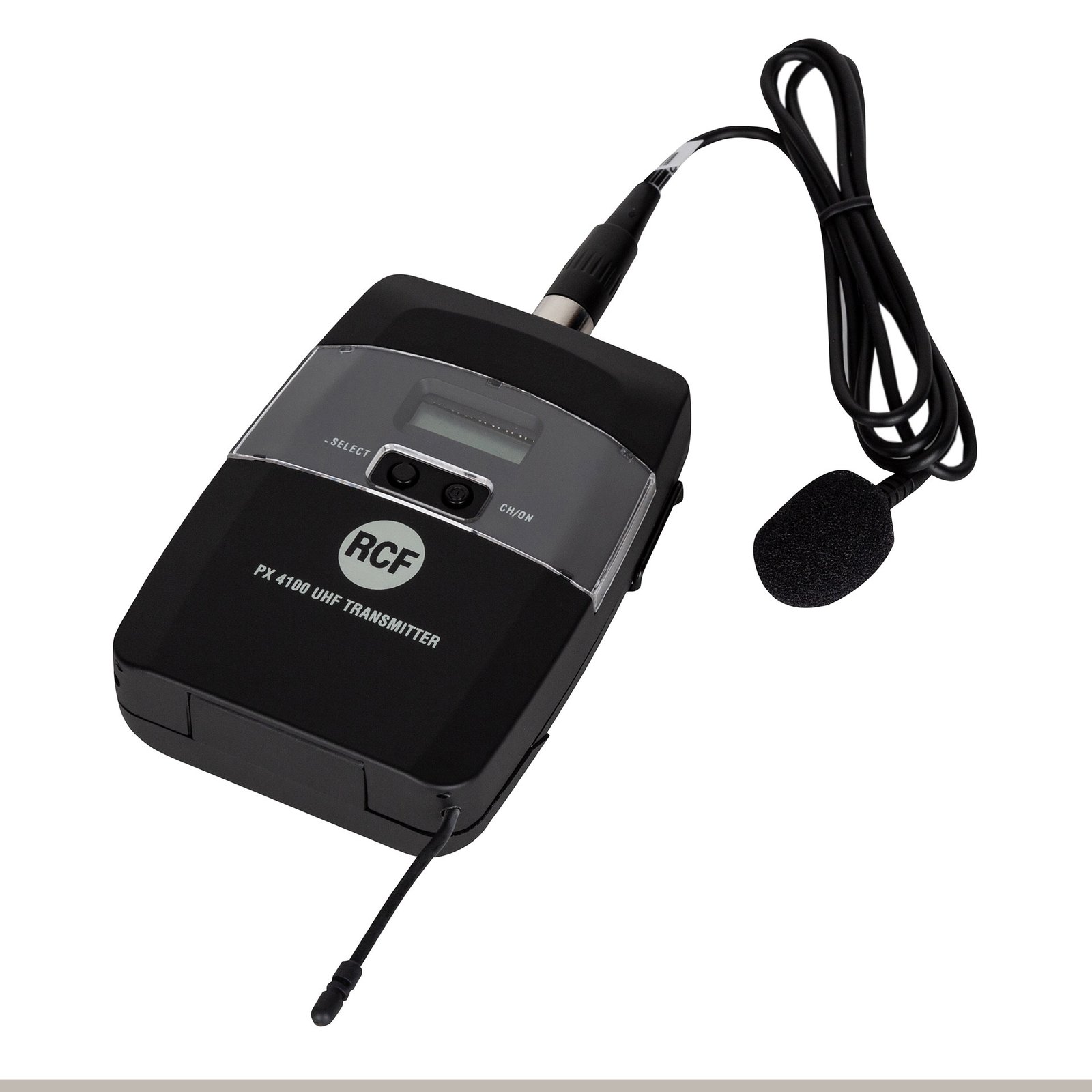

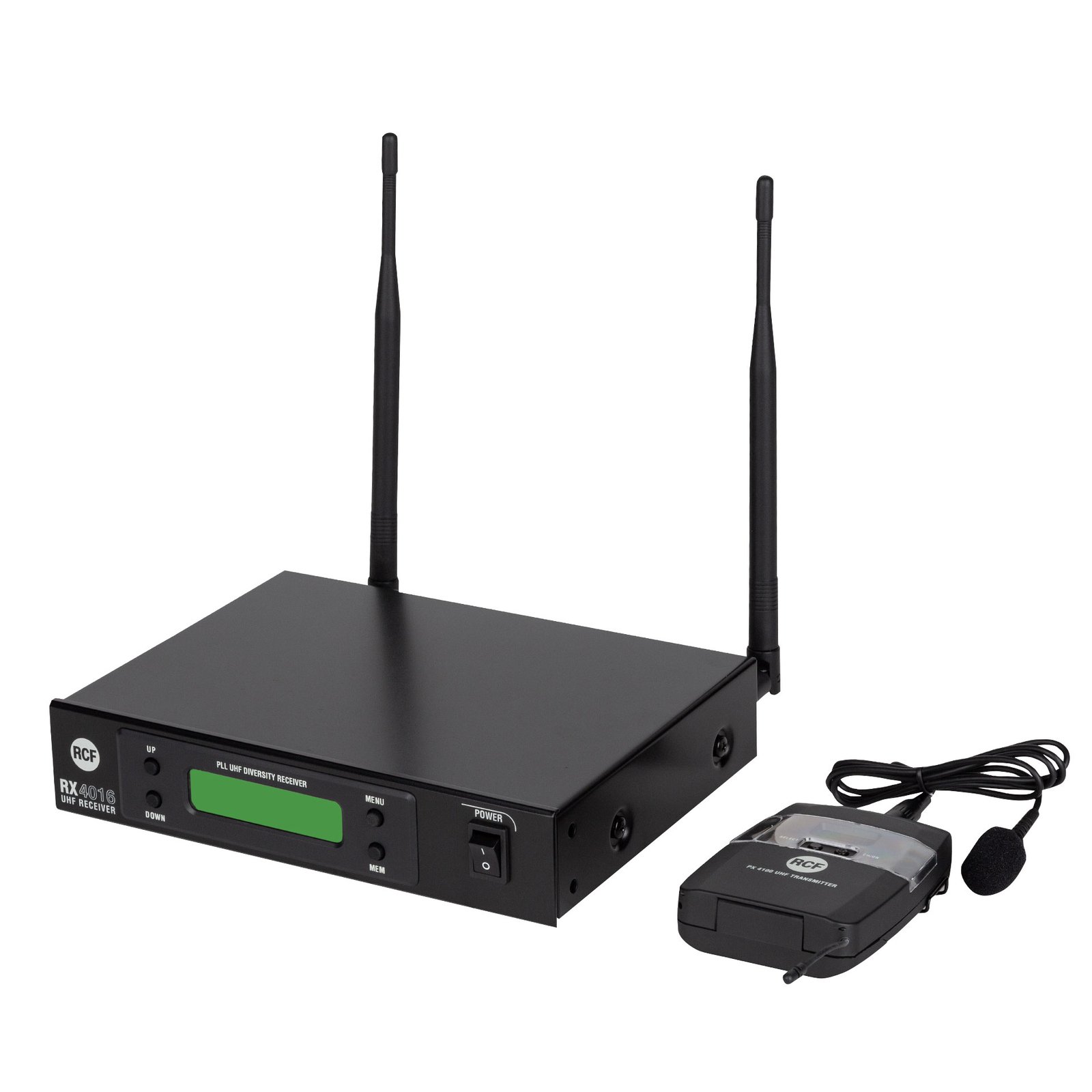

The RCF PX 4116 is a UHF wireless lavalier microphone system with a bodypack transmitter and diversity reception. Channel selection, automatic scanning and squelch adjustment allow the radio link to be configured for the operating environment.

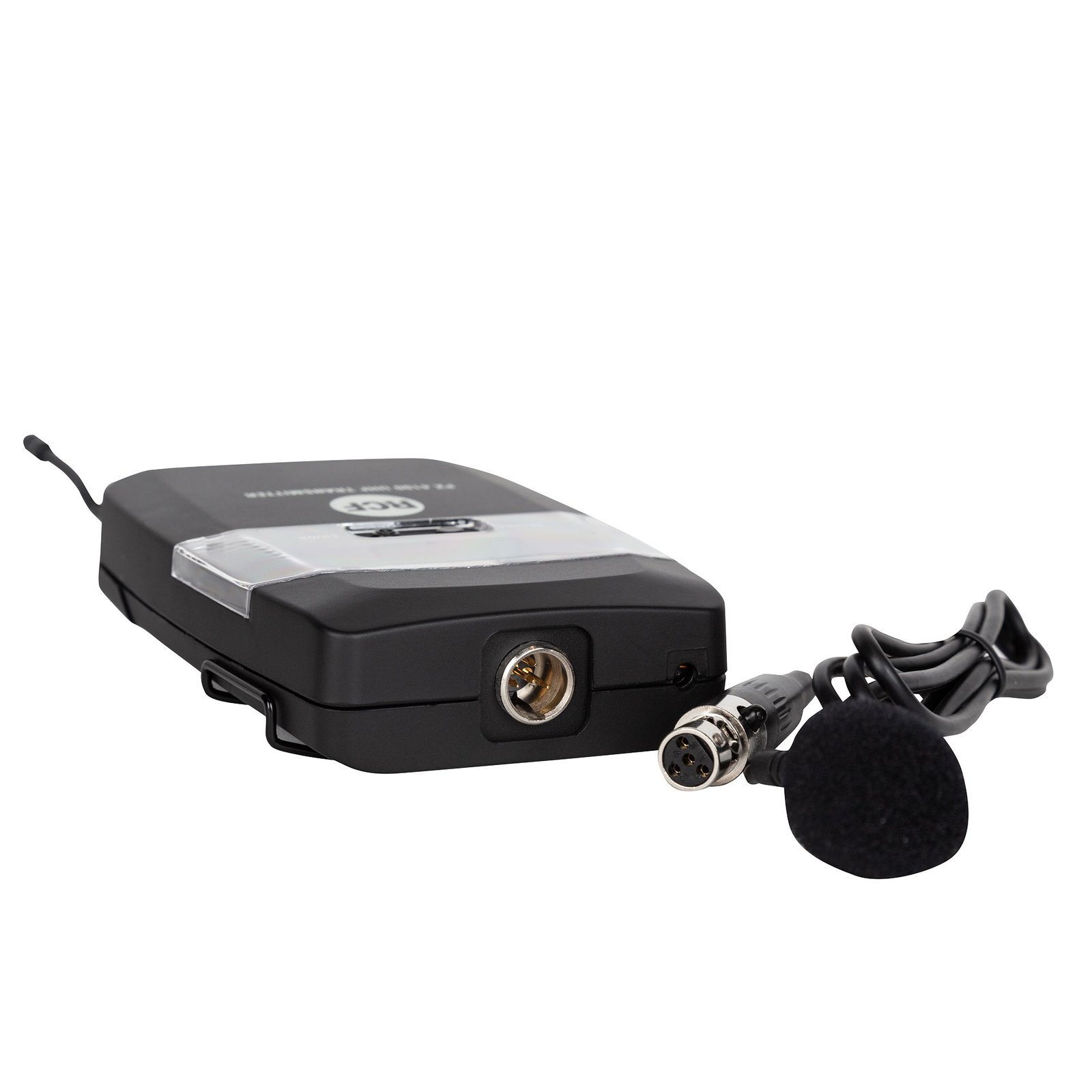

The specified connector type is JACK. A specified feature is: Friendly user interface with front panel LCD display. A specified feature is: Auto-scan function for easy operation. A specified feature is: RF signal switching ‘diversity’ control. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 44 mm, width 210 mm, depth 155 mm, weight 1.2 kg. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The microphone position forms part of the complete sound system arrangement. Place the speaking position and associated audio equipment so that the intended source is picked up clearly. The specified connection, input compatibility and local controls should be considered together when planning how the microphone will be used within the installation.

Match the microphone to the input and power arrangement described for the exact model. Cable routing, physical placement and access to operating controls all contribute to a practical working position. Set the associated system levels around the intended speaking arrangement, and follow the product instructions when connecting or configuring the complete audio path. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of PX 4116

• Friendly user interface with front panel LCD display
• Auto-scan function for easy operation
• RF signal switching ‘diversity’ control
• 3 output level selection
• Squelch control
• PLL (phase-locked loop) UHF
• Use of up to 16 channels / frequencies (out of 144) simultaneously
• Soft-touch painting for comfortable use
• 3 RF output power level selection
• Mute function

Specifications of PX 4116
