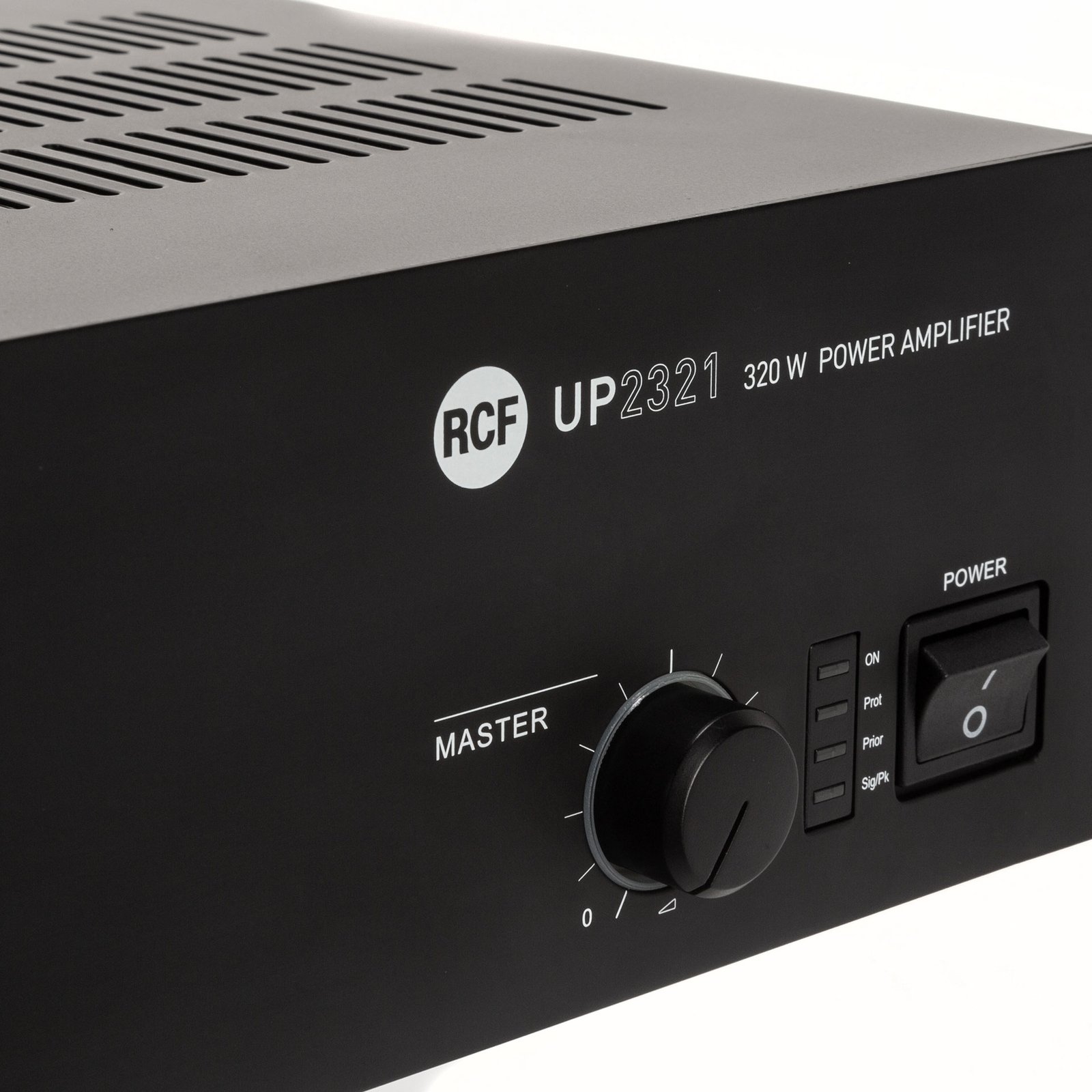

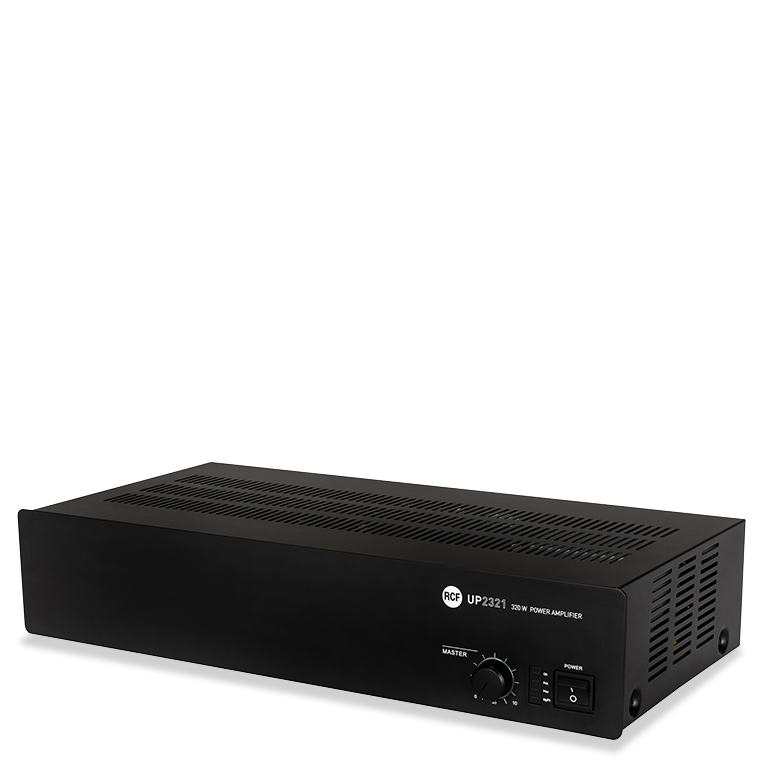

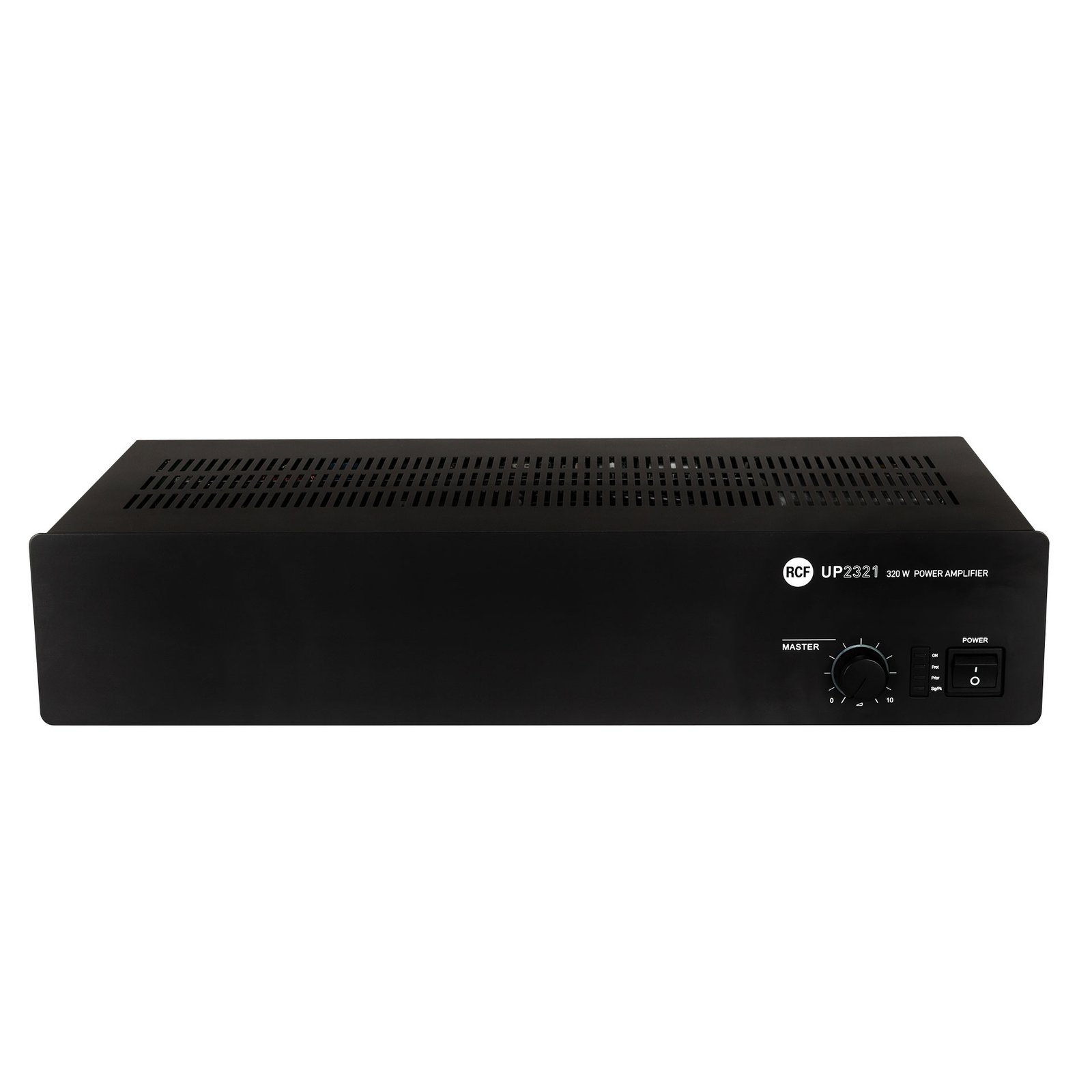

RCF UP 2321 320W Power Amplifier

RCF UP 2321 320W Power Amplifier

The RCF UP 2321 is a 320 W power amplifier for announcements and musical programmes. A main input and auxiliary music input provide separate source paths, with priority facilities and output options for compatible low-impedance or constant-voltage speaker systems.

The specified frequency response is 50 Hz – 14 Hz. The stated output power is 1 x 320 W @ 4 ohm. The total number of audio inputs is 3. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 88 mm, width 442 mm, depth 230 mm, weight 6.76 kg. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The amplifier should be selected around the connected loudspeaker load and the required source arrangement. Input compatibility, line configuration and available output power need to be considered together. This keeps the amplification stage aligned with the actual installation, whether the programme consists of announcements, background music or a combination of audio sources.

Plan the equipment position with room for the required connections and the specified ventilation arrangement. Establish the source routing and output settings before the system is put into service. Using the documented connection method keeps input levels, speaker loading and control functions consistent across the amplifier and the associated installation equipment. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of UP 2321

• Full digital technology Power Amplifier 320 W RMS

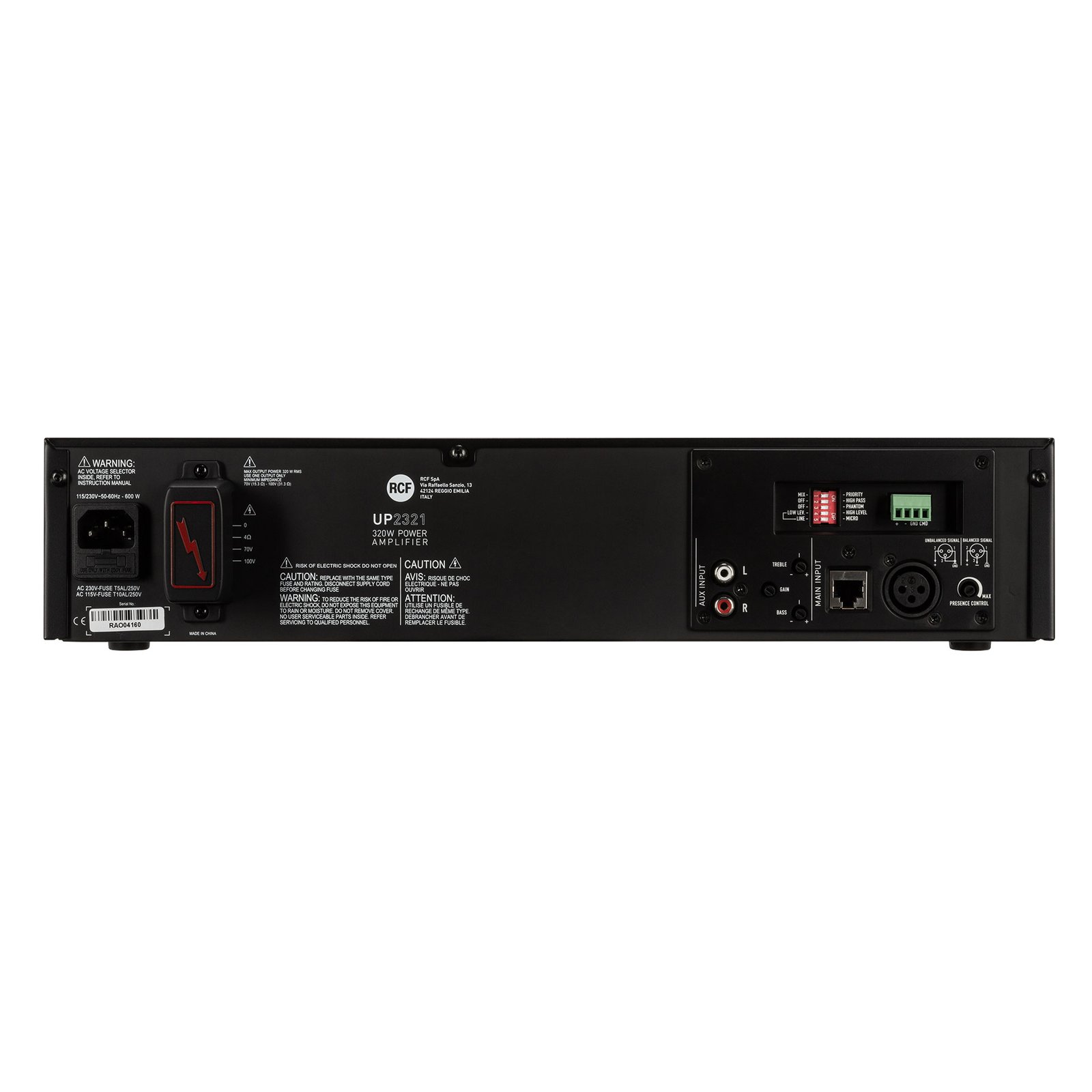

• Main input on either removable connector or XLR or RJ 45
• Main Input can have priority over the Aux Input
• Main Input has a presence control command
• Main Input has a high-pass filter useful for improving speech intelligibility
• Aux Input for music sources on RCA type connector
• Aux input with volume and tone controls
• 100 V – 70 V and 4 Ohm outputs

Specifications of UP 2321
