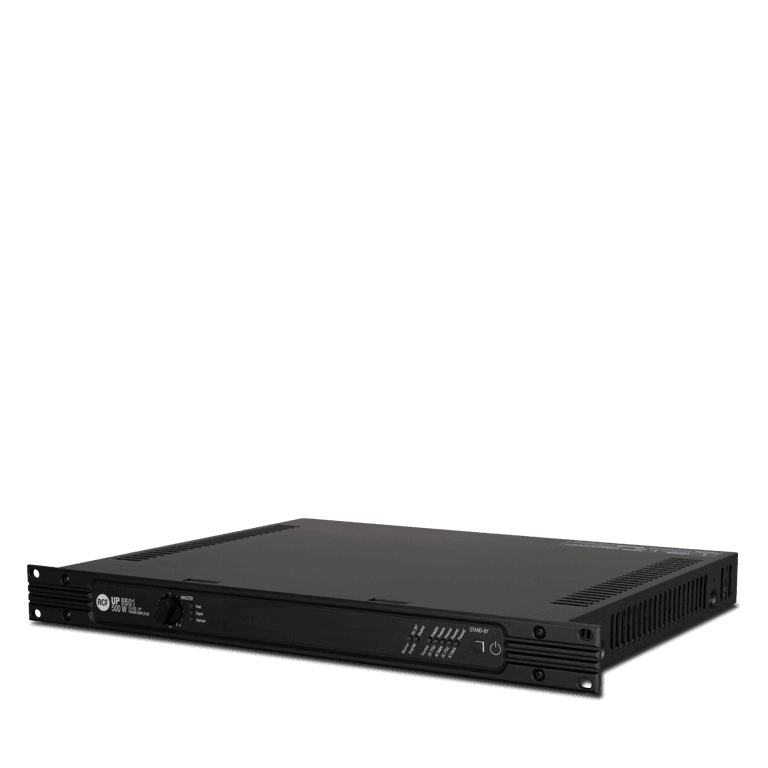

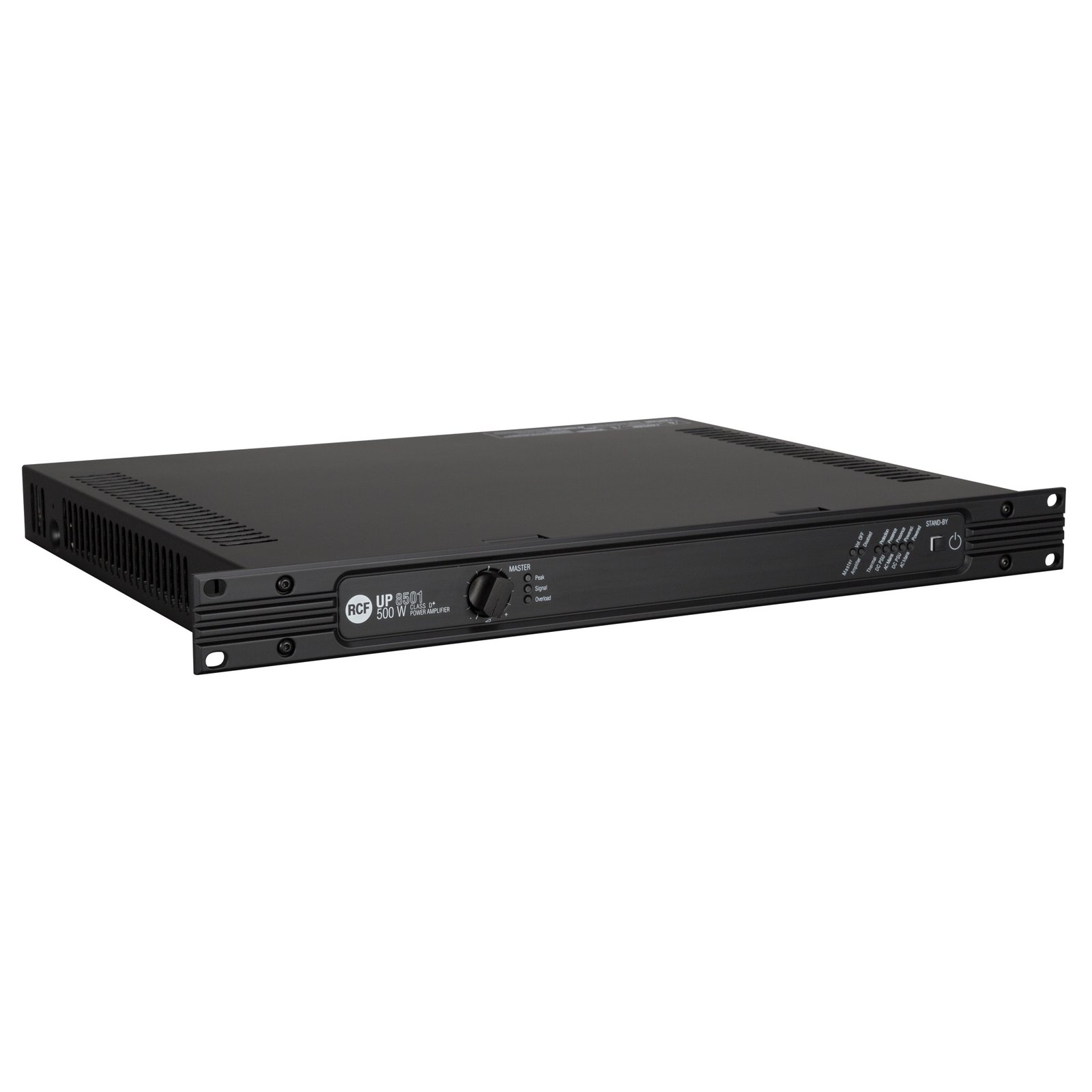

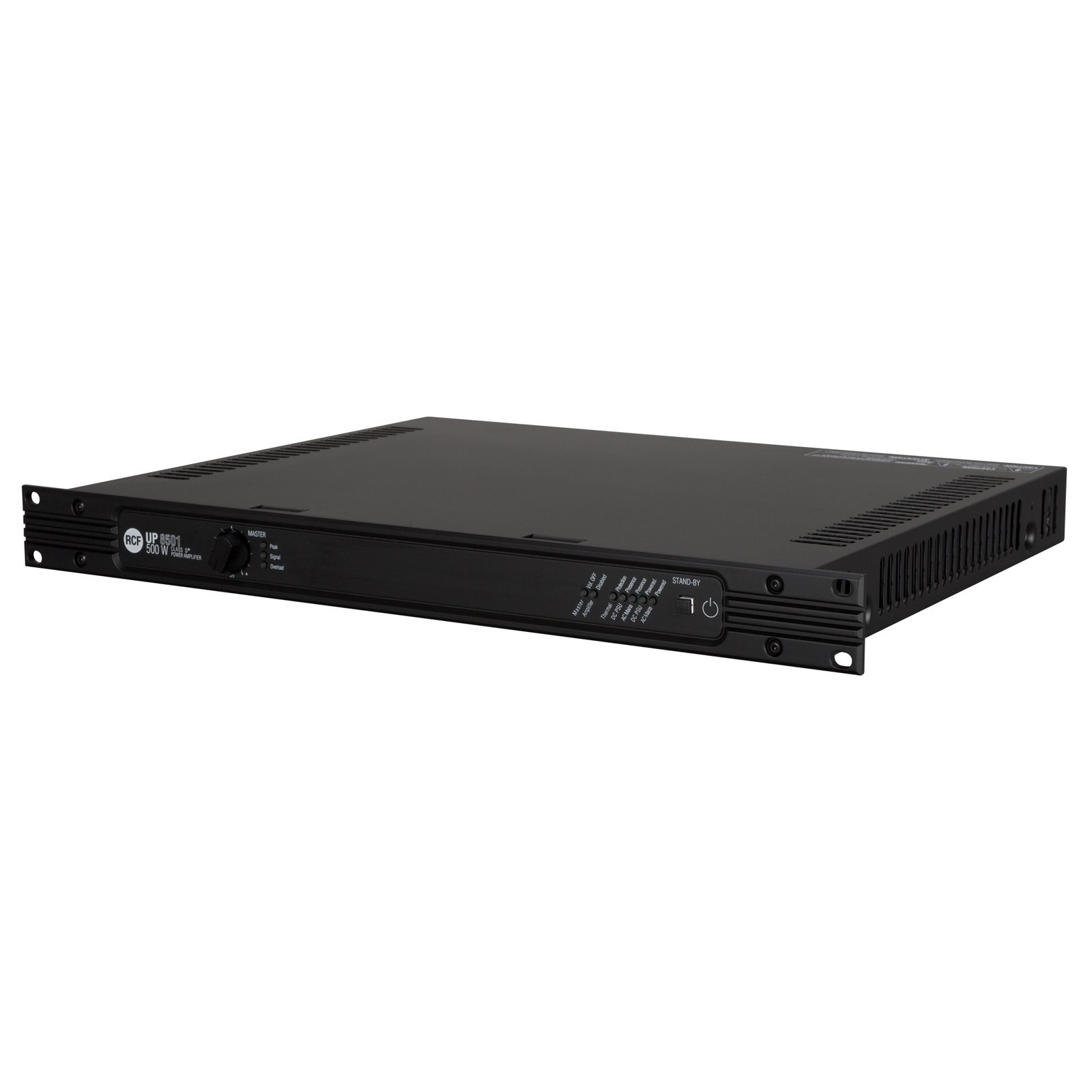

RCF UP 8501 500W Power Amplifier

RCF UP 8501 500W Power Amplifier

The RCF UP 8501 is a 500 W power amplifier for installed announcement and music systems. Main and auxiliary input facilities combine with priority control, while dual AC and DC power provision supports the specified system power arrangement.

The specified frequency response is 40 Hz – 16000 Hz. The total number of audio inputs is 2. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 44 mm, width 482 mm, depth 375 mm, weight 5 kg. The enclosure material is Metal. The specified finish is Black,. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The amplifier should be selected around the connected loudspeaker load and the required source arrangement. Input compatibility, line configuration and available output power need to be considered together. This keeps the amplification stage aligned with the actual installation, whether the programme consists of announcements, background music or a combination of audio sources.

Plan the equipment position with room for the required connections and the specified ventilation arrangement. Establish the source routing and output settings before the system is put into service. Using the documented connection method keeps input levels, speaker loading and control functions consistent across the amplifier and the associated installation equipment. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of UP 8501

• 500 W power amplifier
• 2 inputs per channel

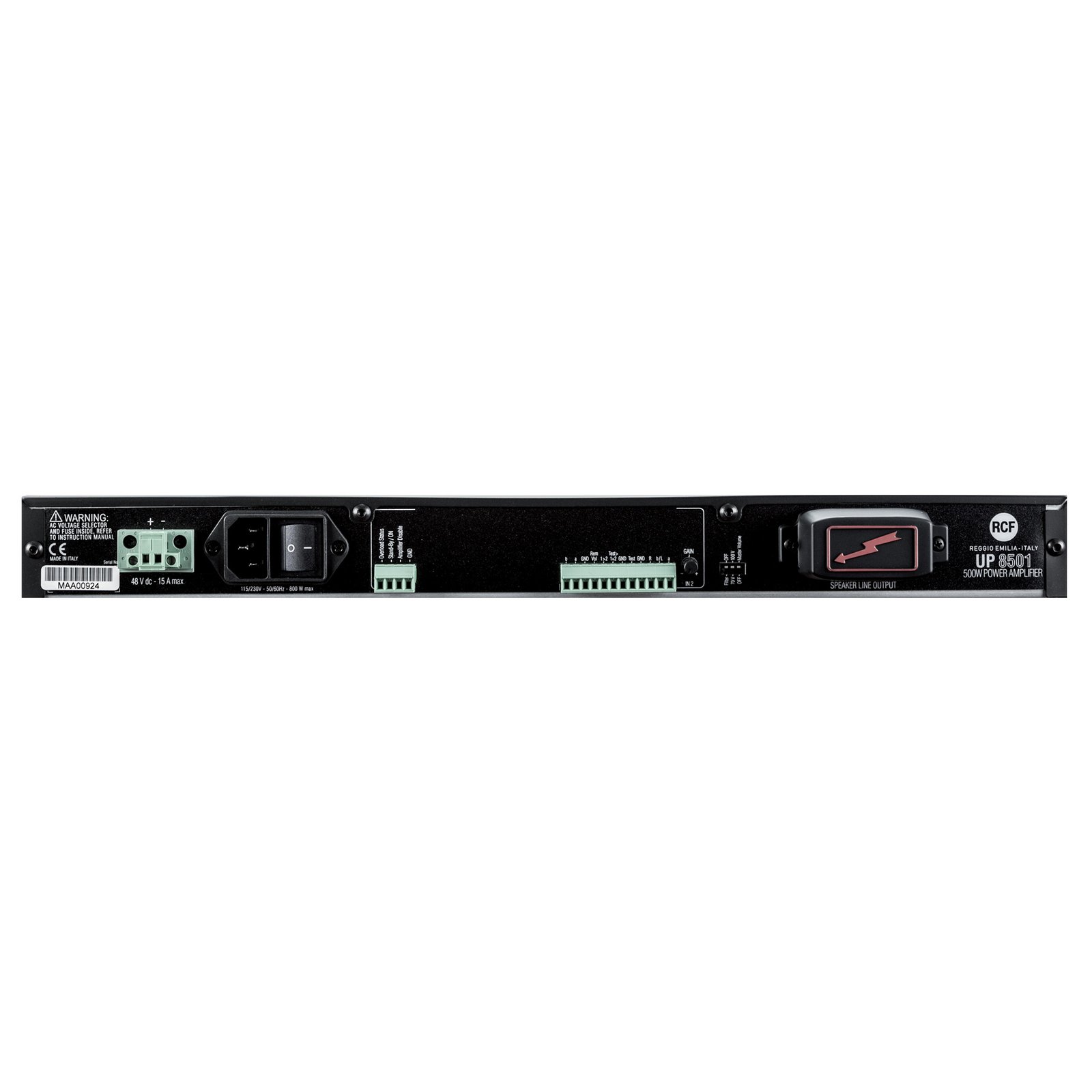

• Dual AC and DC power supply
• Priority circuit
• No output lines transformers

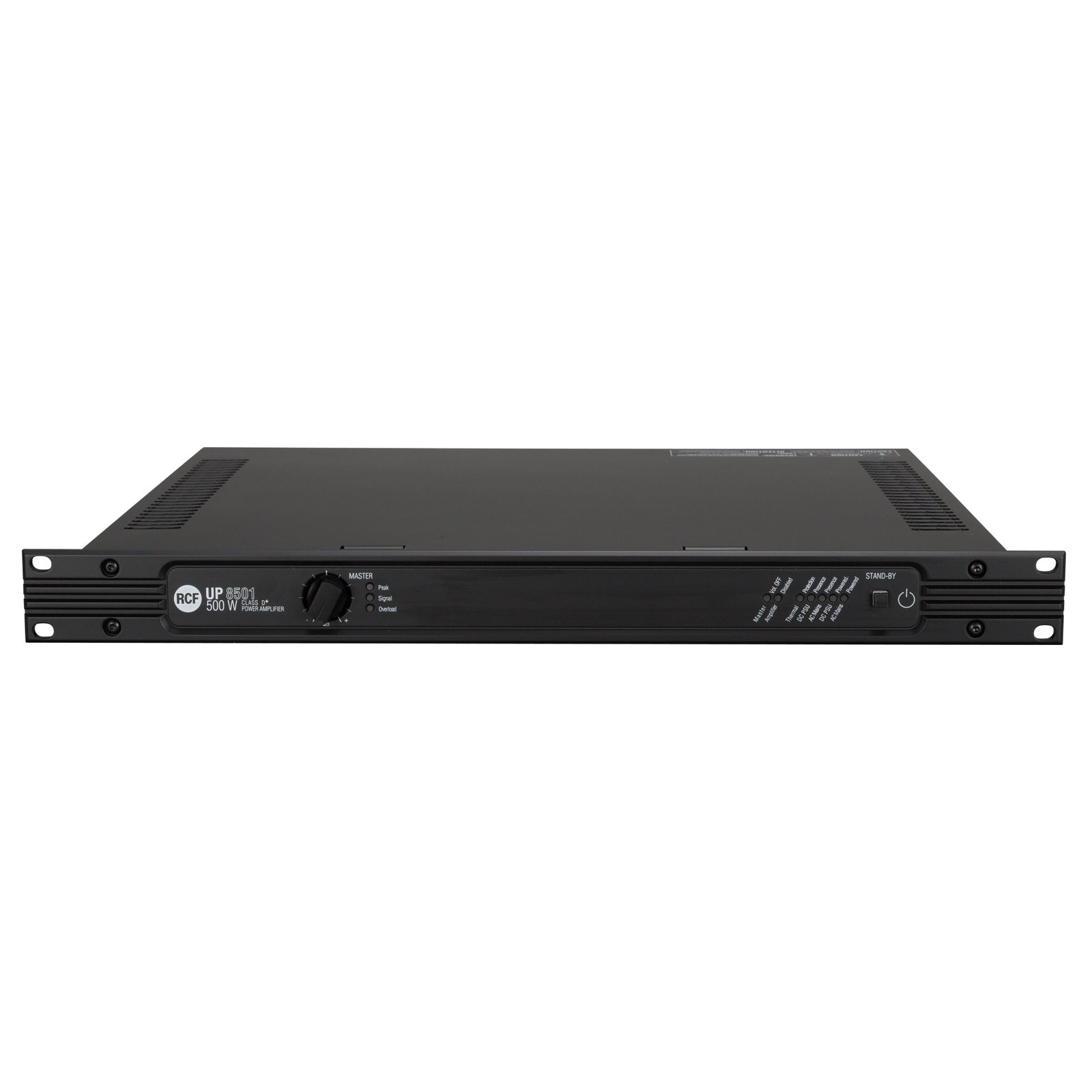

• Status LEDs on front panel

Specifications of UP 8501
