RCF UP 2162 Two-Channel 160W Power Amplifier

RCF UP 2162 Two-Channel 160W Power Amplifier

The RCF UP 2162 is a power amplifier containing two independent 160 W amplifier sections. Each section provides main and auxiliary inputs, allowing separate source handling and level adjustment within an installed announcement or music system.

The specified frequency response is 50 Hz – 16 Hz. The stated output power is 2 x 160 W @ 4 ohm. The total number of audio inputs is 4. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

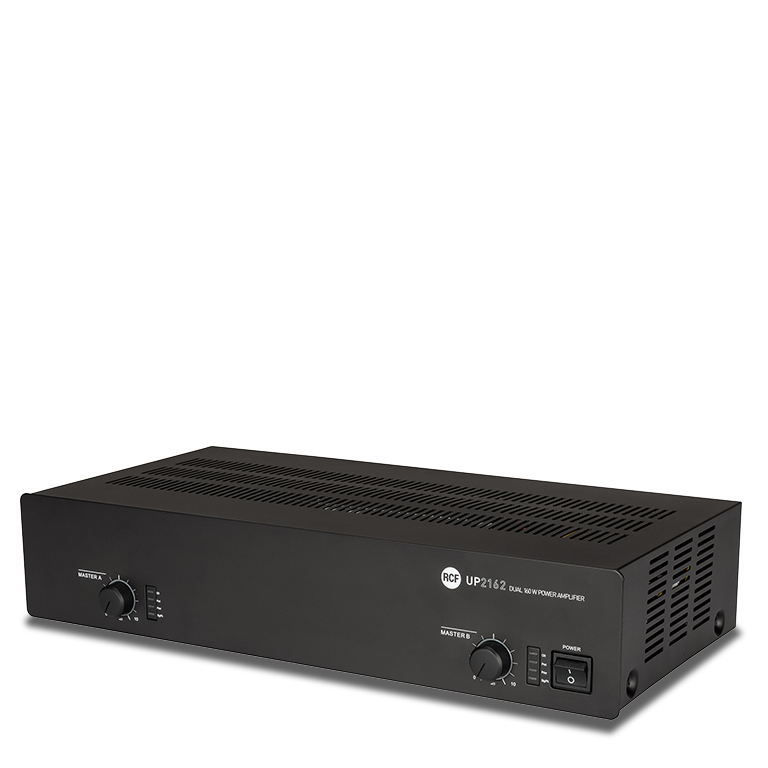

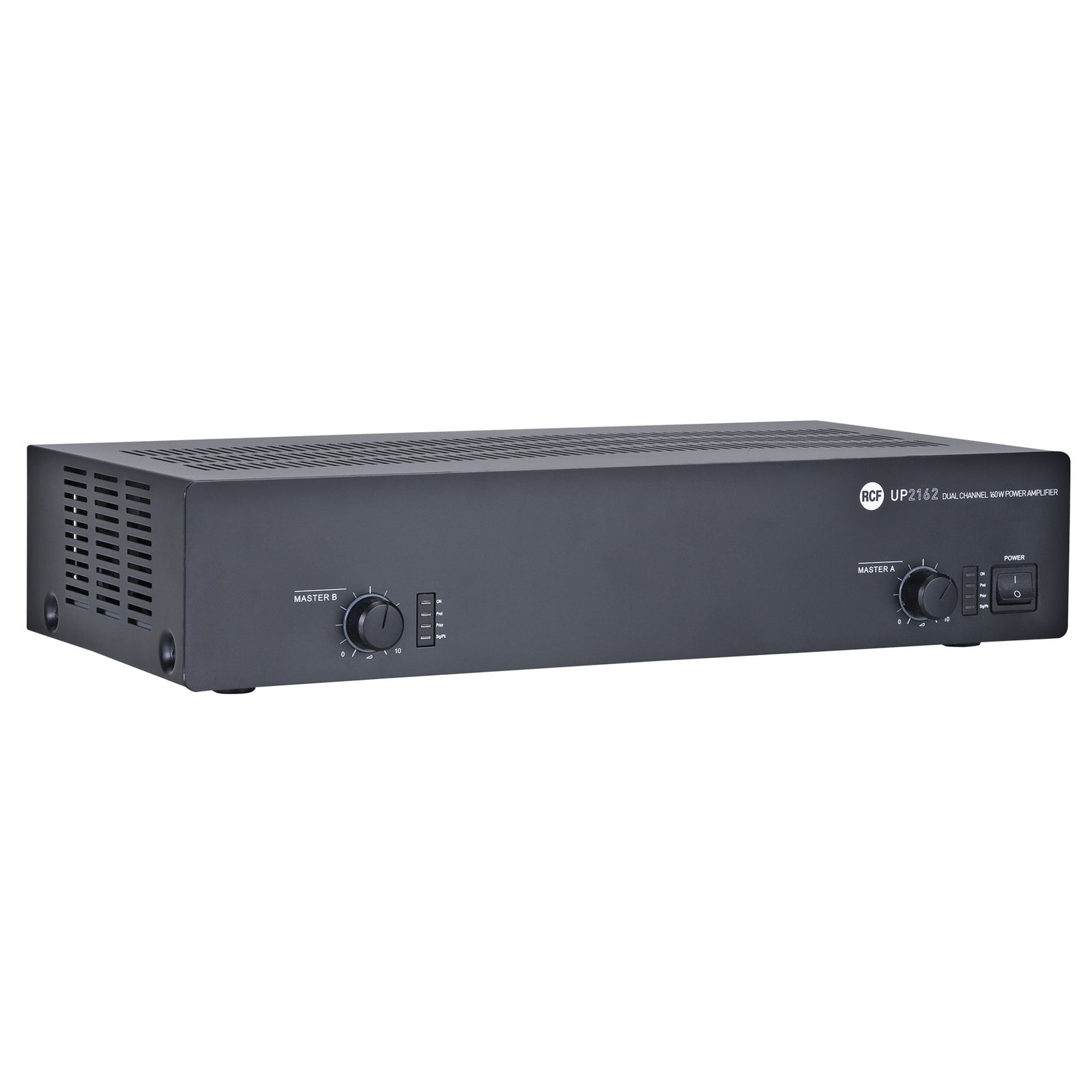

The physical specification lists height 88 mm, width 442 mm, depth 230 mm, weight 7.22 kg. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The amplifier should be selected around the connected loudspeaker load and the required source arrangement. Input compatibility, line configuration and available output power need to be considered together. This keeps the amplification stage aligned with the actual installation, whether the programme consists of announcements, background music or a combination of audio sources.

Plan the equipment position with room for the required connections and the specified ventilation arrangement. Establish the source routing and output settings before the system is put into service. Using the documented connection method keeps input levels, speaker loading and control functions consistent across the amplifier and the associated installation equipment. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of UP 2162

• Power Amplifier designed for the transmission of announcements and / or musical programmes

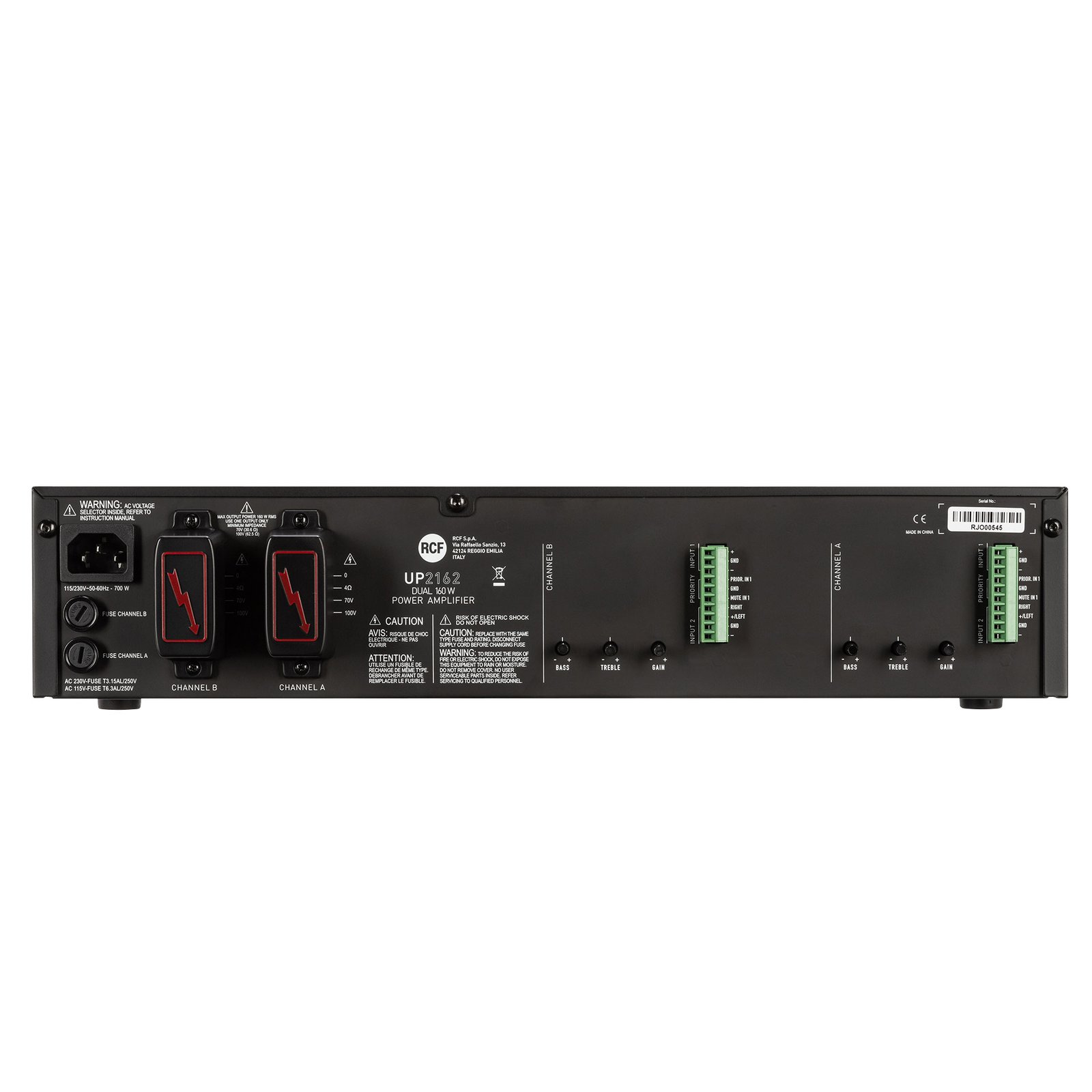

• Main input on removable connector
• AUX Input for music sources removable connector
• Controls for treble, bass and Gain on the AUX Input
• Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
• Output speaker available either for low impedance loudspeakers (min. 4 O) or 100 – 70 V constant voltage line

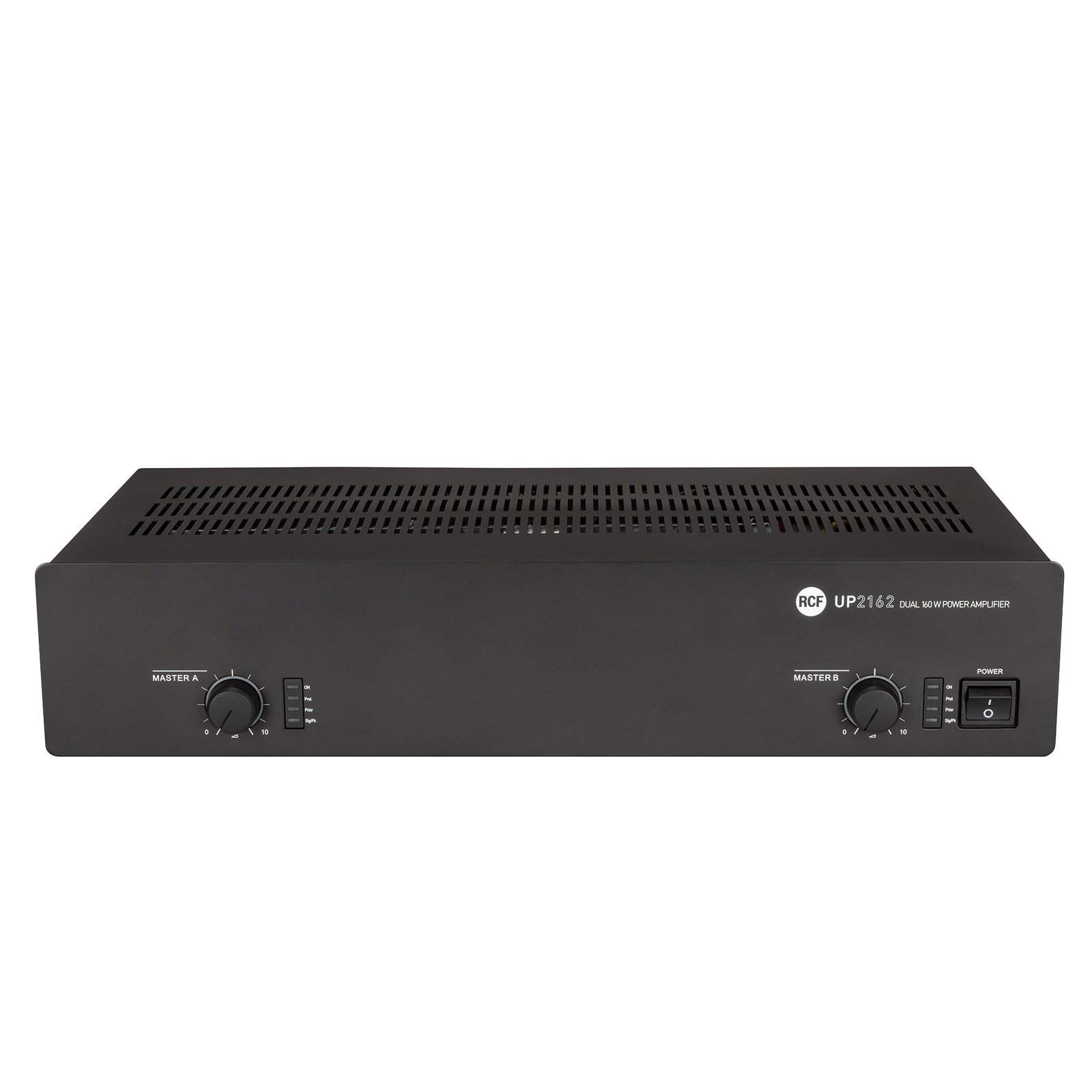

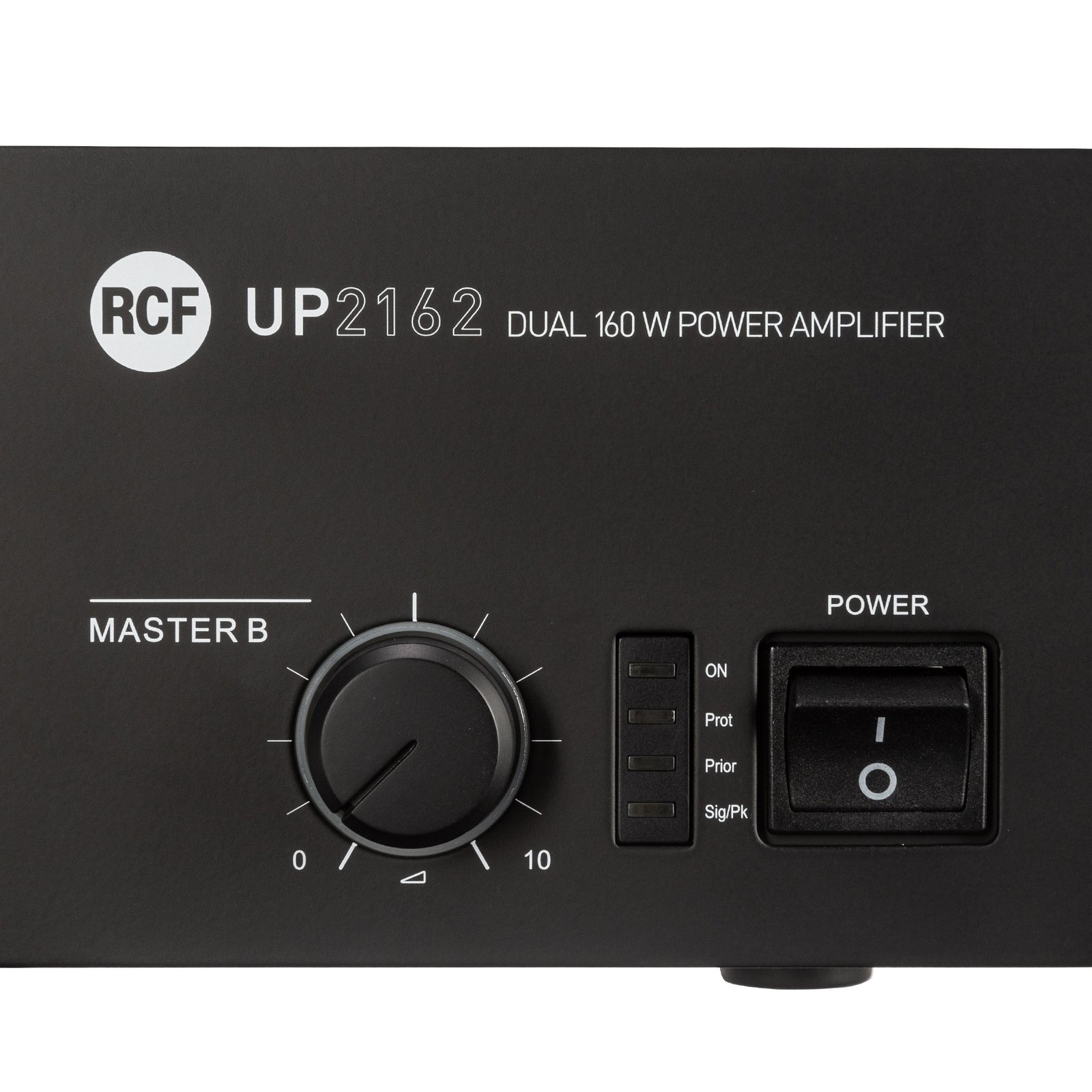

• Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

Specifications of UP 2162
