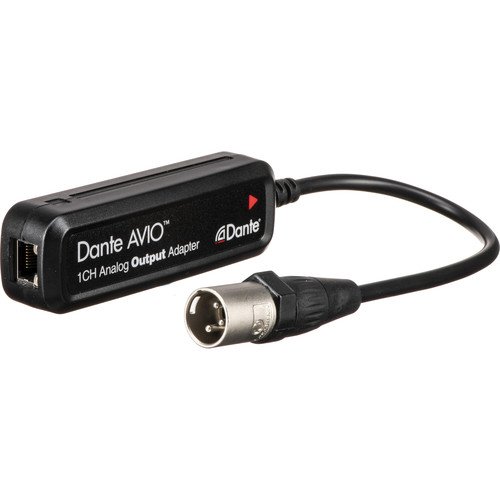

Audinate Dante AVIO 1-Channel XLR Analog Output Adapter
Dante AVIO 1-channel analog output adapter converts network audio to balanced analog line-level output, providing PoE power, configurable output levels, flexible sample rates, low latency, and Dante interoperability.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 942.90 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Audinate Dante AVIO 1-Channel Analog Output Adapter
The Audinate Dante AVIO 1-Channel Analog Output Adapter provides a compact way to deliver audio from a Dante network to conventional analog equipment. It is designed for systems where a networked audio source must feed an analog amplifier, powered speaker, processor, mixer, recording device, or other line-level destination without replacing existing equipment. Its single-channel architecture keeps the interface small while retaining the core connectivity and management capabilities of the Dante AVIO platform.
The adapter supports balanced and unbalanced analog operation with selectable output levels that can be configured through Dante Controller. Its analog output supports levels of +18 dBu, +4 dBu, 0 dBu, 0 dBV, and -10 dBV, helping integrators match the interface to different downstream devices. A frequency response of 20 Hz to 20 kHz and dynamic range above 100 dB support clean signal delivery for a wide range of commercial and professional audio applications.
Network connectivity is provided through an RJ45 interface, with Dante Audio over IP and AES67 RTP transport supported. The unit operates from Class 1 802.3af Power over Ethernet, avoiding the need for a separate power supply at the adapter. Dante device latency can be configured to 1, 2, or 5 ms using Dante Controller, allowing the interface to be incorporated into systems with different signal-routing requirements.
With support for 44.1, 48, and 96 kHz sample rates and 16-, 24-, and 32-bit audio, the AVIO output adapter accommodates a broad range of Dante network configurations. Its compact form factor makes it practical for distributed audio, installation, live production, conferencing, and system expansion where a single analog output is required.
Features of ADP-DAO-AU-0X1
- 1-channel Dante network to analog output
- Balanced and unbalanced line-level compatibility
- Selectable +18/+4/0 dBu and 0/-10 dBV levels
- 20 Hz–20 kHz frequency response
- RJ45 network connection
- Class 1 802.3af PoE power
- 1, 2, or 5 ms configurable Dante latency
- Dante Audio over IP and AES67 RTP
- 44.1, 48, and 96 kHz sample rates
- 16-, 24-, and 32-bit audio support
Specifications of ADP-DAO-AU-0X1
| Audio Channels | 1 output |
| Maximum Output Level | +18 dBu / +4 dBu / 0 dBu / 0 dBV / -10 dBV |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dB) |
| Output Impedance | 150 kOhm balanced; 75 kOhm unbalanced |
| Dynamic Range | >100 dB |
| Signal-to-Noise Ratio | >100 dB |
| THD | <0.01% at +4 dBu |
| Connector | RJ45 and XLR-M |
| Power | Class 1 802.3af PoE |
| Sample Rates | 44.1, 48, 96 kHz |
| Bit Depth | 16, 24, 32 bit |
| Dante Latency | 1, 2, or 5 ms |
| Network Transport | Dante Audio over IP, AES67 RTP |
