Dynacord PM 502 8-Channel Powered Mixer

Dynacord PM 502 8-Channel Powered Mixer

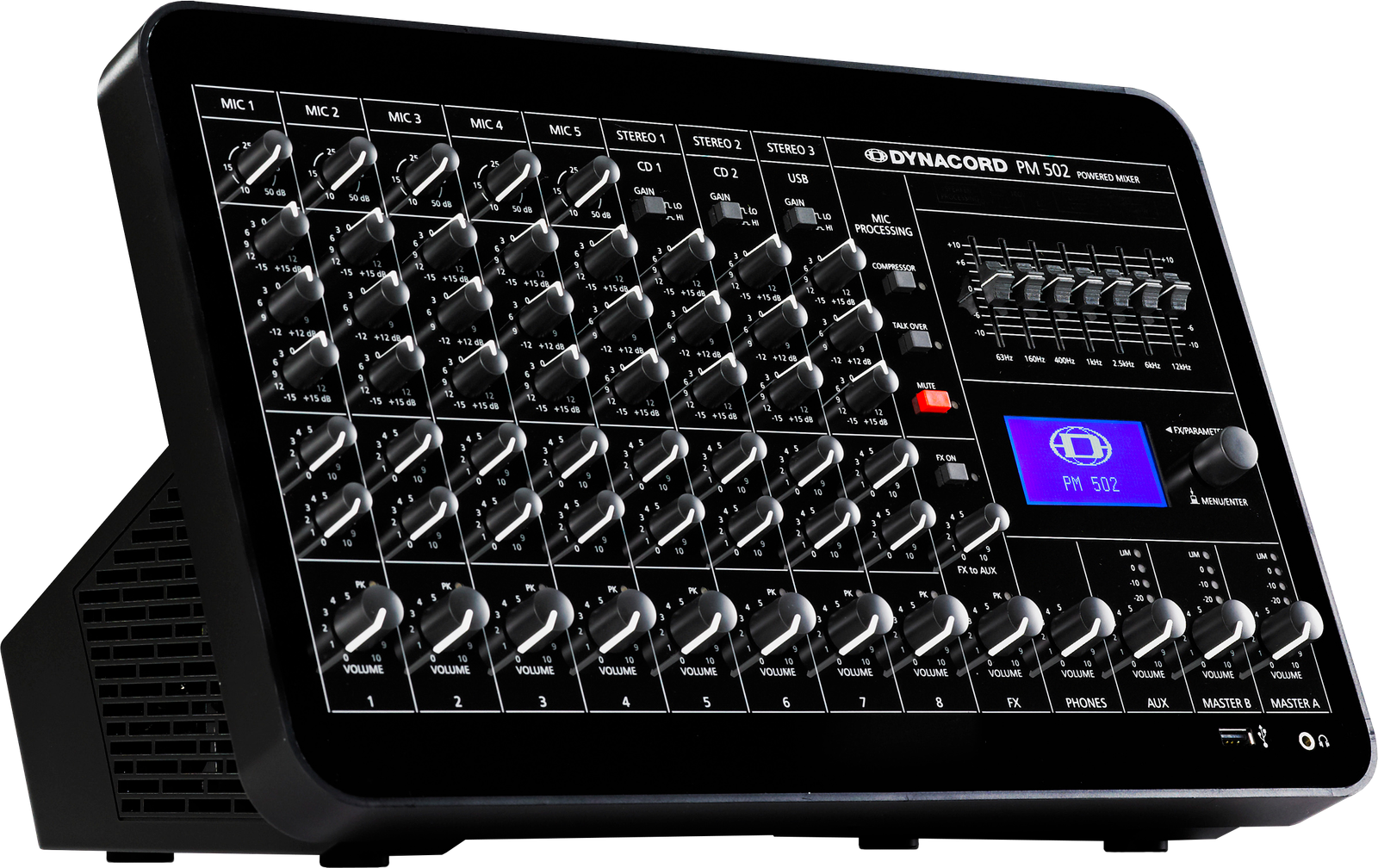

The Dynacord PM 502 is a compact powered mixer that combines an eight-channel mixing section, digital signal processing, USB audio, media playback, and power amplification in one chassis. It is designed for entertainers, DJs, small bands, rehearsal spaces, hospitality venues, clubs, houses of worship, and fixed installations where a complete sound system needs to remain practical and portable. The eight-channel structure includes five microphone/line inputs and three stereo inputs, providing flexible connections for microphones, instruments, playback devices, and other line-level sources.

The five microphone/line channels use XLR/jack connections and include channel processing, while switchable 48 V phantom power supports compatible condenser microphones. Stereo sources can be connected through jack, RCA, and USB. A front-panel USB player handles MP3 and WAV files, while the rear USB interface provides two-channel computer audio for basic recording and playback. The master section includes three outputs with individual seven-band graphic equalization, flexible routing, and a selectable delay on Master B.

Two digital effects processors provide 32 editable presets, while LPN speaker processing can help optimize smaller loudspeakers. The Class-D amplifier delivers 2 x 450 W RMS at 4 ohms and supports a 100 V Direct Drive mode for suitable distributed speaker systems. A universal 100–240 V AC supply and compact 4.9 kg enclosure further support flexible deployment. With integrated mixing, effects, recording, playback, amplification, and protection features, the PM 502 provides a complete solution for compact live and installed audio systems.

Its integrated controls and connectivity support efficient system setup and practical day-to-day operation.

Features of PM 502

• 8-channel compact powered mixer
• Five Mic/Line and three stereo inputs
• 2 x 450 W RMS at 4 ohms
• Class-D power amplifier
• 100 V Direct Drive option
• 32 editable digital effects presets
• Front USB MP3/WAV player
• Rear 2-in/2-out USB audio interface
• Three master outputs with 7-band EQ
• 48 V switchable phantom power
