Ecler eCMP12 Music Projector Speaker

Ecler eCMP12 music projector loudspeaker

The Ecler eCMP12 is a high-power music projector designed for outdoor and semi-outdoor commercial applications that demand extended coverage and higher output than a compact model can offer. It combines a 12 inch low frequency transducer with a 1.7 inch coaxial high frequency transducer in a single waterproof and sun-screening enclosure, delivering a nominal power handling of 300W RMS at 8 ohm.

Rated IP56, the eCMP12 is water resistant and treated against prolonged sun exposure, suiting it to terraces, poolside areas, gardens, retail plazas and other spaces exposed to weather. It supports both direct low impedance connection and a 70/100V distributed line transformer, with 100V power taps of 50W, 100W and 200W, giving installers flexibility when integrating it into larger distributed audio systems that combine several speakers per zone.

Coverage is defined by a narrower, longer-throw 80 degree by 80 degree dispersion pattern compared to the eCMP8, giving the eCMP12 the projection needed for wider outdoor areas. Frequency response reaches from 60Hz to 18kHz (-3dB), delivering deeper low-frequency extension than the eCMP8 while maintaining clear mid and high frequency reproduction for music and speech.

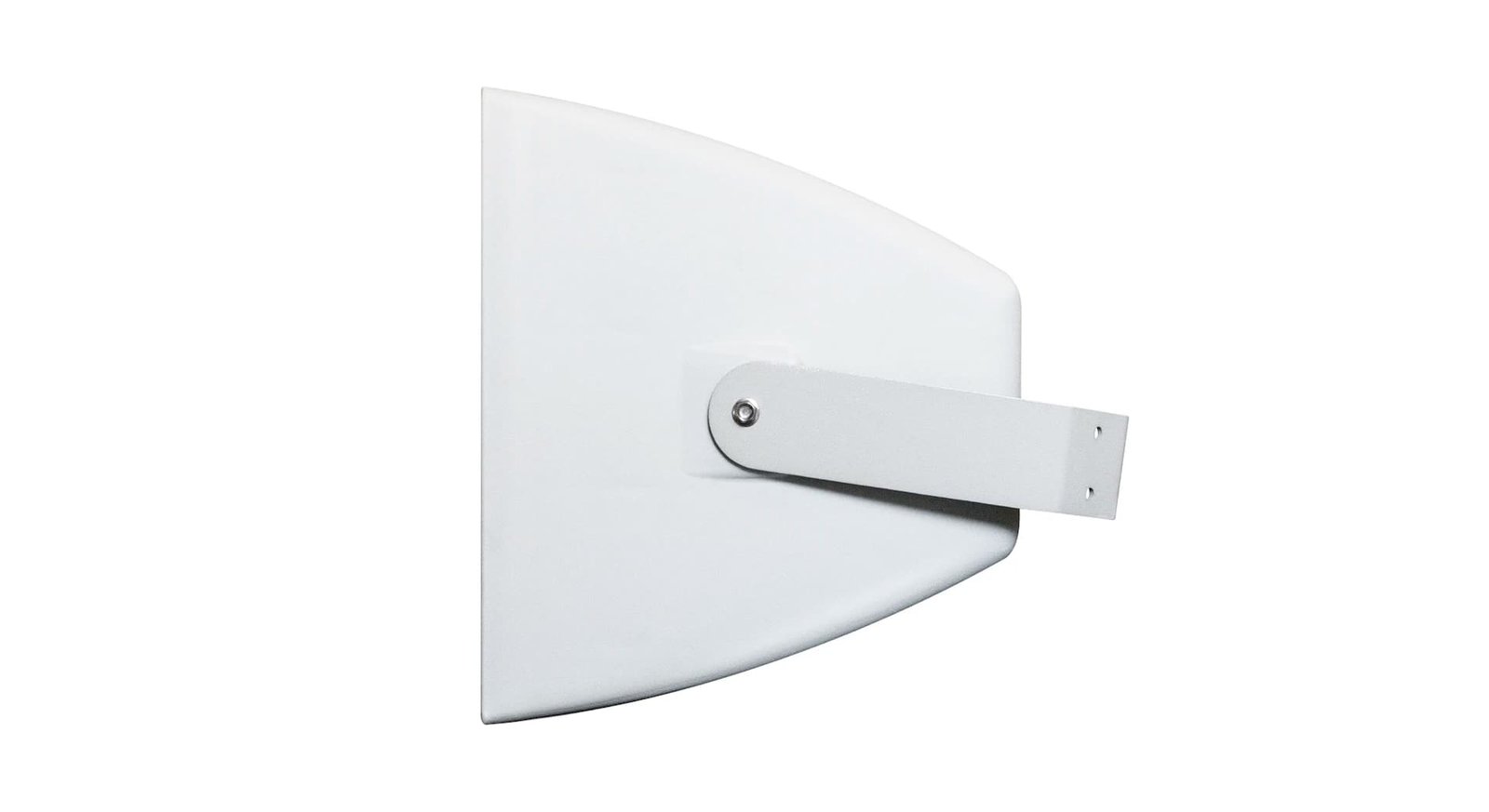

The eCMP12 is built for commercial, hospitality, education, corporate, sports and house of worship applications where higher sound pressure levels and greater bass extension are required outdoors. Its compact dimensions and mounting bracket allow straightforward installation on walls, poles or overhangs, giving system designers a reliable high-output outdoor solution with long-term durability.

Features

• High-power outdoor music projector
• 12 inch LF driver and 1.7 inch HF coaxial driver
• IP56 rated for outdoor and water-exposed use
• 300W RMS power handling at 8 ohm
• 70/100V line transformer with 50/100/200W taps
• 80 degree x 80 degree dispersion
• Frequency response 60Hz-18kHz (-3dB)
• Sun-screening treated enclosure material
• Mounting bracket included
• Suited to large outdoor coverage areas

Specifications
