Ecler PULSO-10 10-Inch Control Touch Panel

Ecler PULSO-10 control touch panel

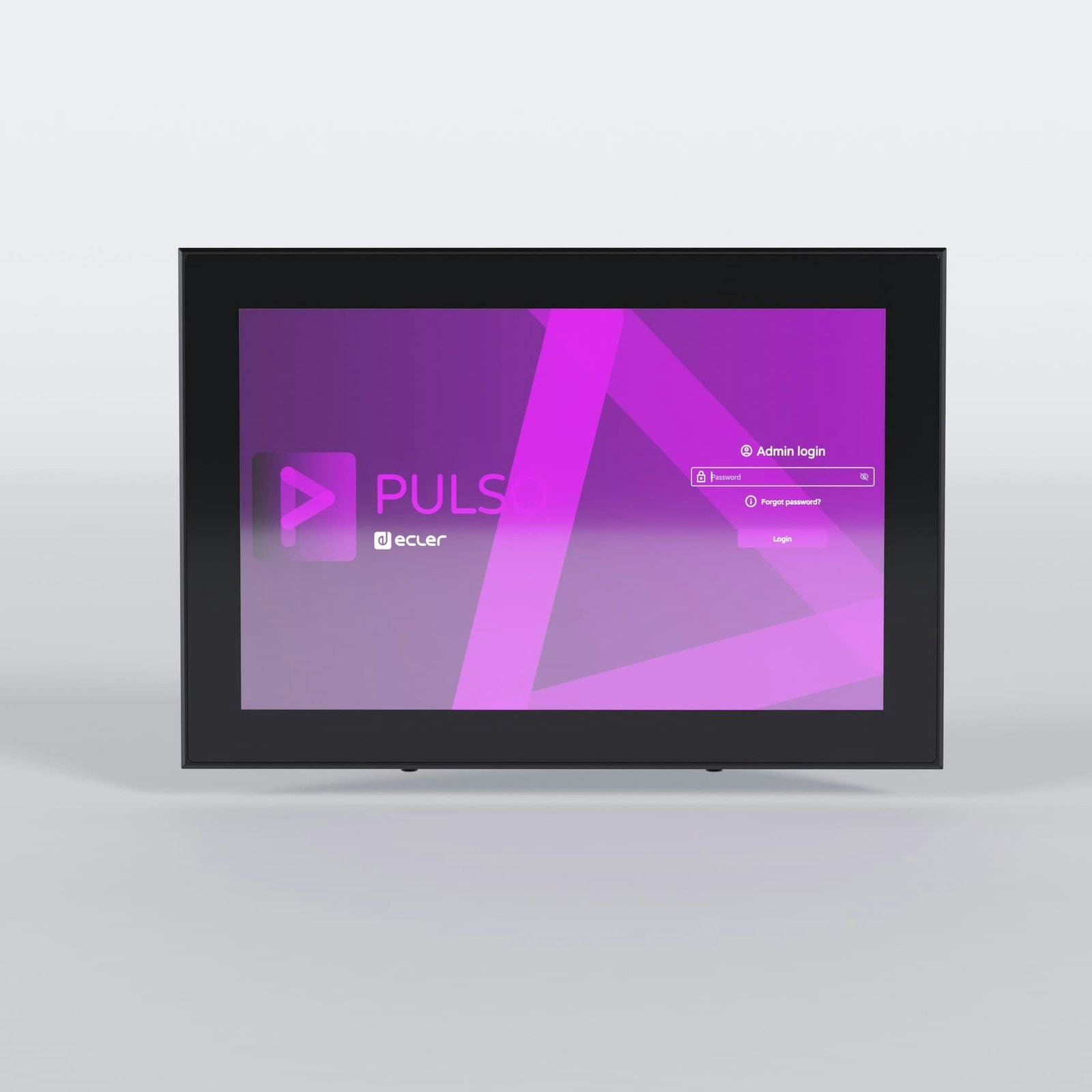

The Ecler PULSO-4 is a digital control touch panel built to be compatible with several Ecler product families, combining an elegant and discreet aluminium-framed design that suits control surfaces in a wide range of interior styles. Its 10 inch capacitive IPS display, offering 1280×800 resolution, gives operators a responsive touch interface for managing audio and automation functions from a single wall-mounted point.

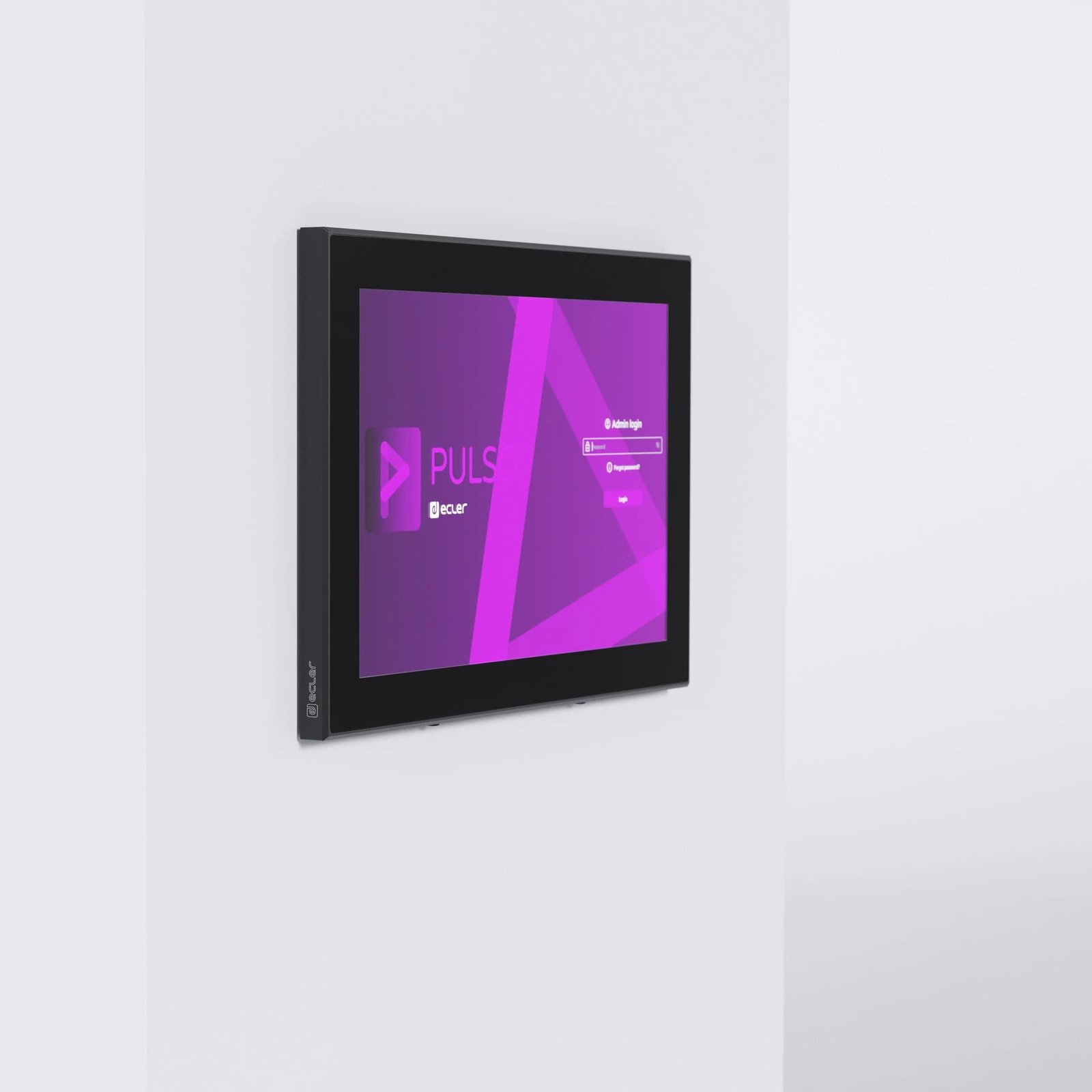

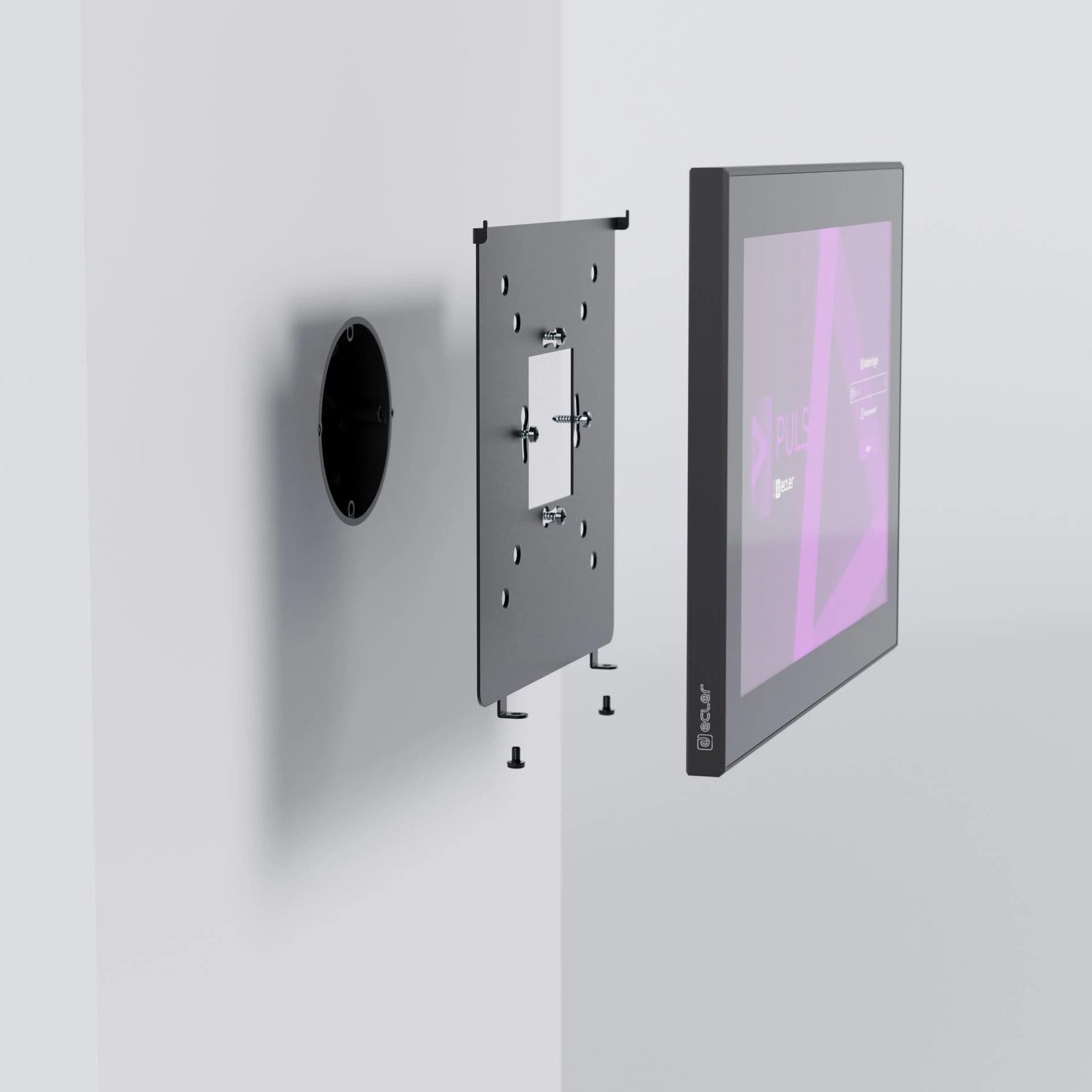

Installation is designed around standard European flush-mounted electrical boxes, letting the PULSO-4 fit into existing wall infrastructure without special enclosures. Power over Ethernet (PoE) support removes the need for a separate power supply run, simplifying cabling and speeding up deployment across multiple control points in a building.

The PULSO-4 is compatible with the Ecler VIDA and HALO series, the Ecler HUB series through the Ecler Pilot application, and EclerNet Manager, where it can host User Control Panels (UCPs) or be configured as a UCP Server within a networked project. It is also designed to be ready for the upcoming EclerPLEX ecosystem, extending its compatibility as that platform develops.

A web-based control interface allows detailed configuration and maintenance of the panel remotely, supporting fully customised user panels tailored to each installation. Suited to retail, education, corporate, sports and wellness, and hospitality environments, the PULSO-4 gives integrators a compact, flexible control surface for rooms where a larger touch panel is not required.

Features

• 10 inch capacitive IPS touch display, 1280×800 resolution
• PoE powered, simplifying installation cabling
• Aluminium frame, flush-mount design
• Compatible with standard EU electrical wall boxes
• Compatible with EclerNet Manager, HUB, VIDA, HALO
• Can be configured as UCP Server
• Web interface for configuration and maintenance
• Ready for the EclerPLEX ecosystem

Specifications
