Ecler WPNETTOUCH EclerNet Touchscreen

Ecler WPNETTOUCH EclerNet touchscreen control panel

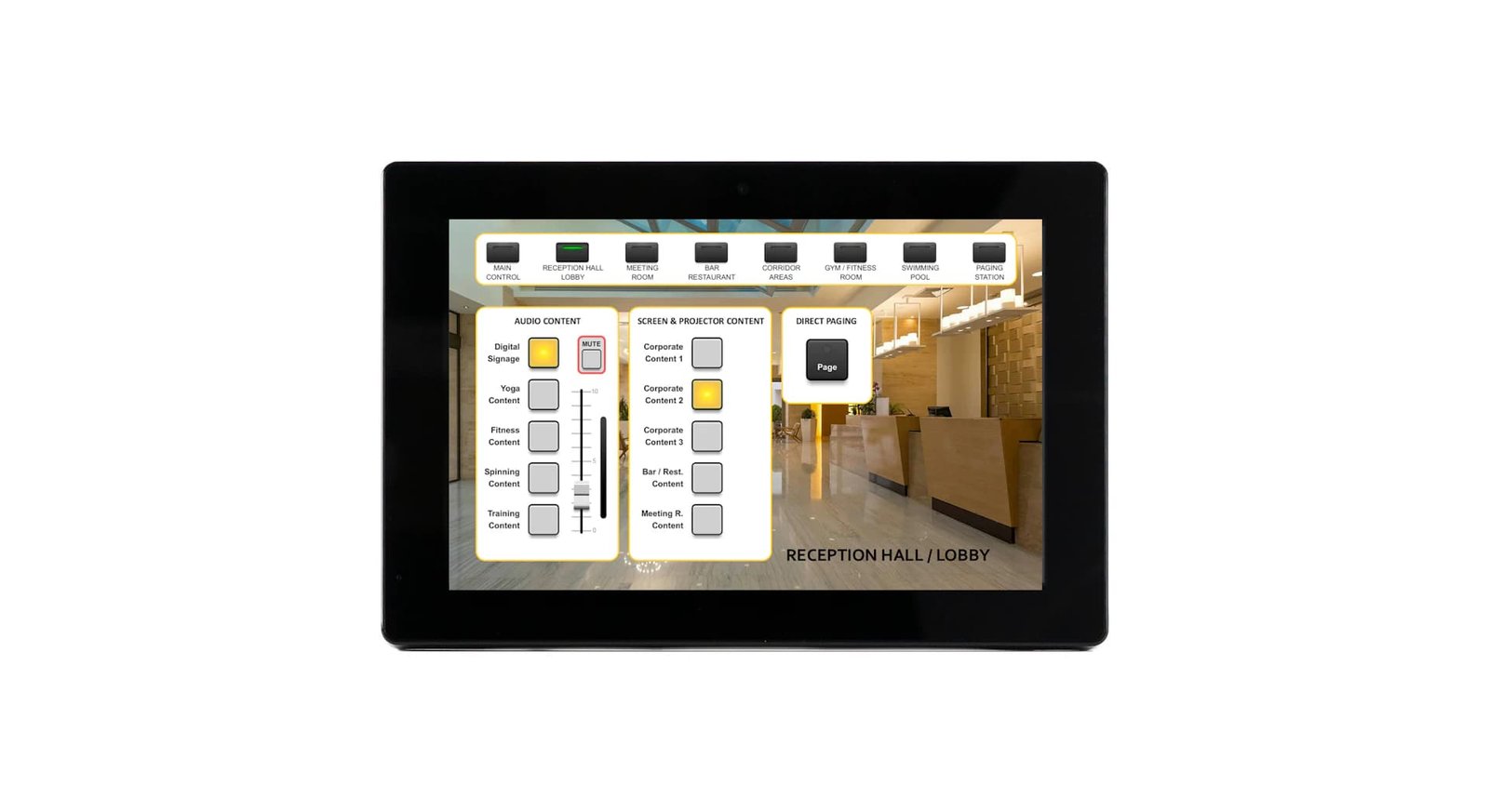

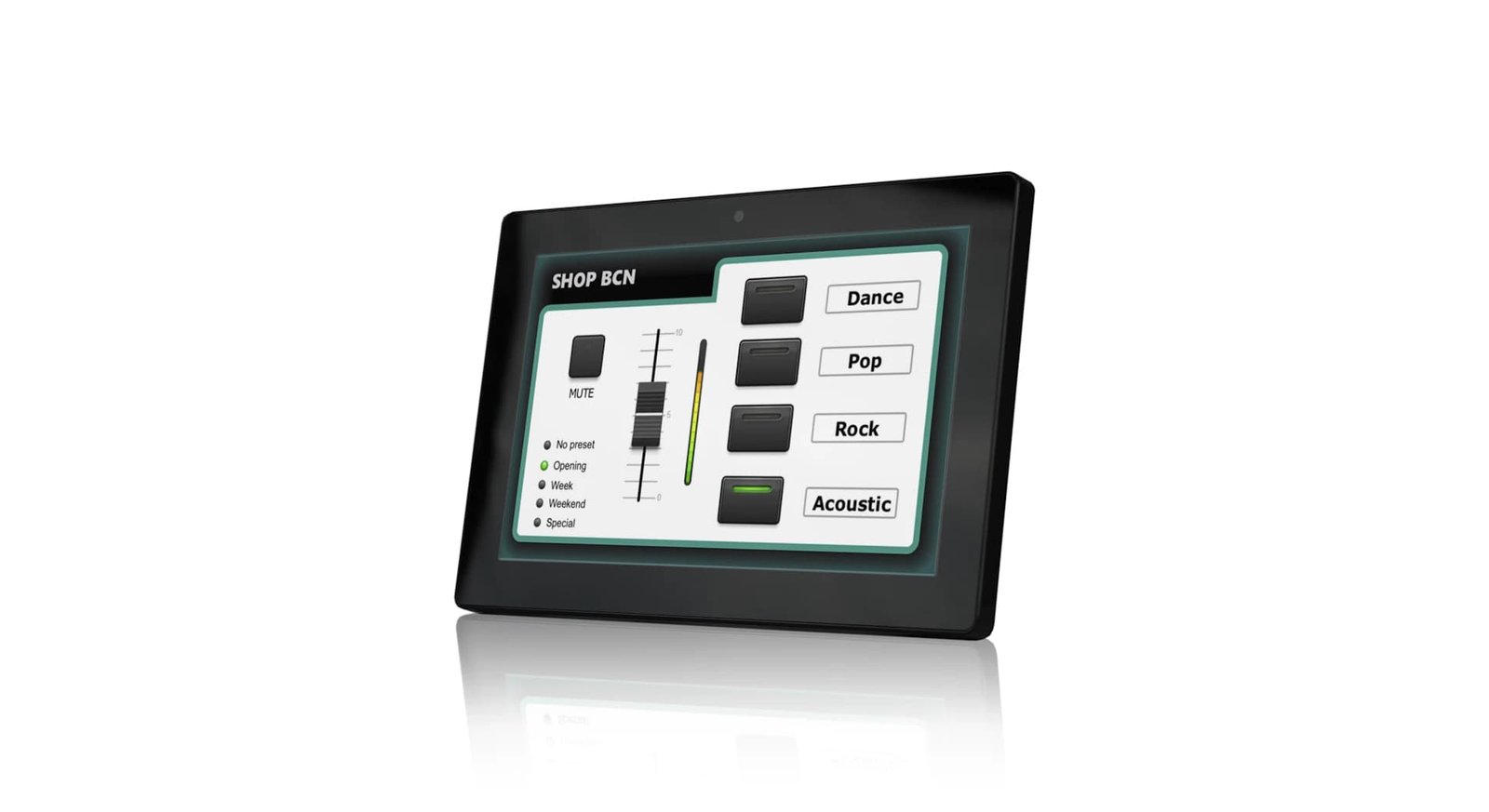

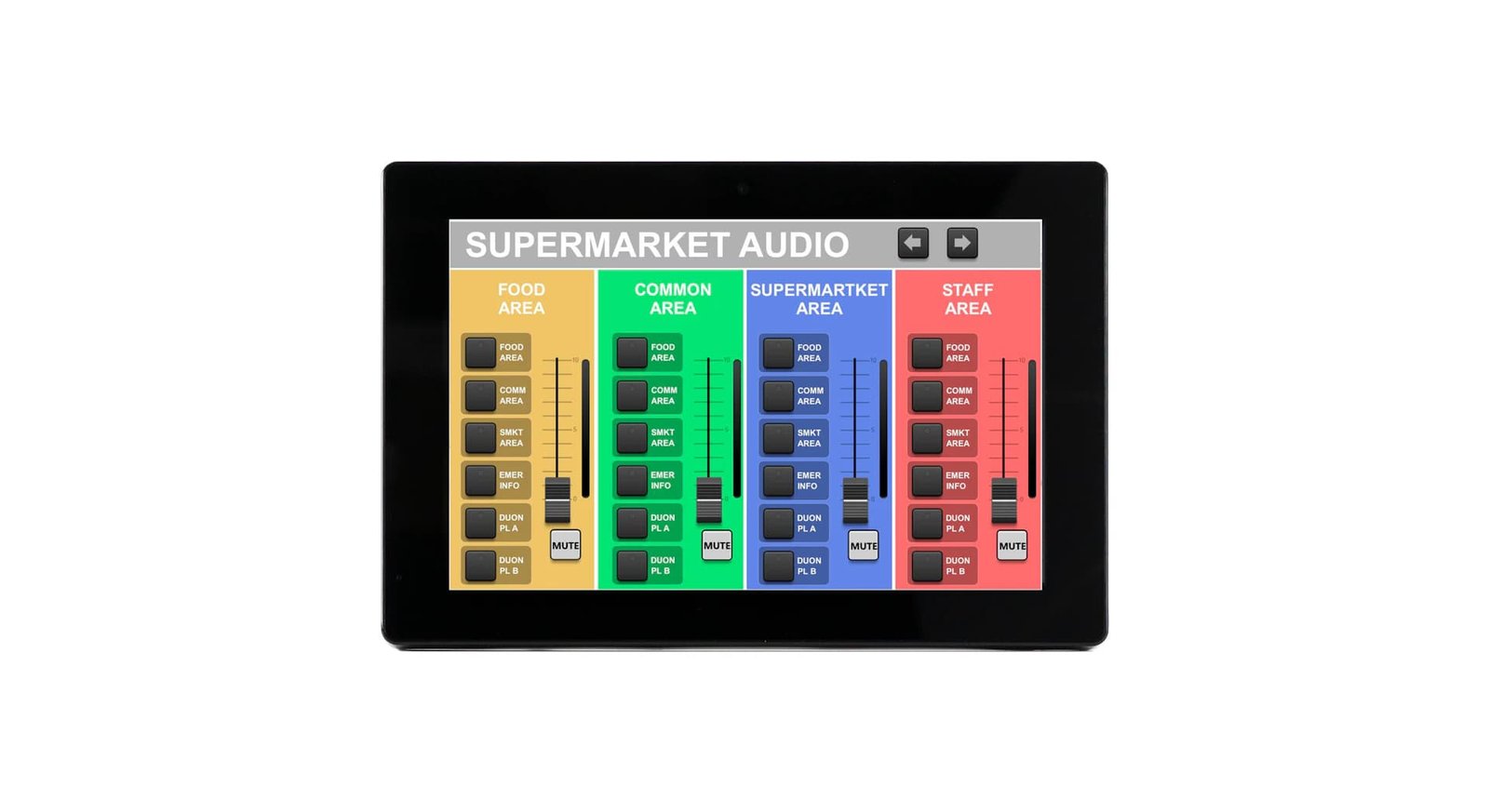

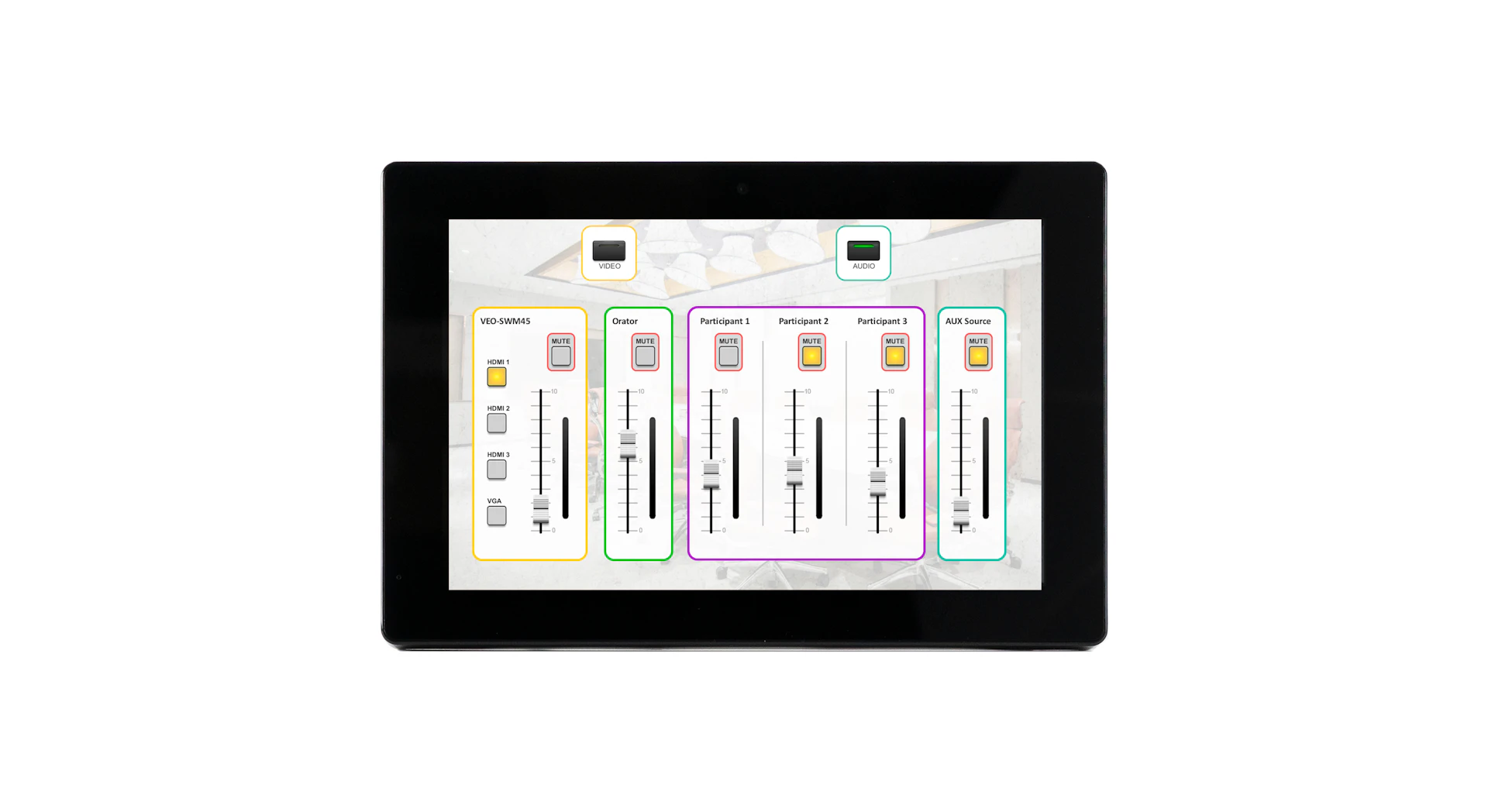

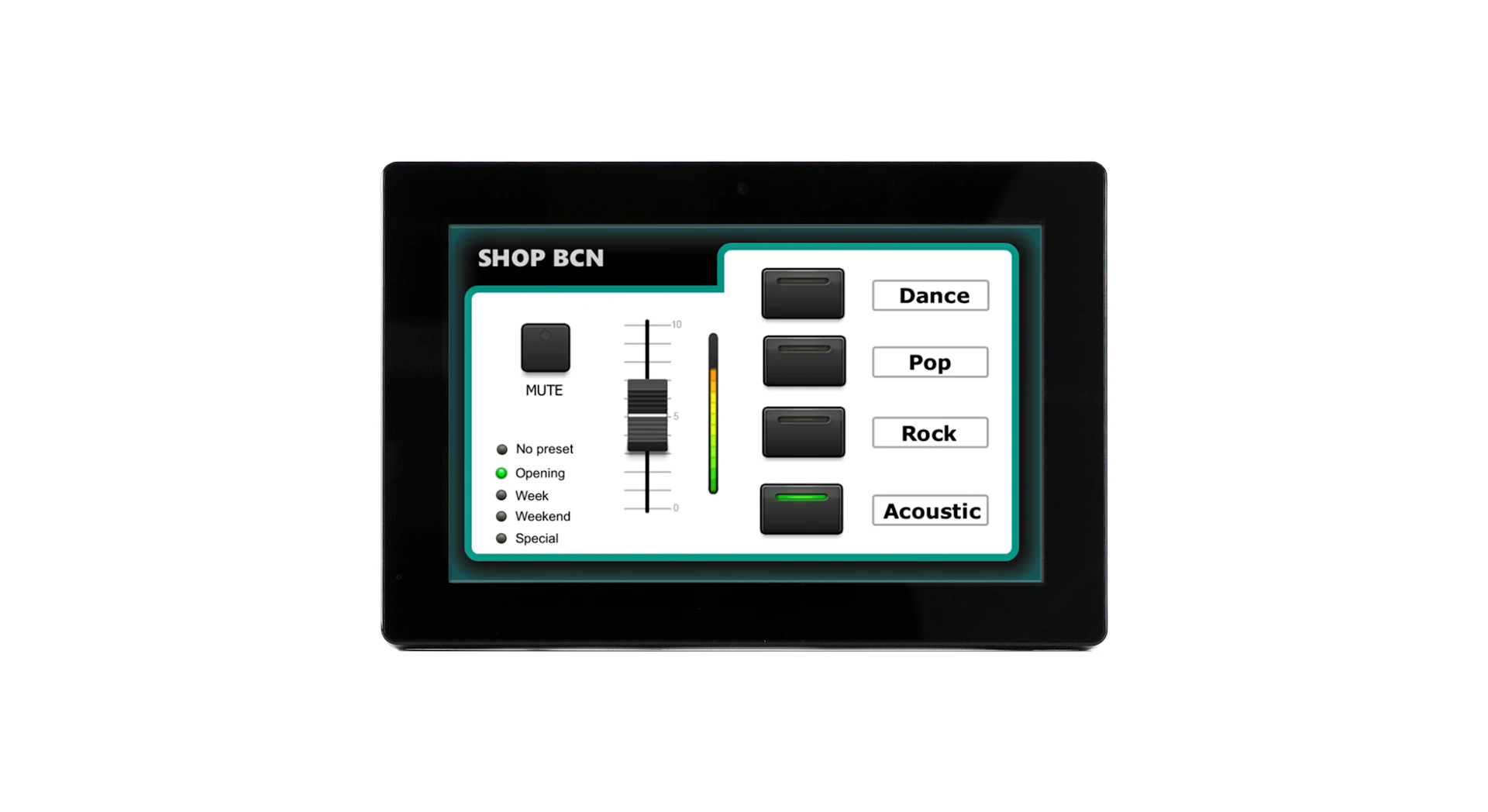

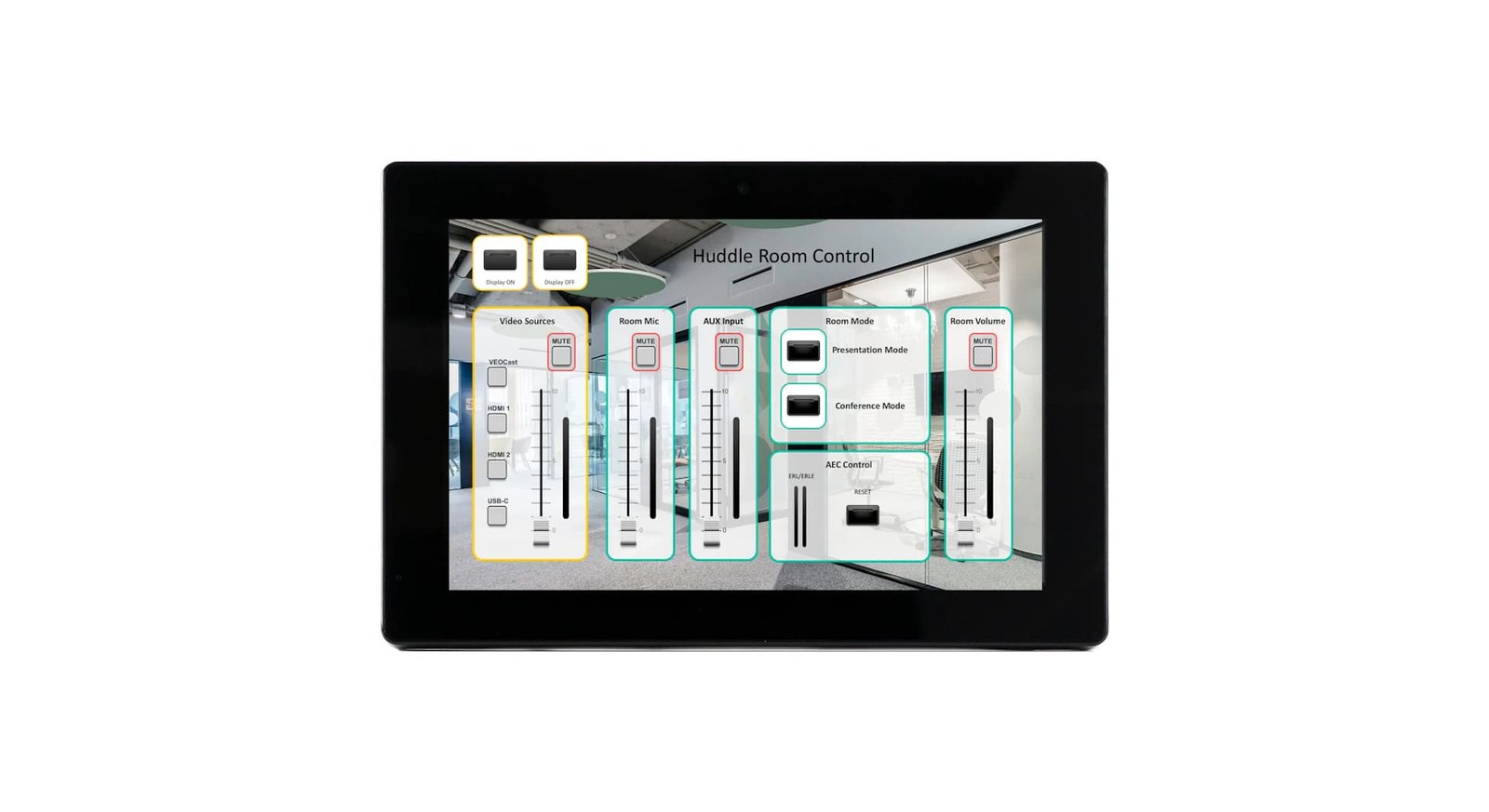

The Ecler WPNETTOUCH is a remote control TFT touchscreen compatible with all EclerNet products, including the MIMO4040DN, MIMO88/SG, MIMO1212SG matrices, NXA series digital audio managers, DUO-NET PLAYER units and most of the VEO video series. Its 10.1 inch capacitive multitouch screen, offering a resolution of 1280×800 pixels, gives end users precise, responsive control over programmed User Control Panels (UCPs).

Each WPNETTOUCH unit can be configured to work as a single-zone control panel or as a global multi-zone controller, executing UCPs that manage volume, sound source selection, video source selection, preset recovery, and communication with external devices over TCP/UDP. Because the unit contains its own internal processor, it can function both as a server client and as a UCP server, meaning a computer is not required to run the programmed panels once the project has been uploaded.

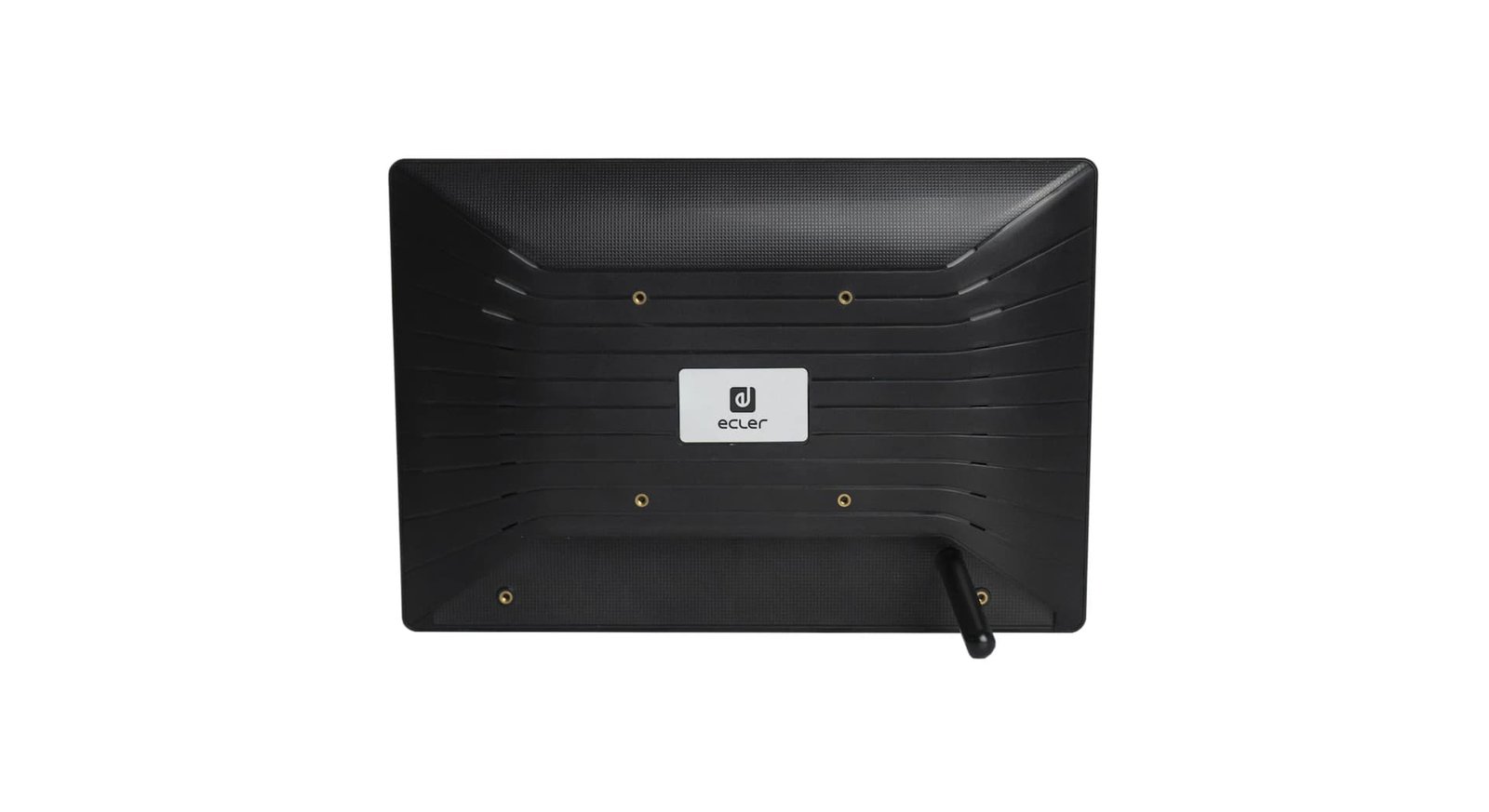

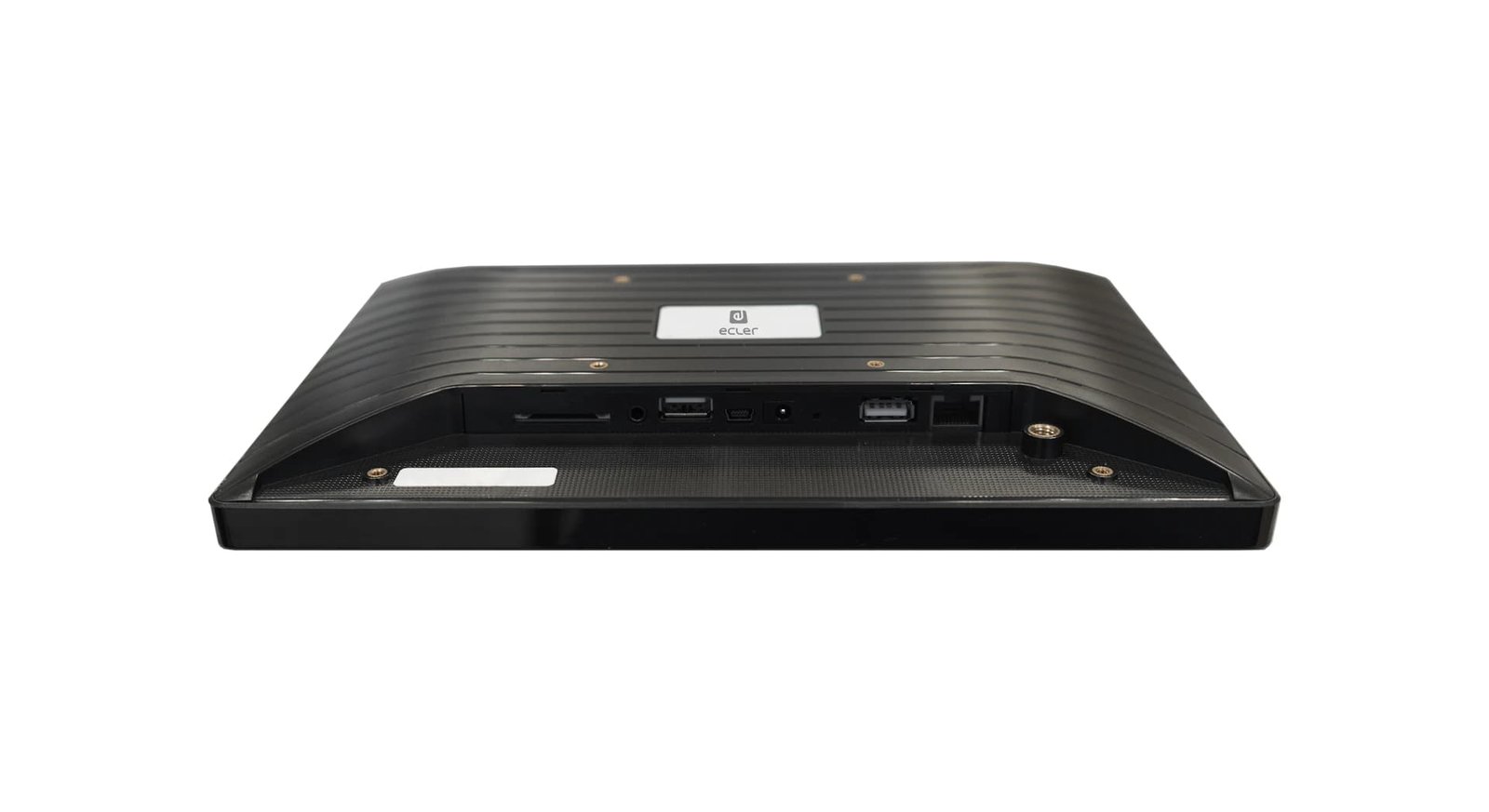

Installation is flexible: the unit supports Power over Ethernet (PoE) for simplified cabling, and also ships with a universal external power supply as a backup or alternative option. A VESA75 wall mount bracket is included for secure surface mounting, alongside a desktop mount stick-shape support for tabletop placement, giving integrators freedom to position the touchscreen wherever it best suits the room.

User Control Panels are designed in the free EclerNet Manager software, letting integrators build fully customised interfaces for each installation. The WPNETTOUCH suits corporate, retail, hospitality and education environments that need a dedicated, professional touchscreen for managing complex EclerNet-based audio and video systems.

Features

• 10.1 inch capacitive multitouch TFT screen, 1280×800
• Compatible with all EclerNet and most VEO devices
• Functions as server client and UCP server
• Configurable as single-zone or global multi-zone controller
• Controls volume, source selection, presets, TCP/UDP devices
• PoE support plus included universal power supply
• VESA75 wall mount bracket included
• Desktop mount stick-shape support included
• Fully customised UCPs via EclerNet Manager software

Specifications
