JBL AC195-WH 10-inch 2-Way Speaker with 90° x 50° Horn – White

JBL AC195 10-inch 2-way loudspeaker

The JBL AC195 is a compact, high-performance 2-way full-range loudspeaker designed for professional fixed-installation applications. Manufactured in Mexico, it is part of JBL’s AE Application Engineered (AE) Series, offering versatility, clarity, and precise sound dispersion for a wide range of venues. Its compact design provides a balance between high output and space efficiency, making it ideal for installations requiring both performance and aesthetic integration.

The AC195 features a 258 mm (10-inch) low-frequency driver paired with a 25 mm (1-inch) exit compression driver with a 35 mm (1.5-inch) voice coil, delivering accurate midrange and detailed high-frequency response. The rotatable PT™ Progressive Transition waveguide provides a 90° x 50° coverage pattern in vertical cabinet orientation, ensuring consistent sound distribution and minimal off-axis distortion. A highslope passive crossover reduces frequency overlap for improved audio clarity, while FIR-like tuning maintains sound quality across the listening area.

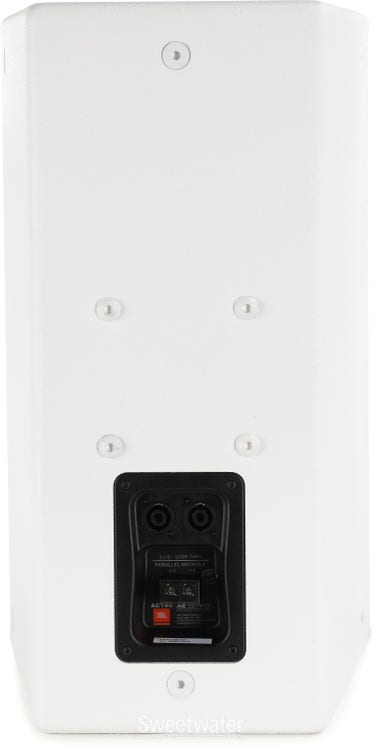

The enclosure is constructed from 15 mm multi-ply hardwood plywood with a textured black or white finish, providing durability and a professional appearance. Dual Neutrik NL4 connectors and screw terminals allow secure and flexible connection options. Multiple M10 threaded suspension points and rear inserts support mounting with optional U-brackets, L-brackets, or MultiMount® accessories, allowing versatile installation on walls, ceilings, or stands.

The AC195 is ideal for performing spaces, clubs and bars, houses of worship, multimedia facilities, retail and hospitality environments, presentation suites, and educational facilities, delivering compact, high-quality sound reinforcement in visually sensitive and performance-critical installations.

Features of AC195

• 10-inch low-frequency driver for accurate midrange and bass

• 25 mm exit compression driver with 35 mm voice coil for clear highs

• Rotatable 90° x 50° PT™ waveguide for precise coverage

• Compact enclosure for space-efficient installation

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple suspension points for flexible mounting options

• High-fidelity full-range performance

• White finish for aesthetic integration

Specifications of AC195
