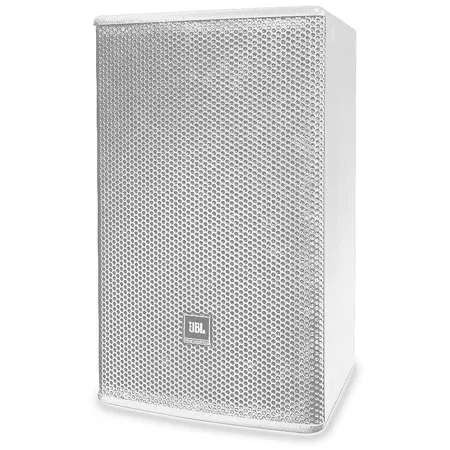

JBL AC266-WH 12-inch 2-Way Speaker with 60° x 60° Horn – White

JBL AC266 12-inch 2-way loudspeaker

The JBL AC266 is a compact, high-performance 2-way full-range loudspeaker designed for professional fixed-installation applications. Manufactured in Mexico, it is part of JBL’s AE Application Engineered (AE) Series, providing consistent, high-quality audio with precise coverage and flexible mounting options. The AC266 is ideal for venues requiring clear, evenly distributed sound across a variety of spaces.

This model features a 310 mm (12-inch) low-frequency driver paired with a 25 mm (1-inch) exit compression driver with a 35 mm (1.5-inch) voice coil, delivering accurate midrange, deep bass, and crisp high frequencies. The horn provides a 60° x 60° coverage pattern, ensuring controlled sound dispersion in both horizontal and vertical orientations. High-slope passive crossovers reduce band overlap and maintain well-controlled off-axis response, producing uniform sound across the listening area.

The enclosure is constructed from 15 mm multi-ply hardwood plywood with a white textured finish, providing durability and a clean, professional appearance. Dual Neutrik NL4 connectors and screw terminals allow secure and flexible connections. Multiple M10 suspension points and rear threaded inserts support mounting with optional U-brackets, L-brackets, or MultiMount® accessories for wall or ceiling installation.

The AC266 is suitable for performing spaces, clubs and bars, houses of worship, multimedia spaces, retail and hospitality venues, presentation suites, and educational facilities, delivering versatile, high-quality, and reliable sound reinforcement.

Features of AC266

• 310 mm (12-inch) low-frequency driver for deep bass and accurate midrange

• 25 mm exit compression driver with 35 mm diaphragm for clear highs

• 60° x 60° waveguide for controlled coverage

• Robust 15 mm hardwood enclosure for durability

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple attachment points for flexible installation

• Passive crossover for accurate frequency distribution

• White finish for clean, professional integration
