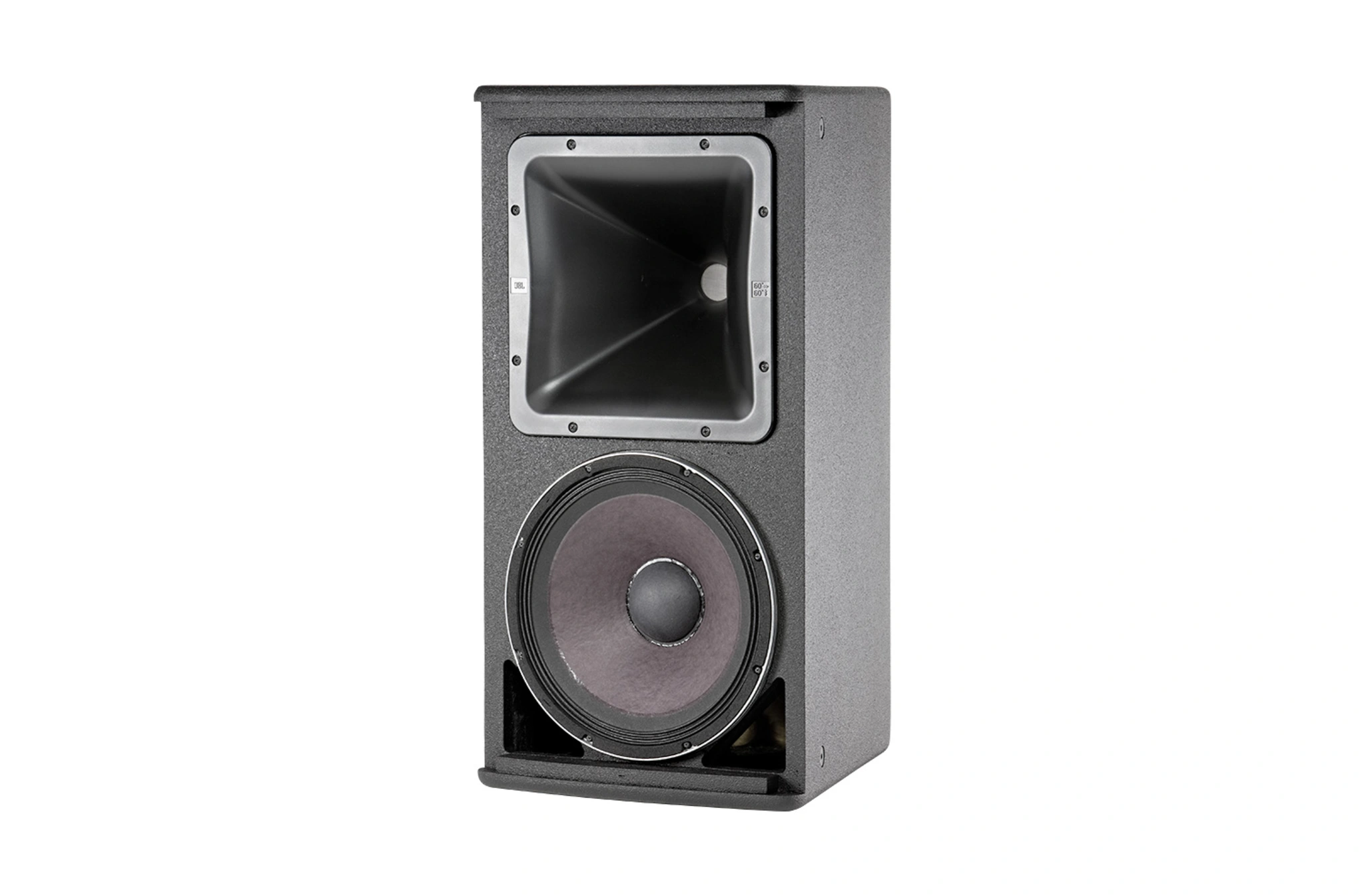

JBL AM5212/64 12-inch 2-Way Loudspeaker with 60° x 40° Rotatable Horn – Black
JBL AM5212/64 in black is a medium-power 12-inch two-way full-range loudspeaker featuring a rotatable 60° x 40° Progressive Transition waveguide, delivering controlled coverage, high fidelity, and versatile installation options.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 12,987.80 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
The JBL AM5212/64 is a medium-power, lightweight, two-way full-range loudspeaker designed for professional audio applications. Origin of country mexico, this black-finished model is part of JBL’s AE Application Engineered Series, ideal for venues such as performing arts facilities, auditoriums, houses of worship, live clubs, sports arenas, and themed entertainment venues.
The system is equipped with a 300 mm (12-inch) JBL 262H-1 Differential Drive low-frequency driver with dual voice coil and dual magnetic gap, providing high output with low distortion. High frequencies are reproduced by a JBL 2408H-1 compression driver with a 38 mm (1.5-inch) exit and 38 mm (1.5-inch) voice coil, ensuring crisp and detailed sound.
The large-format PT™ Progressive Transition waveguide offers a 60° x 40° coverage pattern and is rotatable, allowing use in either vertical or horizontal orientation. High-slope passive networks reduce band overlap, improve phase response, and enhance off-axis performance, making this system highly suitable for array setups.
The trapezoidal enclosure is built from 16 mm exterior-grade birch plywood, providing durability and excellent acoustic performance. Multiple M10 threaded suspension points enable flexible mounting and installation configurations.
Features of AM5212/64
300 mm (12 in) Differential Drive low-frequency driver
38 mm exit high-frequency compression driver
60° x 40° Progressive Transition rotatable waveguide
Bi-amp and passive switchable operation
Rotatable waveguide for vertical or horizontal orientation
High-slope passive crossover for improved clarity and fidelity
Trapezoidal enclosure suitable for arrays
Multiple M10 suspension points for versatile installation
Black DuraFlex™ finish
Specifications of AM5212/64
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), HF: 40 W (160 W peak) |
| System Power Rating | 300 W (1200 W peak), passive mode |
| Maximum SPL (1 m) | Bi-amp mode: LF 122 dB, HF 131 dB |
| System Sensitivity (1 W @ 1 m) | 96 dB SPL |
| LF Driver | 1 × JBL 262H-1 12-inch driver, 50.8 mm dual voice coil |
| HF Driver | JBL 2408H-1 compression driver, 38 mm exit |
| Nominal Impedance | 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade birch plywood |
| Suspension Attachment | 15 × M10 threaded points |
| Finish | Black DuraFlex™ |
| Grille | Powder-coated perforated steel with acoustically transparent foam |
| Input Connector | NL4 Neutrik Speakon and covered barrier strip terminals |
| Environmental Rating | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H × W × D) | 713 × 371 × 458 mm |
| Net Weight | 20.2 kg |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Country of Origin | Mexico |
