Description

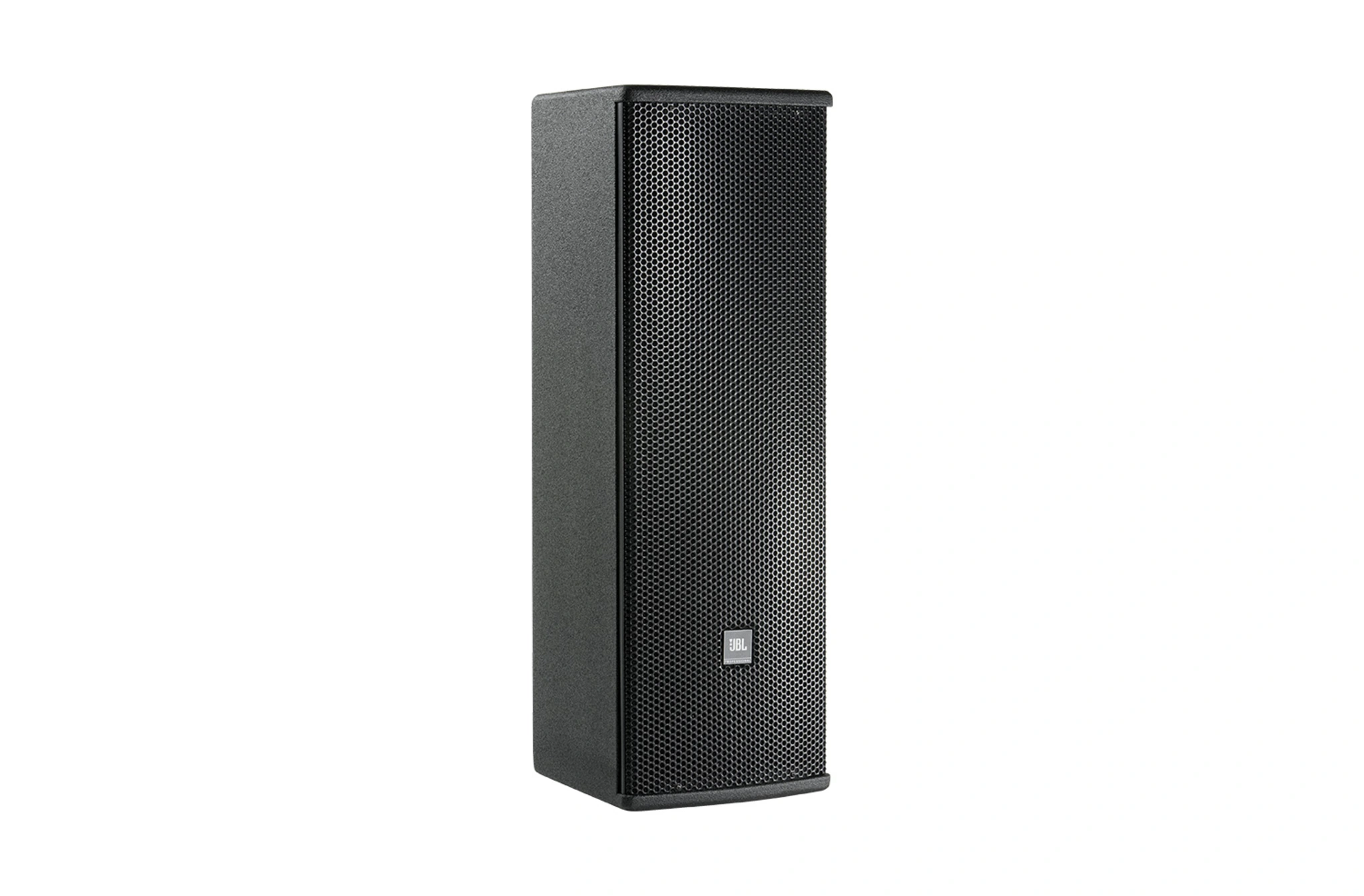

JBL AC28 dual 8-inch 2-way loudspeaker
The JBL AC28 is a compact, high-performance 2-way loudspeaker designed for professional fixed-installation applications. Manufactured in Mexico, it is part of JBL’s AE Compact family within the AE Series, combining high fidelity with flexibility for a wide variety of venues. The AC28 provides consistent, powerful audio and precise coverage, making it ideal for performing arts facilities, auditoriums, houses of worship, live and dance clubs, and themed entertainment spaces.

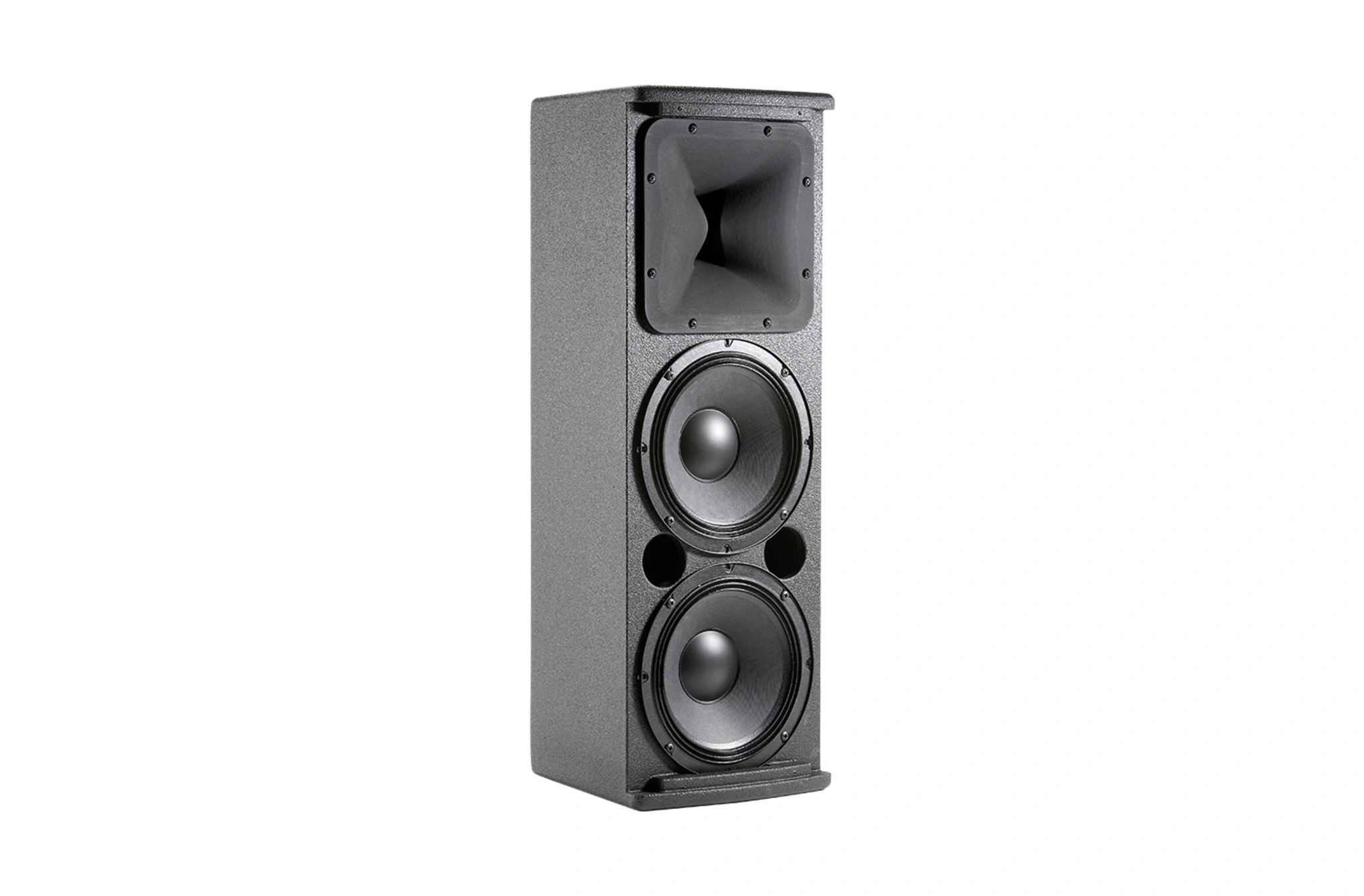

This model features two 205 mm (8-inch) low-frequency transducers paired with a 25 mm (1-inch) exit compression driver with a 38 mm (1.5-inch) voice coil, delivering detailed mids, strong bass, and crisp highs. The PT™ Progressive Transition rotatable waveguide provides a 90° x 50° coverage pattern, allowing flexible orientation for optimized horizontal and vertical sound distribution. FIR-style tuning and passive crossovers ensure uniform frequency and phase response, delivering consistent coverage and high-quality sound throughout the listening area.
The enclosure is constructed from 12 mm and 15 mm exterior-grade multi-ply hardwood plywood with a black textured finish for durability and professional aesthetics. Dual Neutrik NL4 connectors and screw terminals provide secure and reliable connections. Multiple M8 suspension points support mounting with optional U-brackets, MultiMount® brackets, or stand mount accessories.
Features of AC28
Dual 8-inch low-frequency drivers for deep bass and accurate midrange
25 mm exit compression driver with 38 mm voice coil for clear highs
90° x 50° PT™ rotatable waveguide for flexible coverage
Compact 2-way design for space-efficient installation
750 W program power handling for high-output performance
Dual Neutrik NL4 connectors plus screw terminals
Multiple suspension points for versatile mounting options
FIR tuning for optimized frequency, phase response, and coverage consistency
Black finish for professional integration
Specifications of AC28
| Frequency Range (-10 dB) | 53 Hz – 20 kHz |
| Frequency Response (±3 dB) | 65 Hz – 20 kHz |
| System Power Rating (AES) | 700 W |
| Power Rating (IEC) | 375 W Continuous / 750 W Program / 1500 W Peak |
| Nominal Impedance | 8 ohms |
| Coverage Pattern | 90° × 50° (rotatable) / 120° × 60° option |
| Maximum SPL (1m) | 120 dB |
| System Sensitivity (1W @ 1m) | 94 dB SPL |
| LF Driver | 2 × JBL 228J, 205 mm (8-inch) SFG™ drivers |
| LF Driver Voice Coil | 64 mm (2.5-inch), edge-wound |
| HF Driver | 1 × 2408H-1, 25 mm exit, 38 mm voice coil compression driver |
| Enclosure Material | 12 mm & 15 mm multi-ply hardwood plywood |
| Suspension Attachment | 6 × M8 points; 4 × M8 rear for MultiMount® MM-120-BT |
| Dimensions (H × W × D) | 679.5 × 237.5 × 254.0 mm |
| Net Weight | 18.6 kg |
| Crossover Mode | Passive |
| Environmental Rating | Mil-Std 810; IPx3 (IEC 529) |
| Finish | Black |
| Country of Origin | Mexico |
