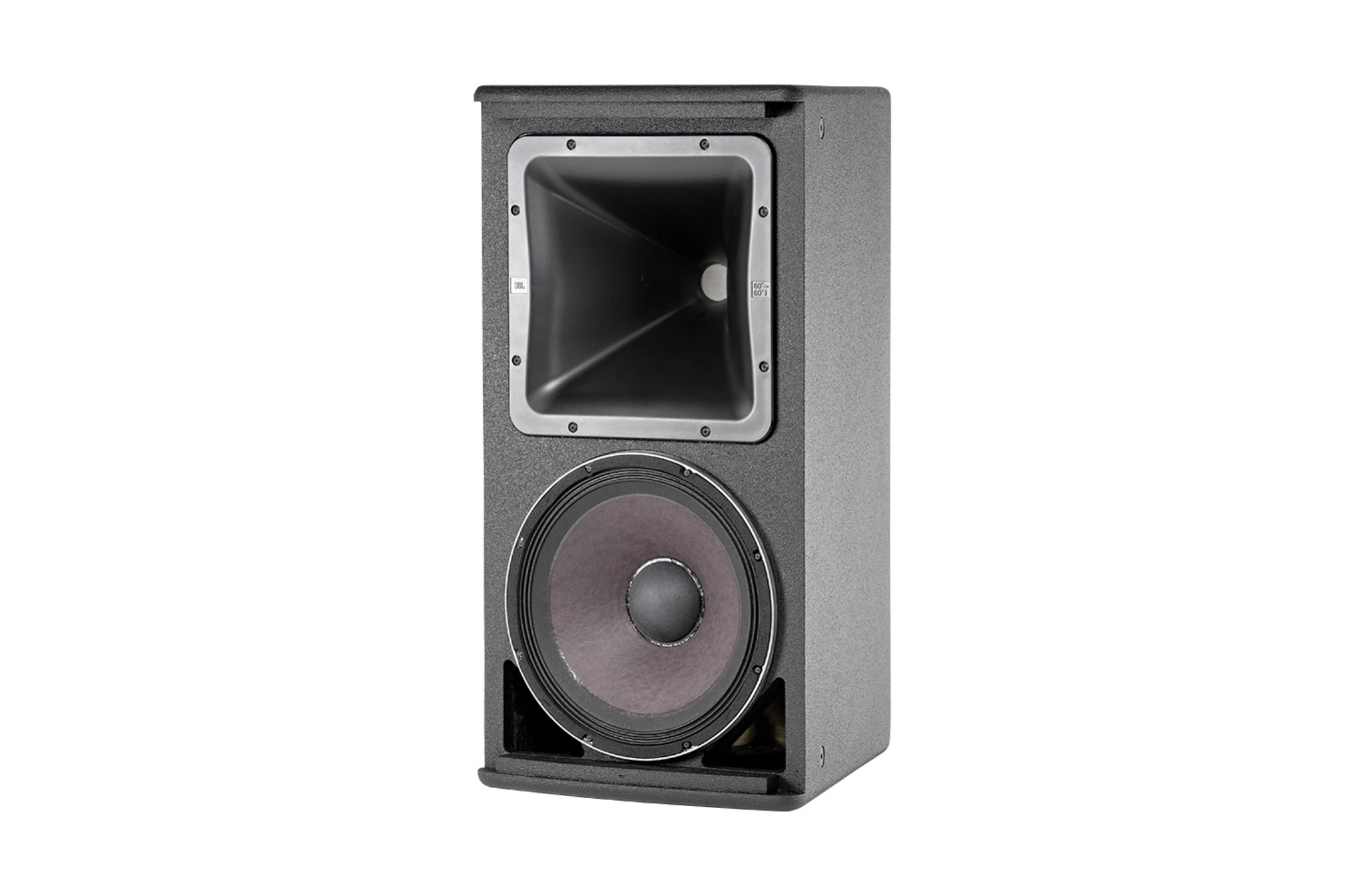

JBL AM5212/95 12-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn – Black

The JBL AM5212/64 is a medium-power, lightweight 12-inch two-way full-range loudspeaker designed for a variety of professional audio installations. Origin of country mexico, this black model is part of JBL’s AE Application Engineered Series, ideal for performing arts venues, auditoriums, houses of worship, live clubs, sports facilities, and themed entertainment locations.

It features a 300 mm (12-inch) JBL 262H-1 Differential Drive® low-frequency driver with a dual 50.8 mm (2-inch) voice coil and dual magnetic gap, providing powerful and low-distortion bass. High frequencies are delivered by a JBL 2408H-1 compression driver with a 38 mm (1.5-inch) exit and 38 mm (1.5-inch) voice coil, ensuring crisp and clear treble.

The PT™ Progressive Transition waveguide is rotatable and provides a 90° x 50° coverage pattern, making the loudspeaker suitable for both vertical and horizontal cabinet orientation. High-slope passive crossovers reduce band overlap, and controlled off-axis response allows excellent arrayability.

The trapezoidal cabinet is made from 16 mm exterior-grade birch plywood with 15-degree side angles, offering durability and precise acoustic performance. Fifteen M10 threaded suspension points provide versatile mounting options, compatible with the optional U-bracket model MTU-3.

Features of AM5212/64

• 12-inch JBL 262H-1 Differential Drive® low-frequency driver

• 38 mm exit JBL 2408H-1 high-frequency compression driver

• 90° x 50° rotatable Progressive Transition™ waveguide

• Bi-amp/Passive switchable operation

• Rotatable waveguide for vertical or horizontal use

• High-slope passive crossover for minimal distortion and clarity

• Trapezoidal cabinet for flexible array configurations

• Multiple M10 suspension points

• Black finish

Specifications of AM5212/64
