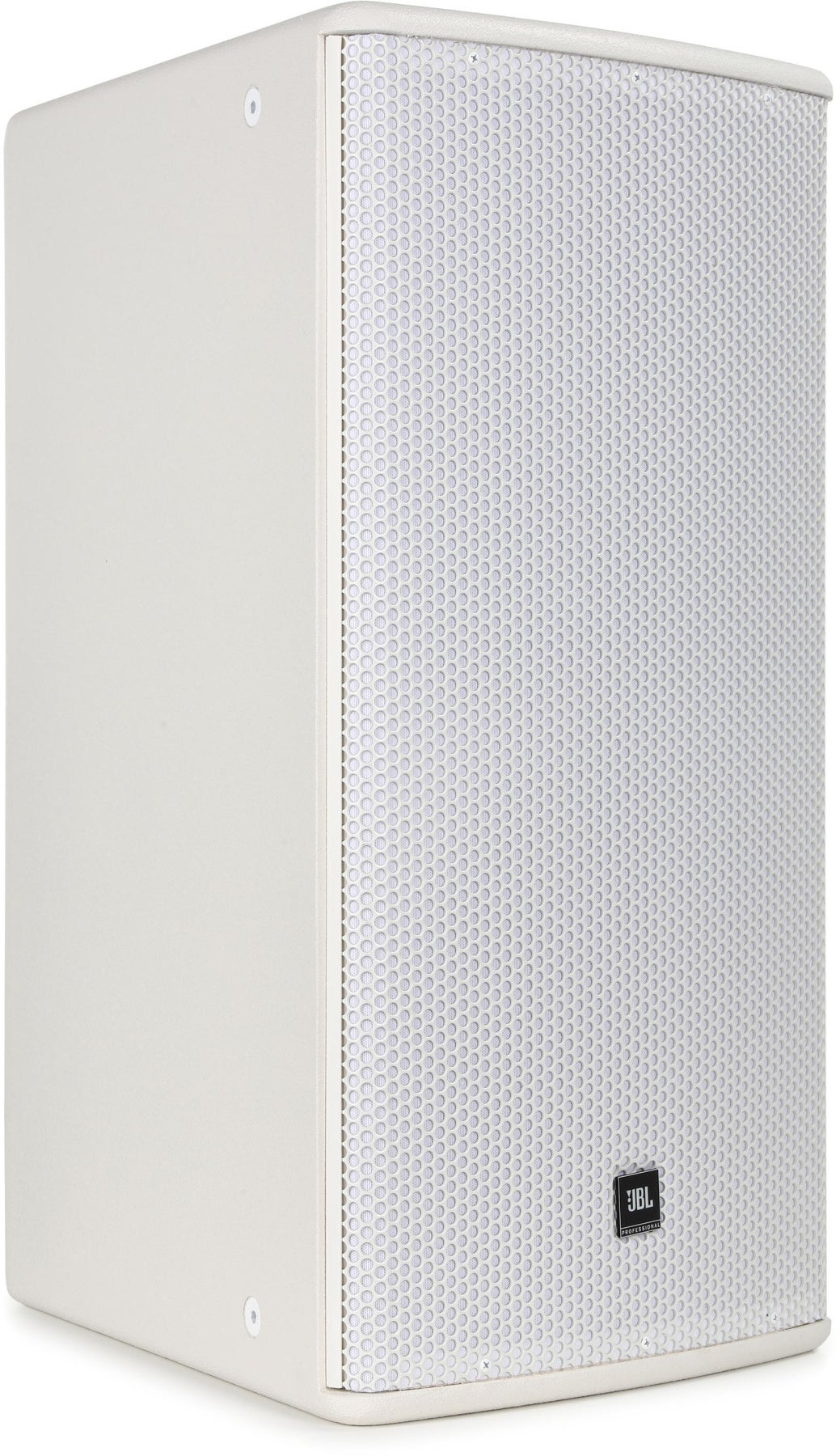

JBL AM5212/95-WH 12-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn – White
JBL AM5212/95 in white is a medium-power 12-inch two-way full-range loudspeaker featuring a rotatable 90° x 50° Progressive Transition waveguide, designed for vertical or horizontal use, delivering precise, high-fidelity sound for professional audio applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 12,987.81 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
The JBL AM5212/95 is a medium-power, lightweight 12-inch two-way full-range loudspeaker, part of JBL’s AE Application Engineered Series, suitable for performing arts venues, auditoriums, houses of worship, live clubs, sports facilities, and themed entertainment installations. Origin of country mexico, this white model combines high output with flexible deployment options for vertical or horizontal cabinet placement.
It is equipped with a 300 mm (12-inch) JBL 262H-1 Differential Drive® low-frequency driver with a dual 50.8 mm (2-inch) voice coil and dual magnetic gap, providing powerful, low-distortion bass. The high frequencies are produced by a JBL 2408H-1 compression driver with a 38 mm (1.5-inch) exit and 38 mm (1.5-inch) voice coil, ensuring clear, detailed treble.
The PT™ Progressive Transition waveguide is rotatable and offers a 90° x 50° coverage pattern, optimizing sound projection in both vertical and horizontal orientations. High-slope passive crossovers minimize band overlap, while well-controlled off-axis response allows effective arrayability.
The trapezoidal cabinet is constructed from 16 mm exterior-grade birch plywood with 15-degree side angles for acoustic precision and durability. The enclosure includes fifteen M10 threaded suspension points, compatible with the optional U-bracket model MTU-3.
Features of JBL AM5212/95
12-inch JBL 262H-1 Differential Drive® low-frequency driver
38 mm exit JBL 2408H-1 high-frequency compression driver
90° x 50° rotatable Progressive Transition™ waveguide
Bi-amp/Passive switchable operation
Rotatable waveguide for vertical or horizontal orientation
High-slope passive crossover for minimal distortion
Trapezoidal cabinet for flexible array configurations
Multiple M10 suspension points
White finish
Specifications of JBL AM5212/95
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Pattern | 90° x 50° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), HF: 40 W (160 W peak) |
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1 m) | Bi-amp mode: LF 122 dB, HF 131 dB |
| System Sensitivity (1 W @ 1 m) | 96 dB SPL |
| LF Driver | 1 × JBL 262H-1 12-inch driver, 50.8 mm dual voice coil |
| HF Driver | JBL 2408H-1 compression driver, 38 mm exit, 38 mm voice coil |
| Nominal Impedance | 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade birch plywood |
| Suspension Attachment | 15 × M10 threaded points |
| Finish | White |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent foam |
| Input Connector | NL4 Neutrik Speakon® and covered barrier strip terminals |
| Environmental Rating | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H × W × D) | 713 × 371 × 458 mm (28.06 × 14.6 × 18.1 in) |
| Net Weight | 20.2 kg (45 lb) |
| Optional Accessories | M10 × 35 mm forged shoulder eyebolts, U-Bracket MTU-3 |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Country of Origin | Mexico |
