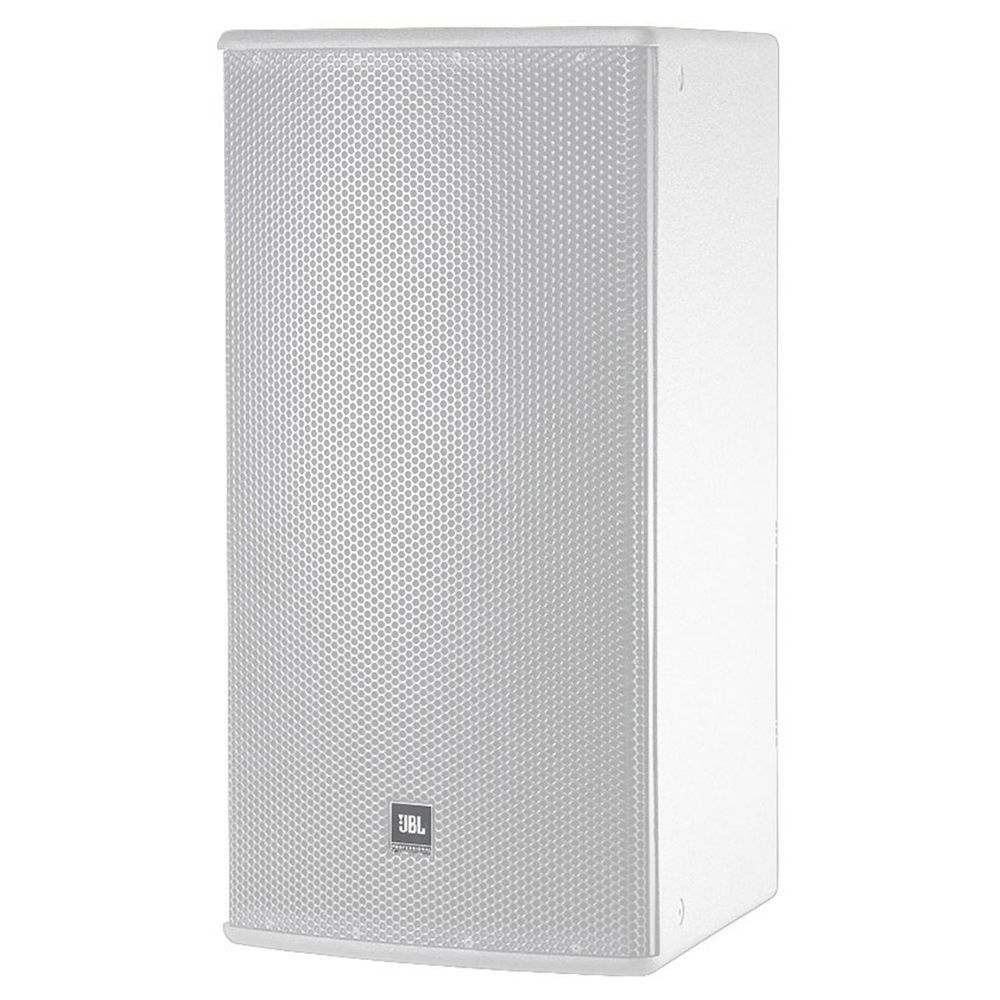

JBL AM5212/66-WH 12-inch 2-Way Loudspeaker with 60° x 60° Rotatable Horn – White
JBL AM5212/64 in white is a medium-power 12-inch two-way full-range loudspeaker featuring a rotatable 60° x 60° Progressive Transition waveguide, offering flexible vertical or horizontal orientation, high-fidelity sound, and reliable performance.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 12,987.81 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
The JBL AM5212/64 is a medium-power, lightweight, 12-inch two-way full-range loudspeaker designed for professional audio applications. Origin of country mexico, this white-finished model is part of JBL’s AE Application Engineered Series, making it ideal for performing arts facilities, auditoriums, houses of worship, live clubs, sports venues, and themed entertainment spaces.
It incorporates a 300 mm (12-inch) JBL 262H-1 Differential Drive® low-frequency driver with a dual 50.8 mm (2-inch) voice coil and dual magnetic gap for powerful, low-distortion bass. High frequencies are delivered by a JBL 2408H-1 compression driver with a 38 mm (1.5-inch) exit and 38 mm (1.5-inch) voice coil, producing clear and detailed treble.
The large-format PT™ Progressive Transition waveguide provides 60° x 60° coverage and is rotatable for use in either vertical or horizontal orientation. High-slope passive networks minimize band overlap, enhance phase response, and maintain consistent off-axis performance, improving arrayability in complex installations.
The trapezoidal cabinet is constructed from 16 mm exterior-grade birch plywood with 15-degree side angles for optimal acoustic performance and durability. Fifteen M10 threaded suspension points provide versatile mounting options, with compatibility for optional U-bracket model MTU-3.
Features of AM5212/64
12-inch JBL 262H-1 Differential Drive® low-frequency driver
38 mm exit JBL 2408H-1 high-frequency compression driver
60° x 60° rotatable Progressive Transition™ waveguide
Bi-amp/Passive switchable operation
Rotatable waveguide for vertical or horizontal orientation
High-slope passive crossover for precise clarity and low distortion
Trapezoidal cabinet for flexible array setups
Multiple M10 suspension points for versatile installation
White finish (-WH)
Specifications of AM5212/64
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Frequency Response (±3 dB) | 43 Hz – 20 kHz |
| Coverage Pattern | 60° x 60° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), HF: 40 W (160 W peak) |
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1 m) | Bi-amp mode: LF 122 dB, HF 131 dB |
| System Sensitivity (1 W @ 1 m) | 96 dB SPL |
| LF Driver | 1 × JBL 262H-1 12-inch driver, 50.8 mm dual voice coil |
| HF Driver | JBL 2408H-1 compression driver, 38 mm exit, 38 mm voice coil |
| Nominal Impedance | 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade birch plywood |
| Suspension Attachment | 15 × M10 threaded points |
| Finish | White DuraFlex™ (-WH) |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent foam |
| Input Connector | NL4 Neutrik Speakon® and covered barrier strip terminals |
| Environmental Rating | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H × W × D) | 713 × 371 × 458 mm (28.06 × 14.6 × 18.1 in) |
| Net Weight | 20.2 kg (45 lb) |
| Optional Accessories | M10 × 35 mm forged shoulder eyebolts, U-Bracket MTU-3 |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Country of Origin | Mexico |
