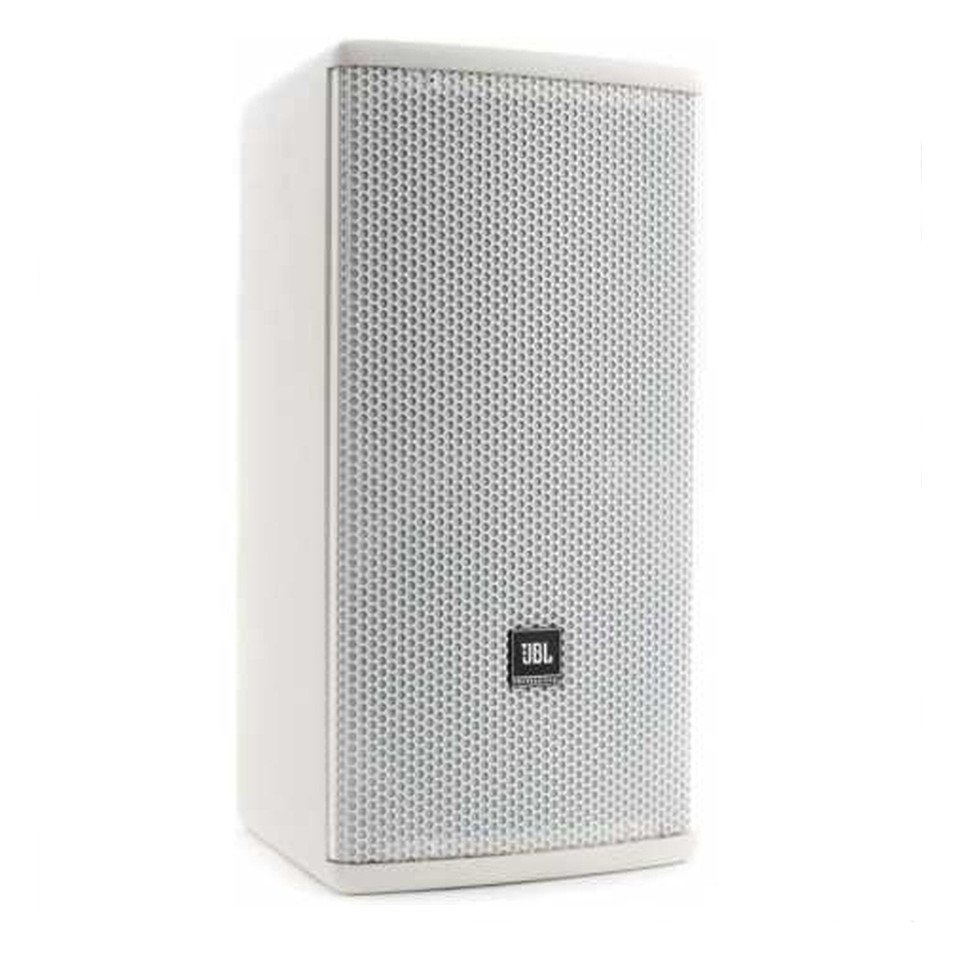

JBL AM7315/95-WH 15-inch 3-Way Loudspeaker with 90° x 50° Rotatable Horn – White
The JBL AM7315 15-inch 3-Way Loudspeaker in white provides high-power, full-range sound with 90° x 50° coverage. It features a JBL Differential Drive low-frequency driver, CMCD midrange driver, and 2432H high-frequency driver, designed for professional installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 29,134.88 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AM7315 15-inch 3-Way Loudspeaker
JBL AM7315 15-inch 3-Way Loudspeaker in white finish is a high-power, full-range loudspeaker system designed for professional audio installations. It includes a JBL 2265H Differential Drive® low-frequency driver, 380 mm (15 in) with 75 mm (3 in) dual voice coil and dual magnetic gap, delivering precise and powerful bass.
The midrange section features the JBL CMCD-82H Cone Midrange Compression Driver, 200 mm (8 in) with an integral Differential Drive® dual voice coil, providing low distortion, extended bandwidth, and improved phase coherence. High frequencies are produced by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil, offering crisp and clear treble.
A multi-band Progressive Transition™ waveguide ensures accurate 90° x 50° coverage with minimal distortion. The rotatable waveguide allows flexible vertical or horizontal cabinet orientation. High-slope crossovers reduce band overlap, and controlled off-axis response improves arrayability. The trapezoidal cabinet is built from 16 mm exterior-grade 11-ply Finnish birch plywood and is fitted with 13 M10 threaded suspension points. Optional planar array frame kits (PAF-2K and PAF-3K) are available for advanced mounting configurations. JBL AM7315 belongs to JBL’s AE Application Engineered Series, ideal for performing arts venues, theaters, auditoriums, houses of worship, live clubs, sports facilities, dance clubs, and themed entertainment venues. Origin of country mexico.
Features of AM7315
2265H Differential Drive® low-frequency driver
CMCD™ Cone Midrange Compression Driver with extended bandwidth and low distortion
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for accurate pattern control
Rotatable waveguide for vertical or horizontal placement
Bi-Amp/Tri-Amp switchable operation
White finish for professional installation environments
Compatible with optional planar array frame kits PAF-2K and PAF-3K
Specifications of AM7315
| Frequency Range (-10 dB) | 38 Hz – 20 kHz |
| Frequency Response (±3 dB) | 45 Hz – 18 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Index (DI) | 13 dB |
| Crossover Modes | Bi-Amp/Tri-Amp switchable |
| Crossover Frequencies | 300 Hz, 2.3 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), MF: 350 W (1400 W peak), HF: 100 W (400 W peak) |
| System Power Rating | LF: 600 W (2400 W peak), MF/HF: 200 W (800 W peak) |
| Maximum SPL (1 m) | LF: 127 dB cont avg (133 dB peak), MF: 133 dB cont avg (139 dB peak), HF: 135 dB cont avg (141 dB peak) |
| System Sensitivity (1W @ 1m) | MF/HF Section: 108 dB SPL; LF Section: 97 dB SPL; HF Section: 115 dB SPL |
| LF Driver | JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| MF Driver | JBL CMCD-82H 200 mm (8 in) Cone Midrange Compression Driver with dual voice coil |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | LF: 8 ohms, MF: 8 ohms, HF: 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| Finish | White DuraFlex™ finish (Black available on request) |
| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent white foam backing |
| Input Connector | NL8 Neutrik Speakon® and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 967 x 561 x 657 mm |
| Net Weight | 45.8 kg (101 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts, planar array frame kits |
| Origin of Country | Mexico |
