JBL AM7315/95 15-inch 3-Way Loudspeaker with 90° x 50° Rotatable Horn – Black
The JBL AM7315 15-inch 3-Way Loudspeaker in black delivers high-power, full-range sound with 90° x 50° coverage. It features a JBL Differential Drive low-frequency driver, CMCD midrange driver, and 2432H high-frequency driver, designed for professional installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 29,134.88 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AM7315 15-inch 3-Way Loudspeaker
JBL AM7315 15-inch 3-Way Loudspeaker in black finish is a high-power, full-range loudspeaker system engineered for professional audio installations. It incorporates a JBL 2265H Differential Drive® low-frequency driver, 380 mm (15 in) with 75 mm (3 in) dual voice coil and dual magnetic gap, providing precise, impactful bass performance.
The midrange is handled by the JBL CMCD-82H Cone Midrange Compression Driver, 200 mm (8 in) with an integral dual voice coil, offering minimal distortion, extended bandwidth, and improved phase coherence. High frequencies are reproduced by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and 75 mm (3 in) voice coil for clear, detailed treble.

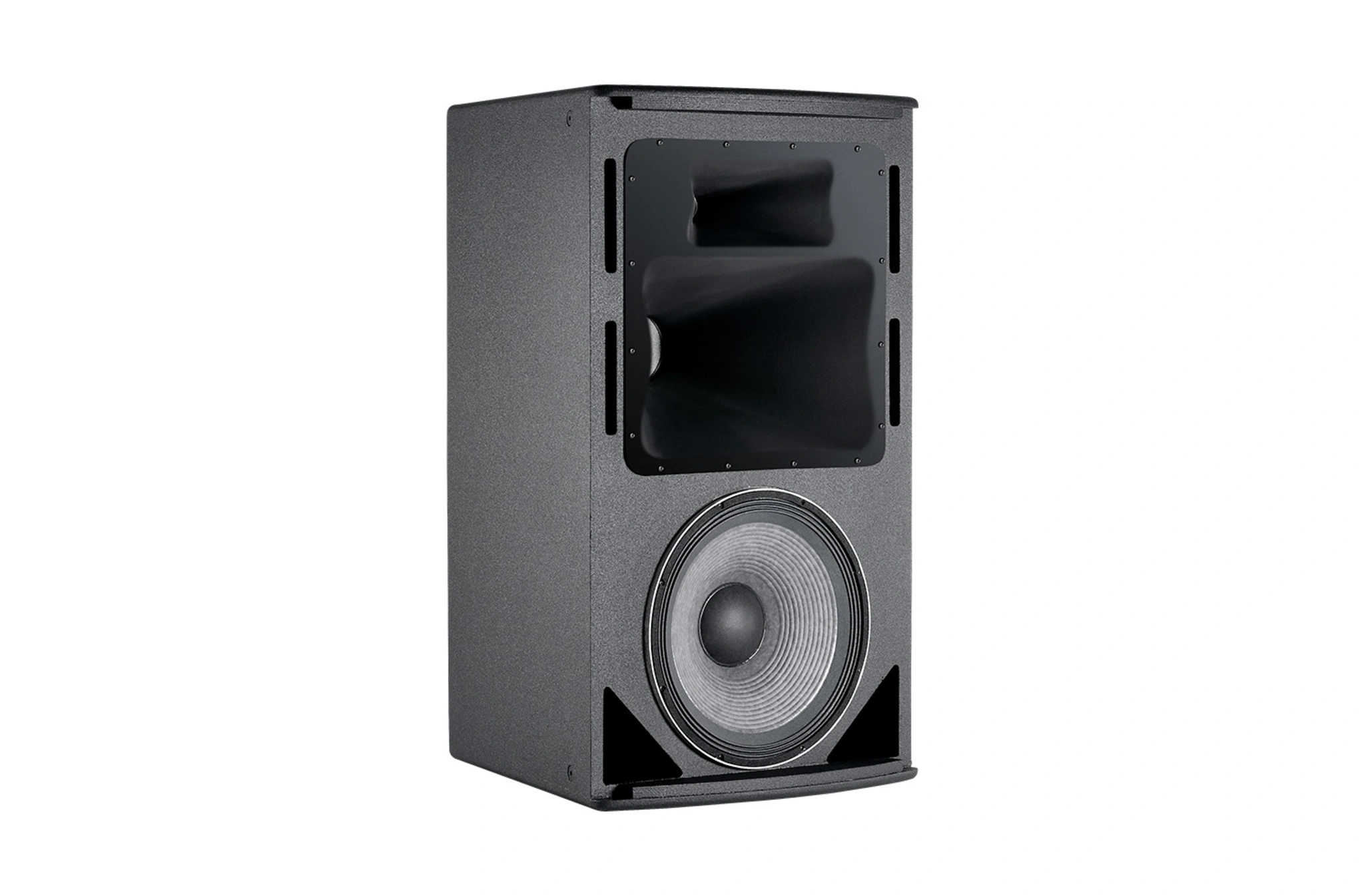

A multi-band Progressive Transition™ waveguide ensures well-controlled 90° x 50° coverage and is rotatable for flexible horizontal or vertical cabinet placement. High-slope crossovers minimize band overlap, while off-axis response is carefully controlled to enhance arrayability. The trapezoidal cabinet is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood and includes 13 M10 threaded suspension points. Optional planar array frame kits (PAF-2K and PAF-3K) provide additional mounting options. Part of JBL’s AE Application Engineered Series, the AM7315 is ideal for performing arts venues, theaters, auditoriums, houses of worship, live clubs, sports facilities, dance clubs, and themed entertainment environments. Origin of country mexico.
Features of AM7315
2265H Differential Drive® low-frequency driver
CMCD™ Cone Midrange Compression Driver for low distortion and extended bandwidth
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for accurate coverage with low distortion
Rotatable waveguide for vertical or horizontal placement
Bi-Amp/Tri-Amp switchable operation
Black finish for professional installations
Compatible with optional planar array frame kits PAF-2K and PAF-3K
Specifications of AM7315
| Frequency Range (-10 dB) | 38 Hz – 20 kHz |
| Frequency Response (±3 dB) | 45 Hz – 18 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Index (DI) | 13 dB |
| Crossover Modes | Bi-Amp/Tri-Amp switchable |
| Crossover Frequencies | 300 Hz, 2.3 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), MF: 350 W (1400 W peak), HF: 100 W (400 W peak) |
| System Power Rating | LF: 600 W (2400 W peak), MF/HF: 200 W (800 W peak) |
| Maximum SPL (1 m) | LF: 127 dB cont avg (133 dB peak), MF: 133 dB cont avg (139 dB peak), HF: 135 dB cont avg (141 dB peak) |
| System Sensitivity (1W @ 1m) | MF/HF Section: 108 dB SPL; LF Section: 97 dB SPL; HF Section: 115 dB SPL |
| LF Driver | JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| MF Driver | JBL CMCD-82H 200 mm (8 in) Cone Midrange Compression Driver with dual voice coil |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | LF: 8 ohms, MF: 8 ohms, HF: 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| Finish | Black DuraFlex™ finish (White available on request) |

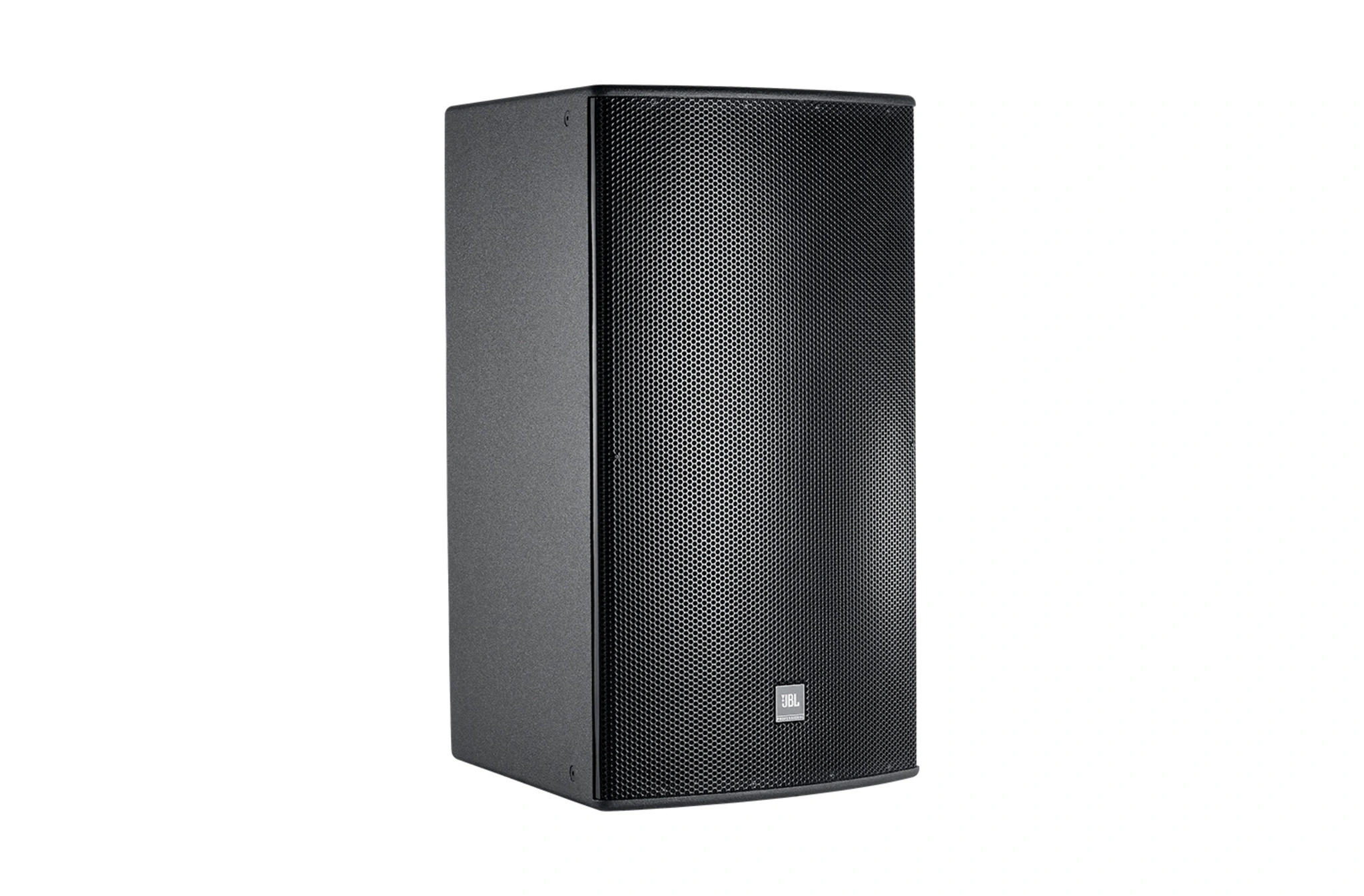

| Grille | Powder-coated 14-gauge perforated steel with acoustically transparent black foam backing |

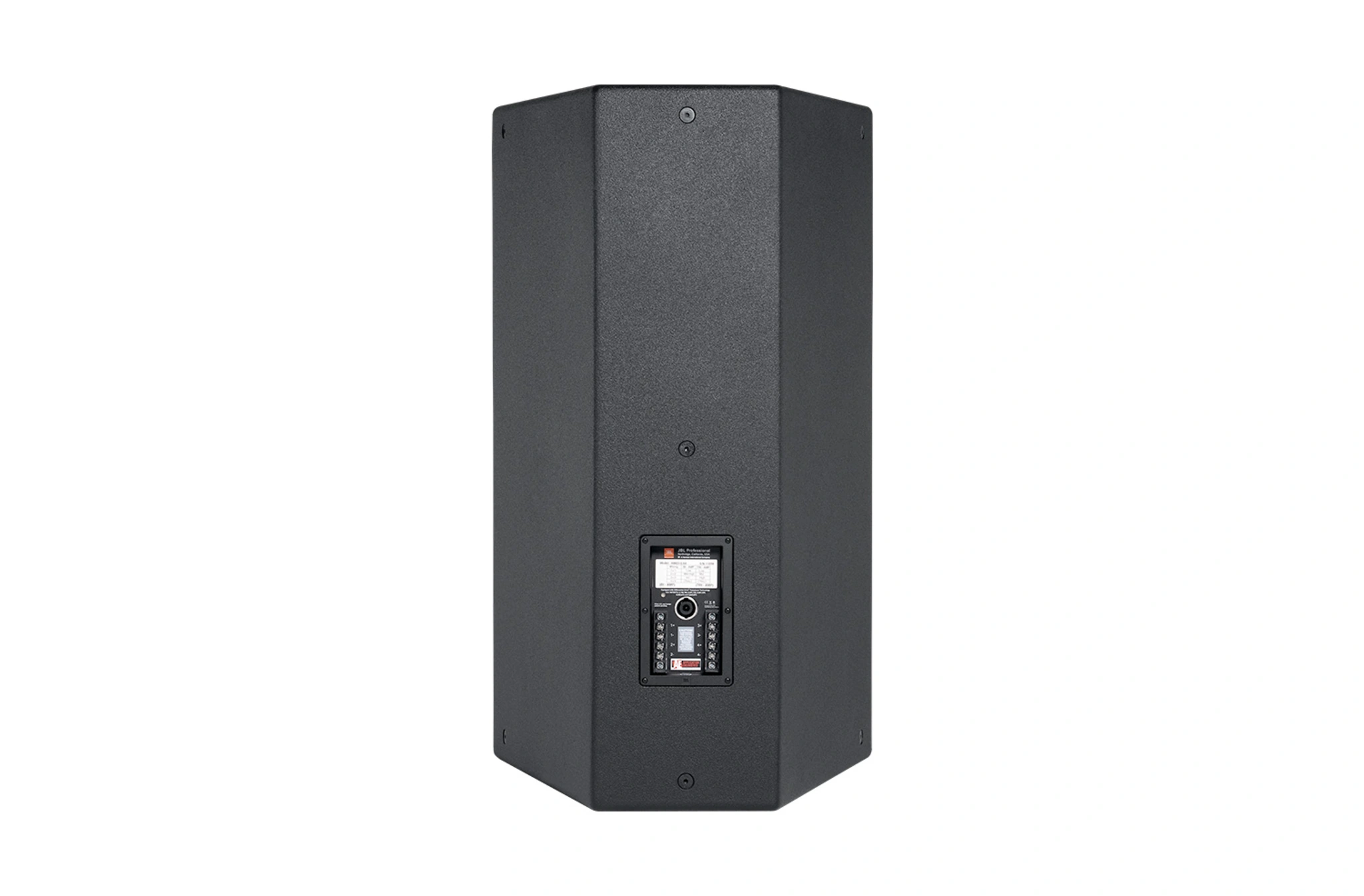

| Input Connector | NL8 Neutrik Speakon® and CE-compliant barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 967 x 561 x 657 mm |
| Net Weight | 45.8 kg (101 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts, planar array frame kits |
| Origin of Country | Mexico |
