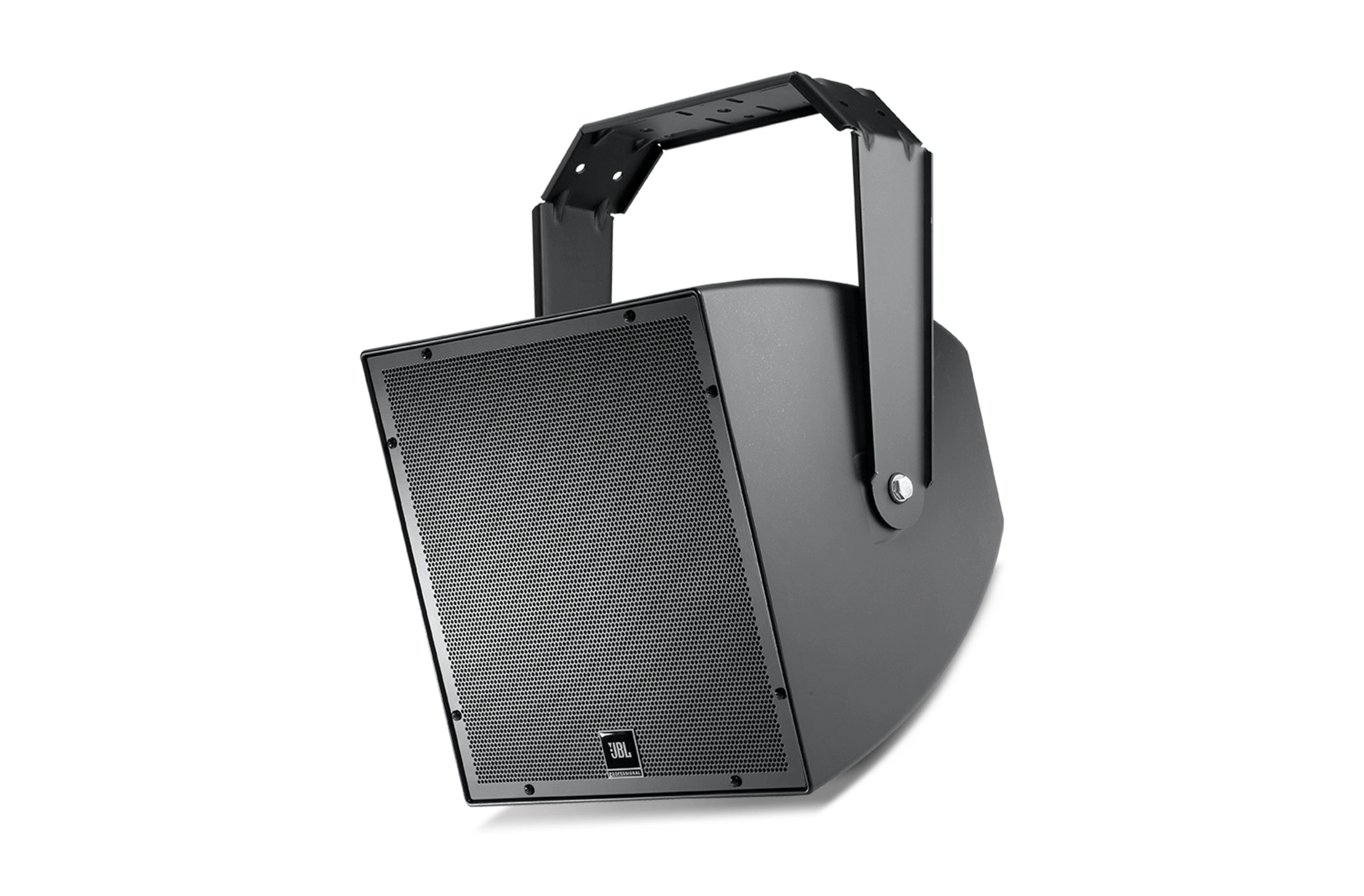

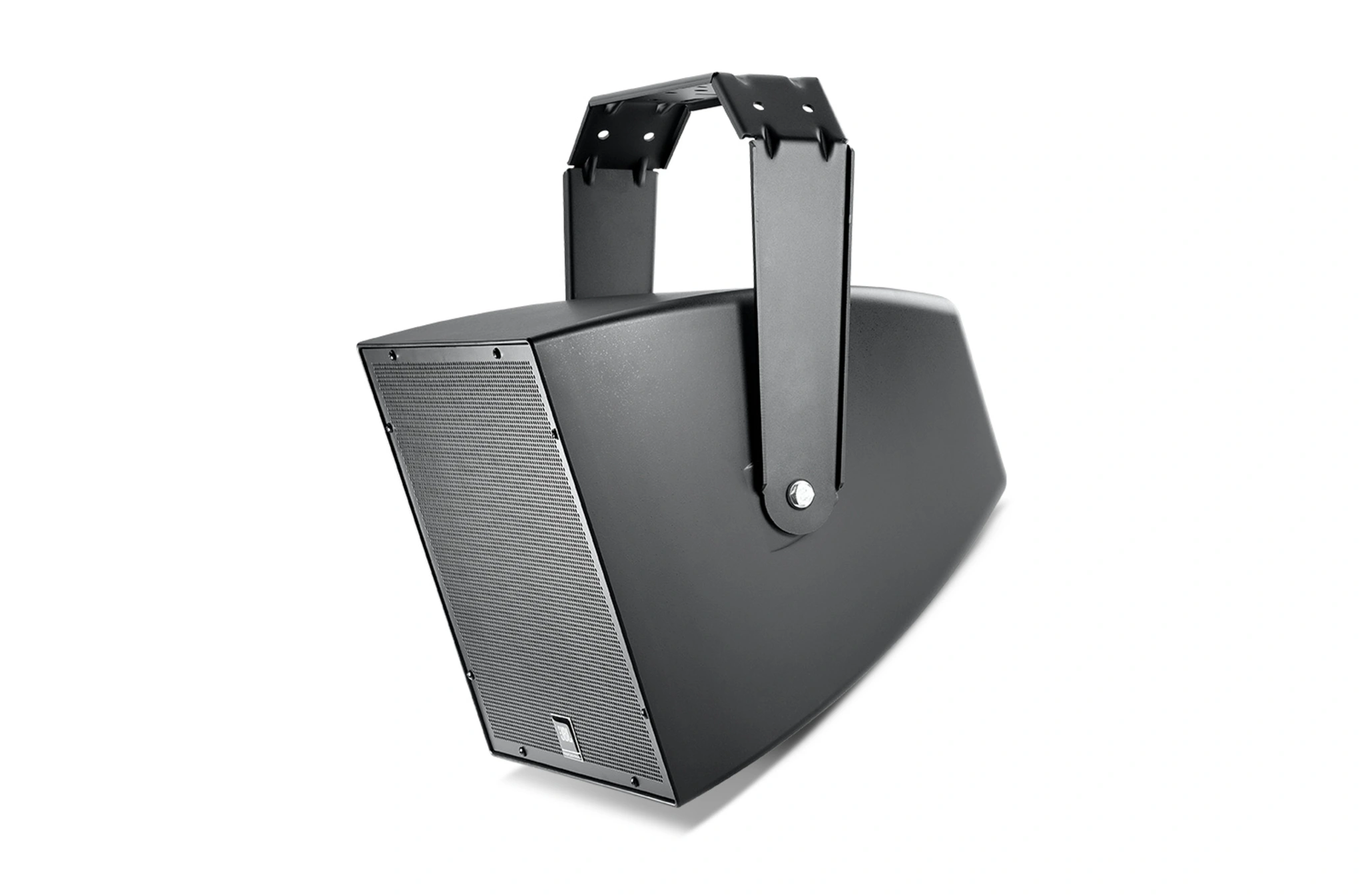

JBL AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 12″ LF – Black

JBL AWC129 12-Inch All-Weather 2-Way Coaxial Loudspeaker System

The JBL AWC129 is a compact yet powerful all-weather loudspeaker designed to deliver reliable full-range sound reproduction in challenging environments. Built for both speech reinforcement and music playback, it is well suited for stadiums, sports complexes, racetracks, fairgrounds, amusement parks, swimming pools, skating rinks, themed venues, and distributed outdoor paging systems.

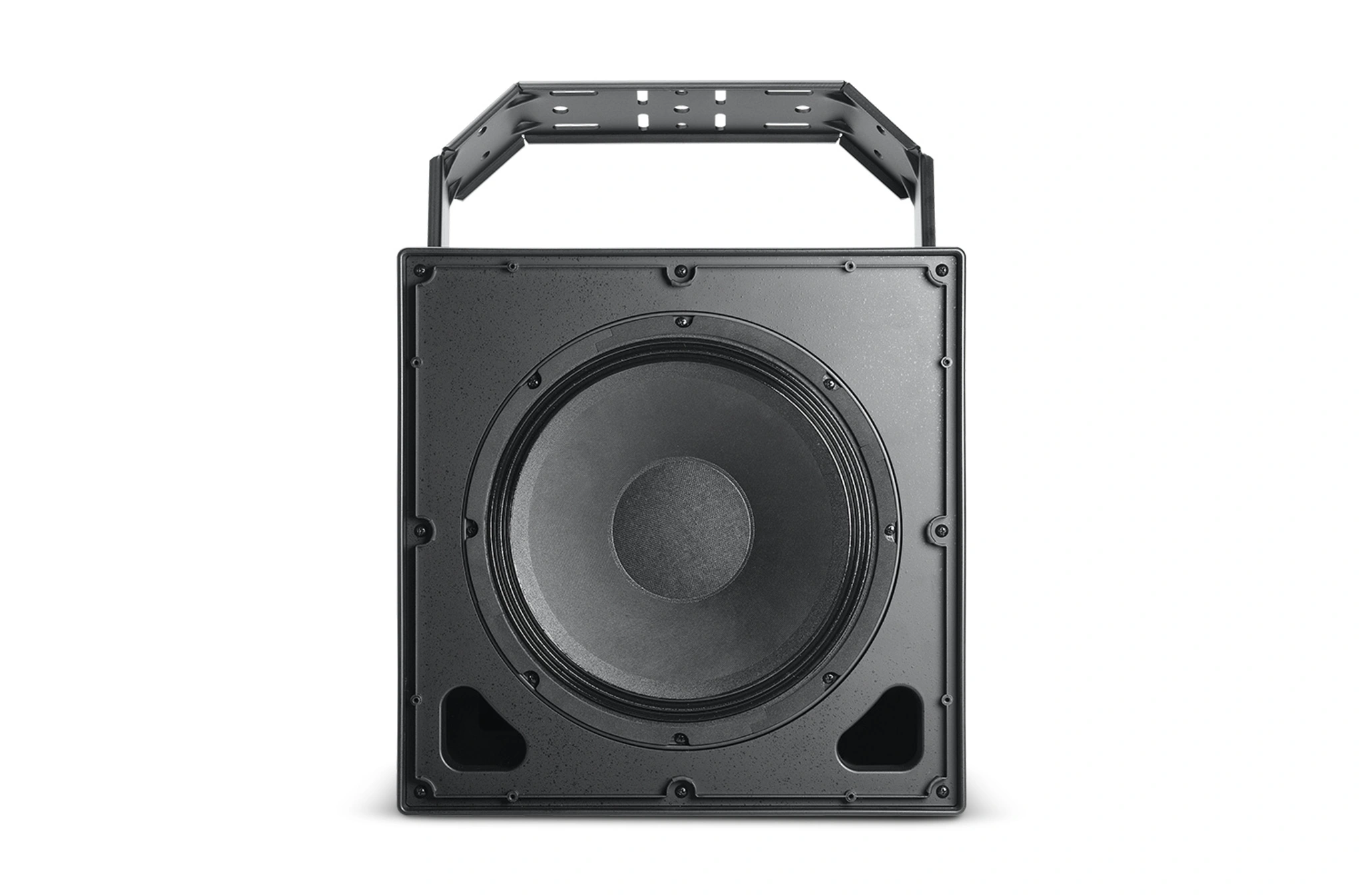

This model incorporates a 12-inch Kevlar-treated woofer featuring a robust 3-inch voice coil, ensuring strong low-frequency performance with durability under continuous operation. The high-frequency section includes a 1-inch exit compression driver utilizing a patented design and a high-temperature polymer diaphragm for consistent clarity and long-term reliability.

The 90° x 90° coverage pattern provides uniform dispersion across wide listening zones, maintaining intelligibility and tonal balance. An advanced passive crossover network with steep slope design enhances midrange smoothness and ensures stable broadband coverage. With 400 watts of continuous power handling and high sensitivity, the AWC129 is capable of delivering elevated sound pressure levels in large venues.

Constructed from heavily braced, glass-reinforced ABS, the enclosure is rated IP56 for resistance against dust and water ingress. It exceeds stringent environmental standards for humidity, salt exposure, UV resistance, and temperature stability. A corrosion-resistant powder-coated steel grille and sealed terminal compartment further enhance its suitability for harsh climates.

Features of JBL AWC129

• 12-inch Kevlar-treated low-frequency driver with 3-inch voice coil

• 1-inch compression driver with high-temperature polymer diaphragm

• IP56-rated weather-resistant enclosure

• Consistent 90° x 90° coverage pattern

• Wide frequency range from 55 Hz to 20 kHz

• 400 W continuous power handling capability

• High sensitivity for strong SPL performance

• Built-in 70V/100V multi-tap transformer

• Direct 8-ohm low-impedance operation

• High-slope passive crossover network

• SonicGuard™ high-frequency protection

• Corrosion-resistant powder-coated steel grille

• Reinforced ABS cabinet construction

• Includes heavy-duty color-matched U-bracket

• Designed for outdoor sports and entertainment facilities

Specifications of JBL AWC129
