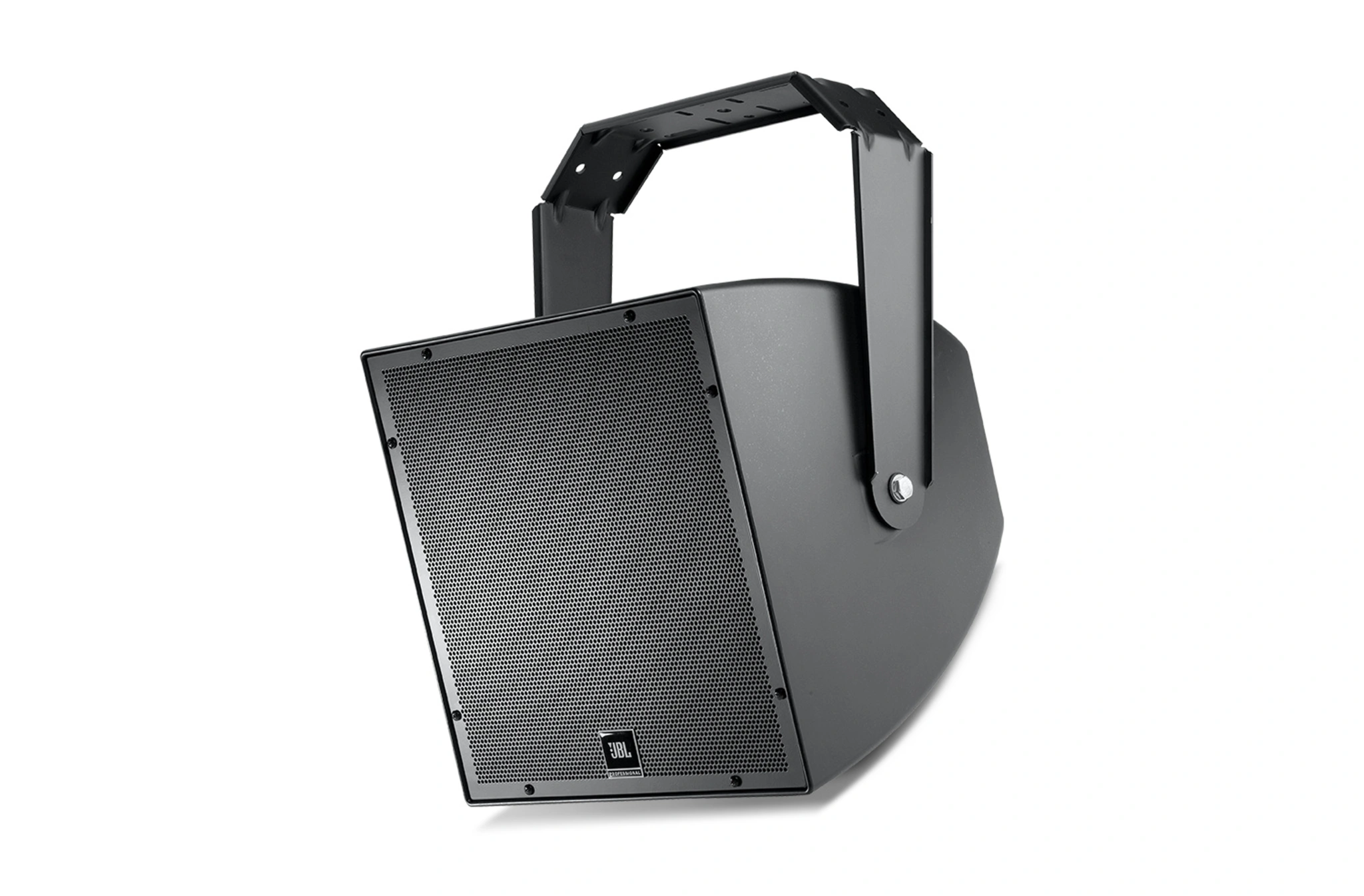

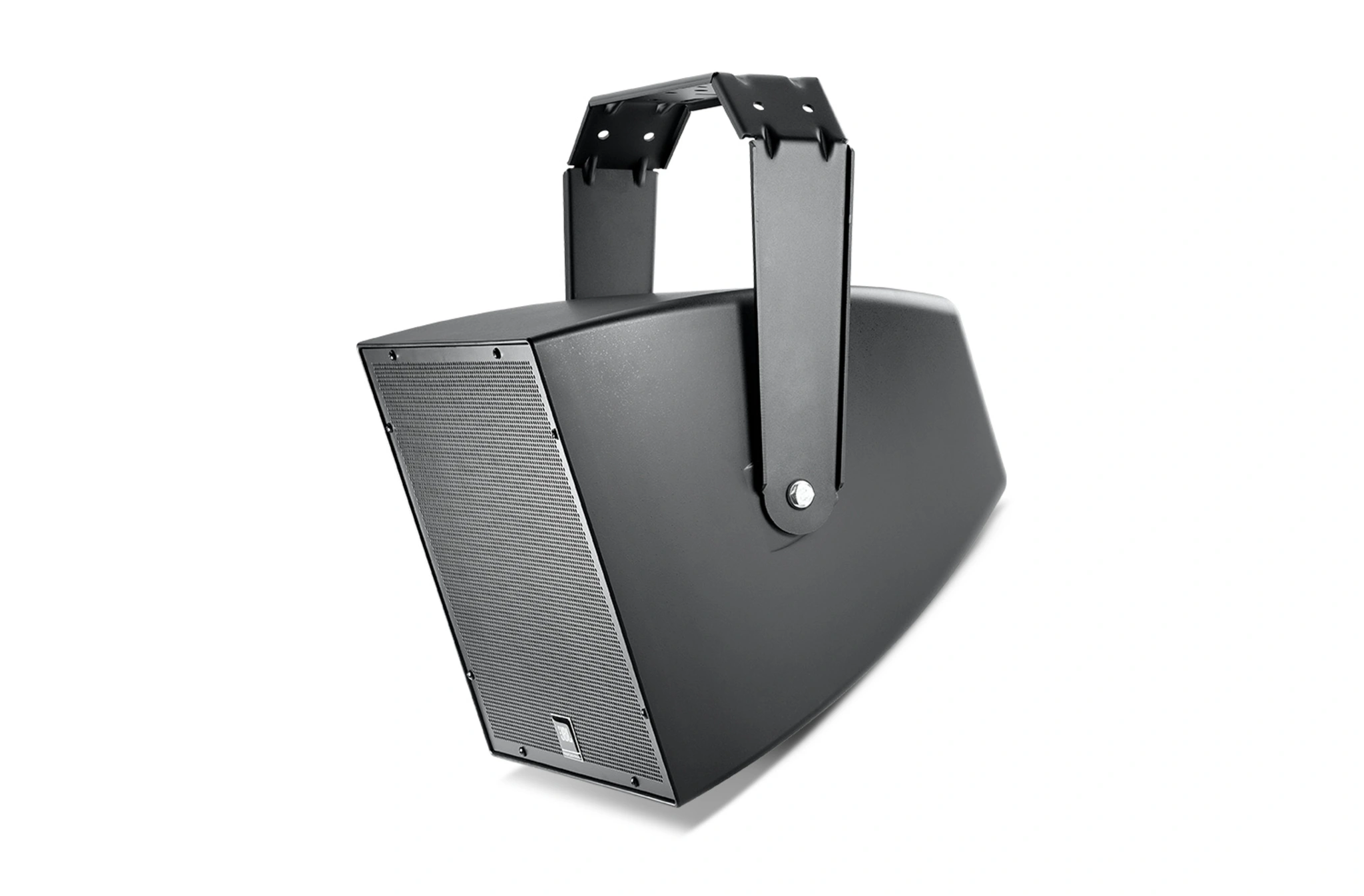

JBL AWC15LF-BK All-Weather Compact Low-Frequency Speaker with 15″ LF – Black
The JBL AWC15LF is a compact, weatherproof 15-inch low-frequency loudspeaker designed to enhance bass in both indoor and outdoor sound systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 8,561.96 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AWC15LF 15-Inch All-Weather Low-Frequency Loudspeaker
The JBL AWC15LF is a rugged, compact subwoofer built to reinforce low-frequency performance for various sound systems. Its durable, weather-resistant design (IP56 rating) makes it suitable for a wide range of indoor and outdoor venues, including stadiums, sports facilities, racetracks, fairgrounds, skating rinks, themed entertainment areas, water parks, swimming pools, and paging or background music systems.
Equipped with a 15-inch Kevlar-reinforced woofer and a 3-inch voice coil with long-excursion capability, the AWC15LF delivers deep, powerful bass down to 45 Hz. Its continuous power handling of 500 watts ensures strong output and high SPL for large-scale audio environments. For flexible integration, it offers either a 70V/100V multi-tap transformer or direct 8-ohm low-impedance operation.
The enclosure is made from heavily braced, glass-reinforced ABS, providing durability and protection against harsh conditions. A corrosion-resistant, powder-coated steel grille with layered foam and mesh safeguards the driver while maintaining sound clarity. Installation is simple with the included U-bracket and secondary safety point, allowing secure mounting in multiple orientations.
Features of JBL AWC15LF

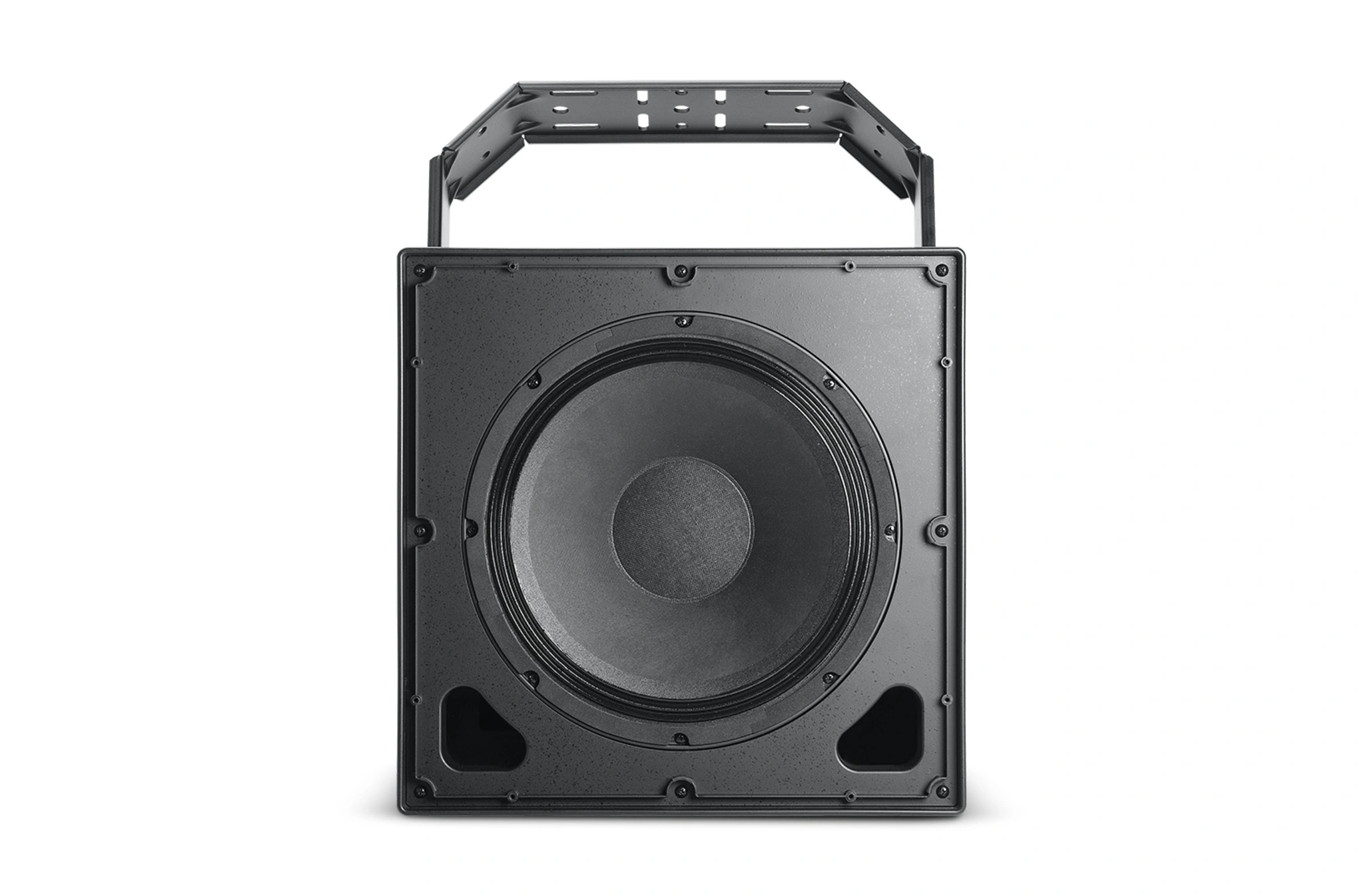

15-inch Kevlar-reinforced low-frequency driver with 3-inch voice coil
High-power low-frequency reinforcement for indoor and outdoor use
IP56-rated weather-resistant enclosure
Deep bass down to 45 Hz
500 W continuous power handling for high SPL performance
Flexible operation: 70V/100V multi-tap or direct 8-ohm mode
Durable glass-reinforced ABS cabinet
Protective, powder-coated steel grille with foam and mesh layers
Omnidirectional sound coverage
Easy and secure mounting with U-bracket and secondary safety point
Ideal for stadiums, sports venues, pools, fairgrounds, and large-scale events
Specifications of JBL AWC15LF
| Model | JBL AWC15LF 15-Inch All-Weather Low-Frequency Loudspeaker |
| Frequency Range (-10 dB) | 45 Hz – 2.2 kHz |
| Frequency Response (±3 dB) | 70 Hz – 1.2 kHz |
| System Power Rating | 500 W (2000 W peak, 2 hrs); 300 W (1200 W peak, 100 hrs) |
| Sensitivity | 94 dB (2.83V @ 1 m, 80 Hz – 300 Hz) |
| Maximum SPL | 121 dB (Direct 8Ω), 127 dB peak; 119 dB (300 W tap), 125 dB peak |
| Nominal Impedance | 8 ohms (Direct mode) |
| Transformer Taps | 70V: 300W, 150W, 75W, 38W; 100V: 300W, 150W, 75W |
| LF Driver | 15-inch Kevlar-reinforced cone, 3-inch voice coil, long-throw design |
| Enclosure | Heavily braced, glass-reinforced ABS |
| Grille | Zinc-rich, powder-coated steel with foam and mesh backing |
| Input Connection | CE-compliant covered barrier strip terminals with water-tight gland nut seal |
| Suspension Attachment | Two M10 points for U-bracket; M6 secondary safety attachment |
| Environmental | IP56-rated, exceeds Mil Spec 810 & ASTM G85 for humidity, salt spray, temperature, UV exposure |
| Dimensions | 486 x 486 x 479 mm (cabinet depth 507 mm; 546 mm including bracket) |
| Net Weight | 20.2 kg (44.5 lbs) |
| Coverage Pattern | Omnidirectional |
| Included Accessories | Color-matched U-bracket (gray or black) |
| Nominal LF Driver Impedance | 8 ohms (Direct mode) |
| Origin of Country | China |
