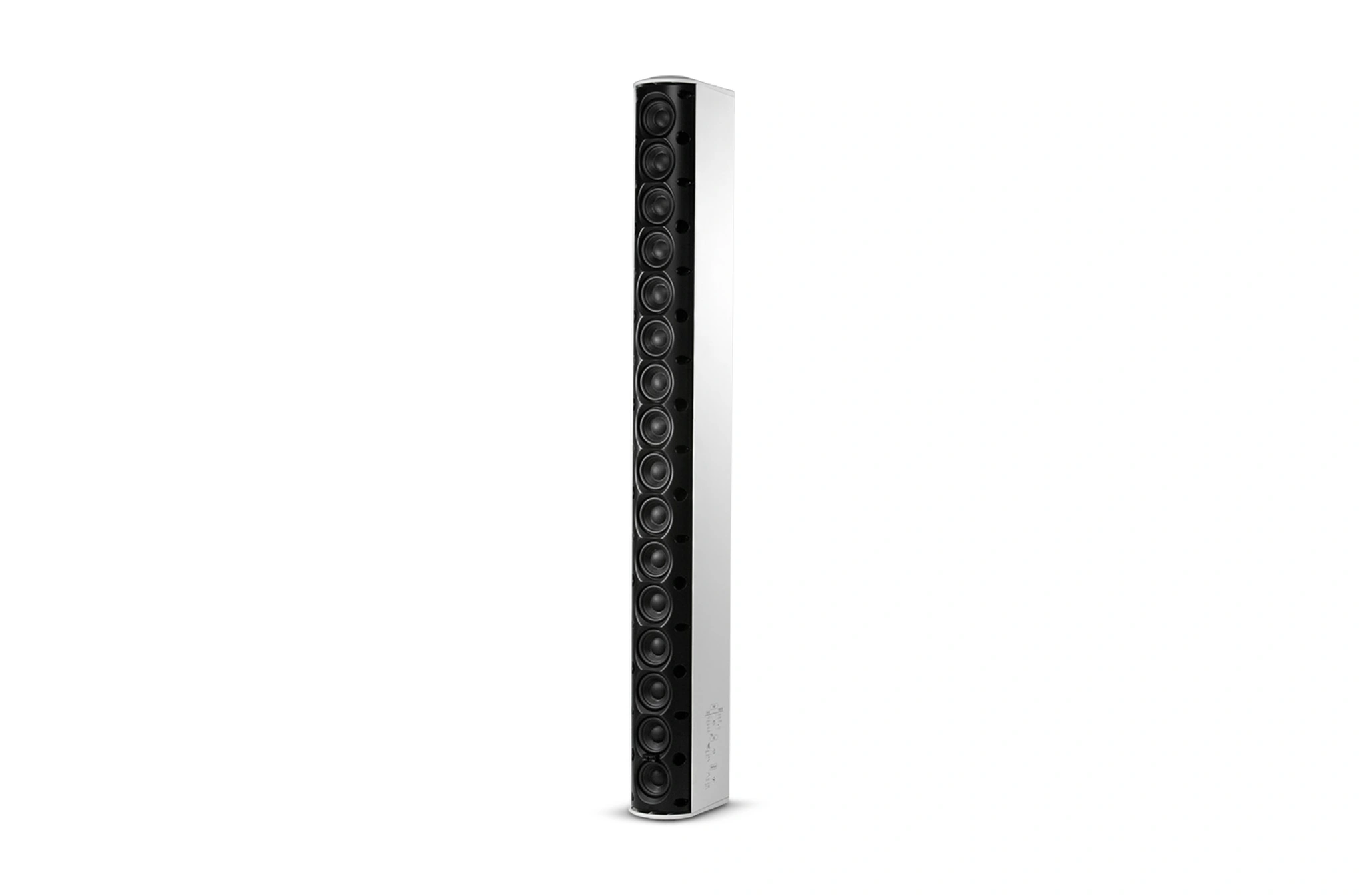

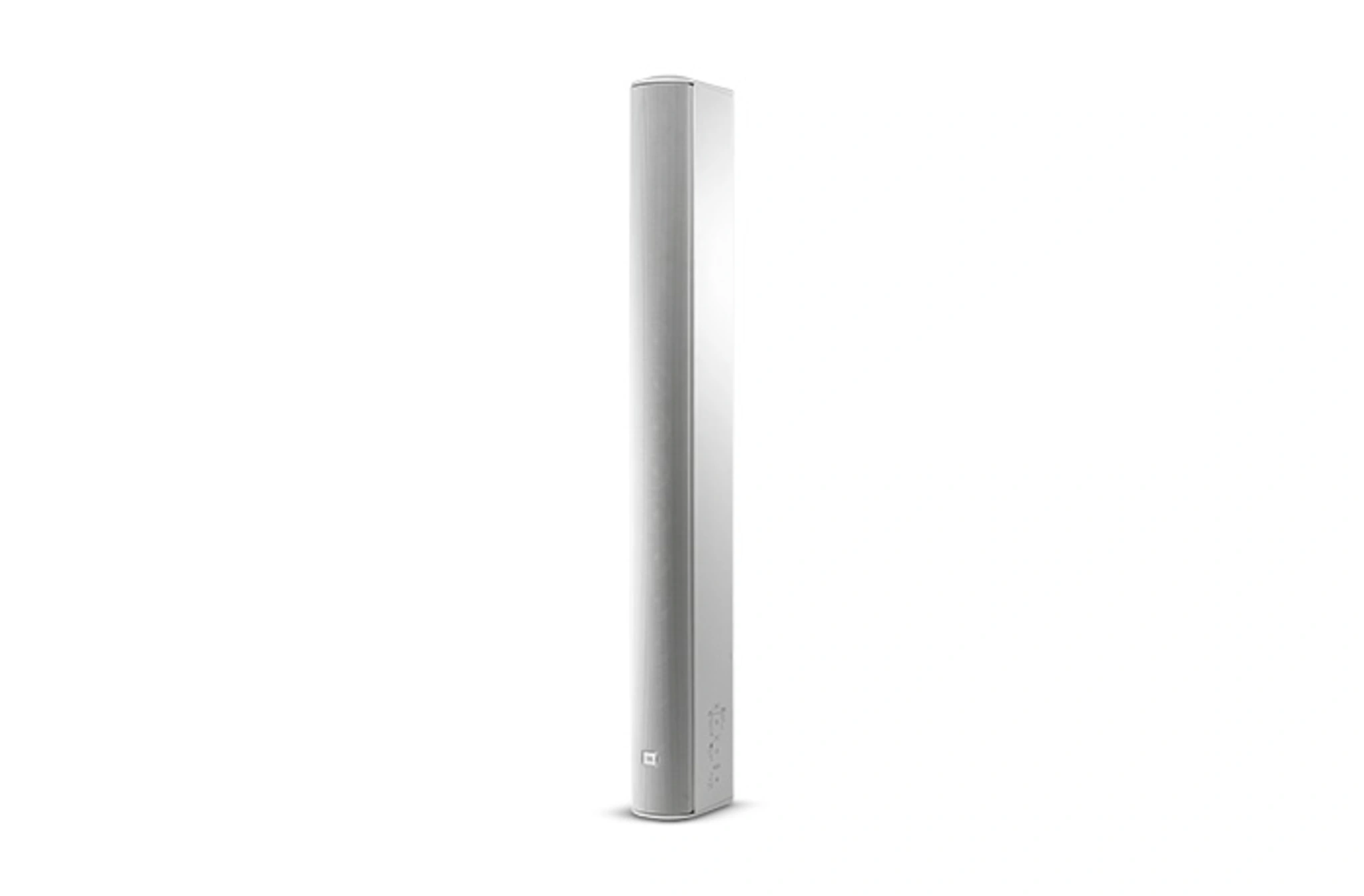

JBL CBT 100LA-1-WH Constant Beamwidth Technology Line Array Column Loudspeaker – White

JBL CBT 100LA-1 white

The JBL CBT 100LA-1 white line array column loudspeaker features Constant Beamwidth Technology™, providing superior control over vertical coverage while minimizing narrow beaming and out-of-coverage lobing. With sixteen 50 mm (2 in) full-range drivers, this speaker ensures consistent sound distribution, making it ideal for large venues where pattern control and high intelligibility are essential.

The vertical coverage is switchable between 15° for long-throw applications and 40° for medium-throw, while horizontal coverage remains at 150°, allowing precise targeting of listening areas. Switchable voicing provides either a flat response for music or a mid-range presence peak for speech. A built-in 70V/100V multi-tap transformer and direct 8-ohm capability allow flexible integration into distributed speaker systems.

Constructed with a fiberglass-reinforced ABS cabinet and painted aluminum grille, the CBT 100LA-1 white is robust and professional in appearance. The included swivel (pan)/tilt wall bracket provides continuous horizontal and vertical adjustment, while 18 M6 threaded insert points allow secure suspension or third-party mounting. Designed for both indoor and outdoor applications, it is IP55-rated when used with the optional MTC-PC2 terminal panel cover, ensuring resistance to moisture, UV, and salt spray.

Ideal for auditoriums, lecture halls, transit spaces, and other professional venues, the CBT 100LA-1 white combines high power, consistent pattern control, and flexible installation, making it a reliable solution for demanding sound reinforcement applications.

Features of CBT 100LA-1

• Sixteen 50 mm (2 in) full-range drivers for consistent coverage

• Constant Beamwidth Technology™ for uniform vertical pattern control

• Switchable vertical coverage: 15° long-throw, 40° medium-throw

• Horizontal coverage: 150° (±20°)

• Switchable voicing: flat music or mid-range speech mode

• 325 W continuous (1300 W peak, 2 hrs) power handling

• Built-in 70V/100V transformer and 8-ohm direct input

• Dynamic SonicGuard™ overload protection

• Fiberglass-reinforced ABS cabinet with painted aluminum grille

• IP55-rated with optional MTC-PC2 cover for outdoor use

• Swivel (pan)/tilt wall bracket included

• 18 M6 threaded insert points for suspension or third-party brackets

• Optional accessories: flush-mount bracket, stand-mount bracket, terminal panel cover

• Origin of Country: China

Specifications of CBT 100LA-1
